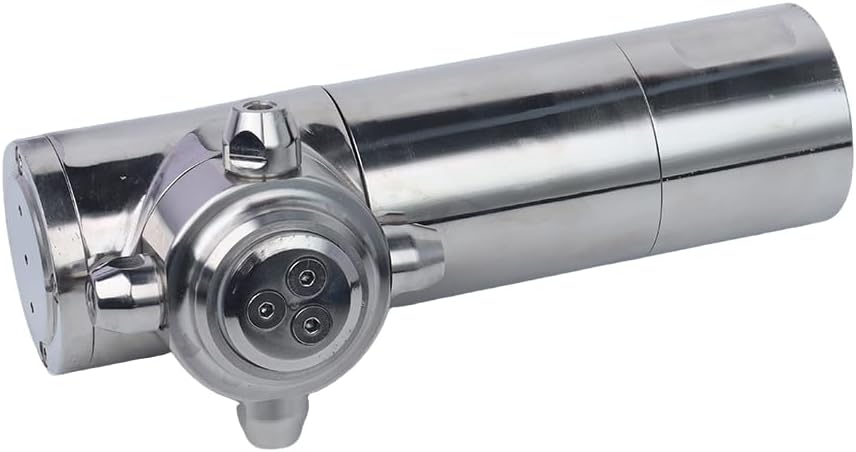

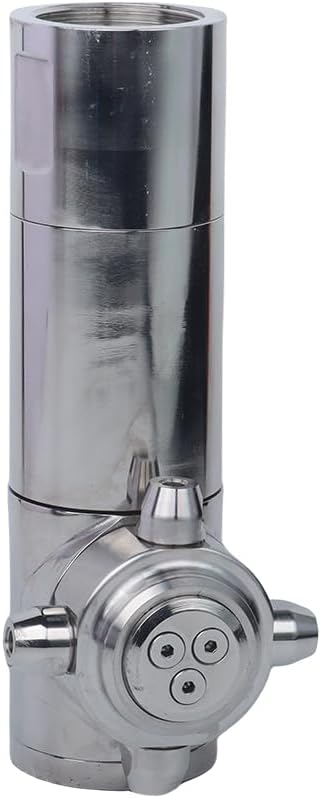

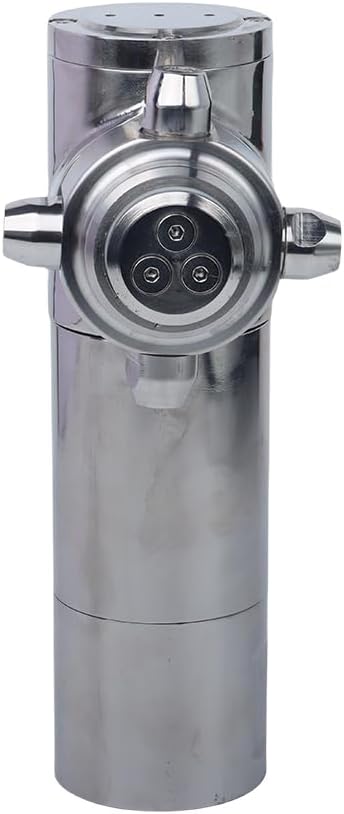

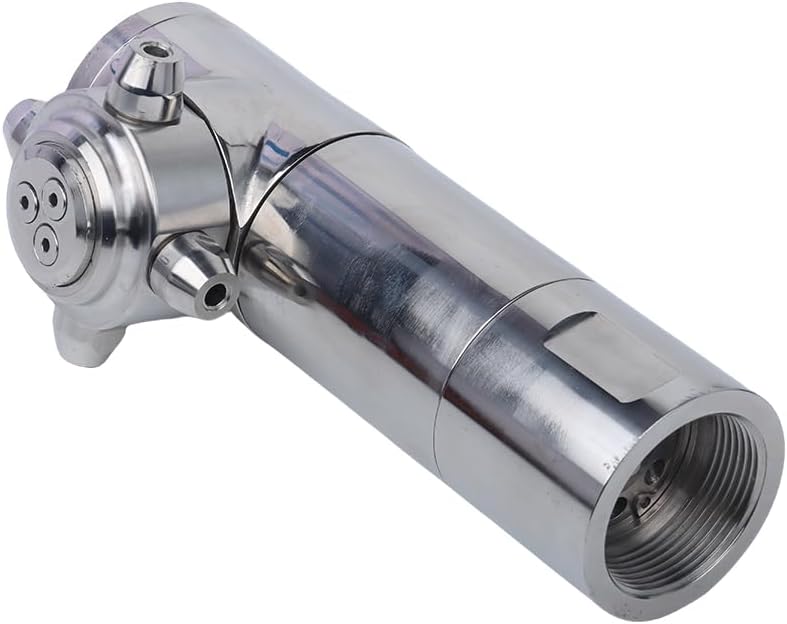

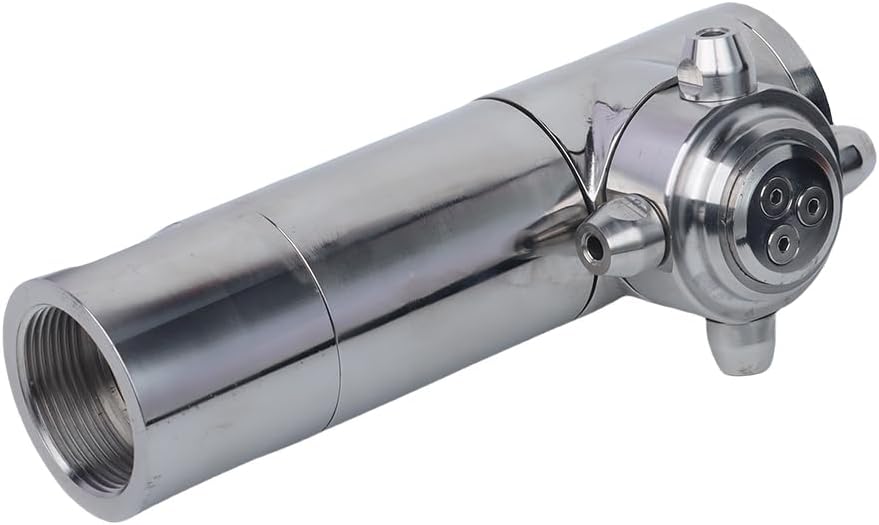

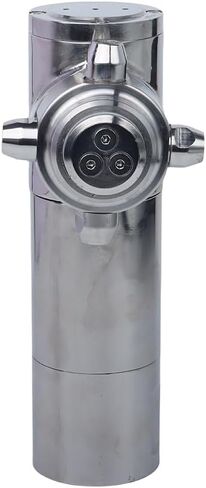

This rotating tank cleaning nozzle operates with four nozzle ports arranged in a vertical orientation, delivering full 360-degree coverage through axial and radial rotation. The design achieves thorough cleaning without blind spots for tanks up to 15.3 meters (50 feet) in diameter.
Technical Specifications:
Maximum Cleaning Diameter: 15.3 meters (50 feet)
Drive Type: Gear reduction drive
Weight: 4.1 kg
Operating Pressure: 4 to 20 bar
Flow Rate: 6 to 12 cubic meters per hour
Cleaning Cycle: 5 to 35 minutes
Cleaning Angle: 360 degrees
Construction Materials: 316L stainless steel, PTFE
Minimum Access Opening: 110mm
Connection: 1-1/2 inch NPT or BSPT female thread
Operating Temperature: Up to 93°C (200°F)
Compatible Cleaning Media: Water, weak acid solutions, weak alkaline solutions
Engineered with dynamic sealing at all leakage points, this industrial spray head minimizes fluid loss during operation. The reduced leakage translates to more efficient use of cleaning solutions and maintains higher internal pressure for increased impact force. A flow stabilization design concentrates the spray pattern, delivering higher impact force to effectively remove stubborn residues from interior tank surfaces.
Constructed from 316L stainless steel with PTFE components, this tank cleaning nozzle offers excellent resistance to corrosion and chemical attack. The material selection supports use with water, weak acid solutions, and weak alkaline solutions across demanding environments in pharmaceutical, chemical, food processing, and industrial applications where material compatibility is essential.
Engineered to fit through access openings as small as 110mm, this rotating spray ball delivers high-impact cleaning force while accommodating space-constrained installations. The 1-1/2 inch NPT or BSPT female connection provides flexible installation options with a compact 4.1kg weight. The gear reduction drive mechanism ensures reliable operation across diverse applications.
This cleaning nozzle is widely used across industries including food and beverage, dairy, pharmaceutical, chemical processing, coatings, paints, resins, pigments, cosmetics, biotechnology, agricultural processing, and renewable energy manufacturing, providing consistent cleaning performance for tanks, reactors, IBC totes, and closed containers.
