Description:

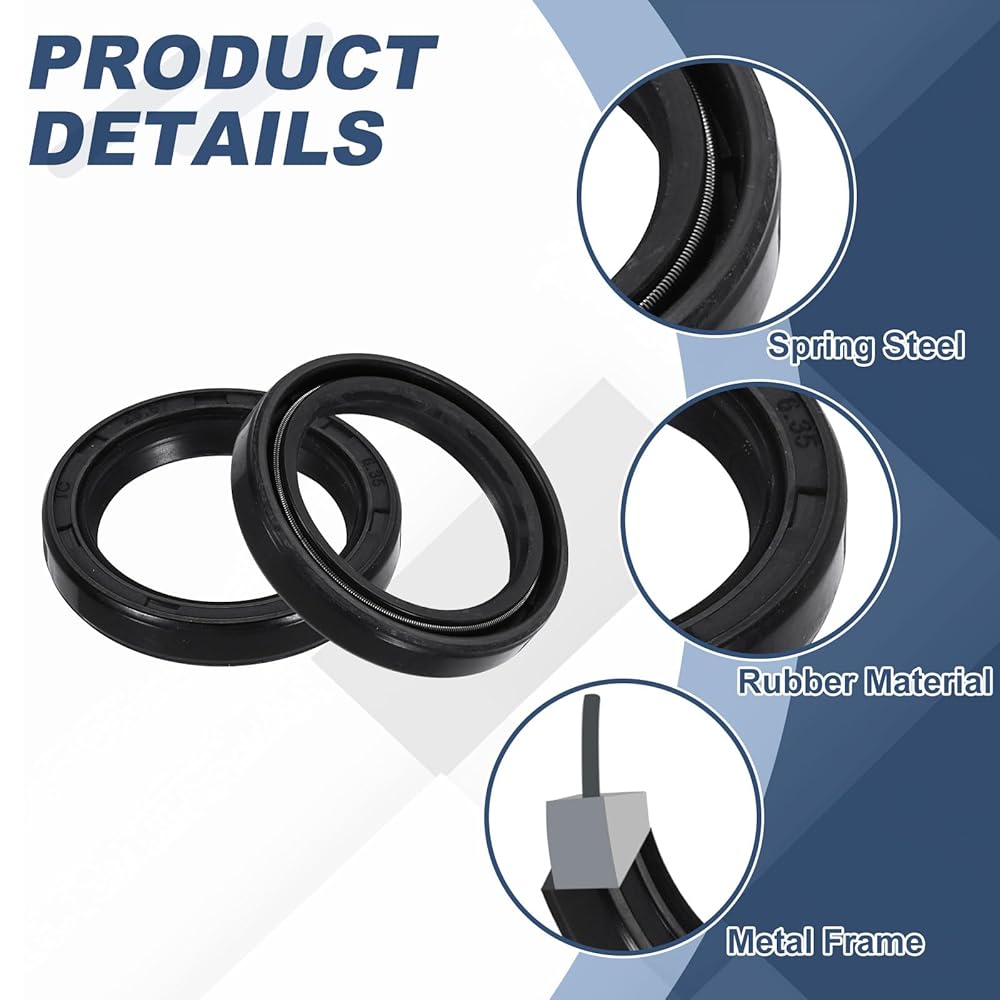

Material - The oil seal surface is made of nitrile rubber, and the interior is a metal frame, which has good mechanical properties and high wear resistance. It has good tolerance to many types of petroleum, grease, water, hydraulic oil, and mineral oil, is resistant to aging, and has a long service life.
Design - TC type oil seals adopt a double lip design and are equipped with clamping springs. They have good sealing performance and can prevent dust from entering the machine and prevent lubricating oil or other liquids from leaking.
How to Use - First, clean the installation surface, then add an appropriate amount of lubricating oil to the installation surface, install the oil seal, and tighten it with the lip of the oil seal facing the direction of the rotating shaft. Please confirm the required oil seal size before purchasing.
Wide Application - Widely used in bearing parts of industry, automobiles, ships, motorcycles, such as crankshafts, camshafts, differentials, shock absorber, engines, axles, front and rear wheels, or other objects that require bearing seals.

Specification:
Material: Nitrile Rubber
Color: Black
Operating Temperature: -25 to 120 degrees Celsius
Working Pressure: ＜0.05 MPa
Linear Speed: ＜15m/s

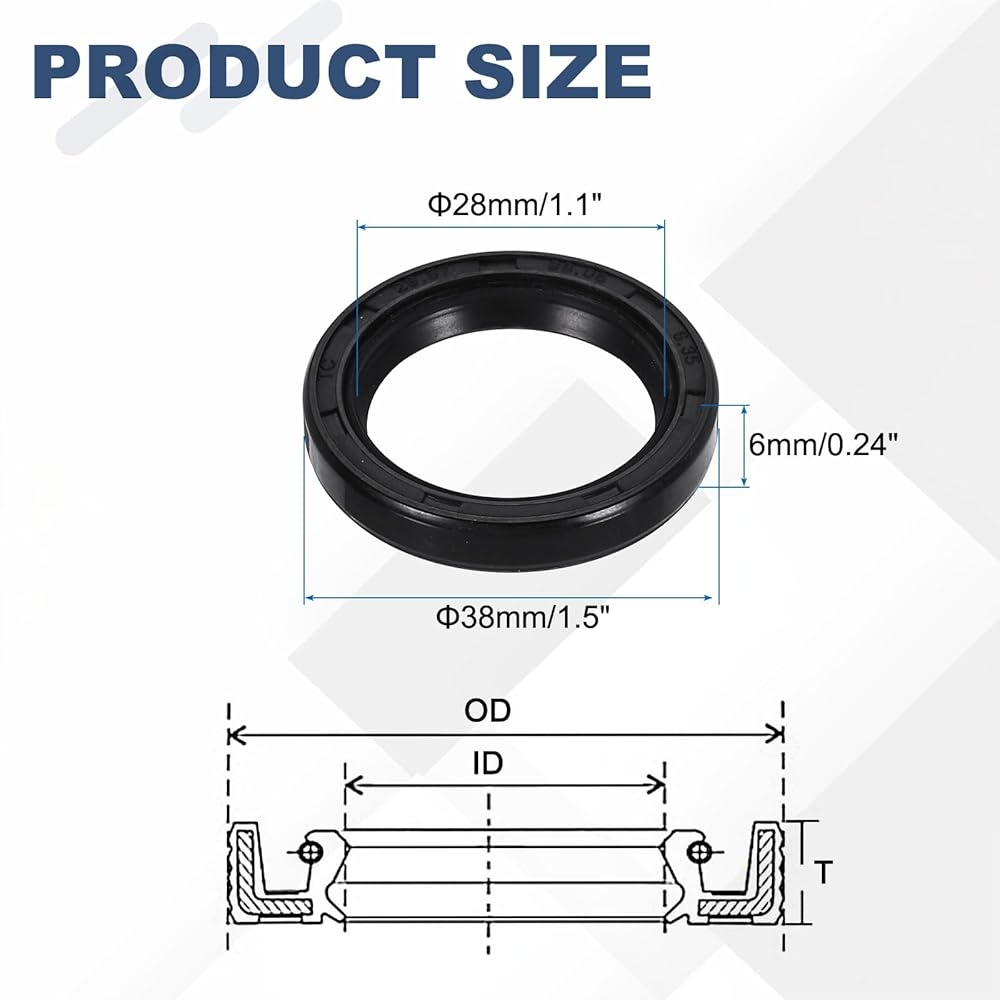

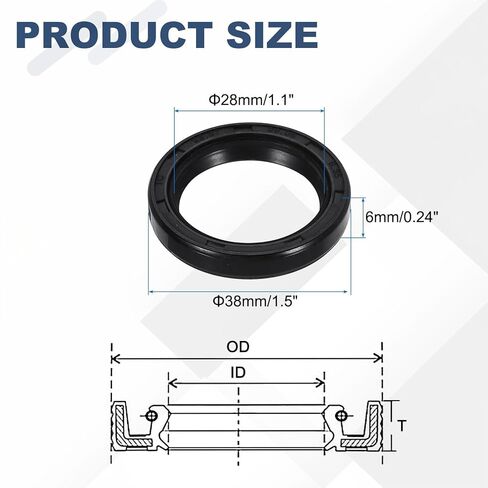

Inner Diameter: 28mm/1.1 inch
Outer Diameter: 38mm/1.5 inch
Thickness: 6mm/0.24 inch

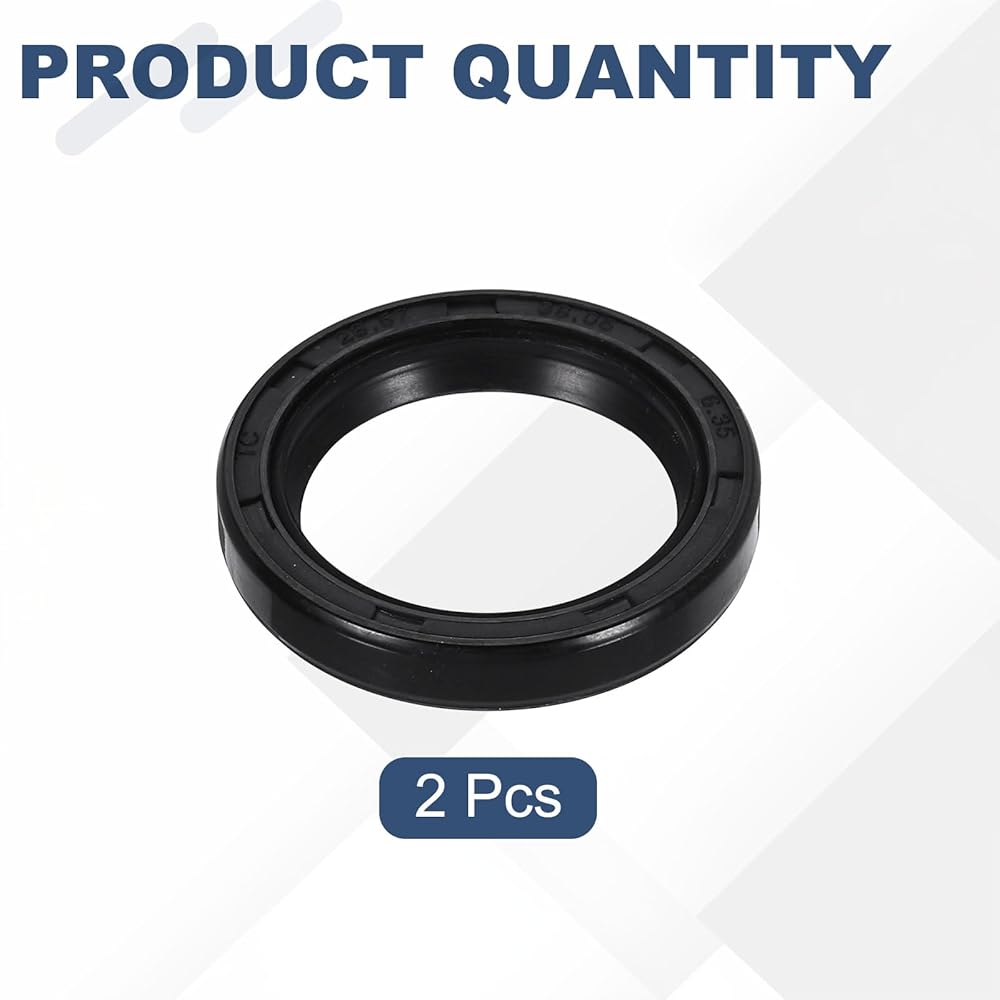

Package: 2Pcs x Oil Seal
