40 HP Rotary Cutter Gearbox 1-3/8 Smooth Input Shaft 1:1.93 - Cast Iron housing - Input Speed: 540/1,000 Max RPM; CCW to CW with 1:1.93 Ratio; 250045SC in Saudi Arabia 40 HP Rotary Cutter Gearbox 1-3/8 Smooth Input Shaft 1:1.93 - Cast Iron housing - Input Speed: 540/1,000 Max RPM; CCW to CW with 1:1.93 Ratio; 250045SC in Saudi Arabia 40 HP Rotary Cutter Gearbox 1-3/8 Smooth Input Shaft 1:1.93 - Cast Iron housing - Input Speed: 540/1,000 Max RPM; CCW to CW with 1:1.93 Ratio; 250045SC in Saudi Arabia 40 HP Rotary Cutter Gearbox 1-3/8 Smooth Input Shaft 1:1.93 - Cast Iron housing - Input Speed: 540/1,000 Max RPM; CCW to CW with 1:1.93 Ratio; 250045SC in Saudi Arabia

40 HP Rotary Cutter Gearbox 1-3/8 Smooth Input Shaft 1:1.93 - Cast Iron housing - Input Speed: 540/1,000 Max RPM; CCW to CW with 1:1.93 Ratio; 250045SC

SAR 912
– 1 +

Special Features

  • Application: Replaces OEM gearboxes on 4', 5' and some 6' rotary cutters by these manufacturers: Howse 350 & 400, King Kutter Mowers, Mohawk Brave 4', Modern 42", 4' & 5' Competitor and 4' & 5' Sunshine, Sidewinder SX42, LX50, GM 42 & 48 and others. Please check measurements for proper fitment.
  • Technical Info:
  • Bolt Pattern: 4-3/4" Square with holes for 5/8" bolt

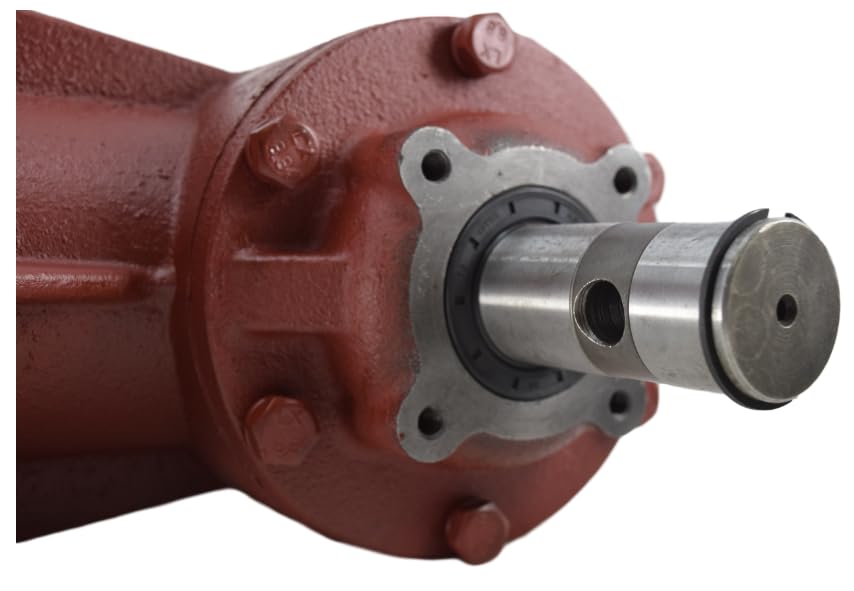

  • Input Shaft: 1-3/8" Smooth with 1/2 Shear-hole
  • Output Shaft: 1-9/16" Tapered 12-spline
  • Input Power: 40 HP
  • Input Speed: 540/1000 RPM
  • Shaft Rotation: CCW to CW with 1:1.93 Ratio
  • Pilot Hole Size: 5-1/4"

Description

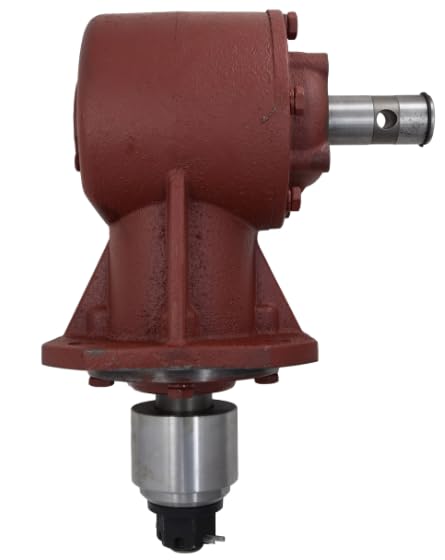

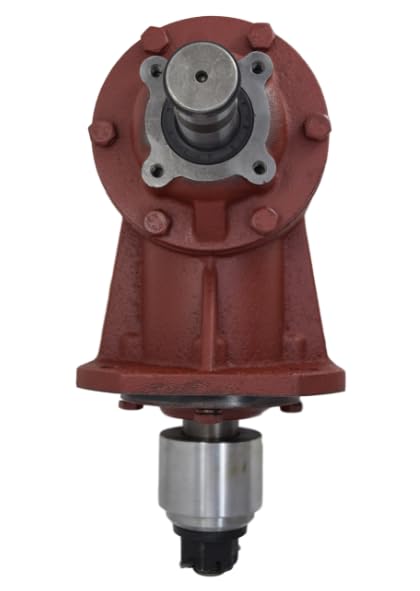

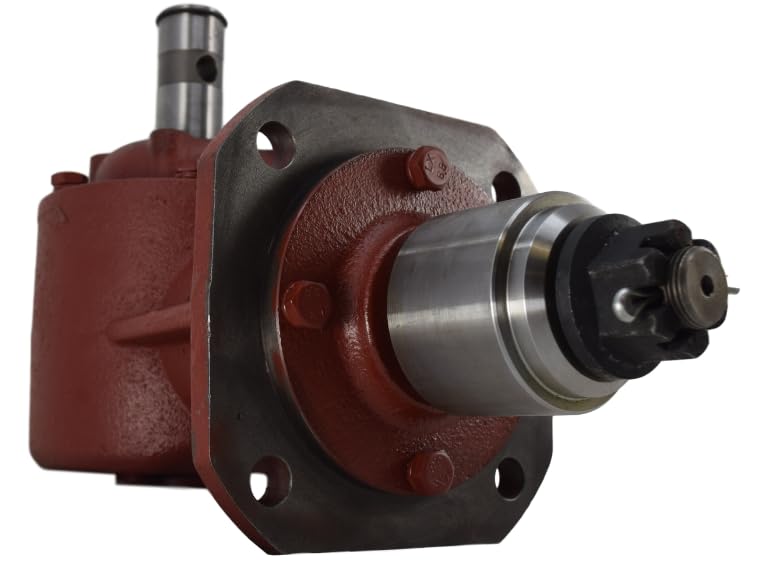

40 HP Rotary cutter gearbox with 1-3/8" smooth input shaft and a gear ratio of 1:1.93. Cast iron housing is sealed to protect the gears and bearings. The mounting plate has four bolt holes spaced 4.75" square. Ships without oil (16 oz of 80-90 W). Gearbox has a piloted flange bottom to fit in a 5-1/4" pilot hole in the mower/cutter deck.
