This air circulator features a dual-voltage motor to provide an energy efficient cooling solution in demanding environments. It is designed to withstand washdown conditions in factories, warehouses, schools, storage facilities, greenhouses, military bases, and sporting events. Use for spot cooling applications in moist or high-humidity environments such as food or beverage processing plants. The circulator head includes a wall/post/ceiling bracket for mounting, along with a vertical tilt/locking system for directional airflow. Includes a conduit box for field wiring.

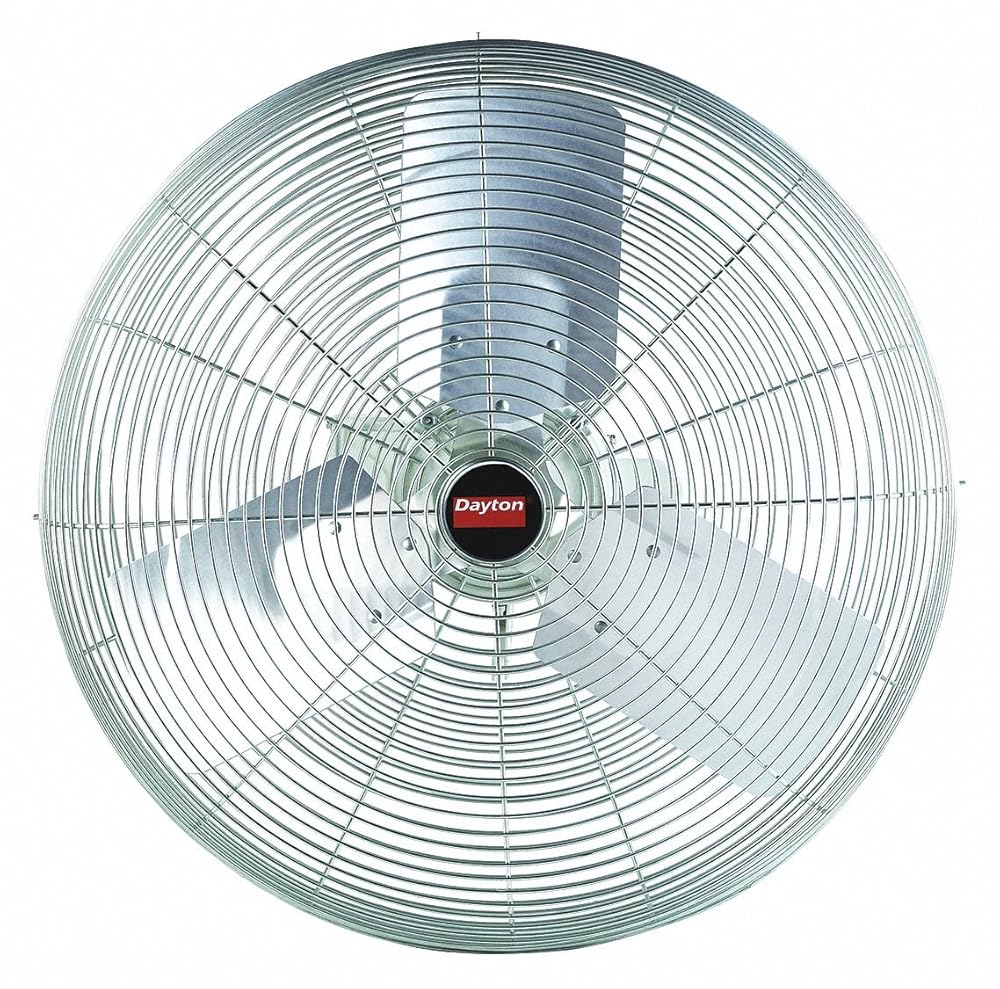

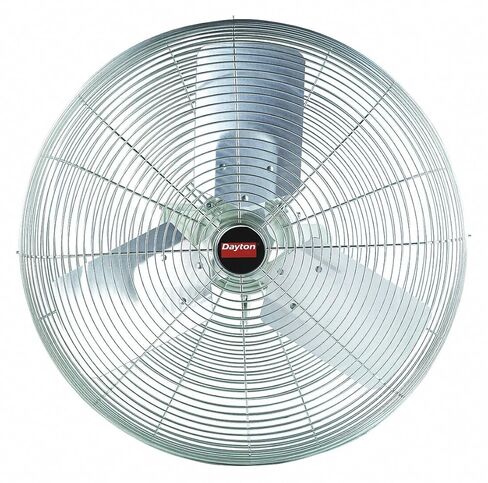

Item: Painted Washdown Air Circulator
Blade Dia.: 20"
Mobile/Stationary: Stationary
Oscillating: No
Speeds: 1
Voltage: 115/230
Phase: 1
CFM High: 4750
Air Velocity (FPM) @ 20 Ft.: 590
Motor HP: 1/4
Motor RPM: 1140
Operating Amps: 2.9/1.5
Fan Mounting Location: Wall
Fan Accessory Style: Washdown
Fan RPM: 1100
Environmental Applications: Industrial
Assembled: Yes
Air Velocity (FPM) @ 10 Ft.: 900
Air Velocity (FPM) @ 40 Ft: 240
Air Velocity (FPM) @ 60 Ft.: 155
Sound Level: 76dBA
Max. Ambient Temp.: 104 Degrees F
Hz: 60
Motor Type: Permanent Split Capacitor
Drive Type: Direct
Motor Enclosure: Totally Enclosed Air-Over
Motor Insulation: Class F
Thermal Protection: Auto
Bearing Type: Ball
Outside Dia.: 23"
Height: 29-3/8"
Width: 23"
Max. Depth: 24 1/4"
Number of Blades: 3
Blade Material: Mill Finish Aluminum
Shaft Dia.: 1/2"
Housing Material: Steel
Guard Material: Steel
Wire Guard Finish: Zinc Plated
Application: Spot Cooling for Food and Beverage Processing Plants
Standards: UL/cUL/OSHA/UL 507 Hosedown Test, CSA Certified Motor
Includes: Wall Bracket, Safety Support Cable, Conduit Box
