DC Motor Round 0.9deg 14 Stepper Motor Bipolar 8Ncm 0.65A Φ36x20mm 4-Lead for CNC Extruder Motor in Saudi Arabia DC Motor Round 0.9deg 14 Stepper Motor Bipolar 8Ncm 0.65A Φ36x20mm 4-Lead for CNC Extruder Motor in Saudi Arabia DC Motor Round 0.9deg 14 Stepper Motor Bipolar 8Ncm 0.65A Φ36x20mm 4-Lead for CNC Extruder Motor in Saudi Arabia

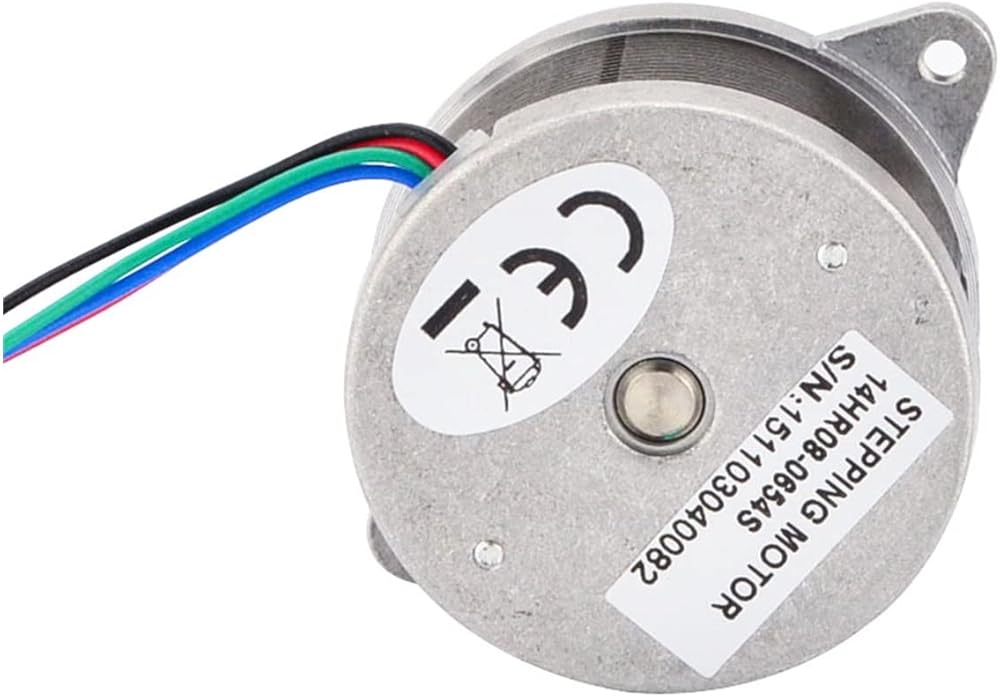

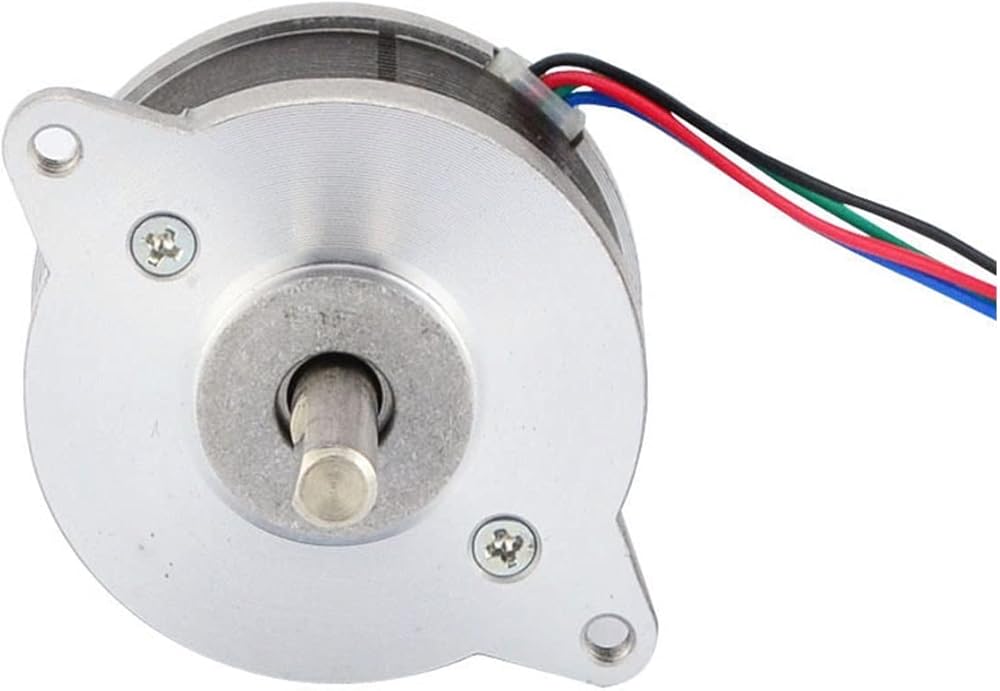

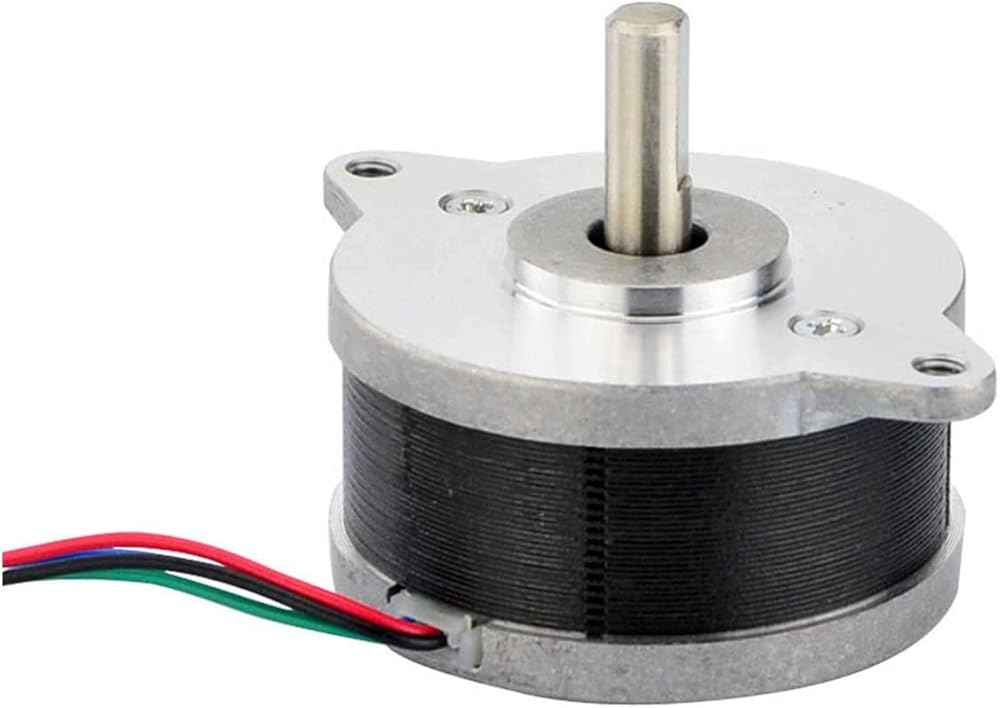

DC Motor Round 0.9deg 14 Stepper Motor Bipolar 8Ncm 0.65A Φ36x20mm 4-Lead for CNC Extruder Motor

SAR 293
– 1 +

Special Features

  • Pneumatic Motors
  • It has good wear resistance, high temperature resistance and vibration resistance.
  • Gear technology, after processing, high precision, good reliability, can guarantee stability under high life.
  • High quality metal material, solidly constructed, sturdy and durable, effectively protect the gear box motor body.
  • We only offer high quality motors! Any quality issues, please feel free to contact our customer service!
  • Perfect for mini fan,electric toys and science experiments etc.Will work with many power sources batteries and solar cells.

Description

Pneumatic Motors
Manufacturer Part Number: 14HR08-0654S
Motor Type: Bipolar Stepper
Step Angle: 0.9 deg
Holding Torque: 8Ncm
Rated Current/phase: 0.65A
Voltage: 4.6V
Phase Resistance: 7ohms
Inductance : 6.0mH ± 20%(1KHz)
Physical Specification
Frame Size: 36mm
Body Length: 19.5mm
Shaft Diameter: 5mm
Shaft Length: 15.5mm
D-cut Length: 10mm
Number of Leads: 4
Lead Length: 300mm
Weight: 100g
