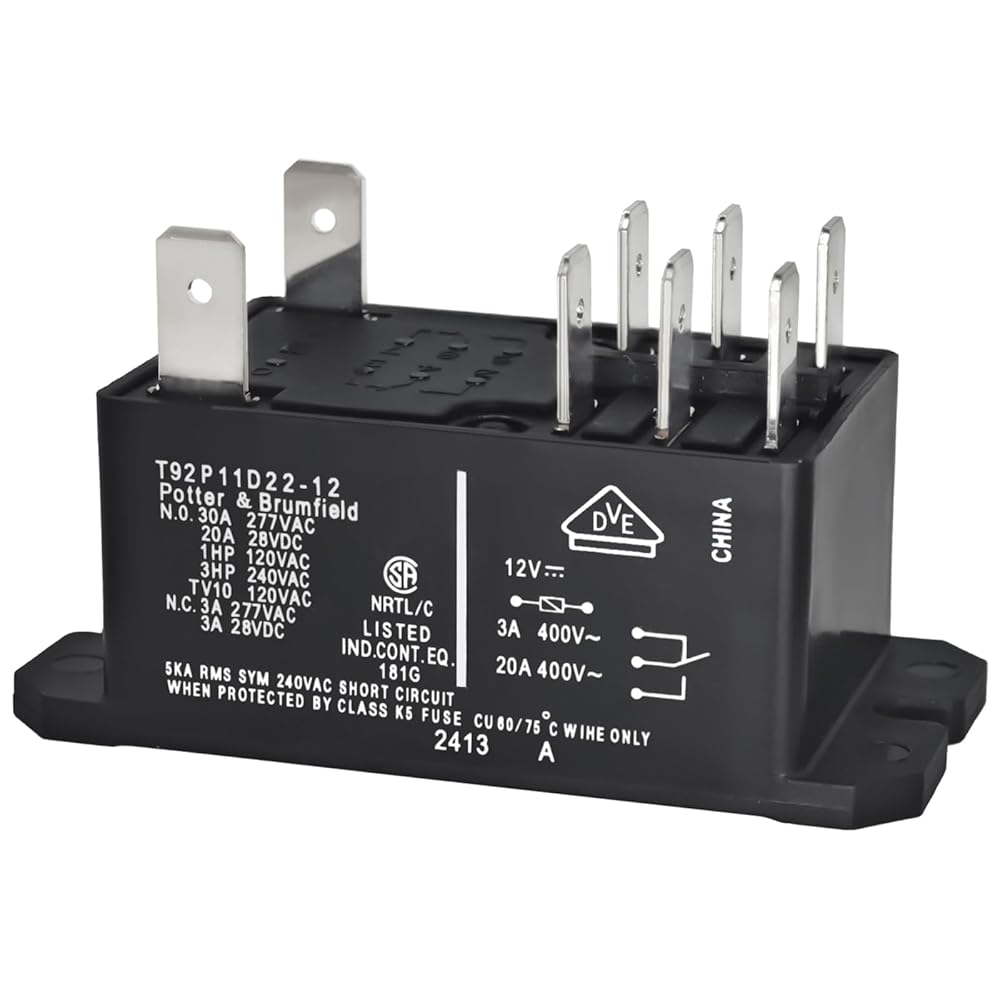

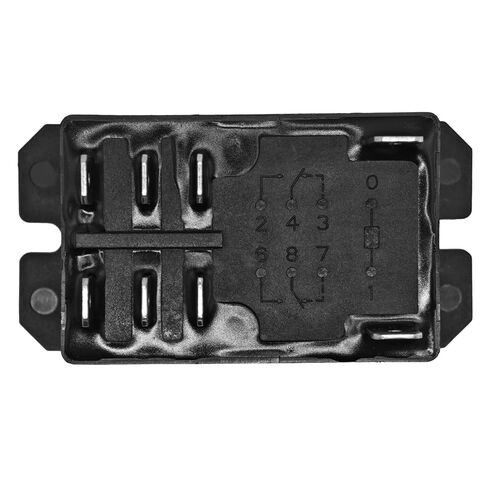

T92P11D22-12 Power Relay (Pack of 2) - DPDT, 12V DC Coil, 30A 120/277VAC General Purpose Relay

SAR 136
– 1 +

Special Features

  • DPDT Switching Configuration: Dual Pole Double Throw design provides two separate circuits that can be controlled simultaneously, each with normally open and normally closed contacts for complex switching applications.
  • 30A High Current Capacity: Rated for 30A current handling at 120/277VAC, suitable for industrial controls, HVAC systems, and high-power electrical equipment requiring reliable power switching.
  •  12V DC Coil Operation: Compatible with standard 12V DC control systems commonly found in automotive, industrial automation, and low-voltage control circuit applications.
  • Dual Voltage Compatibility: Supports both 120VAC and 277VAC operating voltages, providing flexibility for residential, commercial, and industrial power systems.
  • Industrial-Grade Construction: Features silver alloy contacts for minimal voltage drop, thermoplastic housing with dust cover, and corrosion-resistant terminals for long-term reliability.

Description

General Purpose Power Relay for Industrial Applications
The T92P11D22-12 power relay delivers reliable switching performance for a wide range of industrial, commercial, and automotive applications. This DPDT (Dual Pole Double Throw) relay provides versatile circuit control capabilities with its 30A current rating and dual voltage compatibility, making it suitable for complex switching requirements across multiple industries.

 Technical Specifications
 Contact Configuration: DPDT (Dual Pole Double Throw)
 Coil Voltage: 12V DC ±10%  Contact Rating: 30A @ 120/277VAC
 Electrical Life: 100,000 cycles minimum
 Operating Temperature: -40°C to 70°C
 Contact Material: Silver alloy
 Termination Type: Quick-connect terminals

 Applications
Industrial control systems and automation
HVAC equipment and climate control
Commercial lighting controls (120/277VAC)
Power distribution systems
Motor control circuits
Automotive and transportation systems

 Installation & Compatibility
 Standard industrial footprint for easy replacement

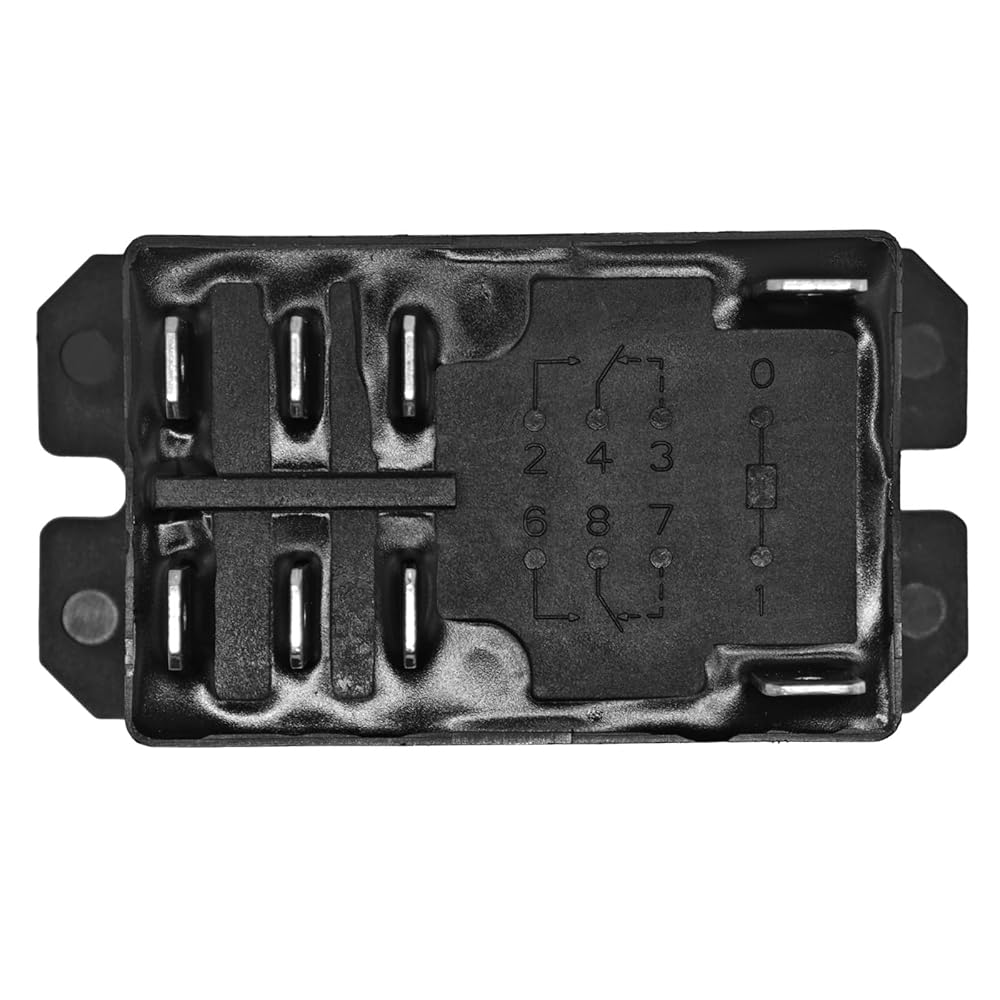

 Clear terminal numbering for proper wiring
 Compatible with standard relay sockets and panels

 Installation Guidelines
 Verify coil voltage and contact ratings match application requirements
 Disconnect all power sources before installation
 Follow proper wiring diagrams for DPDT configuration
 Ensure secure connections at all terminals
 Test operation before placing system into service

 Package Includes

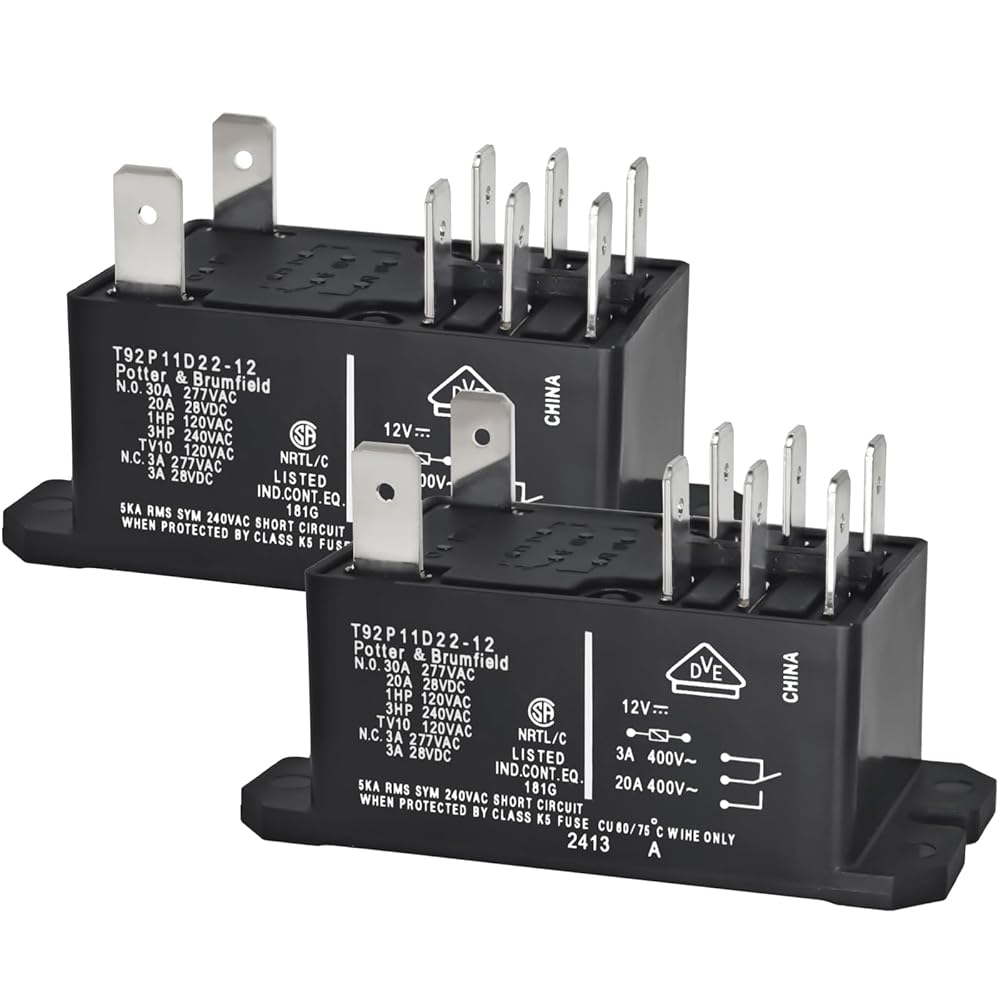

2 × T92P11D22-12 DPDT Power Relays
