Features:
1) The structure of the self-locking, safe, easy to install, portable
2) Wide inner window, allowing clamping of big cables or bus-bars
3) Wide range of sizes to accommodate all the existing installations
4) Isolated plastic case recognized
5) Wires plugs, Audio plugs, Power plugs and so on five kinds of plugs
6)Meet the standard
7)High accuracy class ,wide linearity
8) stability ,separate the external magneitc field interference
9)Measure the current directly
1m wire
Accuracy: class 1
Application: Electricity Measuring
Operating Temperature: -40°C~+70°C
Ratio:100/5A 150/5A,200/5A,250/5A,300/5A,400/5A

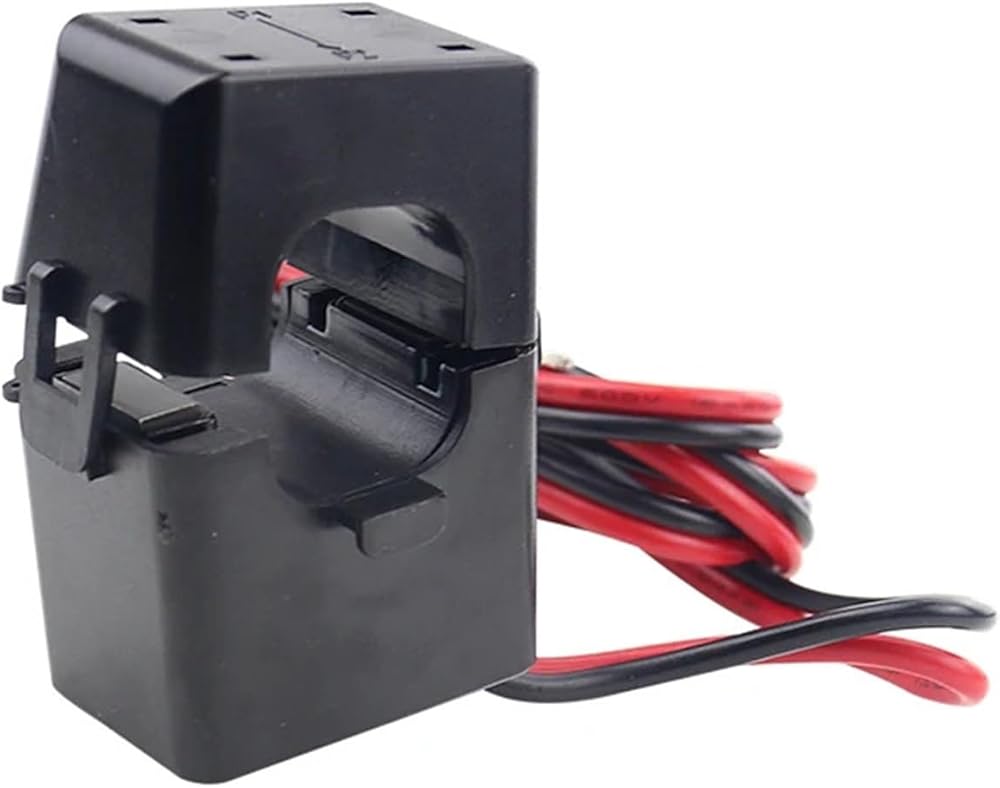

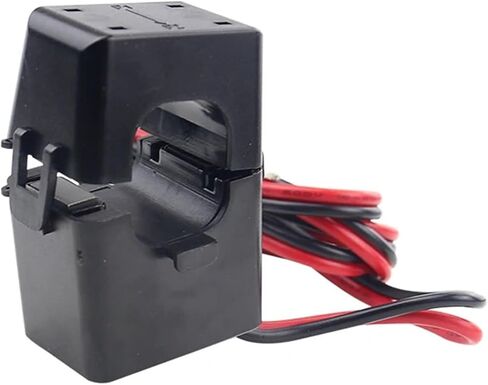

Split Core
Window Hole size:24MM
Applications:
1:Current measurement, monitoring and protection for electrical wiring and equipment.
2:Current and power measurement for electric motors, lighting, aircompressor,heating and ventilation system, air-condition equipment and automation control system.
3:Current, power and energy monitoring device.
4:Relay protection device.
==========
Coil Structure : Split Core
Coil Number : Autotransformer
Phase : SINGLE
Origin : Mainland China
Use : Current
Ratio : 100/5A 150/5A,200/5A,250/5A,300/5A,400/5A
window size : 24MM
