STEPPERONLINE P Series IP67 مقاوم للماء Nema 17 محرك متدرج 2.0A 0.59Nm(83.57oz.in in Saudi Arabia STEPPERONLINE P Series IP67 مقاوم للماء Nema 17 محرك متدرج 2.0A 0.59Nm(83.57oz.in in Saudi Arabia STEPPERONLINE P Series IP67 مقاوم للماء Nema 17 محرك متدرج 2.0A 0.59Nm(83.57oz.in in Saudi Arabia STEPPERONLINE P Series IP67 مقاوم للماء Nema 17 محرك متدرج 2.0A 0.59Nm(83.57oz.in in Saudi Arabia STEPPERONLINE P Series IP67 مقاوم للماء Nema 17 محرك متدرج 2.0A 0.59Nm(83.57oz.in in Saudi Arabia

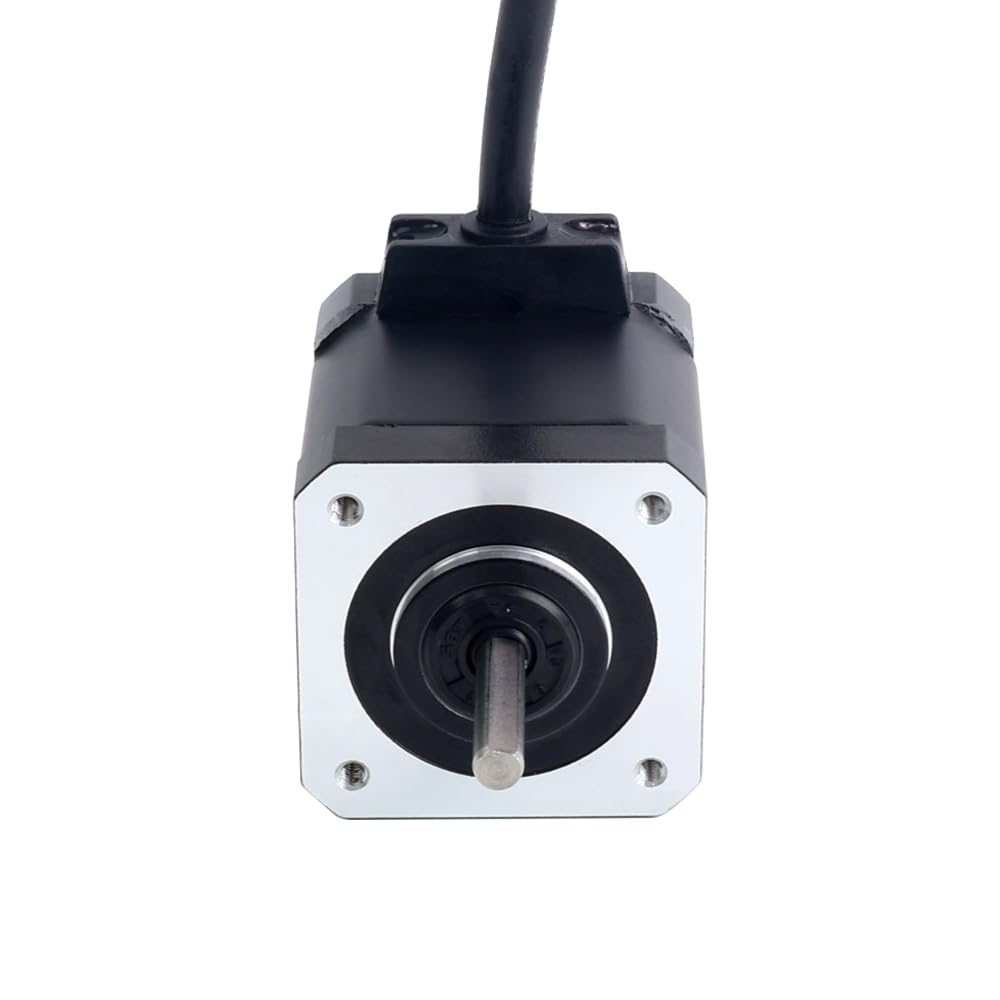

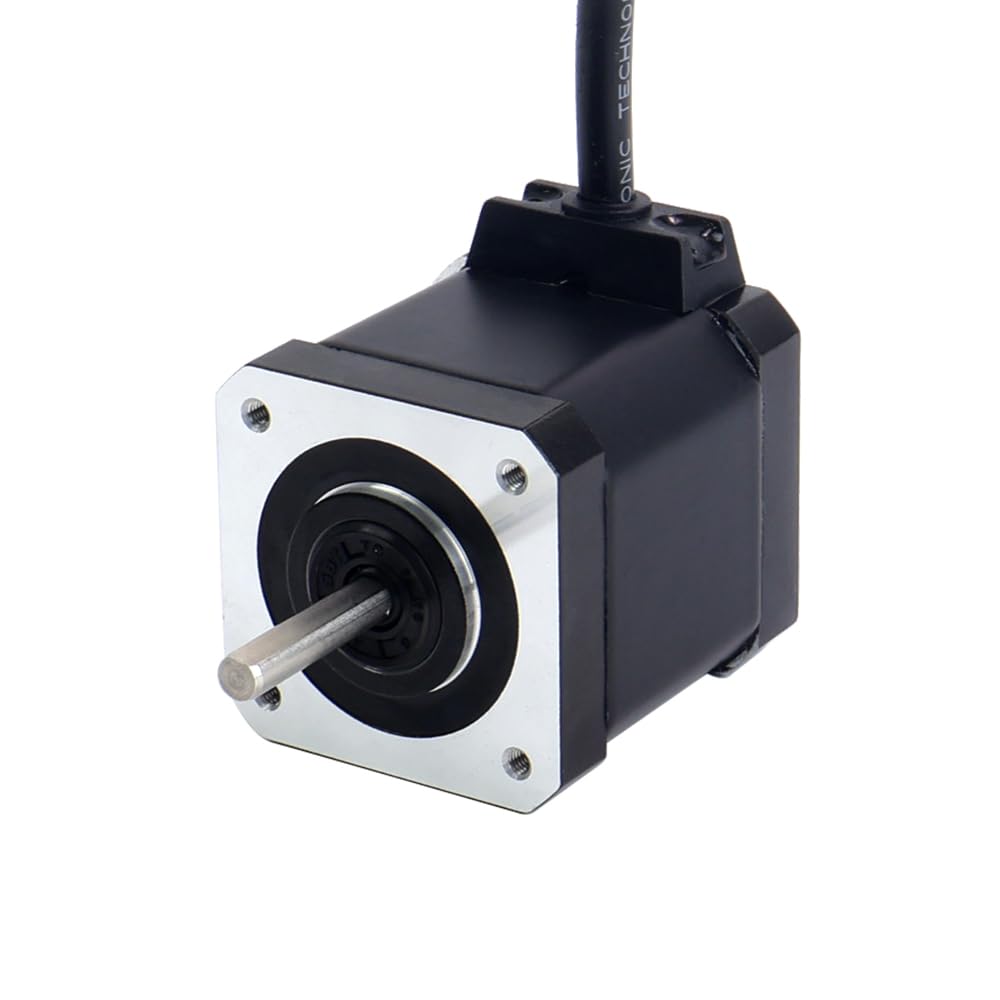

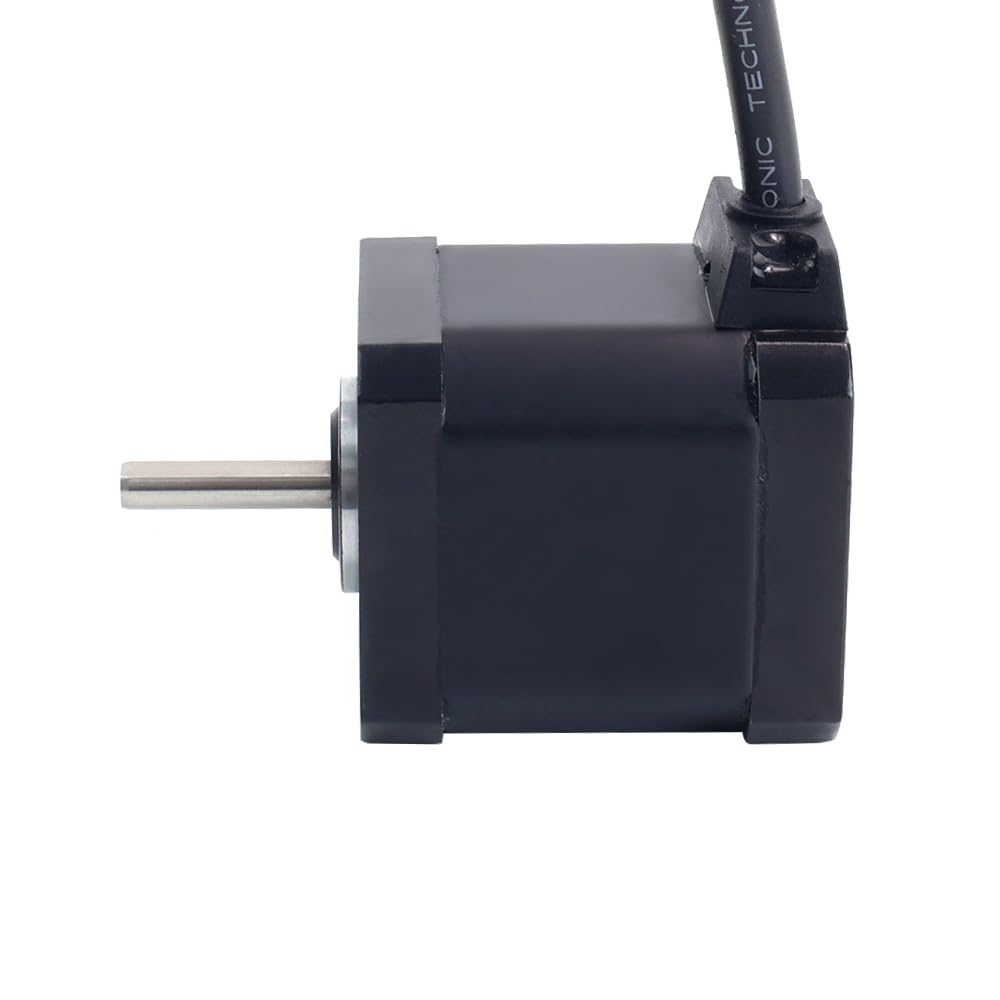

STEPPERONLINE P Series IP67 مقاوم للماء Nema 17 محرك متدرج 2.0A 0.59Nm(83.57oz.in

SAR 178
– 1 +

مميزات خاصة

  • This Nema 17 stepper motor has an IP67 waterproof rating and 0.59Nm (83.57oz.in) holding torque. Compared with the IP65 motor, IP67 can be totally protected against dust, and can be protected against the effects of temporary immersion between 15cm and 1m and duration of test 30 minutes.

وصف

Electrical Specification

*Manufacturer Part Number: 17IP67-06
*Number of phase: 2
*Step Angle: 1.8deg
*Holding Torque: 0.59Nm(83.57oz.in)
*Rated Current/phase: 2.0A
*Phase Resistance: 1.5ohms
*Inductance: 3.0mH±20%(1KHz)
*Insulation Class: B 130°C[266°F]
Physical Specification

*Frame Size: 42 x 42mm
*Body Length: 47mm
*Shaft Diameter: Φ5mm
*Shaft Length: 24mm
*D-cut Length: 24mm
*Lead Length: 1000mm
*IP Rating: IP67

Connection

A+: Black, A-: Green, B+: Red, B-: Blue
