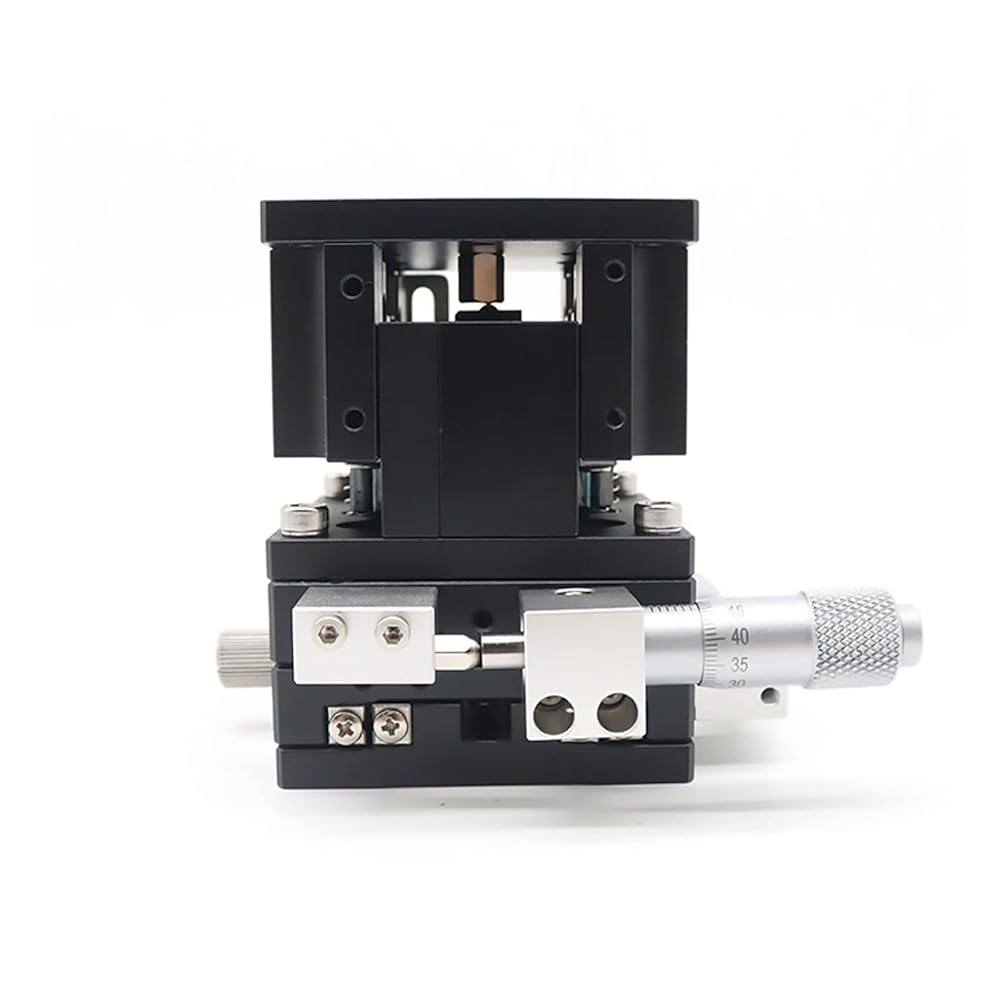

XYZ axis 60mm fine-Tuning Slide Cross Roller(LD60-CM)
SizeLD60-CM
Special Features
- Roller Tables
- High load capacity: The load capacity of this slide is 3kgf
- Ld60 Lm|Ld60 Cm|High-precision crossed roller guide: using crossed roller guide
- Extended travel range: Provides a travel range of ±6.5mm on the XY axis and ±6.5mm on the Z axis
- Compact and portable design: the slide weighs only 0.75 kg and measures 60x60 mm
Description
Roller Tables
scope:
1. Movement direction: XY, Z axis
2.Material: aluminum
3. Workbench size: 60x60mm
4. Guide rail type: steel ball type
6. Stroke: XY: ±6.5mm Z axis: 10mm
7. Load: 3kgf
8. Accuracy: 0.01mm
9. Straightness: 0.01mm
10. Parallelism: 0.03mm
11. Weight: 0.75kg
