TEMCo Industrial's hydraulic cylinders come with an ISO 14540 coupler, which means you're compatible with a large majority of other products out on the market. Don't deal with the headache of mismatched fittings and confusing coupler specifications - have the confidence that you're ready to thread into a TEMCo hydraulic cylinder so you can get back to your project, whether you're a pro at work or a regular Joe. Not using a standard coupler fitting? That's ok, we've included the matching opposite fitting to adapt your equipment.

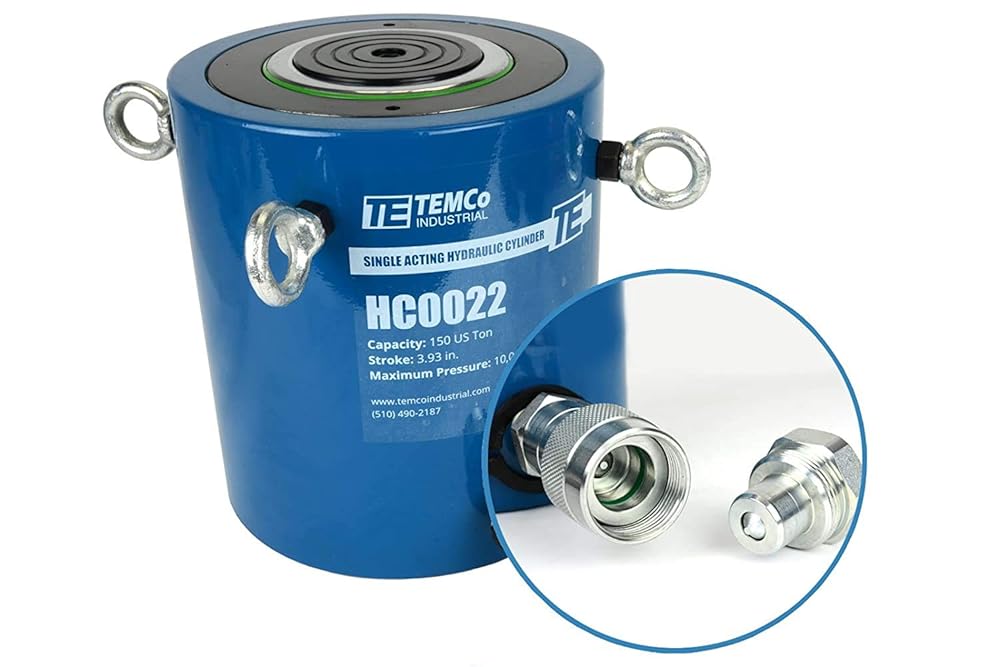

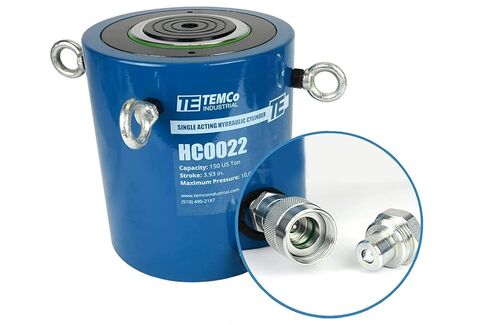

BONUS: Includes ISO 14540 Male x Female 3/8" NPT Connector (Shown above)

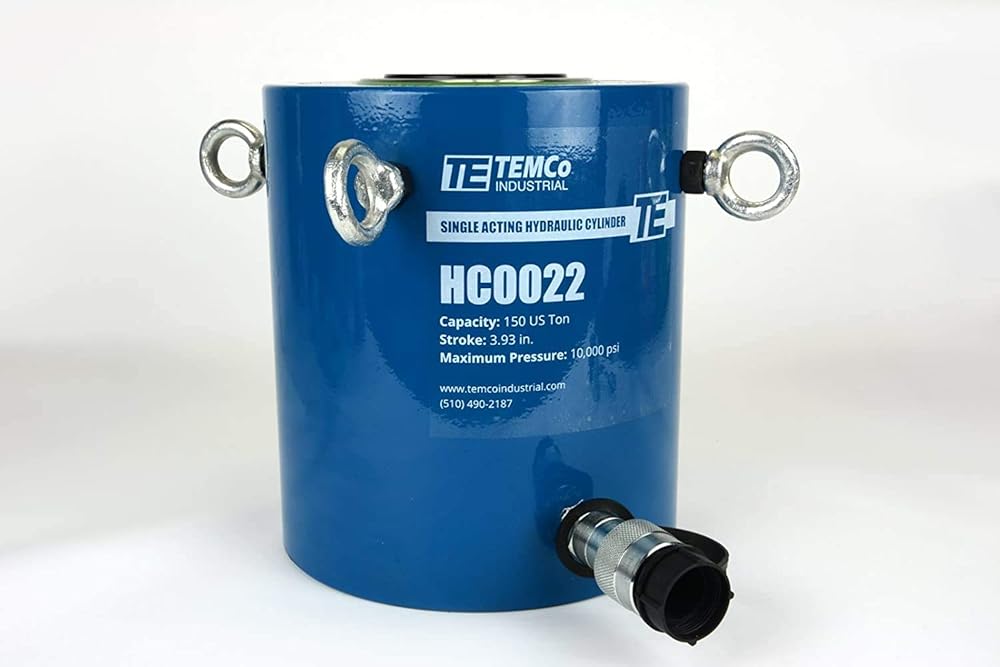

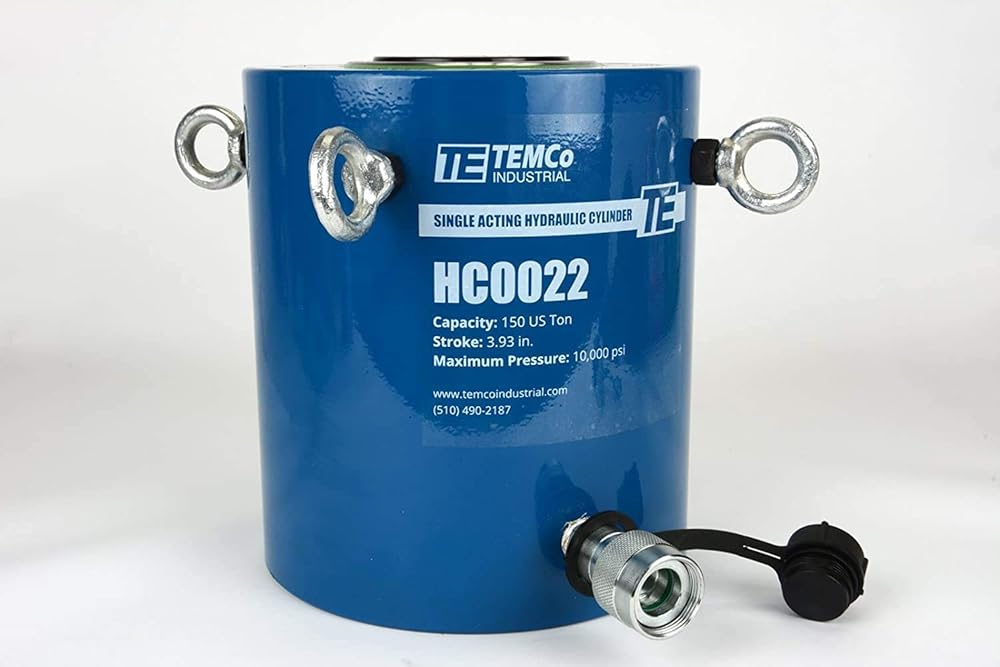

Type: Hollow Hydraulic Cylinder
Action: Single acting (Pressure extend, spring return)
Ram Material: Hard Black Oxide Plated High Carbon Steel
Capacity: 150 US Tons
Compressed Overall Height: 9.13"
Extended Overall Height: 13.07"
Stroke: 3.94"
Outside Cylinder Diameter: 8.07"
Inner Cylinder Diameter: 6.50"
Oil Volume: 136.51 cubic in
Max Pressure: 10,000 psi
Min Operating Temp: -15°C
Connector Type: 3/8" NPT ISO 14540 quick hydraulic coupler with dust cap
Warranty: 5 Years
Applications Include: Heavy machinery rigging and moving
Auto repair
Oil rigging
Machine maintenance
Bearing and bushing removal and installation
Lifting, pushing, spreading, bending, or pressing

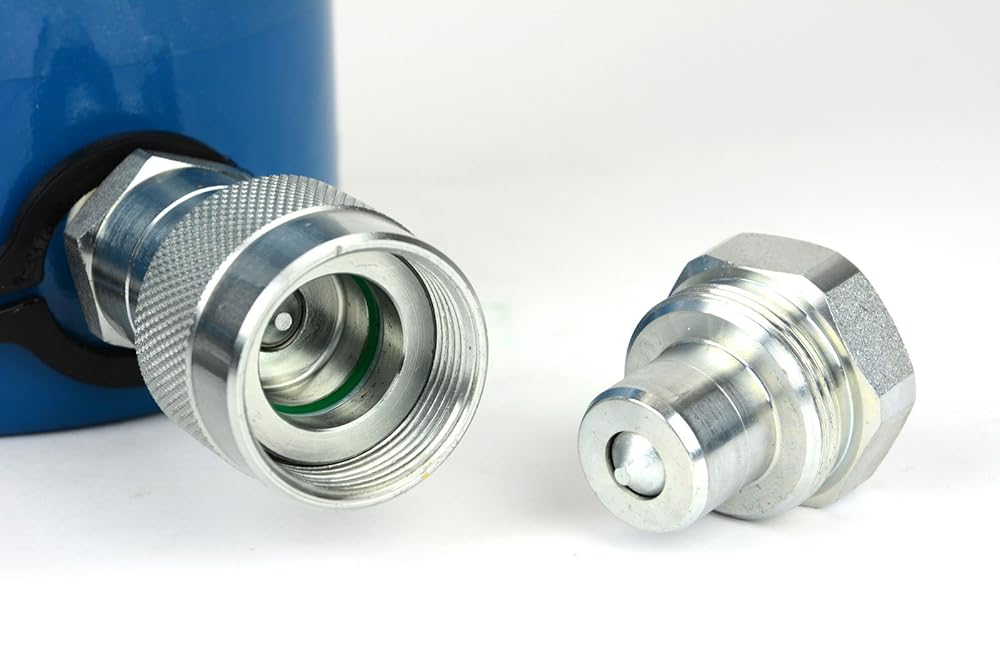

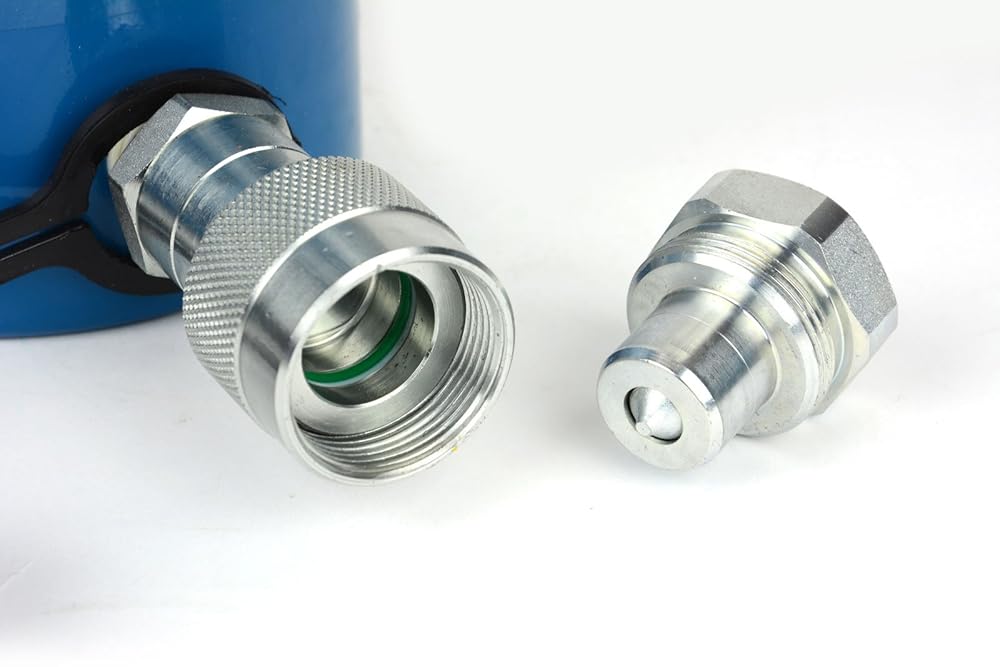

Coupler Specifications
Standard: ISO 14540
Thread (between male poppet end and coupling ring): M30 x 1.5 mm
Thread: 3/8" NPT
Occlusion Type: Poppet
Rated Pressure: 10,000 psi
Rated Flow: 6 GPM
Sealing Material: Nitrile Rubber (Buna-N, NBR)
