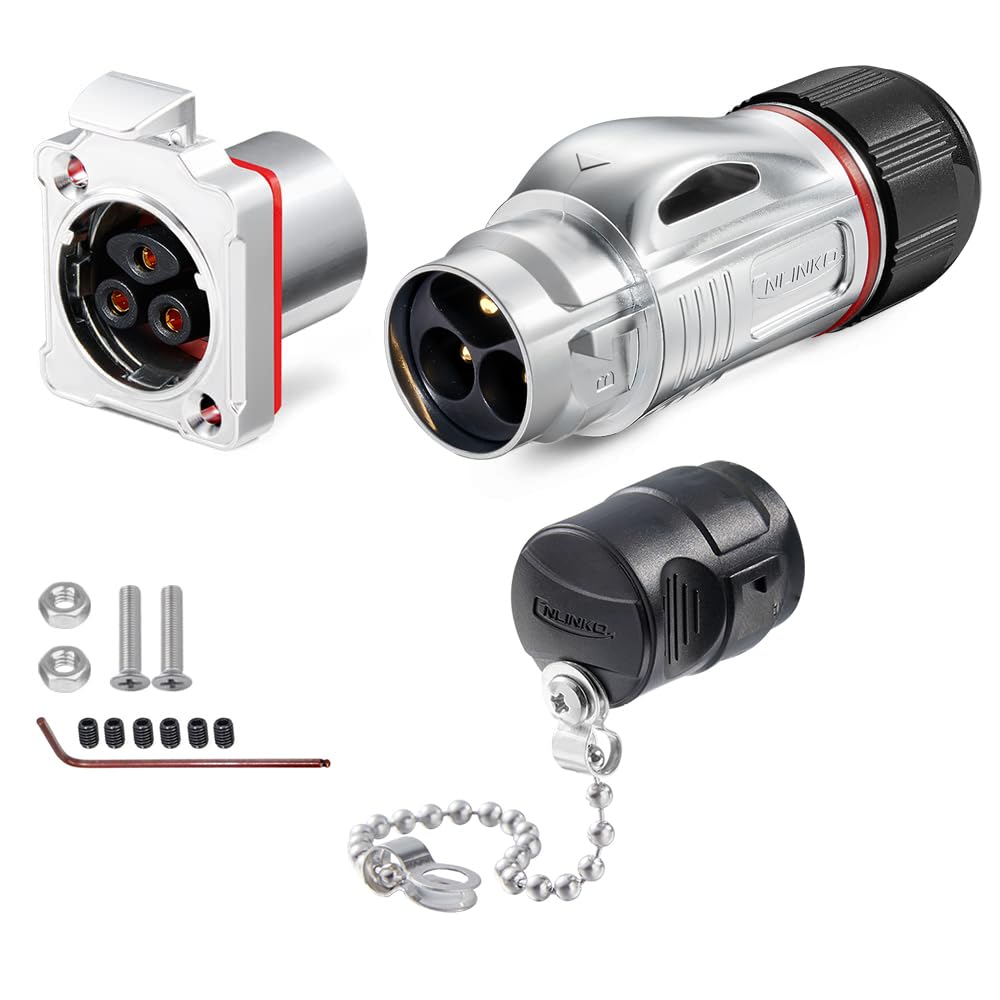

BD20 3 Pin Screw-Assembly Set: No soldering required. The screw-in design ensures easy assembly, catering to varying skill levels. Plug-and-play integration enables convenient setups and efficient troubleshooting.Note: The connection screws are embedded in the plug and socket. Loosen the screws slightly to connect. Protection Level: IP68(Mated).
Cable Specification: Compatible with cables ranging from 2.5-4.0mm² /14-12 AWG with a cable diameter range of Φ10.0~Φ12.0mm. The contact diameter is Φ2.7x3. The connector is designed for over 2000 cycles at temperatures ranging from -40°C to 85°C.
Electrical Specifications: Rated for 20A current, 500V AC voltage, and 2000V withstand voltage for 1 minute. Features low contact resistance (<1.0mΩ) and high insulation resistance (>500MΩ) for consistent electrical performance. Note: Avoid powering during insertion.
Materials: Made with high-strength engineering plastic for the shell, zinc alloy (pearl chrome-plated) for metal parts, and gold-plated copper alloy contacts. Silica gel sealing ensures protection against moisture, dust, and corrosion.
Versatile Applications: Widely used in servers, electrical power equipment, solar energy systems, smart grids, communications equipment, vehicle equipment, ship equipment, stage equipment, and heavy machinery. Ideal for a wide range of industrial and professional applications.
وصف
CNLINKO BD-20 3 Pin IP68 Waterproof Connector Circular Aviation Fast Plug Metal Screw Assembly
