Technical Specification

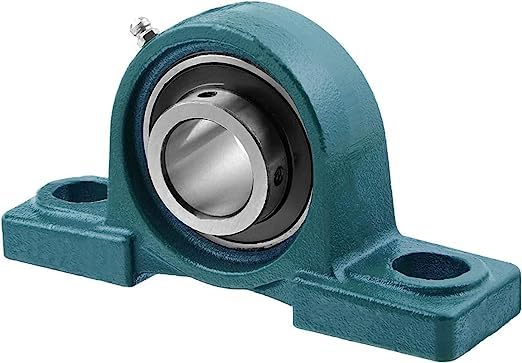

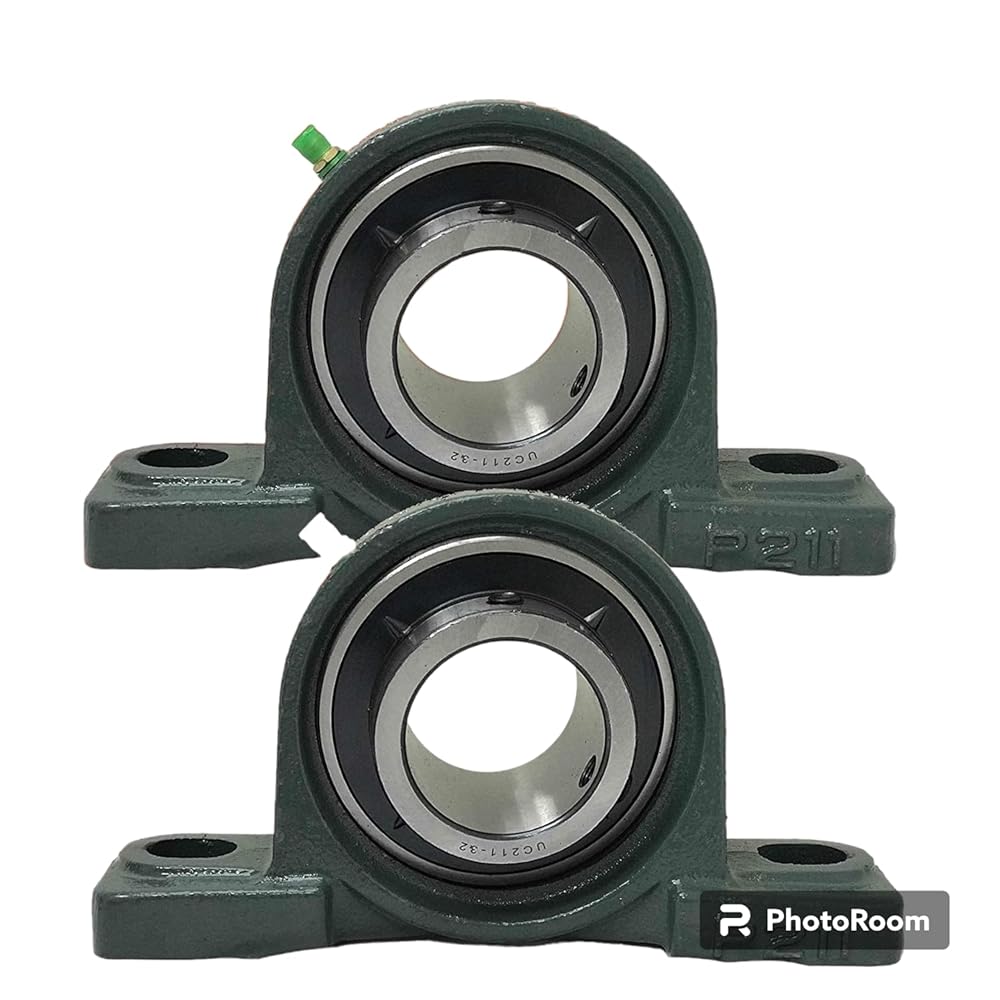

Item: Pillow Block Bearing
Mounted Bearing Item: Pillow Block Bearing
Bearing Insert Type: Ball
Bore Diameter: - 2 in
Bolt Hole Centre-to-Centre: 171 mm
Mounting Surface to Shaft Centre: 63.5 mm
Bearing Housing Material Type: Cast Iron
Shaft Locking Type: Set Screw
Bearing Insert Material: 52100 Chrome Steel
Series: UCP
Number of Bolts: 2
Bolt Size: 5/8 in
Overall Height: 125 mm
Overall Width: 55.6 mm
Overall Length: 219 mm
Bearing Lubrication: Shell Alvania RL2 or NLGI #2 Equivalent
Dynamic Load Capacity: 9,779 lb
Static Load Capacity: 6,564 lb
Temp. Range: -40 Degrees to 250 Degrees F
Finish: Painted
Standards: AFBMA, ISO

SPECIFICATION:
Highly Dynamic
No compromise with quality

PRODUCT DETAILS:
Material: Housing cast ductile iron
Item Dimensions: 10 x 2 x 2.7 LxWxH
Item Weight: 1 Pound
Specification Met: FDA
