This mounted bearing has a wide number of applications and is used in Agriculture, Automotive, Pump, Construction, Manufacturing Equipment, Conveyor, Fan Assemblies, Farm Machinery, and Feed Mill
These general-purpose pillow block ball bearings are suitable for environments where corrosion is not a concern. They are often used in material handling, packaging, and dry-goods processing.
Country of origin: Made in China.
وصف

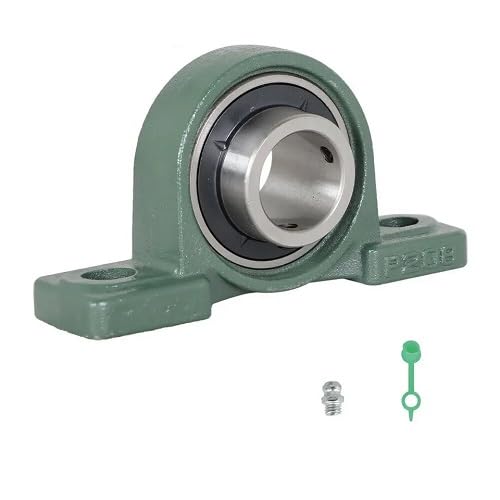

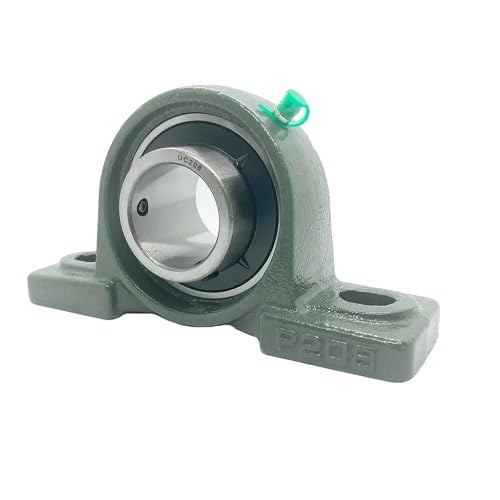

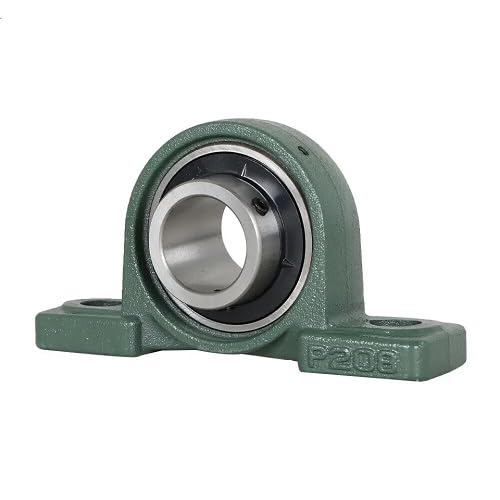

Manufacturer Part Number - UCP209-45mm
Bearing Insert Type - Radial Ball
Bearing Insert Material - Alloy Steel
Bearing Material Grade – 52100
Shaft Locking Type - Set Screws
Bore Diameter – 45 mm
Bore Diameter Tolerance - +/- 0.021 mm
Mounting Surface to Shaft Center Height - 53.9 mm
Mount Hole Center-to-Center Length – 146 mm
Mount Hole Center-to-Center Width - 146 mm
Base Height – 20 mm
Base Width – 54 mm
Mount Type - Bolt-Through
Number of Mount Holes – 2
Mounting Bolt Size – M12
Housing Material - Cast Iron
Housing Material Finish – Painted
Overall Length – 190 mm
Overall Width – 49.2 mm
Overall Height – 106 mm
Static Radial Load Capacity - 4,631 lbf
Dynamic Radial Load Capacity - 7,103 lbf
Closure - Double Sealed
Seal Type – Contact
Seal Material - Synthetic Rubber
Lubrication Openings - Grease Fitting
Lubricant Material – Grease
Maximum Temperature - 250 °F
Minimum Temperature - -40 °F
Resistance Properties - Corrosion Resistant; Rust Resistant; Wear Resistant
Features - Anti-Rotation Device; Dual Heavy-Duty Slinger Type Contact Seals; Grease Fitting for Adding Lubricant; One-Piece Cast Iron Housing, Solid Base; Standard Duty Unit, Eccentric Locking Collar; Triple Lip Seals Available on Request; Wide Inner Ring Bearing
