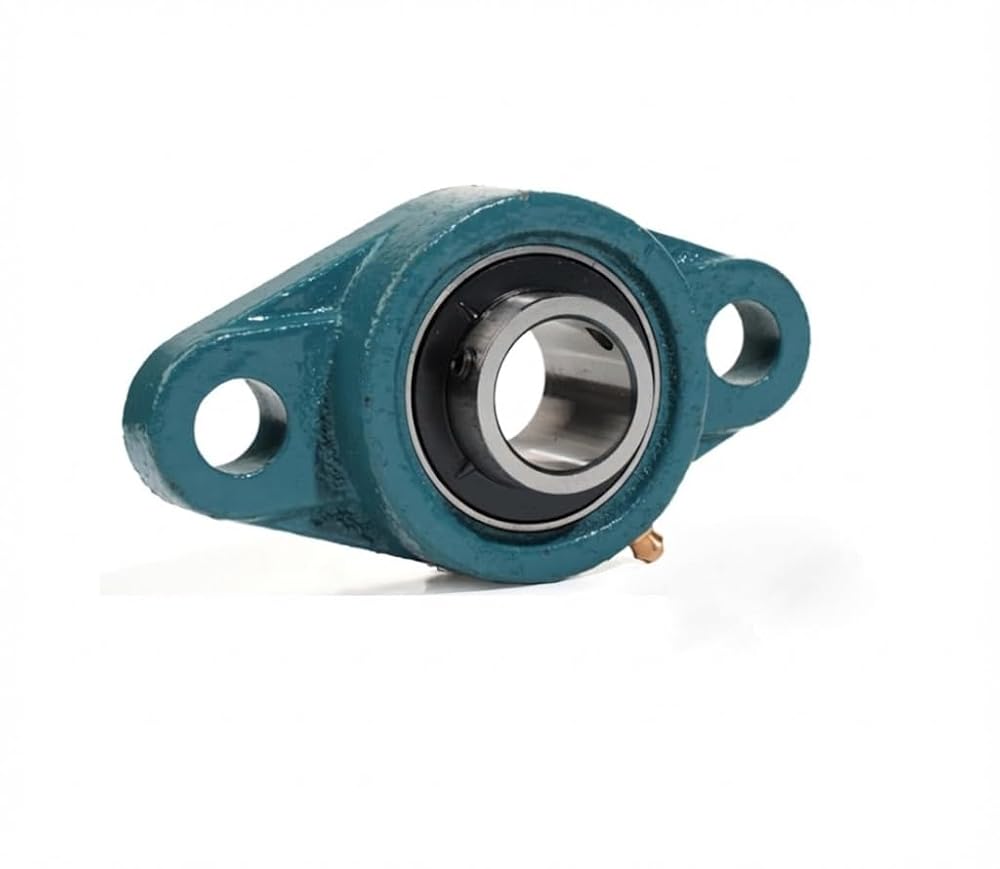

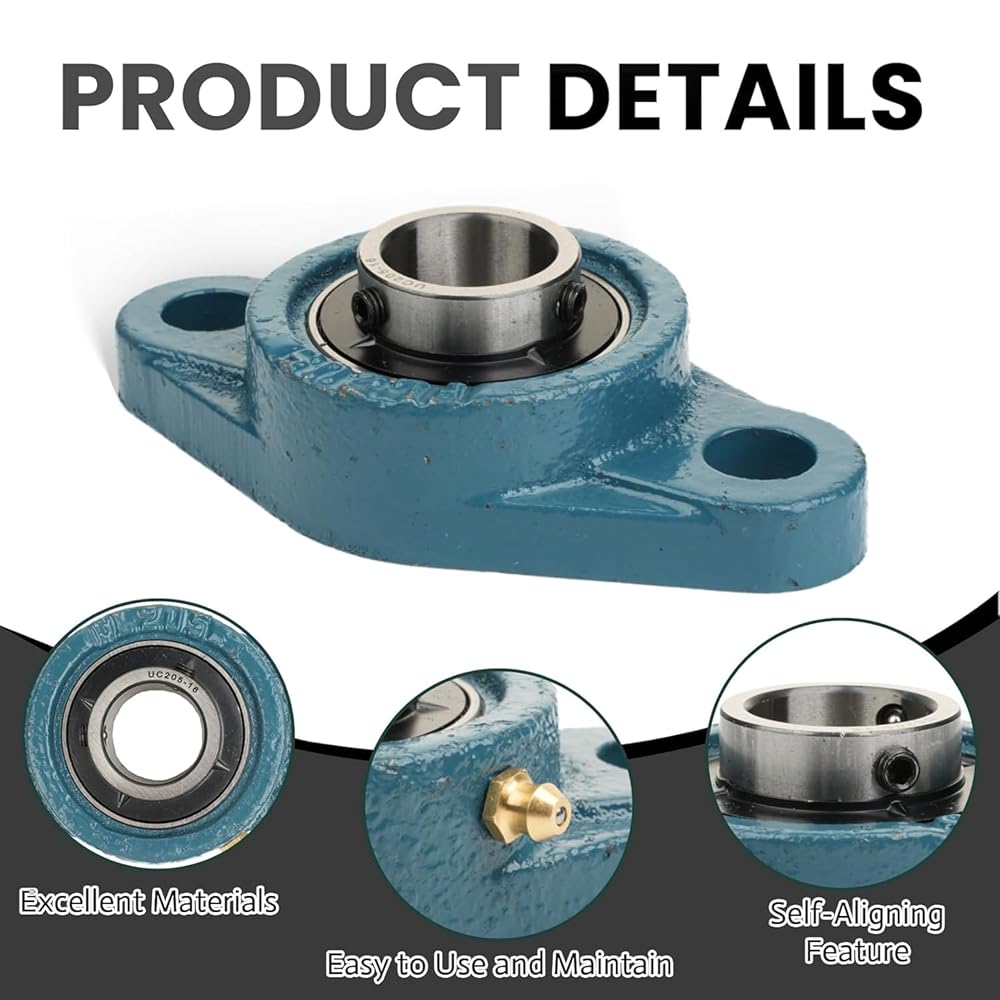

The UCFL204-12 Pillow Block Flange Mounted Bearing with Housing is a reliable and versatile component. Made from high-quality bearing steel and sturdy housing materials, it's precisely machined.It can handle radial and axial loads effectively, offers smooth rotation with minimal vibration and noise, and has self-aligning ability. Equipped with a lubrication system, it's easy to maintain through regular inspections and proper lubrication.Widely used in conveyor systems, agricultural machinery, small manufacturing equipment, fans, pumps, and construction machinery, it provides reliable support for rotating shafts. Overall, it's a practical choice for various industrial applications, ensuring good performance and a long service life.
Specifications:
Part Number: UCFL204-12
Brand: LILY
Bearing Part Number: UC204-12
Housing Part Number: FL204
Product Series: UCFL200
Bearing Type: Ball Bearing
Mounted Type: Flange Bearing
Inner Ring Type: Wide Inner Ring
Bearing Seal Type: Double Sealed
Shaft Mount Type: Set Screw Locking
Lubrication Fitting Tap: 1/4 28 UNF
Bore Dia: 0.75"
Bearing Width: 1.22"
Mounting Bolt Size: 3/8"
Whole Length: 4.4375"
Whole Width: 0.1875"
Pillow Height: 0.46875"
Bearings Material: AISI 52100 Steel
Housing Material: Iron
Lubrication: Required
Temperature Range: -30° to 110 °C
Weight: 0.99 lb
Hole Center to Center: 0.182292"
Hole Dia: 0.46875"
Housing Height: 1"
Overall Height: 1.311"
