Product parameter:
Refrigerant Type：R134a
Voltage：110V 60Hz
Power：400W
Interface pipe diameter: ZG1.0
Air capacity: 1.5m³/min
Pressure: 0.6-1.0Mpa
Ambient temperature: ≤80℃
Dew point temperature: 2-10℃

Features：
1.Environmental friendly. This machine adopt R134A environmental protection refrigerants, the destruction to the atmosphere is zero and meet the needs of the international market.
2.Easy To Install. Easy installation with the compact design is ready to use with a small footprint,matches the compressor's displacement, saving energyeasy maintenance and improved reliability.

Legend description:
1. When the air compressor exhaust temperature is greater than 65 ° C, the compressed air rear cooler should be configured.
2. In addition to the layout of the three-stage filter in the pipeline as shown in the figure above (for reference only), different configuration methods can be used according to different gas quality and filtration accuracy.
3. In addition to the bypass valves arranged in the figure above, you can arrange bypass valves at the inlet and outlet of each filter based on actual installation requirements to facilitate the replacement and maintenance of the filter core.
4. The drainage channel can be installed underground or on the ground according to the pipeline, and the drainage effect is good.
5. Use as few pipe bends as possible in the main road to reduce the pressure loss caused by too long pipelines or too many bends.

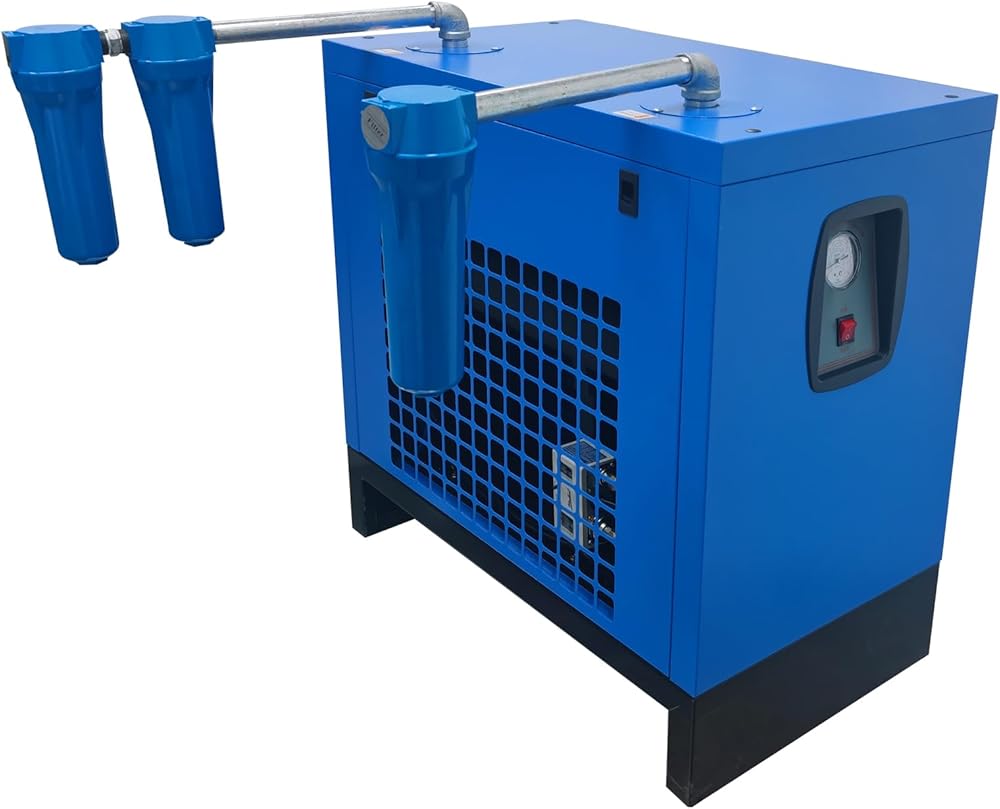

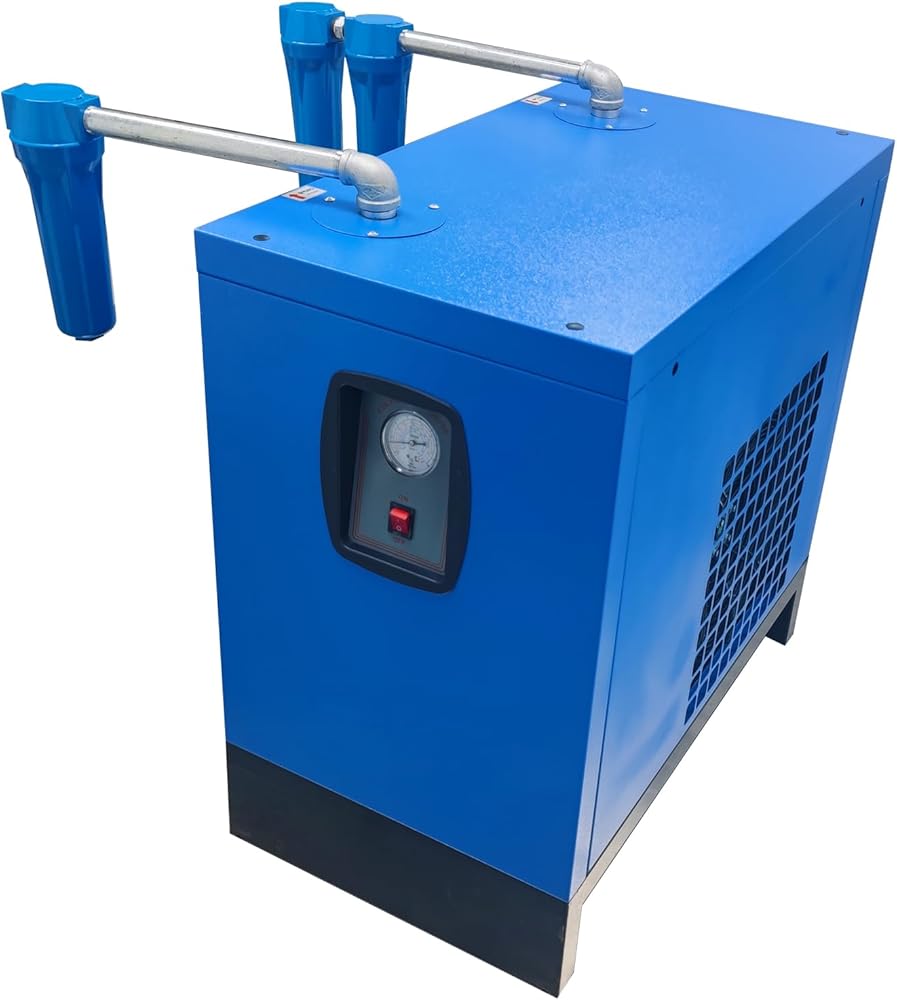

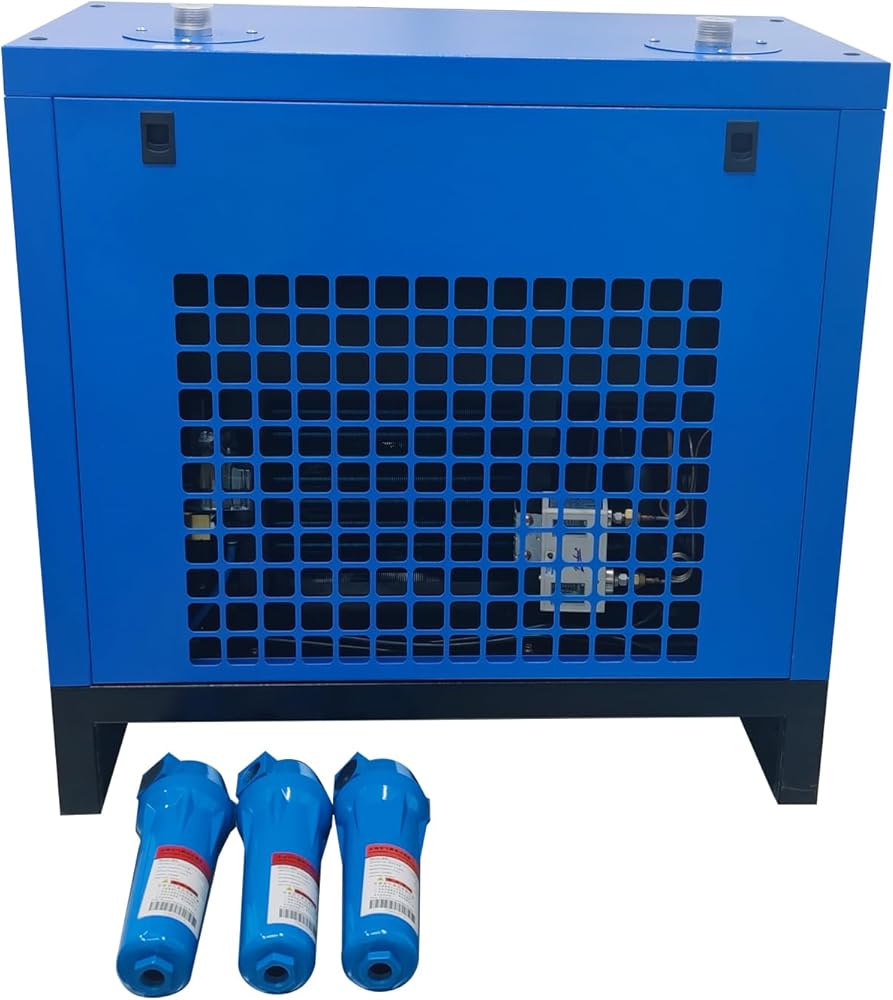

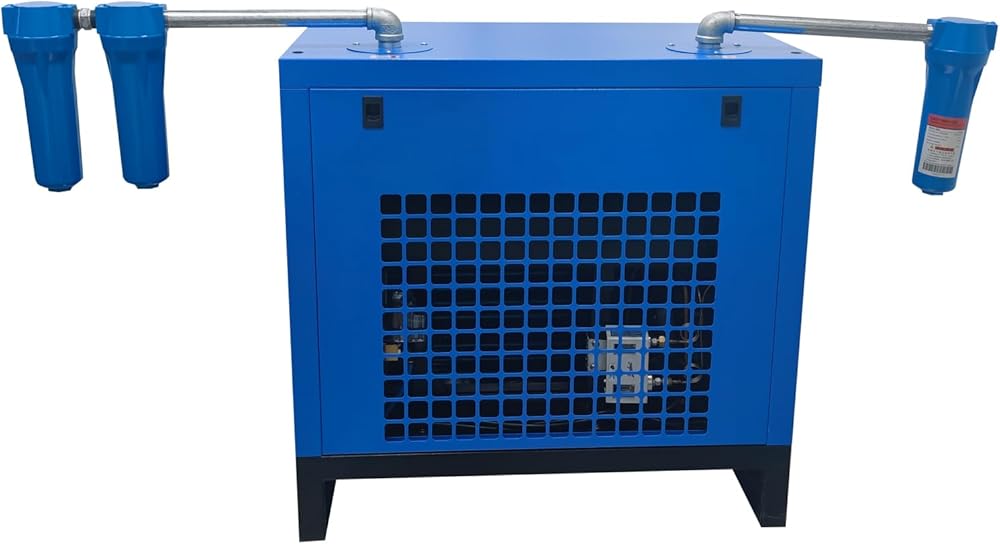

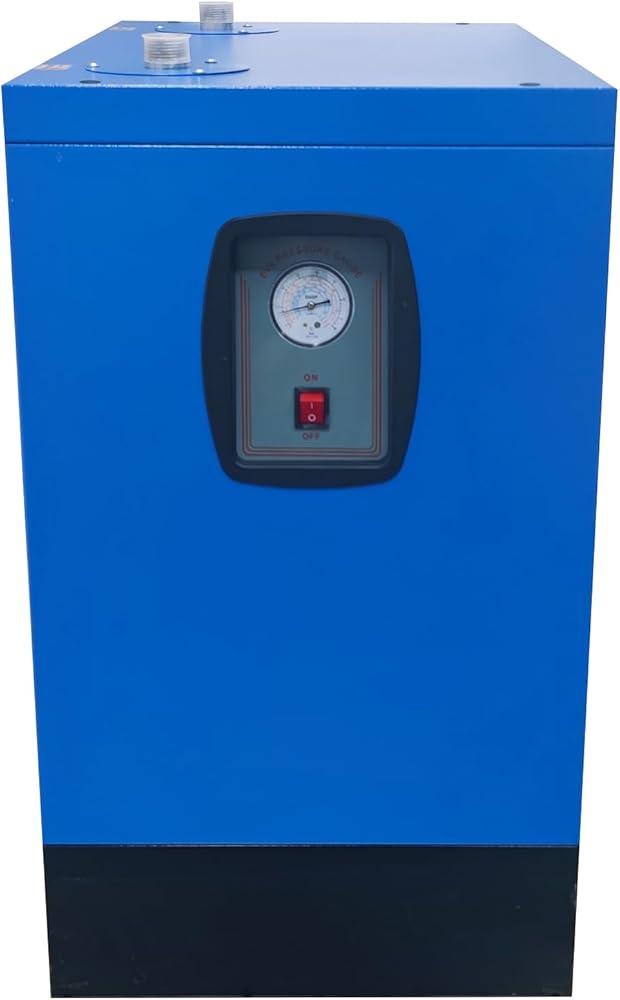

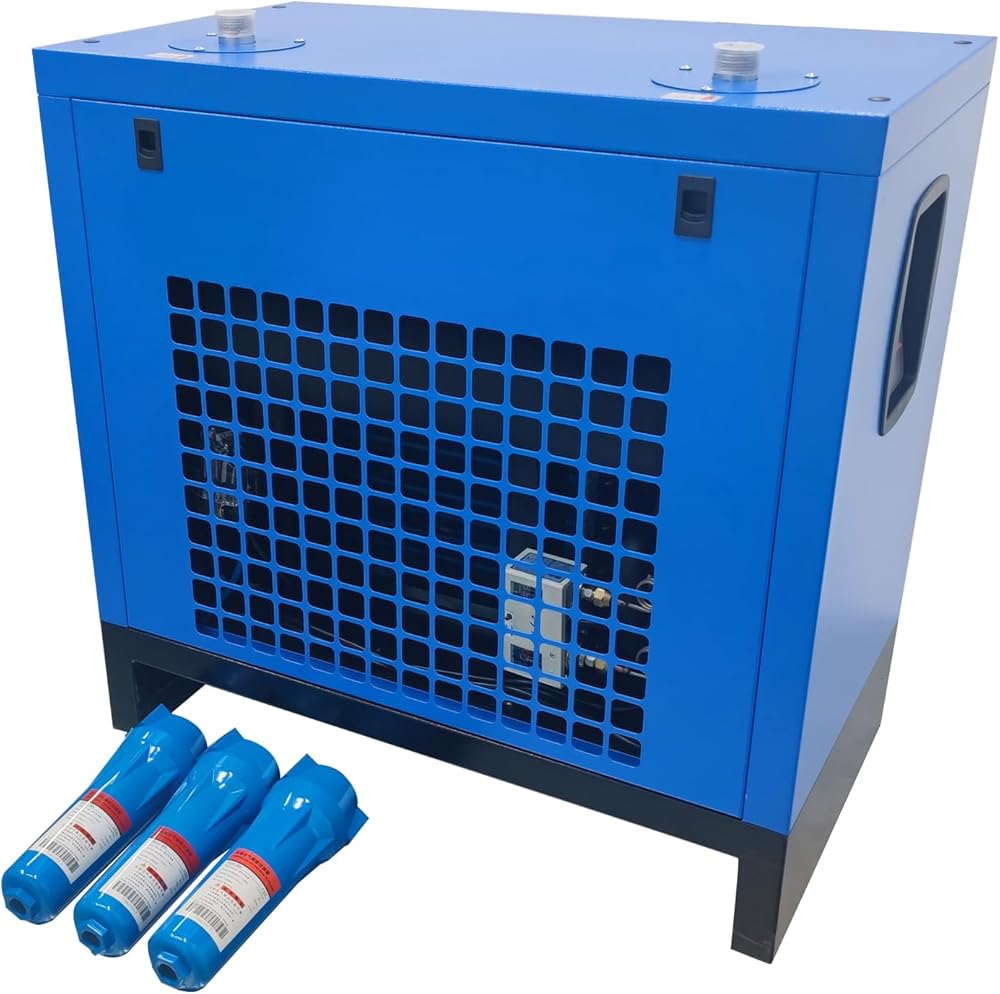

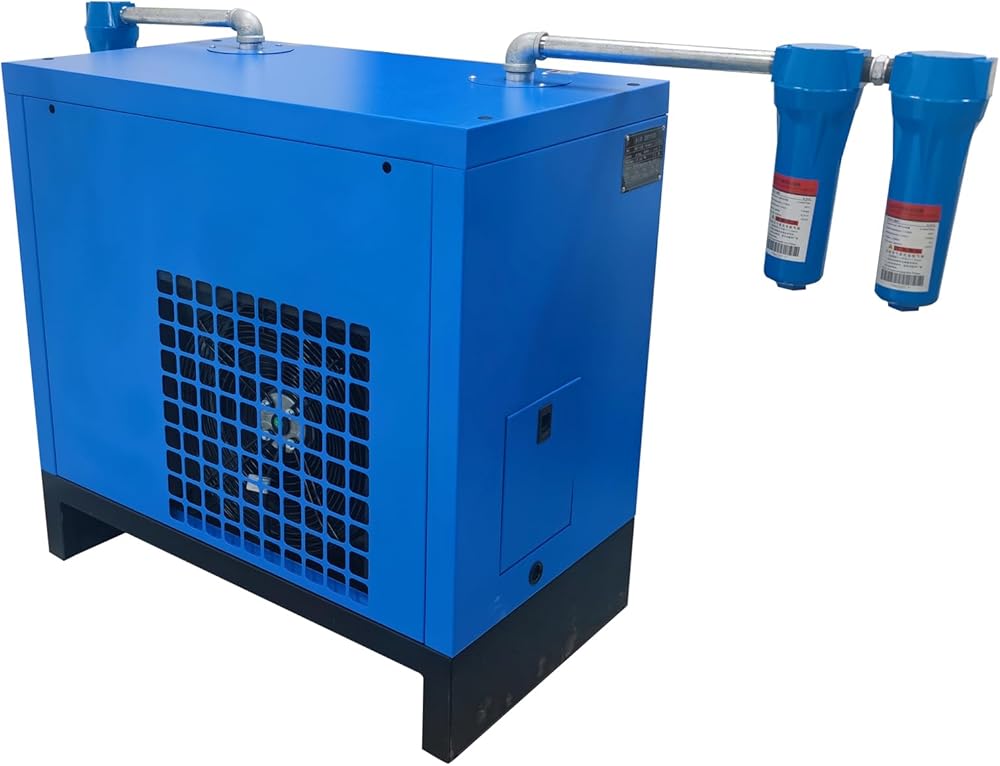

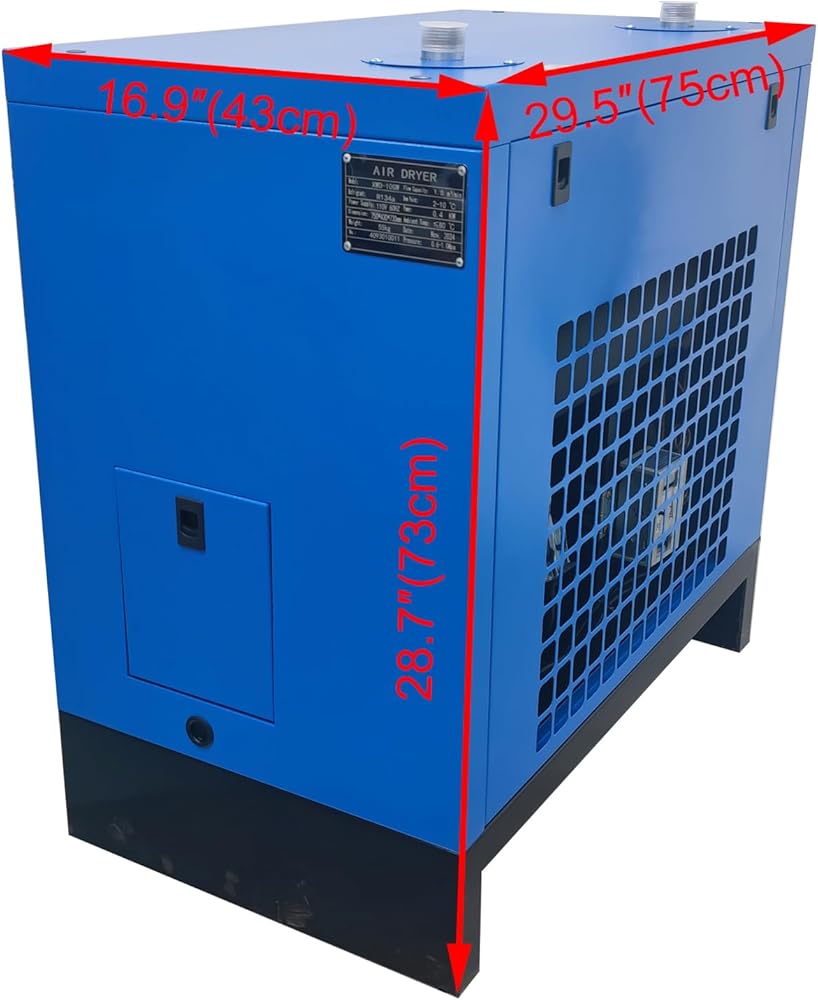

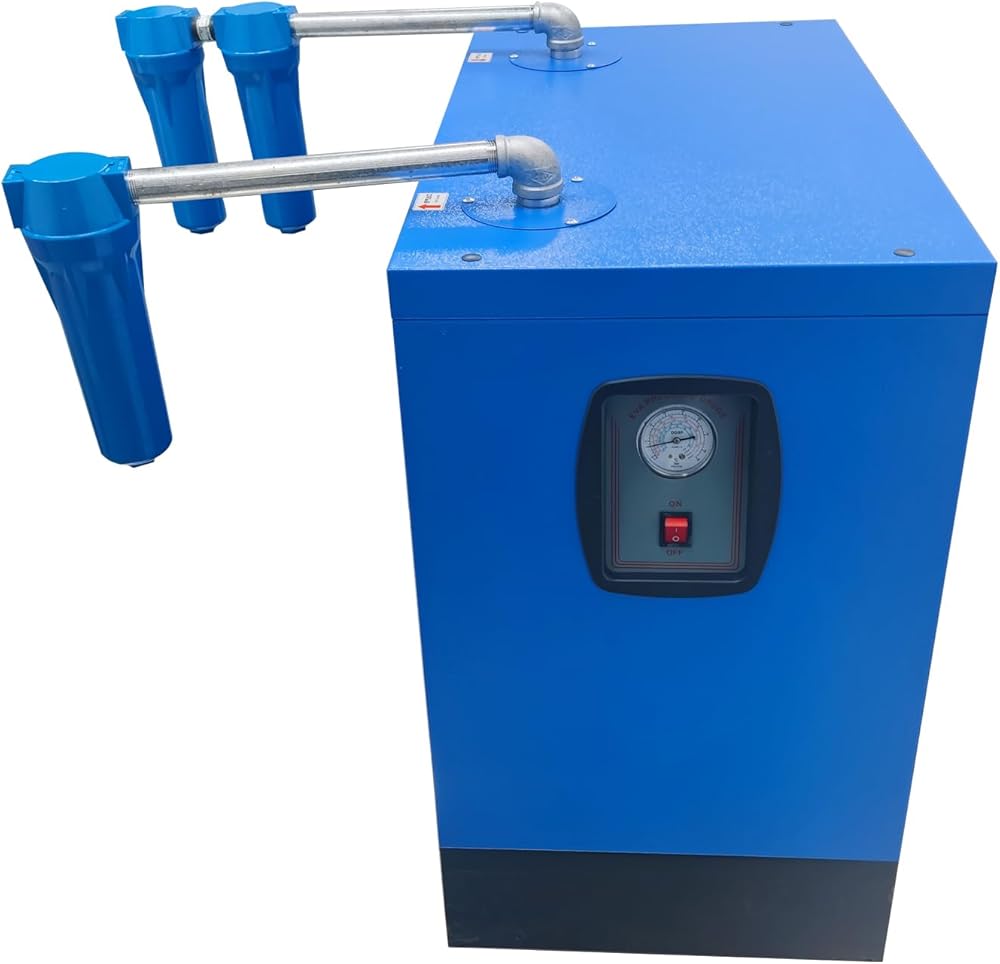

Item Number: 1* 10GW Refrigerating Dryer Air Compressor Refrigerated Freeze Dryer 110V (033266)
