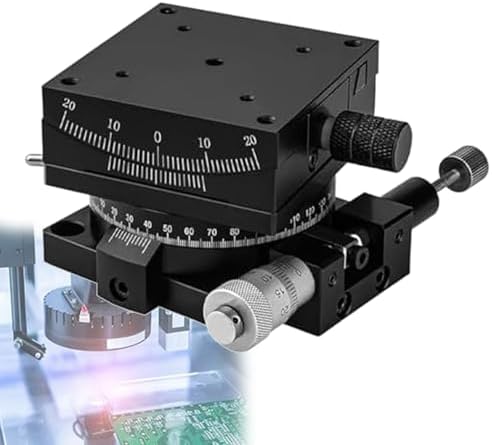

Dovetail Groove Stage Optical Positioning Sliding Table Manual Adjust Trimming Bearing Rotation Platform Motion Sliding Table

SAR 1,266
– 1 +

Special Features

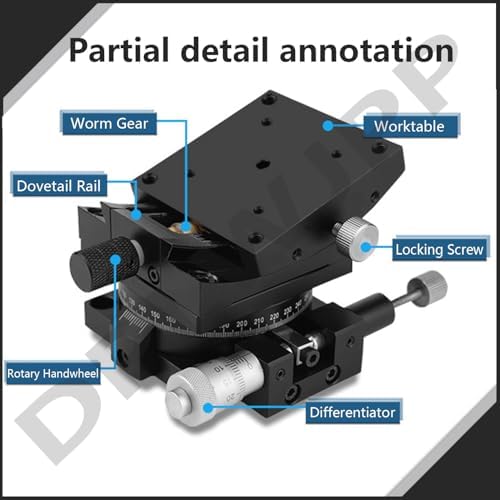

  • 【HIGH PRECISION RELIABILITY】 : Turbine Worm Dovetail Fine Tune Platform Utilizing a central worm gear and precision-adjustable dovetail guide rails, the movement range is ±20° (upper) and ±5° (lower). It features a coarse adjustment of and a fine adjustment of ±5°. With a load capacity of 58.8N (6kgf)
  • 【R-ANGLE PROTECTION DESIGN】: Dovetail Platform Goniometer 60 x 60 mm worm gear dovetail groove fine-adjustment platform features an R-angle protection design, eliminating edge burrs and preventing impact damage during use, thus improving and accuracy
  • 【MULTI-FUNCTIONAL WORKTABLE COMBINATION】: Angle Adjustment Platform Easy to use, with an extended handwheel for convenient adjustment, a multi-hole design with standard hole spacing, it can be combined with other worktables and is compatible with other types of stages to create a multi-functional worktable
  • 【RUGGED ALUMINUM ALLOY】: Manual linear stage goniometer Black anodized finish minimizes light reflection, making it an choice for optical applications, ensuring durability and wear resistance
  • 【WIDE APPLICATIONS】: Linear positioning stage In fields such as optical instruments, measuring equipment, semiconductor manufacturing, testing machines, microscopes and photographic equipment, providing flexibility and accuracy for professional applications

Description

High-precision worm gear + dovetail guide rail, ±20° vertical adjustment, 360° coarse adjustment + ±5° fine adjustment, 6kg load capacity with rock-solid stability!
R-angle scratch-resistant design + anodized aluminum alloy, suitable for optics, semiconductors and other fields, the professional choice!

Description:

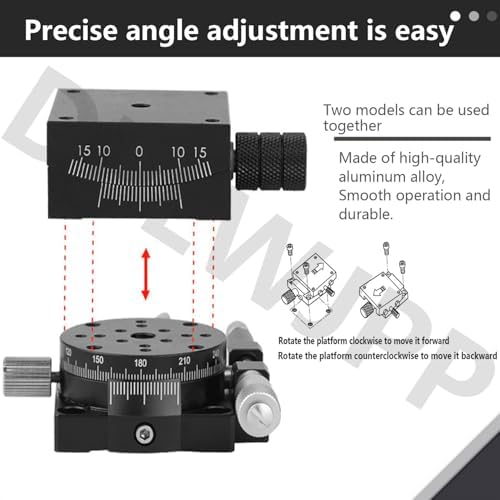

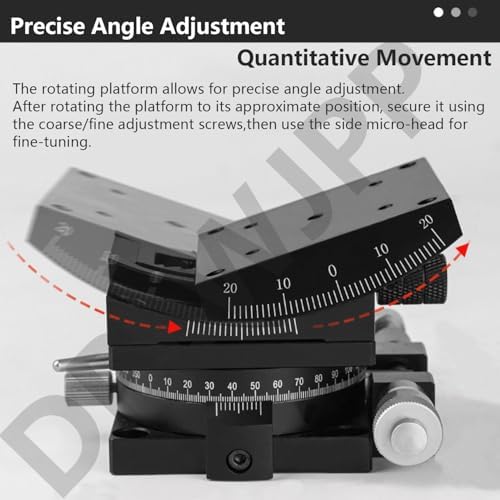

-- Linear platform supports precise angle adjustment and quantitative movement.
-- Dovetail guide rail, high precision, strong load capacity, and stable movement.

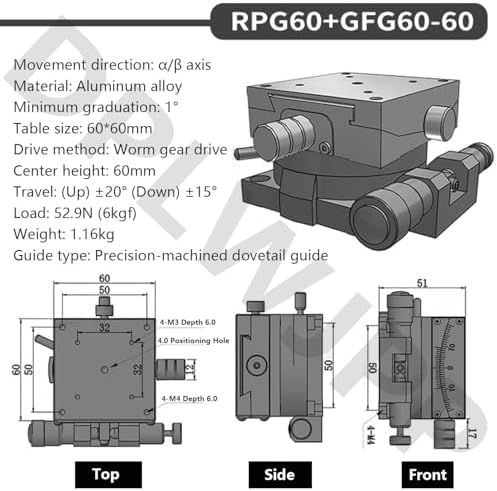

Specifications:
Name: Manual Linear Platform
Traction Direction: Aβ axis
Materials: Aluminum Alloy
Treatment: Black Anodized
Minimum Graduation: 1°
Table Size: 60×60mm
Center Height: 60mm
Drive Method: Worm Gear Drive
Stroke: (Up) ±20° (Down) ±15°
Downward Movement Range: Coarse Adjustment , Fine Adjustment ±5°
Load Capacity: 58.8N (6kgf)
Weight: 1.16kg
Guide Type: Precision-machined Dovetail Guide
