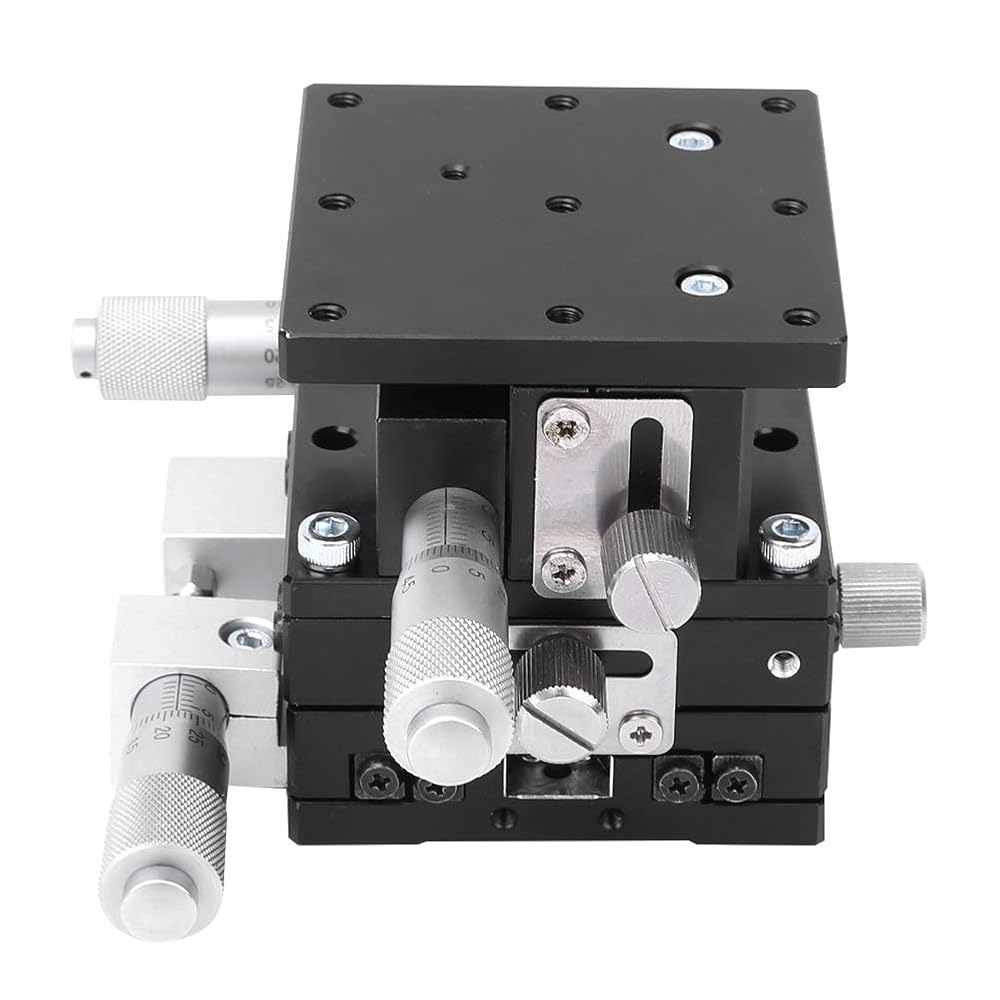

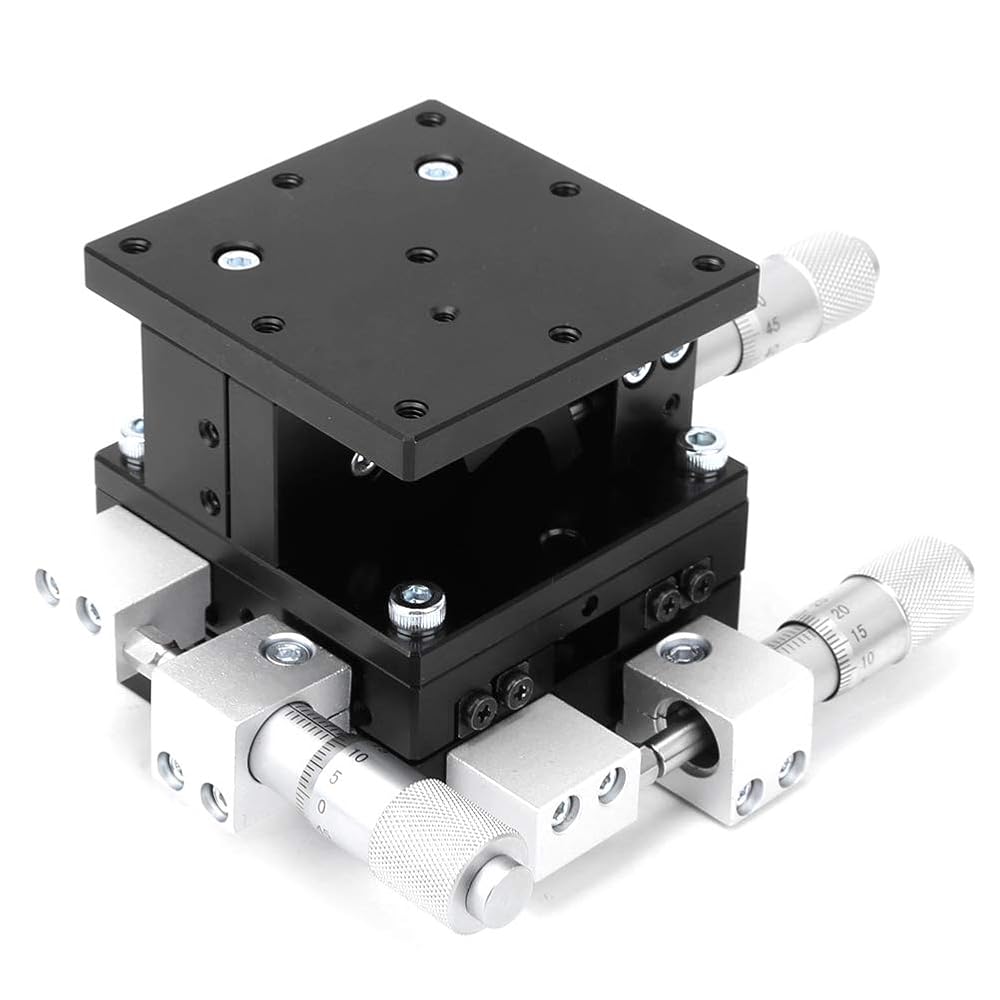

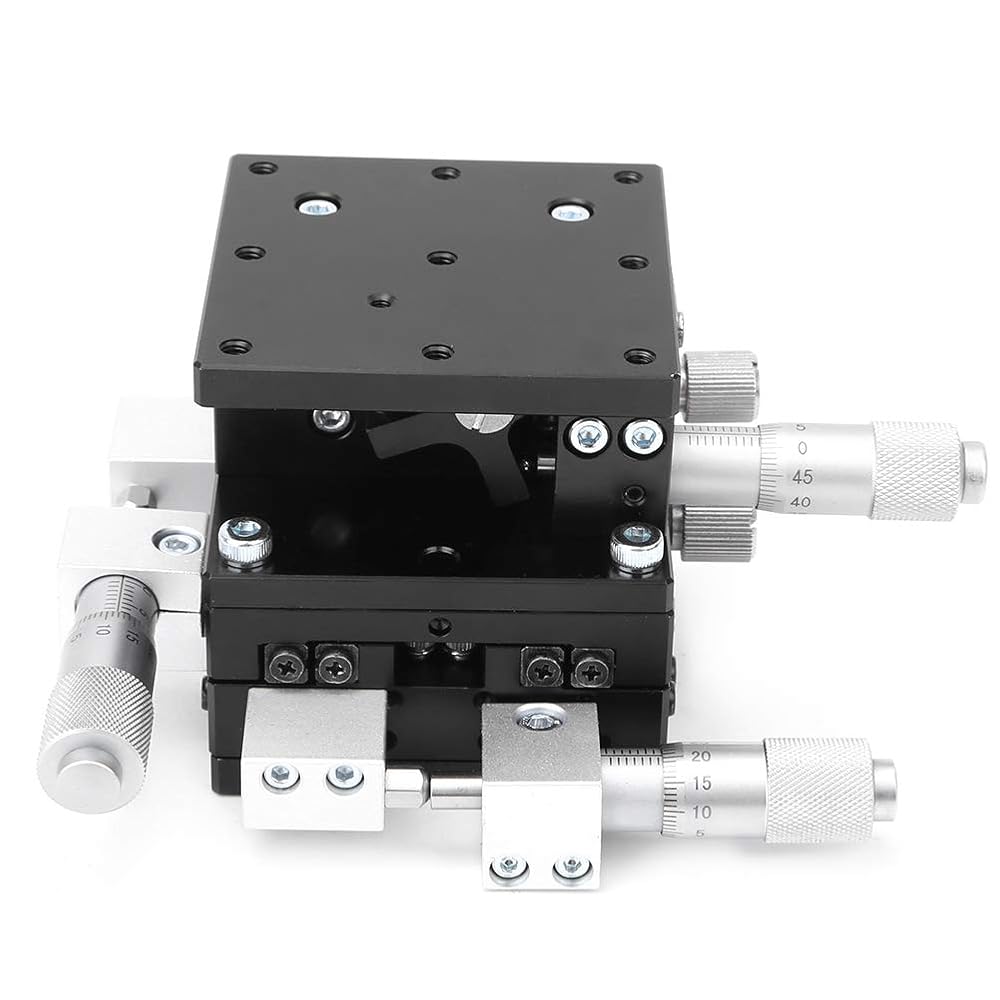

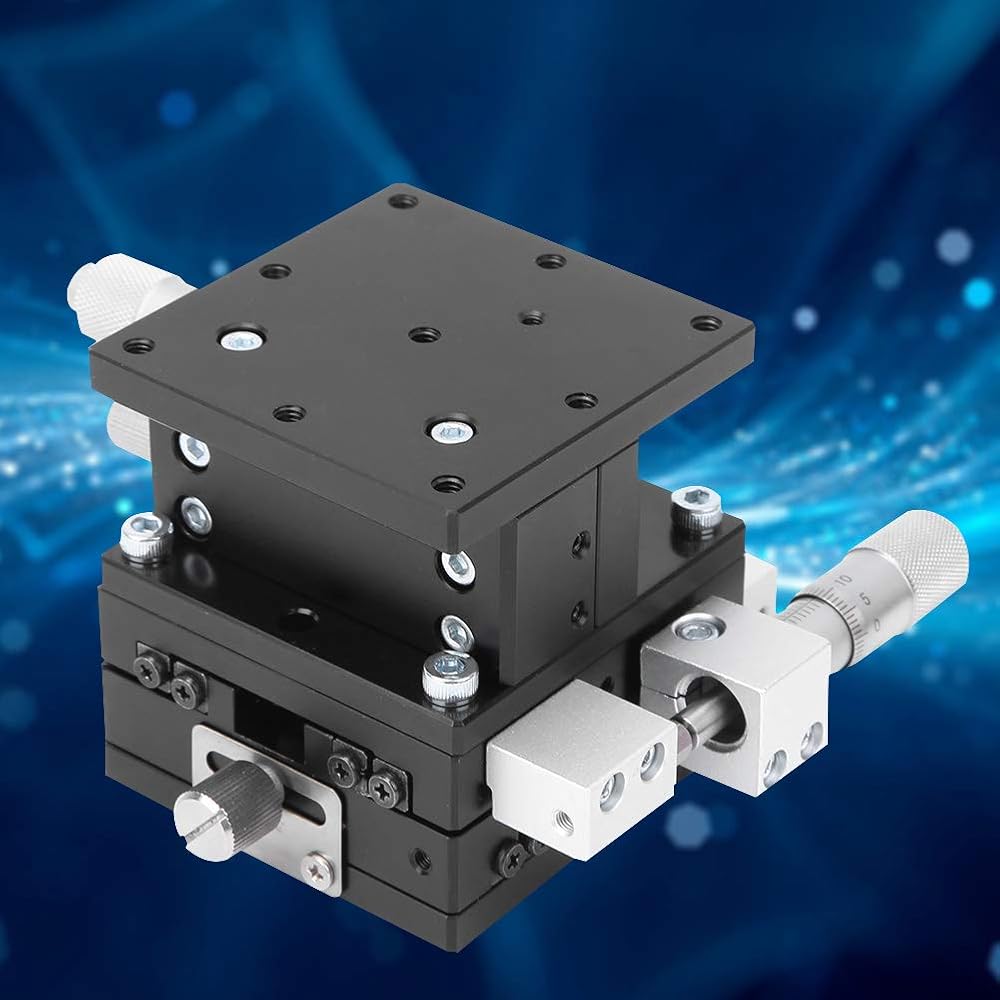

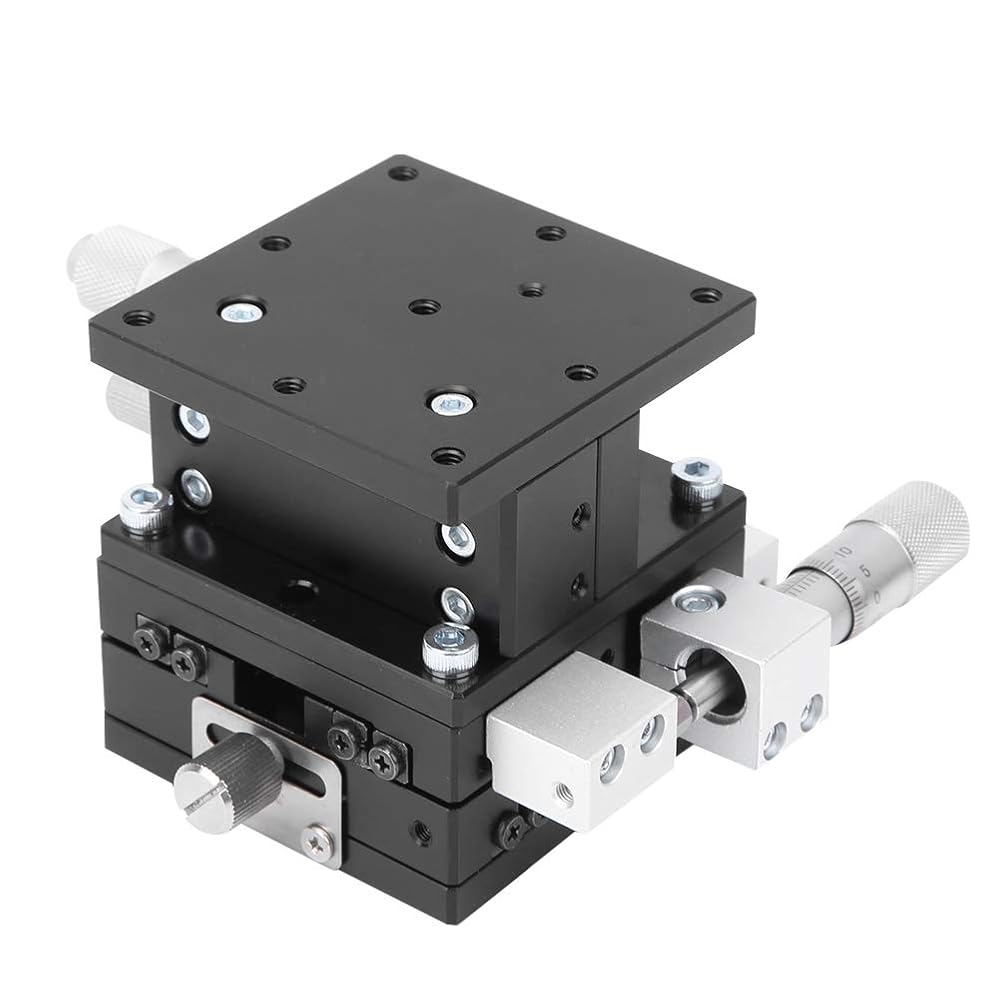

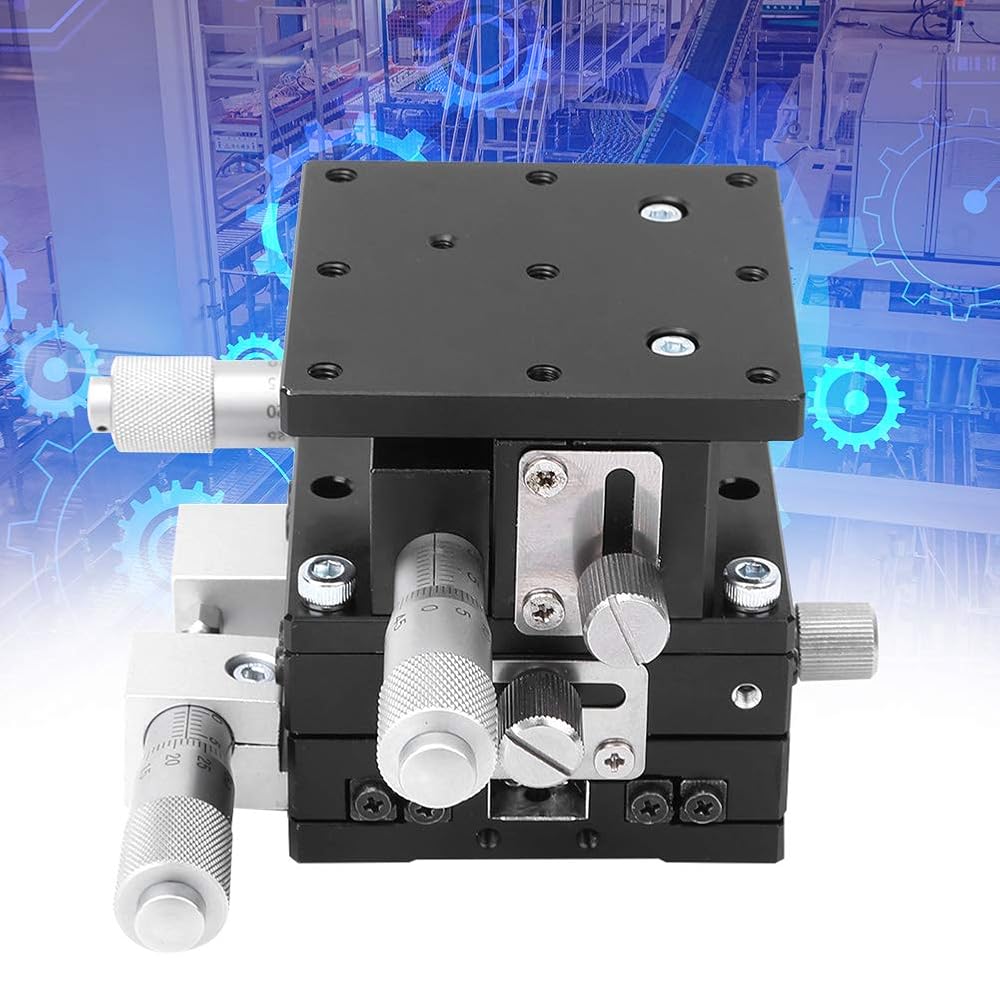

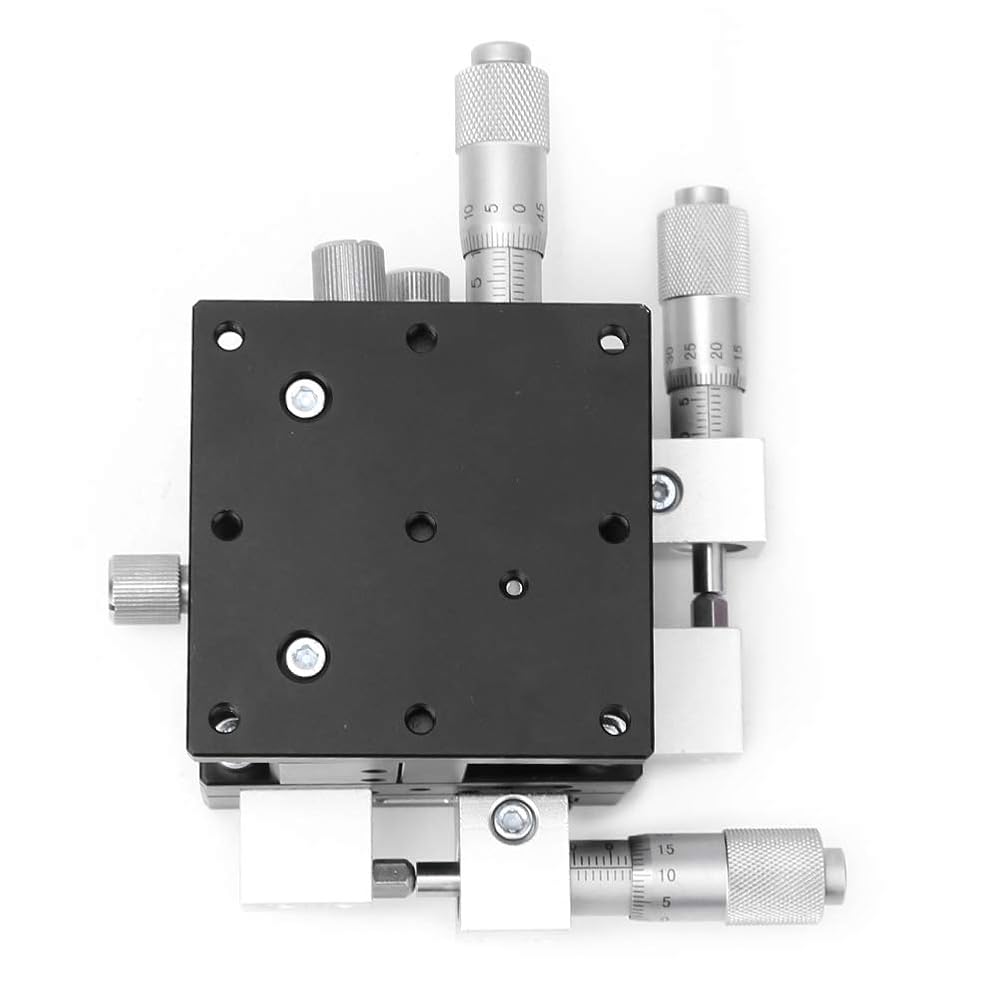

[HIGH PRECISION ADJUSTMENT] This XYZ 3Axes Manual Linear Stage offers micrometer drive mode with a minimum scale of 0.01mm and accuracy of 0.03mm, making it ideal for fine-tuning displacement and precision positioning in optical experiments, testing equipment, and production machinery. The cross rail design ensures smooth movement and high repeatability.
[DURABLE CONSTRUCTION] Built with high-strength bearing steel cross guide rails and an aluminum alloy body with black anodized surface, this trimming platform provides excellent wear resistance and resistance. The carbide side head and -plated components ensure long-lasting performance even in complex environments.
[HEAVY DUTY PERFORMANCE] With a strong load capacity of 24.5N (3kgf) and stable cross rail movement, this stage is perfect for applications requiring quantitative movement and precision adjustments. The internal cross rail design enhances stability and reduces wear over time.
[USER-FRIENDLY DESIGN] Equipped with -plated fine adjustment knobs and locking screws, this platform allows for easy and precise adjustments. The XYZ 3Axes DOF provides ±6.5mm travel in XY axes and 10mm in Z axis, offering versatile positioning options.
[VERSATILE APPLICATIONS] Ideal for production machinery, testing equipment, optical experimental measurement, and fine-tuning displacement tasks. The compact 60x60mm table size and 65mm overall height make it suitable for various setups where space is limited but precision is critical.

Spec:
Item Type: Linear Stage Trimming Platform
Model: LD60-LM
Material: Aluminum Alloy (black anodized surface)

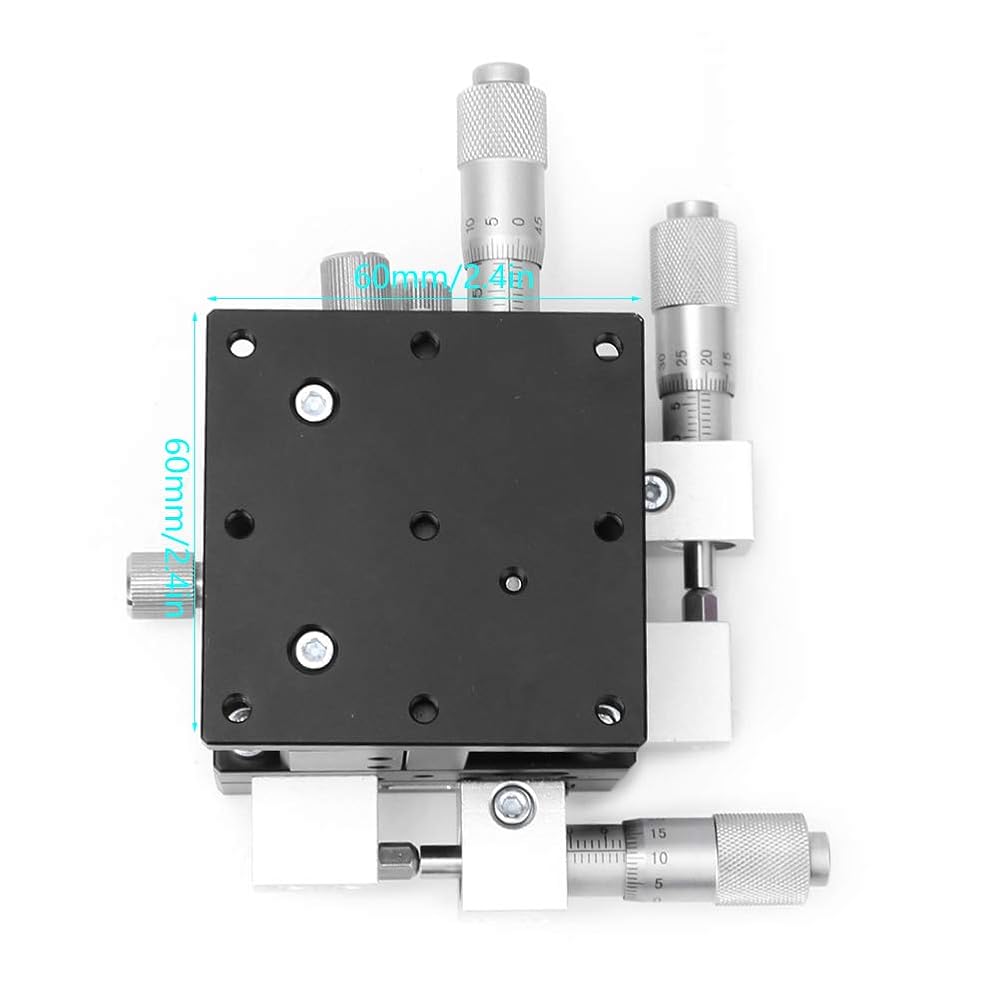

Table Size: Approx. 60 x 60mm / 2.4 x 2.4in
Overall Height: Approx. 65mm / 2.6in
Moving Rail: Cross rail
Drive Mode: Micrometer
Direction of Movement: XYZ 3-Axes DOF
XY Axes Travel: ±6.5mm
Z Axes Travel: 10mm
Load: 24.5N (3kgf)
Minimum Scale: 0.01mm
Accuracy: 0.03mm
Parallelism: 0.03mm

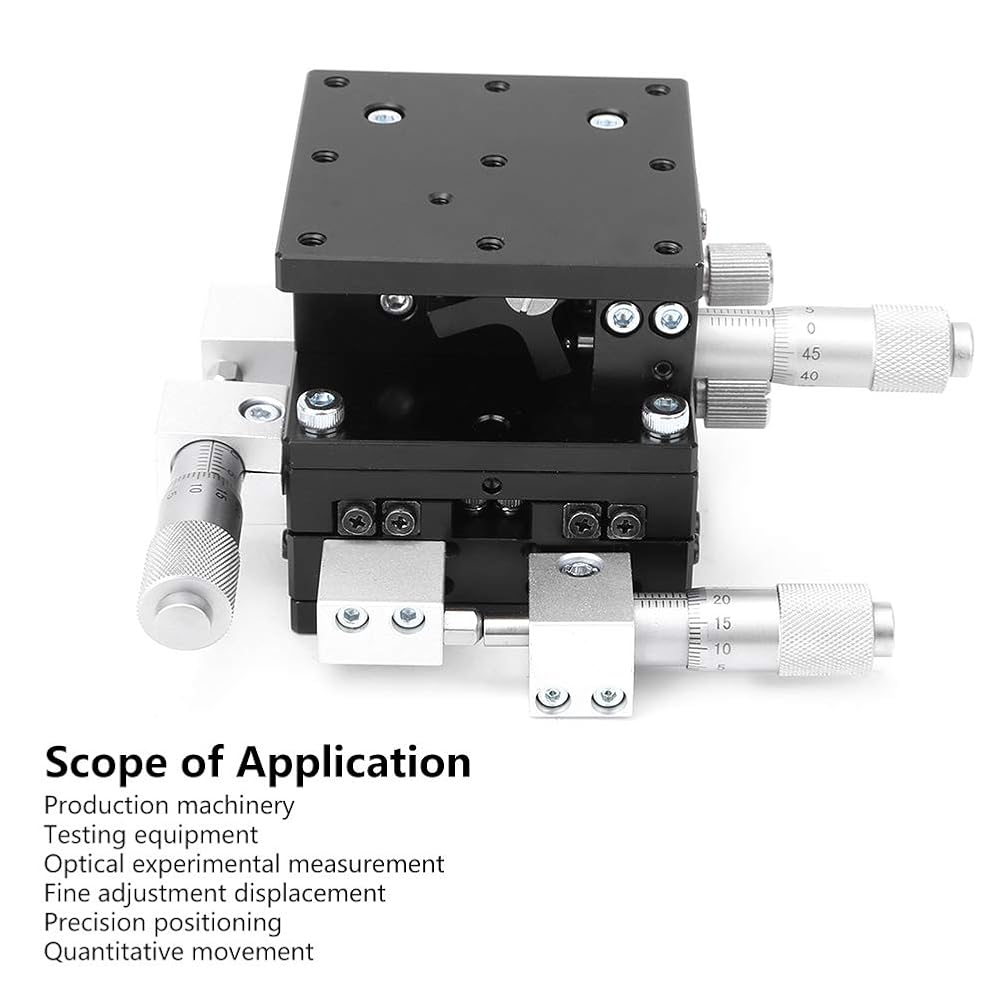

Scope of application:
