Miter Gears

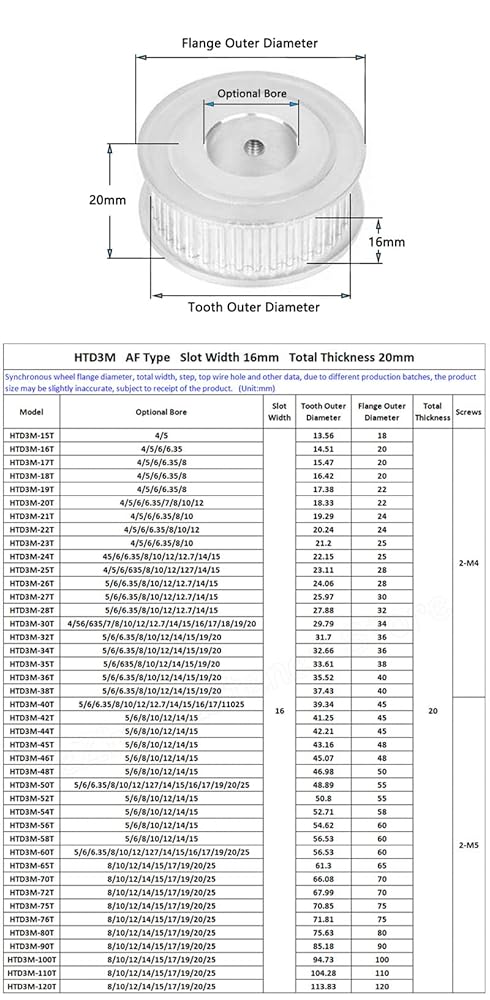

Specification:
Name: Timing Pulley Synchronous Wheel
Main Material: Aluminum Alloy (Iron galvanized on flange side)
Type: AF Type
Model: HTD3M (HTD-3M)
Teeth Pitch: 3mm
Tooth Shape: Arc Tooth
Teeth Number: 30 40 50 60 Teeth

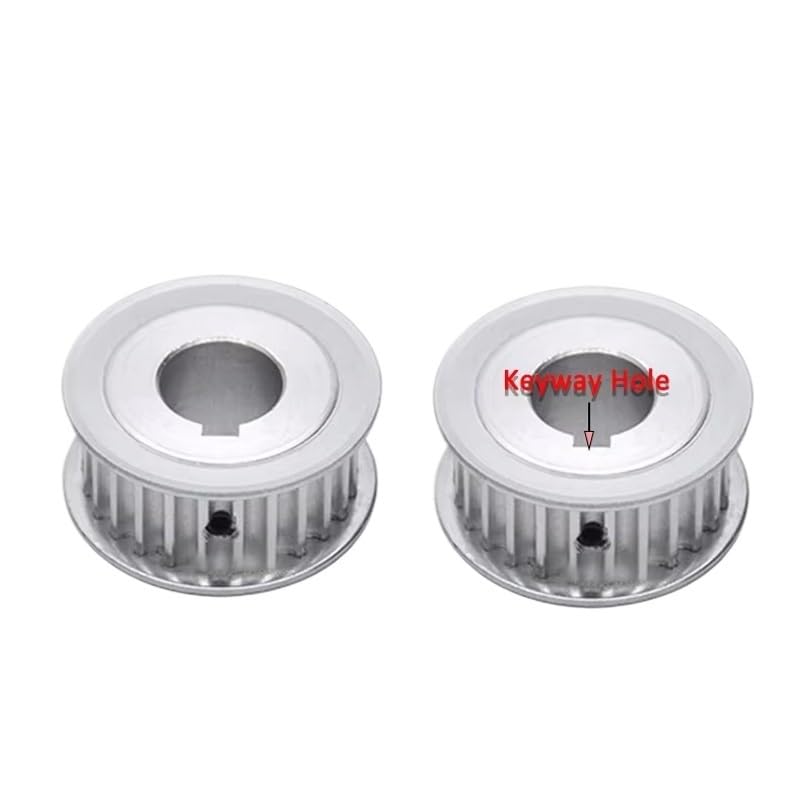

Keyway Bore:
8mm(keyway 3mm)
10mm(keyway 3mm)
10mm(keyway 4mm)
12mm(keyway 4mm)
12.7mm(keyway 5mm)
14mm(keyway 5mm)
15mm(keyway 5mm)
16mm(keyway 5mm)
17mm(keyway 5mm)
18mm(keyway 6mm)
19mm(keyway 6mm)
20mm(keyway 6mm)
25mm(keyway 8mm)
Slot Width: 16mm (suitable for timing belt width 15mm)
Application:
Suitable for transmission components
Number of Teeth : 30 40 50 60 Teeth
Model Number : HTD3M
Material : Aluminum alloy
