3P DC Surge Protector Solar SPD T2 Din Rail DC 1000V 40KA Arrester(3P 1000V) in Saudi Arabia

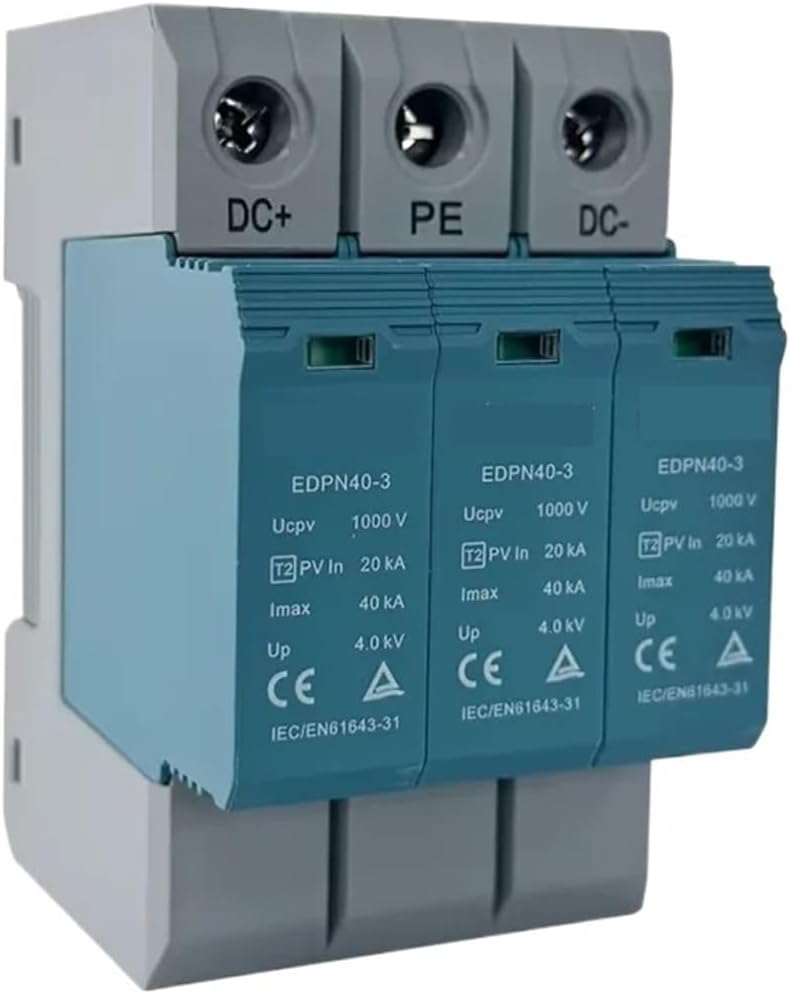

3P DC Surge Protector Solar SPD T2 Din Rail DC 1000V 40KA Arrester(3P 1000V)

SAR 517
Brand
ZNGDAYNR
Weight
50 g
Color3P 1000V
– 1 +

Special Features

  • Gas Tube Arrestors
  • Dc Surge Protector Solar|Dc Surge Protector 500v|High Surge Discharge Capacity:Equipped with a 40KA total discharge current, this DC surge protector ensures reliable protection.
  • Fast Response Time:Featuring a nanosecond response speed, the device quickly discharges voltage to safeguard equipment.
  • High Voltage Protection:With a voltage protection level of 4000V, the protector safeguards against extreme DC+-PE and DC-PE surges.
  • Wide Operating Voltage Range:Designed for solar applications, the protector operates effectively between 1000V DC+-PE and DC-PE.
  • Safety Overload Capacity:Engineered with a safety overload capacity, the device handles overvoltage events with ease.

Description

Gas Tube Arrestors
EDP series surge protective devices have reliable voltage protection level, super
surge discharge capacity and safety overload capacity, which are used for
protection of photovoltaic power generation system. The product is
equipped with high-energy mov chip, so when the system has overvoltage due to
stroke or other reasons, it can introduce the voltage into the earth with
nanosecond response speed, so as to protect the equipment.
Maximum Continuous Operating Dc Voltage(DC+)- PE, (DC-)- PE :1000V
(DC+)-(DC-):1000V
Nominal Discharge Curent (8/20 s):20KA
Total Discharge Current (8/20 us): 40KA
Maximum Discharge Current (8/20 us):40kA
Voltage Protection Level(DC+)- PE,(DC-)-PE: 4000V
(DC+)-(DC-):4000V
Short-Circuit Current Rating:1000A
==========
High-concerned chemical : None
Type : SPD
