Gas Tube Arrestors

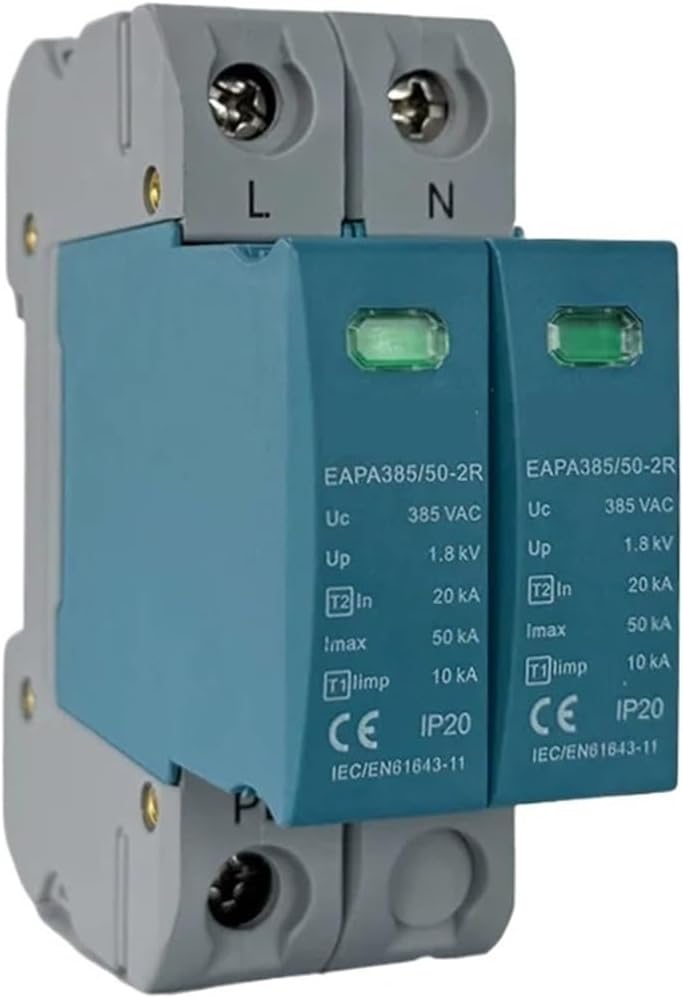

Surge Protection Device was designed and manufactured, complyingstandard GB/T18802.1
IEC/EN 61643-11 ,Rated voltage 275V~,320V~,385V~440V~,Maximum discharge current 50kA,
High Energy Varistor, high effective for protection.
Optional Remote Signalling Contact(FM) for Monitoring Device

Mechanical & Environmental
Operating Temperature Range40F to +158°F [-40' to +80°]
Permissible Operating Humidity: 5%...95%
Atmospheric pressure and altitude:80k Pa ... 106k Pa/-500m ..2000m
Terminal Screw :39.9 lbf.in [2.0~2.5-Nm]
Conductor Cross Section(max) :2 AWG (Solid, Stranded)/4 AWG (Flexible)35mm'(Solid, Stranded)/25mm'(Flexible)
Mounting:35mm DIN Rail, EN 60715
Degree of Protection:IP20(built-in)
Housing Material:Thermoplastic: Extinguishing Degree UL 94 V-0
Thermal Protection:Yes
Operating State / Fault Indication:Green: ok / Red: failure
Remote Contacts(RC):Optional
RC Switching Capacity:AC:250V/0.5A: DC:250V/0.1A: 125V/0.2A; 75V/0.5A
RC Conductor Cross Section (max):16AWG (Solid) /1.5mm²(solid)
Widely used
EAP series surge protective devices can be widely used in various fields, including homes, distribution boxes, switchgear, fire protection, photovoltaic systems, communications, data centers, gas stations, factories, communities, elevators, control cabinets, industrial applications, renewable energy, construction, and rail .
==========
High-concerned chemical : None
Type : SPD
Type : Circuit breaker
Is Smart Device : No
