Gas Tube Arrestors

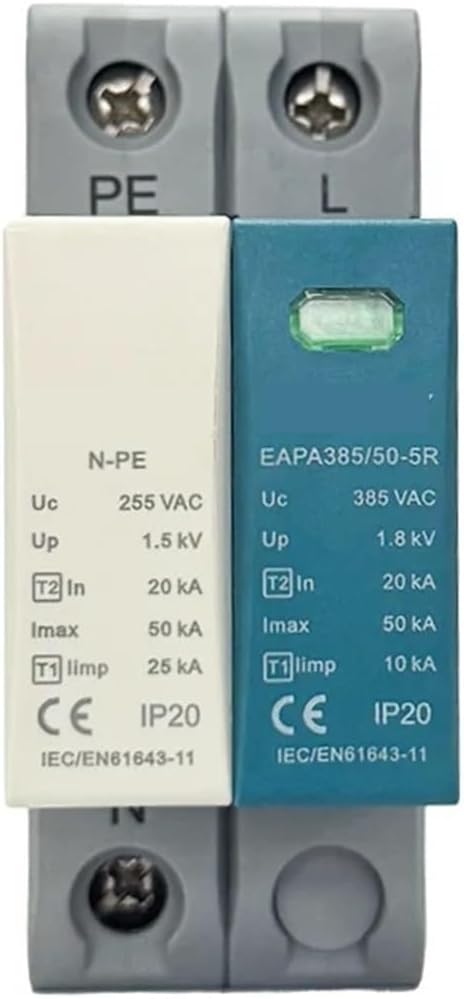

Surge Protection Device was designed and manufactured, complyingstandard GB/T18802.1
IEC/EN 61643-11 ,Rated voltage 275V~,320V~,385V~440V~,Maximum discharge current 50kA,
High Energy Varistor, high effective forlightning protection.

Mechanical & Environmental
[-40' to +80°C
Permissible Operating Humidity: 5%...95%
Atmospheric pressure and altitude:80k Pa ... 106k Pa/-500m ..2000m
Terminal Screw :39.9 lbf.in [2.0~2.5-Nm]
Conductor Cross Section(max) :2 AWG (Solid, Stranded)/4 AWG (Flexible)35mm'(Solid, Stranded)/25mm'(Flexible)
Mounting:35mm DIN Rail, EN 60715
Degree of Protection:IP20(built-in)
Housing Material:Thermoplastic: Extinguishing Degree UL 94 V-0
Thermal Protection:Yes
Operating State / Fault Indication:Green: ok / Red: failure
Remote Contacts(RC):Optional
RC Switching Capacity:AC:250V/0.5A: DC:250V/0.1A: 125V/0.2A; 75V/0.5A
RC Conductor Cross Section (max):16AWG (Solid) /1.5mm(solid)
==========
High-concerned chemical : None
Type : Mini
Rated Voltage : 220/380V
