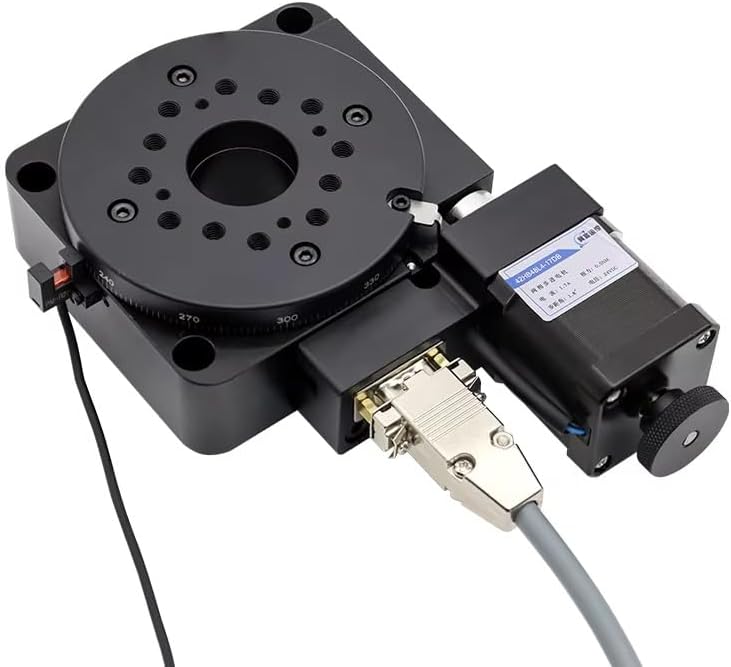

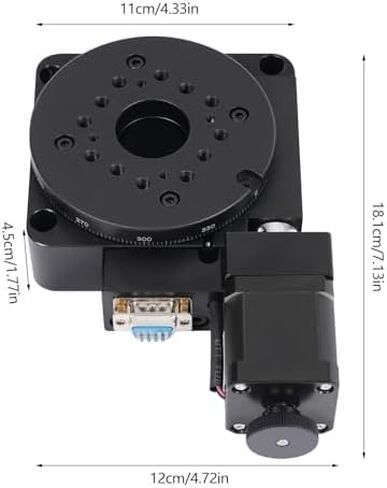

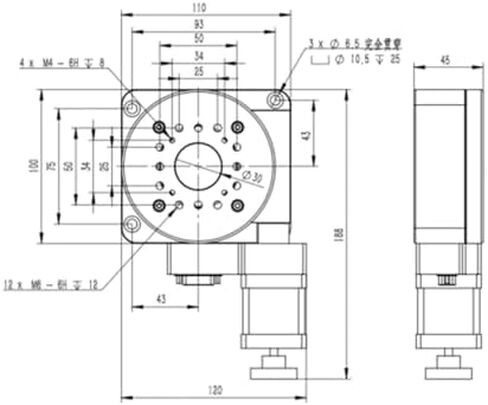

Introducing the Electric Optical Rotating Platform, an advanced solution designed for precision engineering and photography needs. This platform offers a full 360 degree itinerary and features a compact table size of Φ100mm.
The transmission is powered by a worm gear with a reduction ratio of 1/180, ensuring smooth and accurate motion.
Constructed with black anodized aluminum for durability, it weighs only 1.7kg.

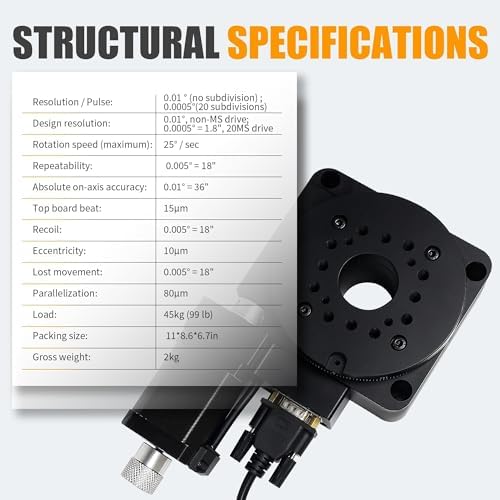

The platform boasts a design resolution of 0.01°, achieving unparalleled repeatability of 0.005° or 18”. It facilitates a maximum rotation speed of 25°/sec and delivers absolute on-axis accuracy of 0.01° or 36”.
The top board beat is measured at 15μm, with characteristics including recoil and eccentricity at 0.005° or 18” and 10μm, respectively, providing excellent stability. It can support a load of up to 45kg, making it suitable for various applications. The step angle is 1.8° with 2 phases, featuring a rated voltage of 3.2V and rated current of 2.0A. The platform demonstrates a resistance of 1.6 +10%, inductance of 3.4mh with ±20% variance, and holding torque of 0.63 N.M. It is designed with a dielectric strength of 500V A.C. and insulation resistance exceeding 100 MΩ. The insulation class is rated as Class B, and the maximum temperature rise is capped at 80°C. It allows thrust loads up to 10N and radial loads of 21N at the shaft end. Operating within an ambient temperature range of -20°C to +50°C and humidity of 15% to 95%, the platform is built to last with a lifespan of up to 5000 hours.
The package includes 1 rotating platform.
Please note slight measurement deviations may occur due to manual measurements, and actual product colors may vary slightly from those shown in images.
