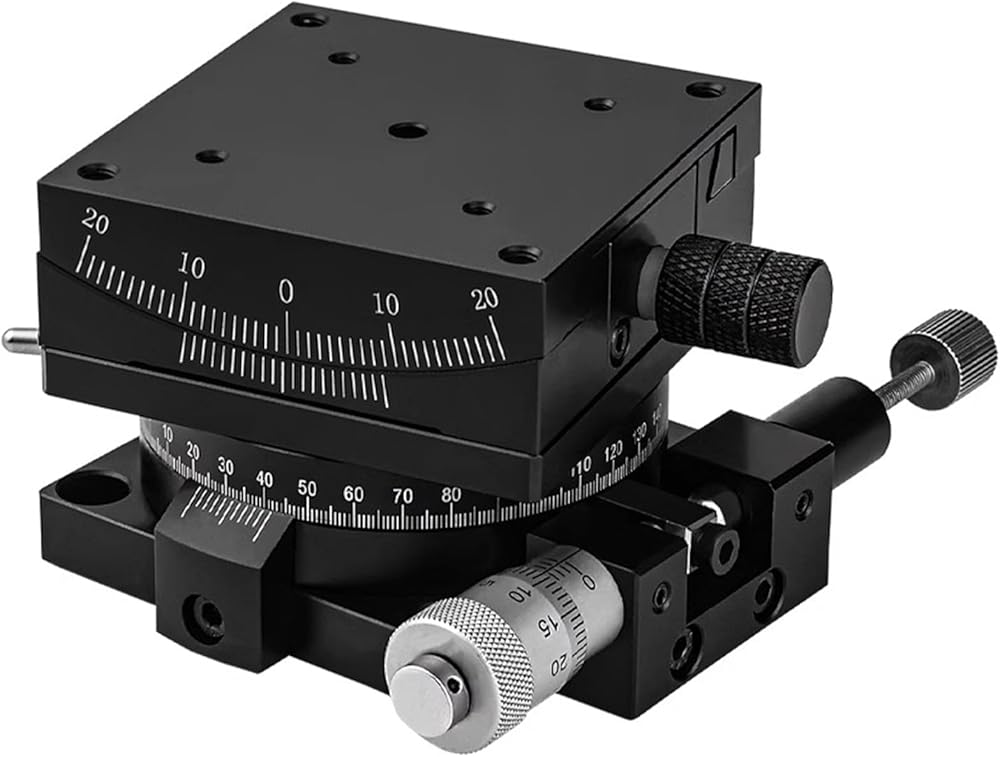

COYEUX 60x60mm Manual Linear Stage, Angle Measuring Platform with Scale Ruler, Optical Positioning Sliding Table, ±20° Tilt Angle Adjustment, Dovetail Platform, for Optical Equipment

SAR 1,234
– 1 +

Special Features

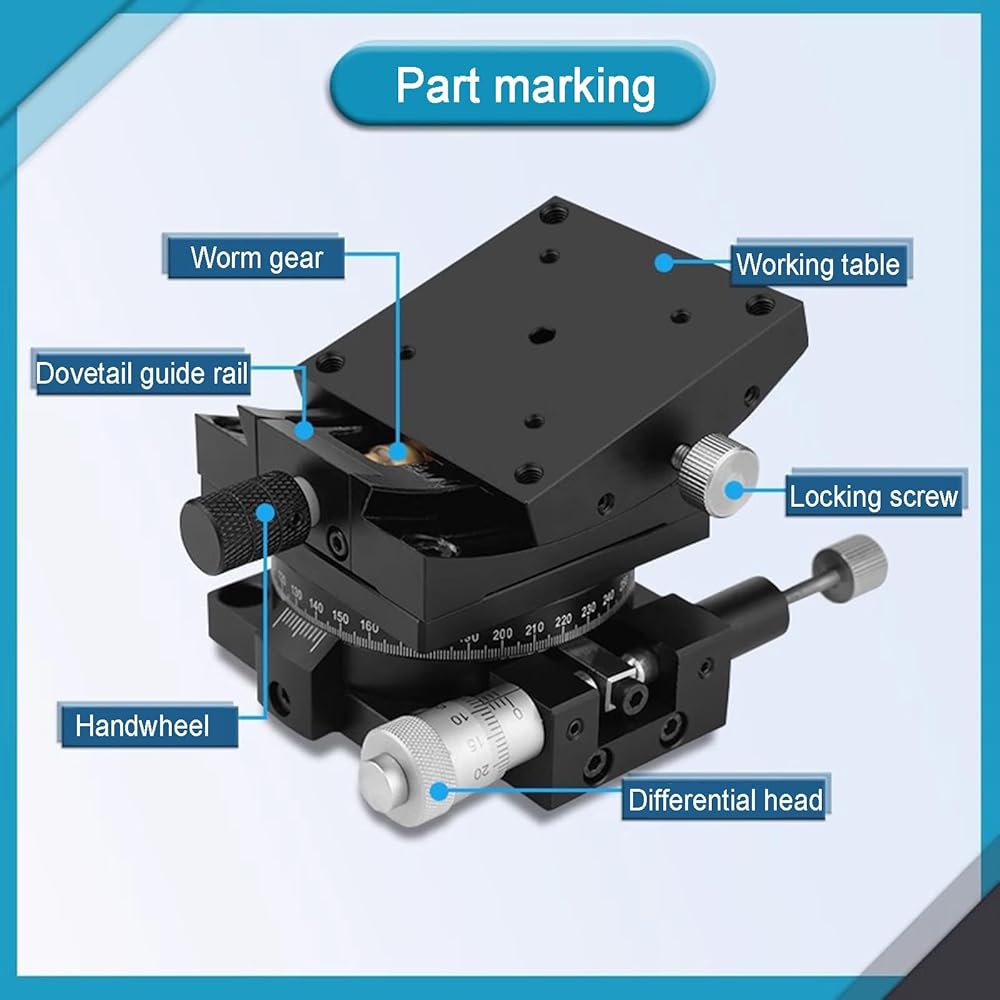

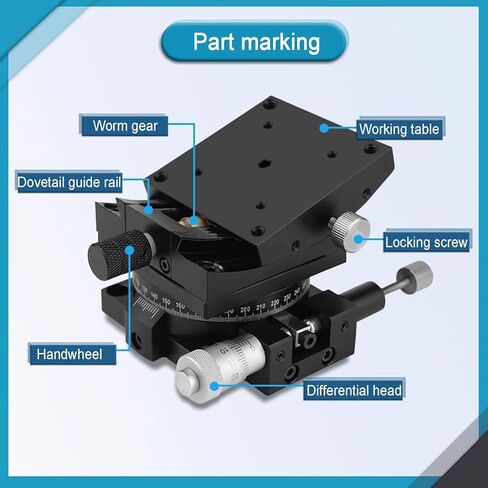

  • 【High Precision】High precision and more reliable: central worm gear drive, precision adjustable dovetail guide rail. Smooth movement, small deflection and tilt. Stroke: 20°; Minimum reading scale: 1°; Table size 60×60mm
  • 【R-Corner Protection】The 60x60mm worm gear dovetail groove fine-tuning platform adopts R corner protection design, which can effectively remove all edge burrs, Prevent bumps during use

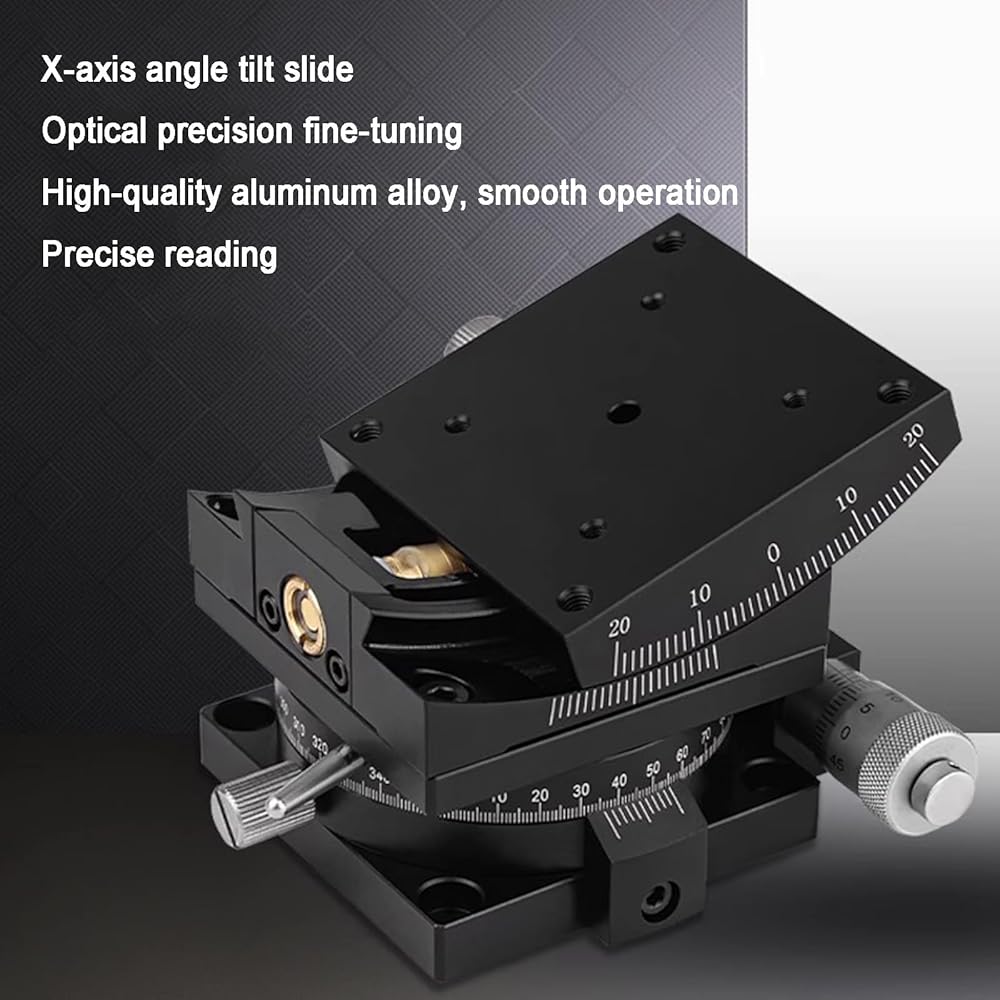

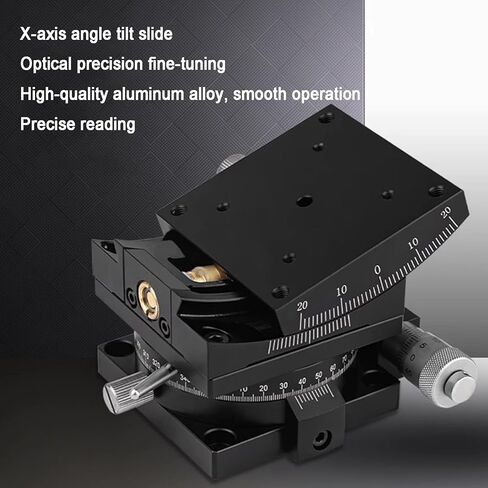

  • 【Aluminum Alloy Material】Hard aluminum body, surface treatment with anodization blackening. Effectively preventing the reflection of light, especially suitable for the field of optics

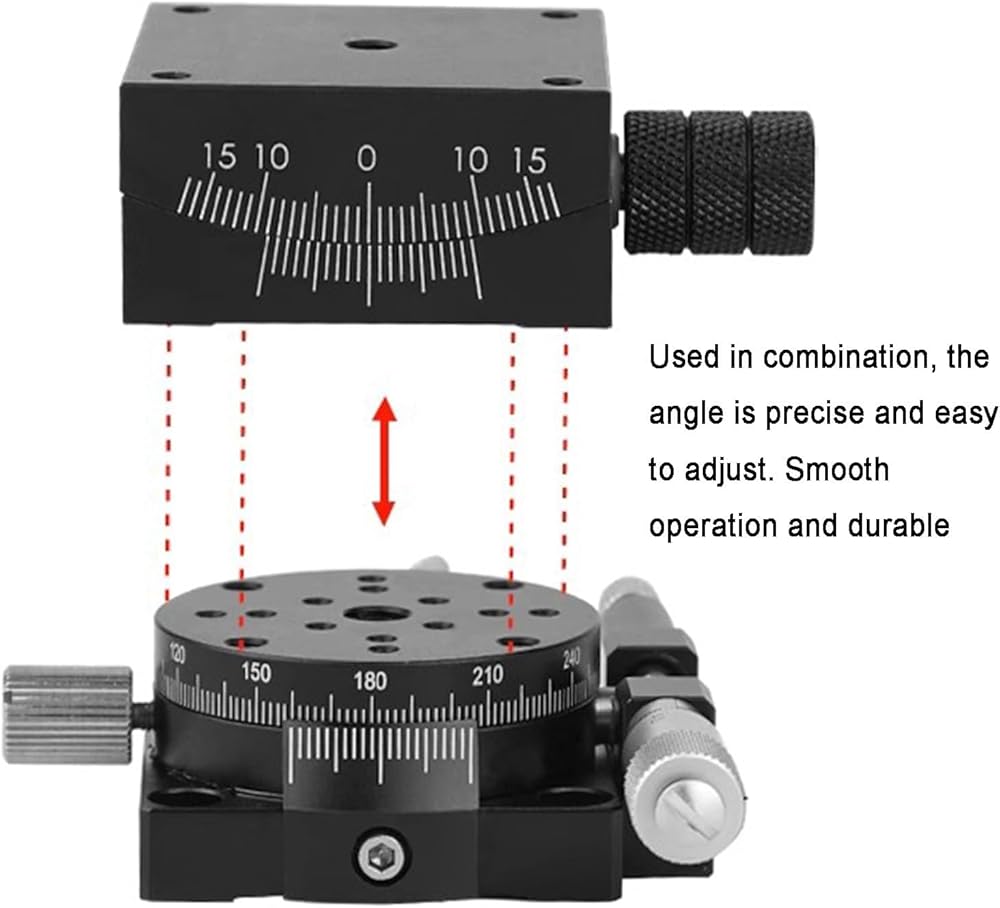

  • 【Multi-dimensional Stage Combination】Easy to Operate. Extended handwheel for easier adjustment. Porous design, strong applicability. It can form a multi-dimensional stage with other types of stages through these standard hole spacing connecting holes
  • 【Application】The dovetail groove stage is applicable to numerous fields such as optical equipment, measuring instruments, semiconductor manufacturing equipment, testing machines, microscopes, photographic equipment, etc

Description

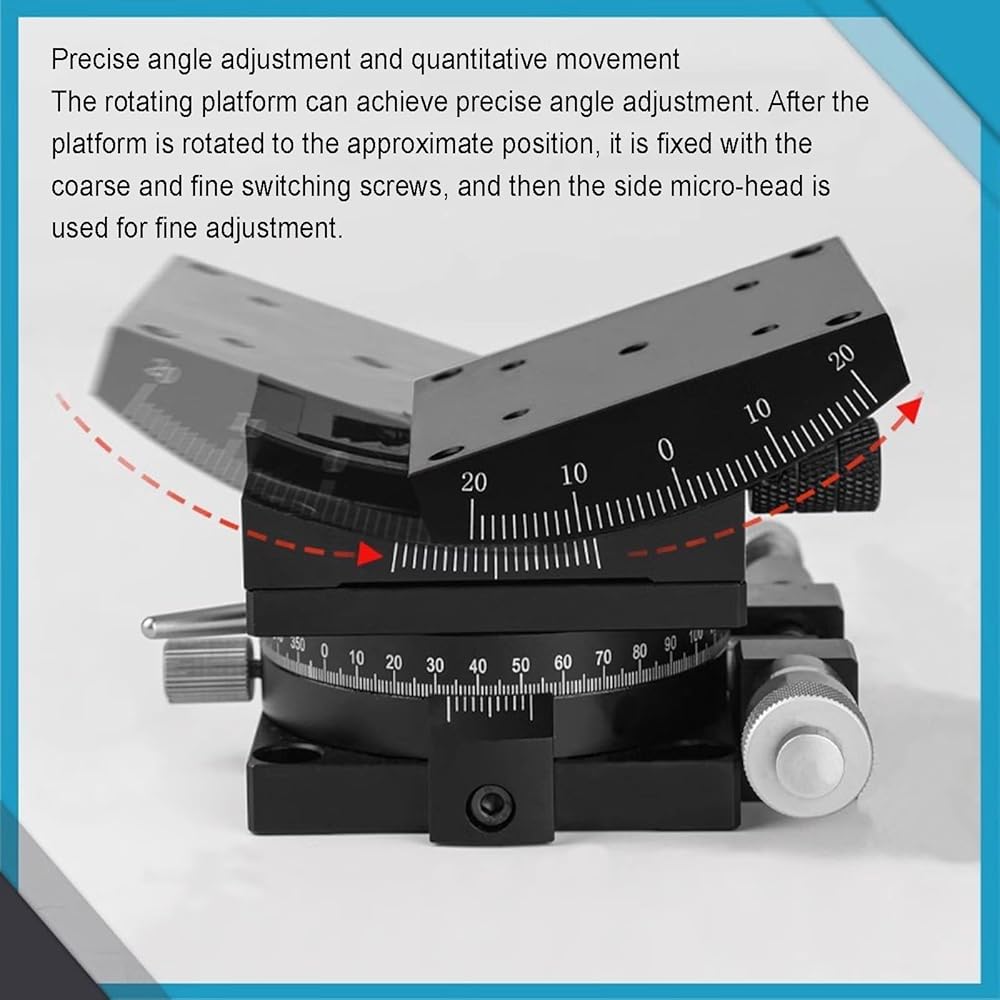

Linear platform supports precise angle adjustment and quantitative movement
Dovetail guide, with high accuracy, smoothness, high load resistance, stable movement

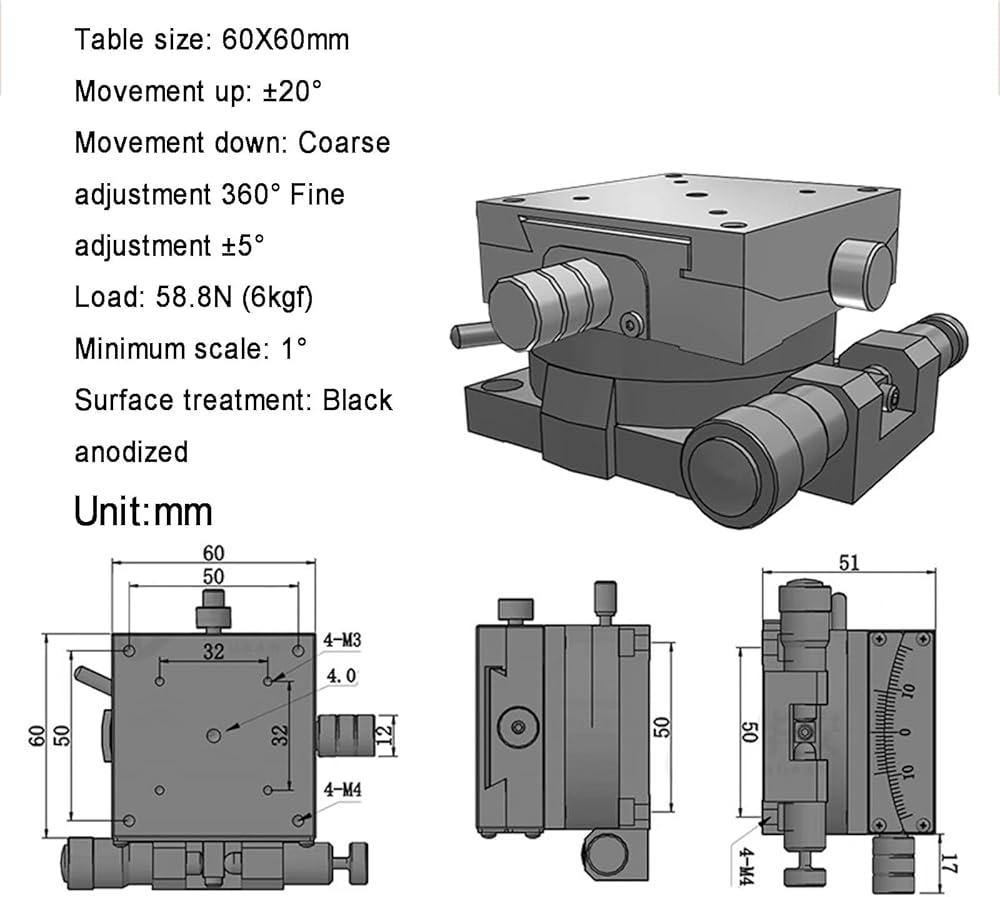

Specifications:
Material: Aluminum alloy
Surface treatment: Black anodized
Table size: 60X60mm
Movement up: ±20°
Movement down: Coarse adjustment 360* Fine adjustment ±5°
Load: 58.8N (6kgf)
Minimum scale: 1°

Product includes:
1*Manual Linear Stage
