مميزات خاصة

Lifts your Pi HAT over any Pi accessories like cooler or heat sink
Comes with two heigths of GPIO and PoE network extender stacking headers, matching with 11mm and 16mm M2.5 hex standoffs, compatible with Raspberry Pi 5 4B 3B+

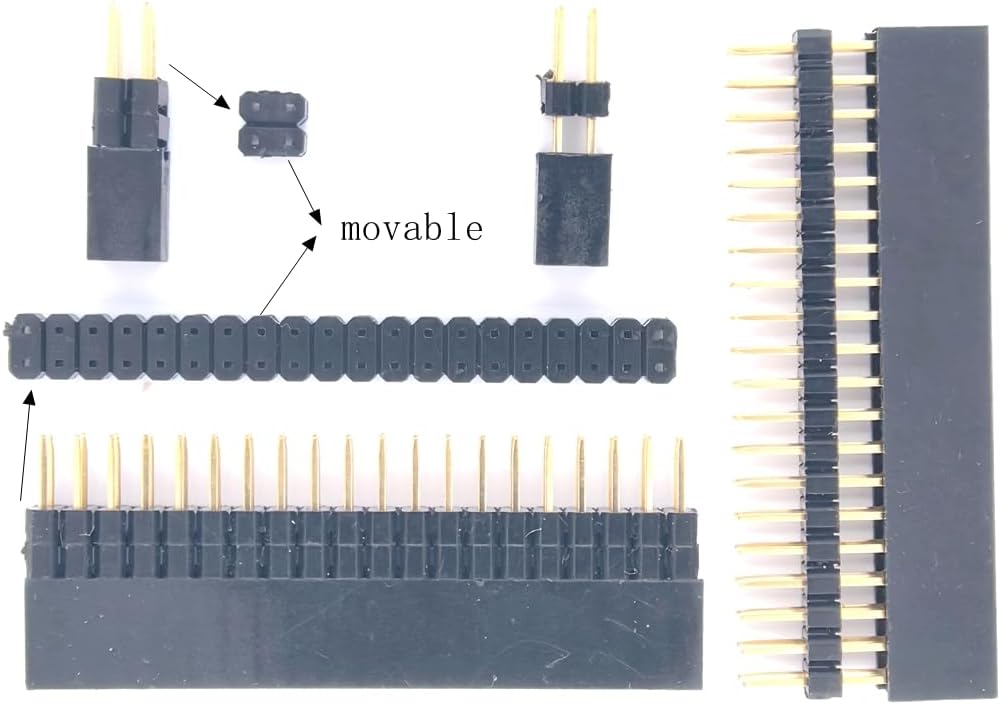

Easy to move the plastic spacer of the headers for heigth adjustment, turn the body heigth to 8.5mm, 11mm, 13.5mm, 16mm. And 7mm screws are long enogh to mount them up

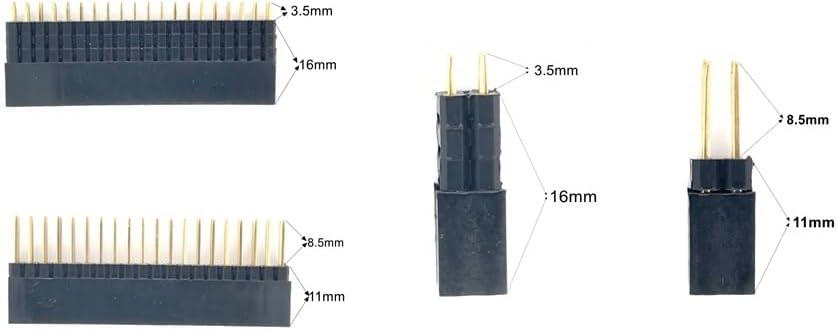

Specifications: 2.54mm header: body heigth-11mm, pin length: 8.5mm; body heigth-16mm, pin length: 3.5mm. M2.5 standoffs: 11mm; 16mm. M2.5 Philips head screws: 7mm

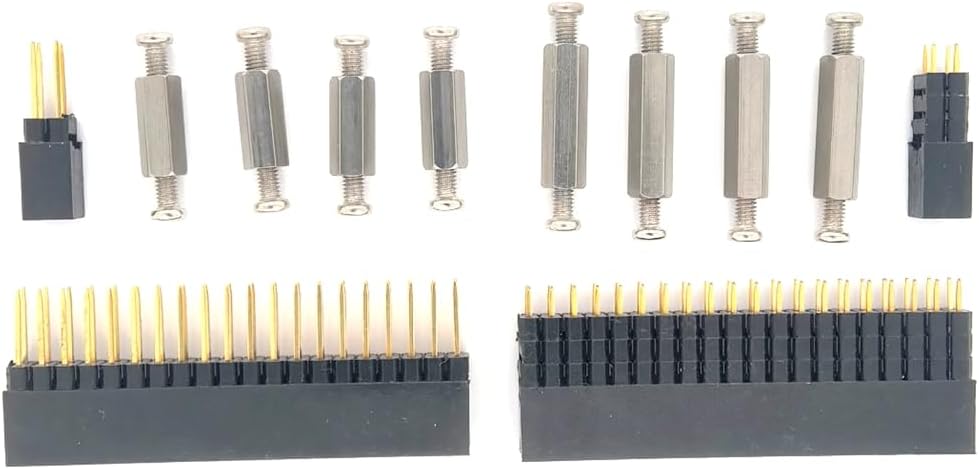

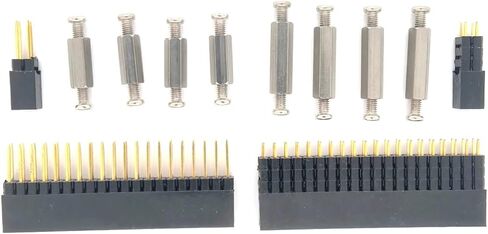

Package included: 1x 2*20 header 8.5mm pin, 1x 20*20 header 3.5mm pin, 1x2*2 header 8.5mm pin, 1x 2*2 header 3.5mm pin, 4x M2.5*11 standoffs, 4x M2.5*16 standoffs, 16x M2.5 screw

وصف

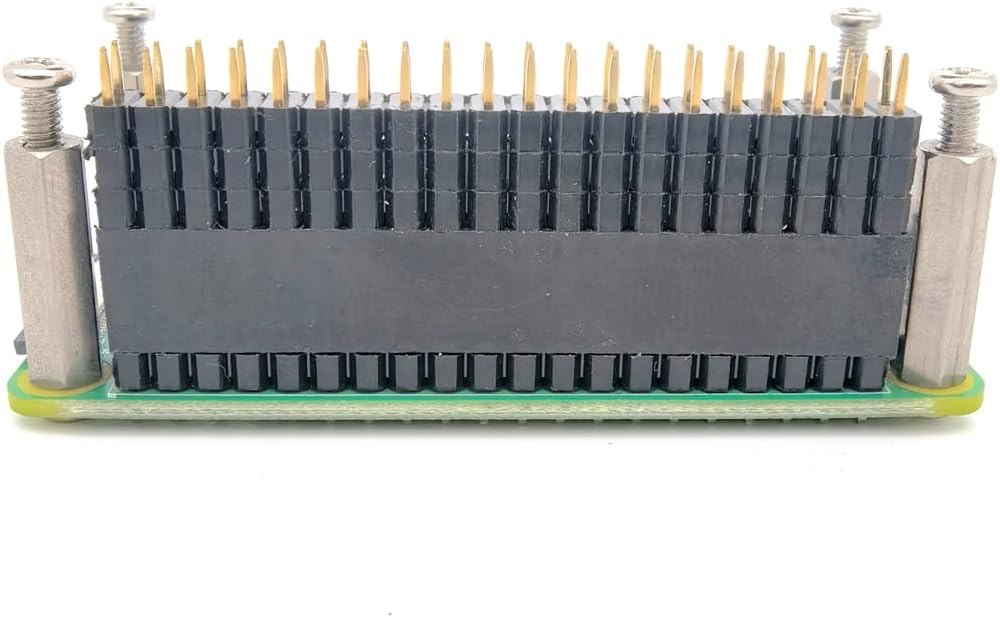

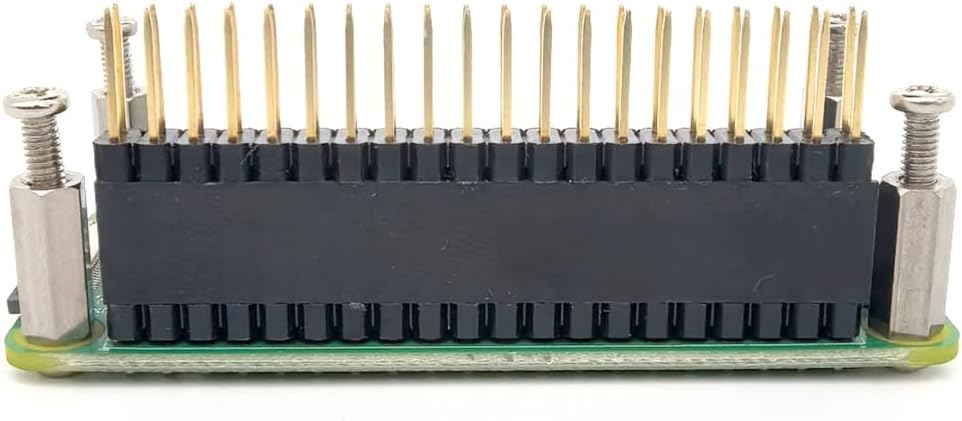

This HAT hardware kit lifts your Pi HAT over any large cooler or heat sink, keeping the two boards separated, creating critical clearance over on-board components. There are two heigths of 2x20p GPIO and 2x2p PoE network extra tall stacking headers perfectly match with four 16mm hex standoffs and four 11mm hex standoffs. The kit also includes sixteen M2.5 Philips head machine screws.
