RIIEYOCA 400W Dual High-Power MOSFET Trigger Module, 0-20KHz PWM Motor Controller, 5V-36V 15A(Max 30A) DC Motor Speed Controller for Arduino, DIY Projects（6Pack）

SAR 50
Brand
RIIEYOCA
Weight
50 g
– 1 +

Special Features

  • Dual High-Power MOSFET Trigger Module: Featuring a parallel dual MOSFET configuration with screwless terminal design, it delivers a continuous current of 15A and a maximum power output of 400W. Compatible with PWM controllers (0-20kHz) for precise motor speed and LED brightness regulation, it seamlessly integrates with microcontrollers (Arduino/Raspberry Pi) and PLC systems.

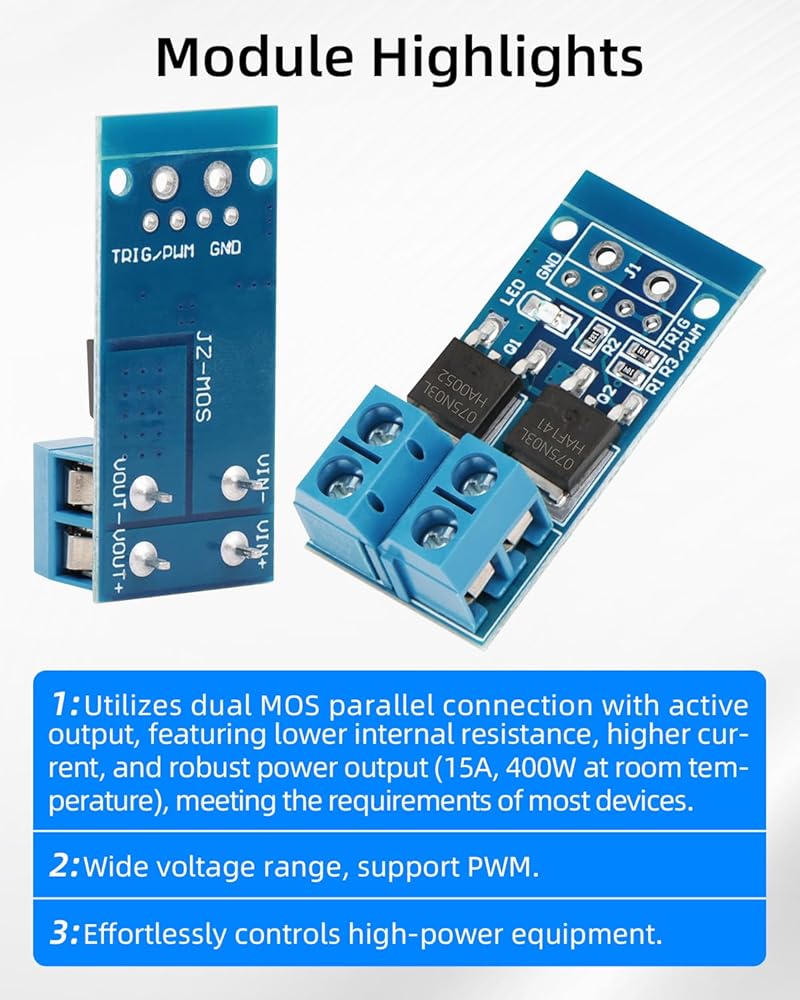

  • Dual MOSFET Drive: Featuring a dual MOS parallel structure with active output, it delivers lower internal resistance, higher current capacity, and robust power output. Capable of stable operation at 15A/400W, it can achieve up to 30A under enhanced thermal management, meeting the requirements of most devices and effortlessly controlling high-power equipment.
  • Multi-voltage and Signal Compatibility: PWM (0-20kHz) adjustable control panel supports output voltages from 5 to 36V and input digital signals from 3.3 to 20V. Suitable for microcontroller I/O ports, PLC interfaces, DC power supplies, and other digital control systems. Eliminates the need for complex intermediate circuitry, greatly simplifying DIY and automation projects.

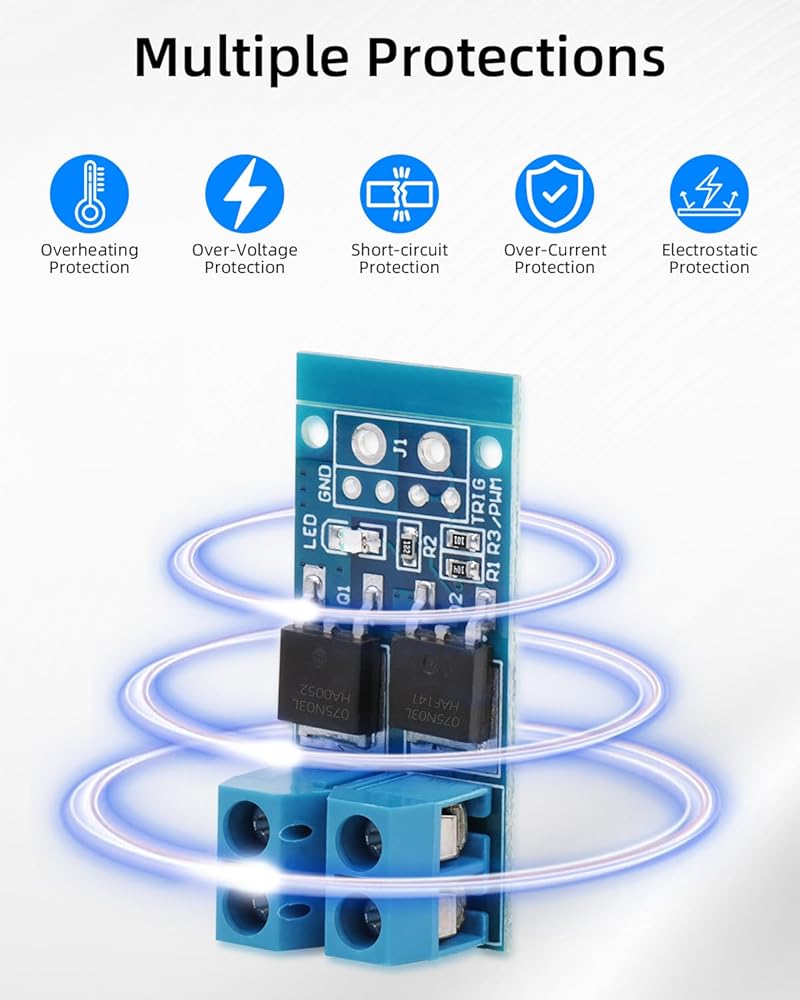

  • High Reliability: This MOSFET trigger module is engineered for extreme environments, enabling endless switching cycles while maintaining stable and efficient operation across a temperature range of -40 to 85°C. Such durability ensures high reliability under diverse environmental conditions, significantly enhancing its suitability for outdoor, automotive, and industrial applications.
  • Wide Application: This MOSFET switch driver module excels as a versatile power control unit across numerous applications. Its design enables precise control of high-power devices such as motor speed regulation, LED dimming, micro-pumps, and solenoid valves. It serves as an indispensable core component for robotics, smart home systems, CNC machine tools, and power electronics projects requiring precise PWM modulation.

Description

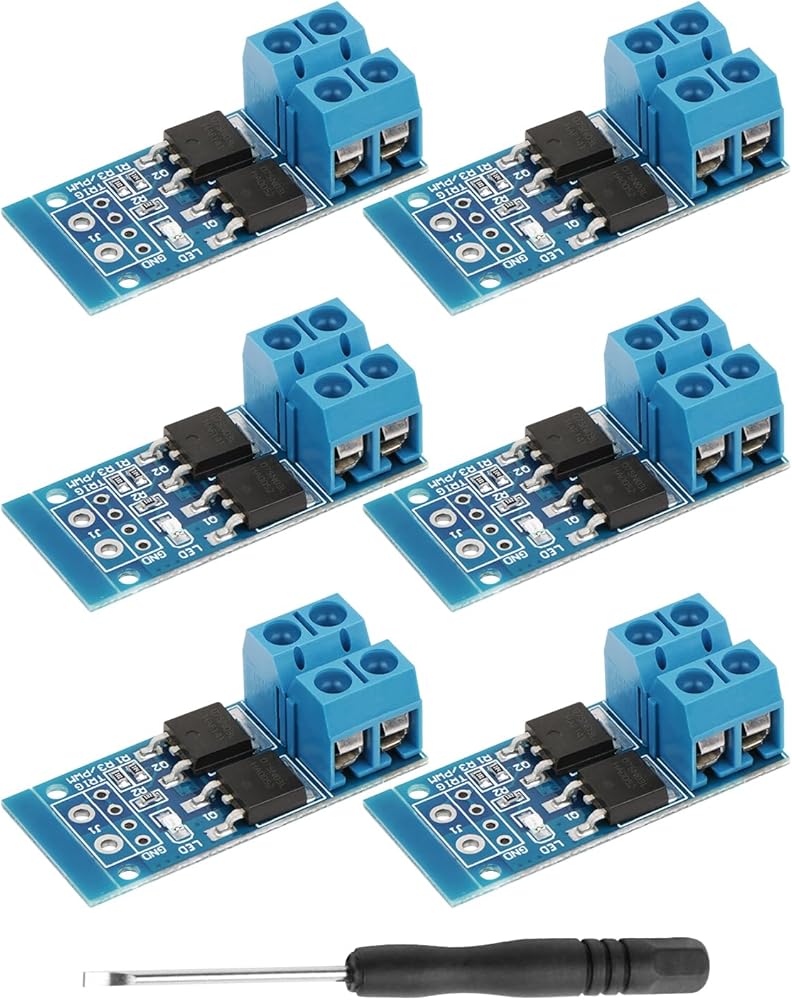

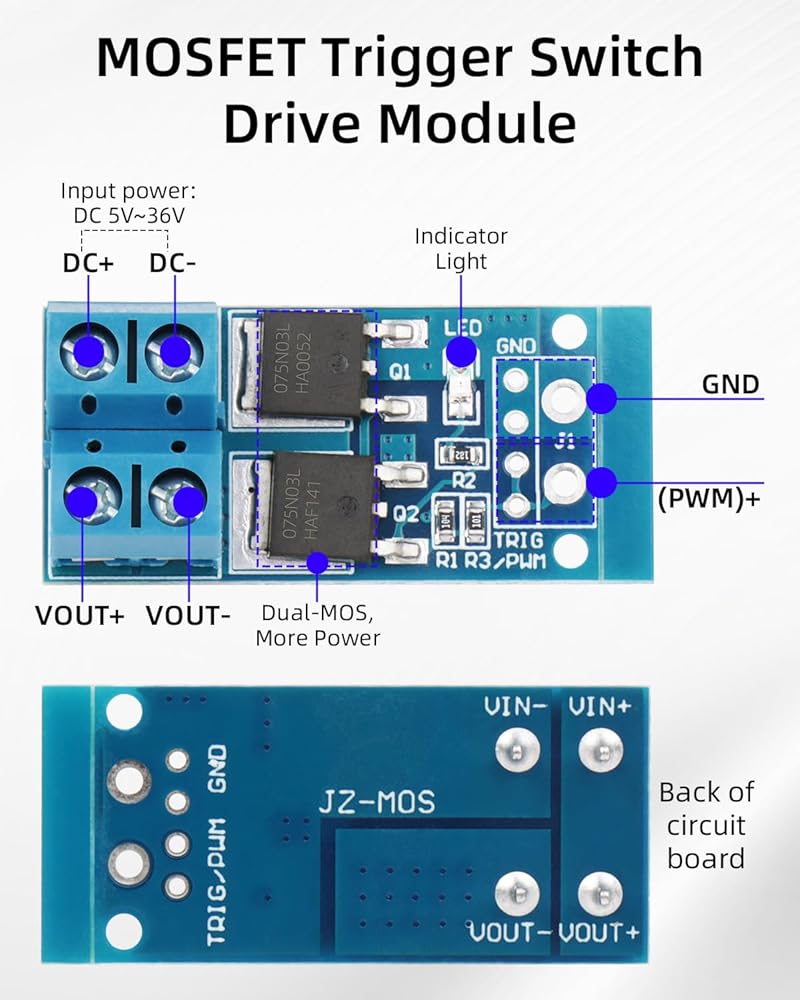

RIIEYOCA DC 5V-36V MOSFET Trigger Switch Drive Module
Employing imported high-power dual MOS transistors in parallel configuration to achieve active output, featuring lower resistance, higher current capacity, and robust power delivery. Its compact form factor facilitates seamless integration into diverse application scenarios.

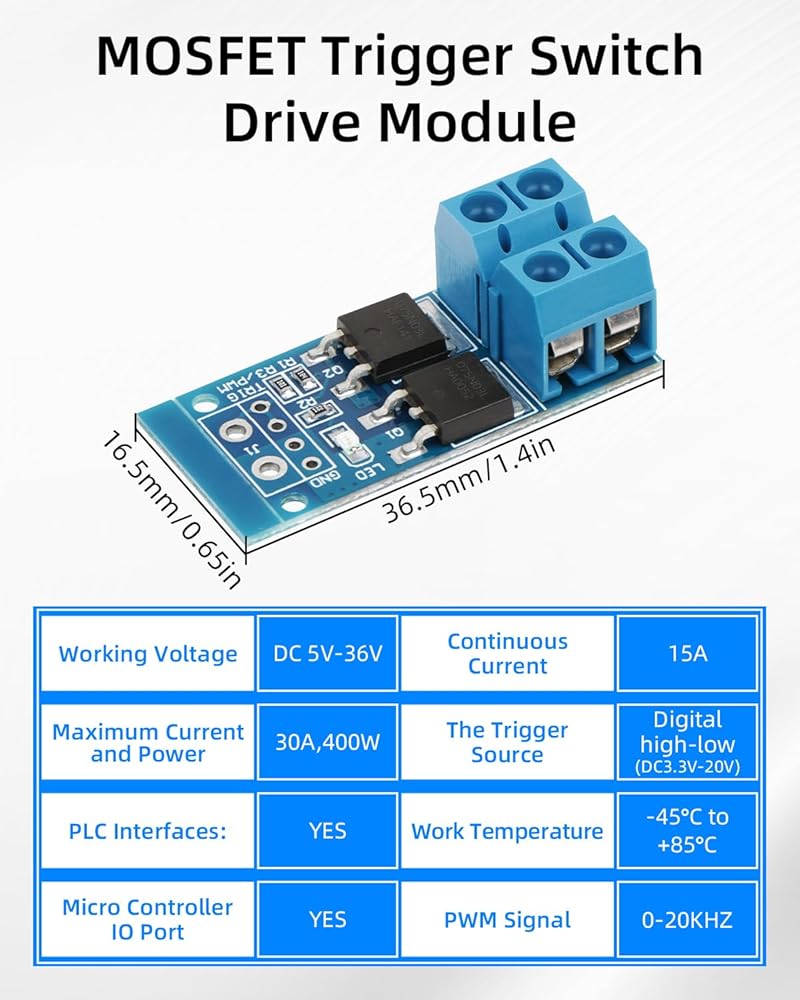

Operating Voltage: DC 5V - 36V
Continuous Current: 15A (continuous current at room temperature Enhanced heat dissipation, the maximum current can reach 30A)
Maximum Power: 400W
PWM Support: 0 - 20 KHz
Trigger Signal Voltage: DC 3.3V - 20V (Digital High/Low)
Operating Temperature: -40°C ~ +85°C
Service life: unlimited switch
Module Dimensions: 34 x 17 x 12 mm (LxWxH)
Weight: Approximately 5g per module
Application: The output can control high-power equipment, motor, bulb, LED strip, DC motor, micro pump, solenoid valve, etc. It can input PWM, control motor speed, lamp brightness, etc
NOTE:
For continuous high-current applications (above 15A), please ensure proper heat dissipation (e.g., add a heatsink) to maintain performance and longevity.

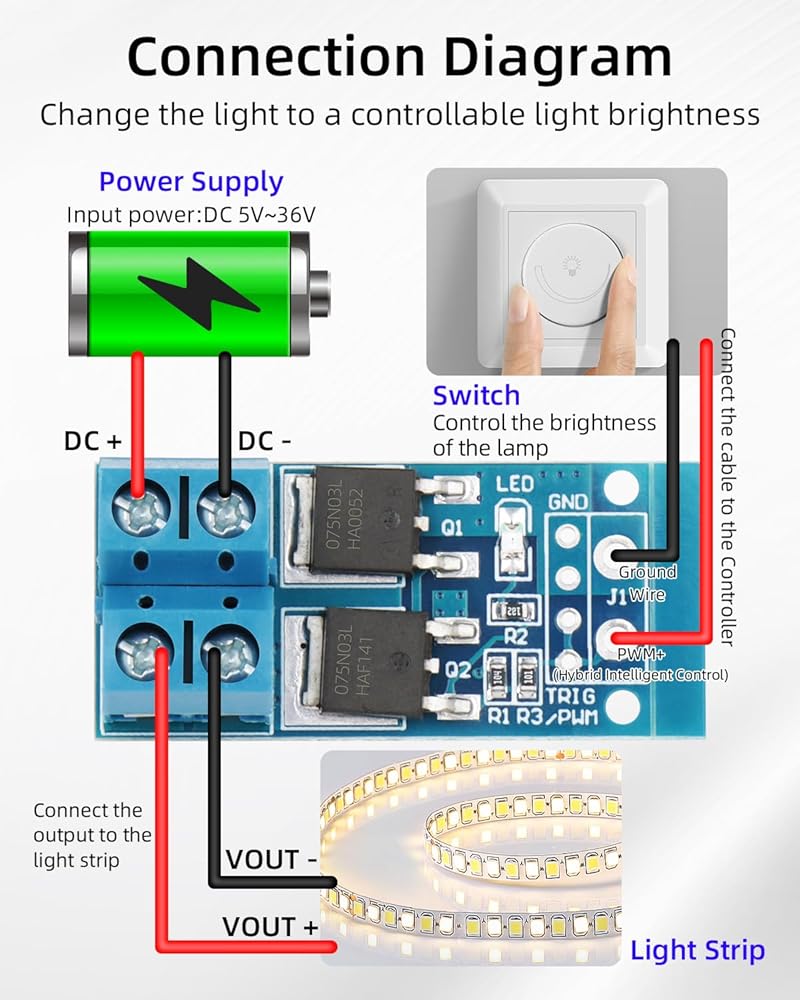

Always double-check your wiring connections against the terminal labels (Signal+, Signal-, VCC, GND, Output+) before powering on to prevent damage.

This is a power switching module. It does not output a variable voltage by itself; it switches the full supply voltage to the load using the PWM signal.
