مميزات خاصة

NTC Sensor System：Equipped with high-quality NTC sensor inputs (probes included).These sensitive probes detect temperature changes instantly, allowing the controller to react quickly to heating or cooling needs, providing real-time monitoring for your equipment.

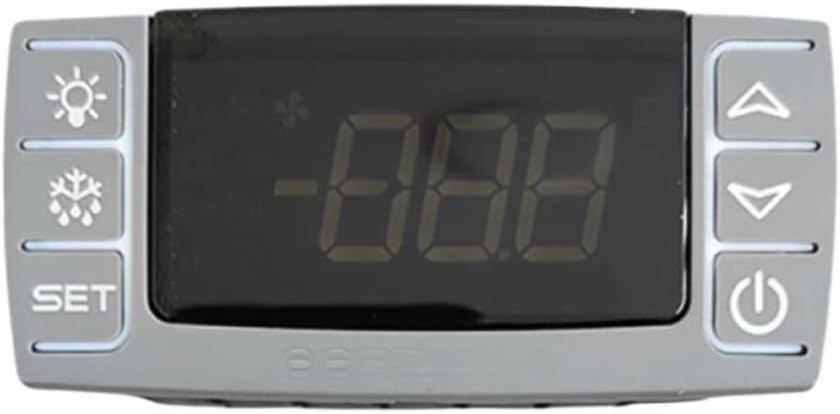

Clear Digital Display: Operates on a standard 230V AC (50/60Hz) power supply.Equipped with a bright, easy-to-read LED screen for quick temperature monitoring and fast parameter programming.
Easy Replacement & Installation:: Engineered as a reliable universal replacement controller for compatible air-cooled refrigeration units.Its standardized design makes wiring and panel mounting straightforward.
Worry-Free Support：We are committed to your satisfaction.If you have any questions about compatibility, wiring diagrams, or settings, please contact our customer service team via Amazon.We are ready to assist you and resolve any issues promptly.

وصف

Model: XR75CX-5N7C3
Electrical Specifications
Power Supply: 230V~ 50/60Hz
Power Consumption: 4VA Max.
Probe: NTC-pt1000

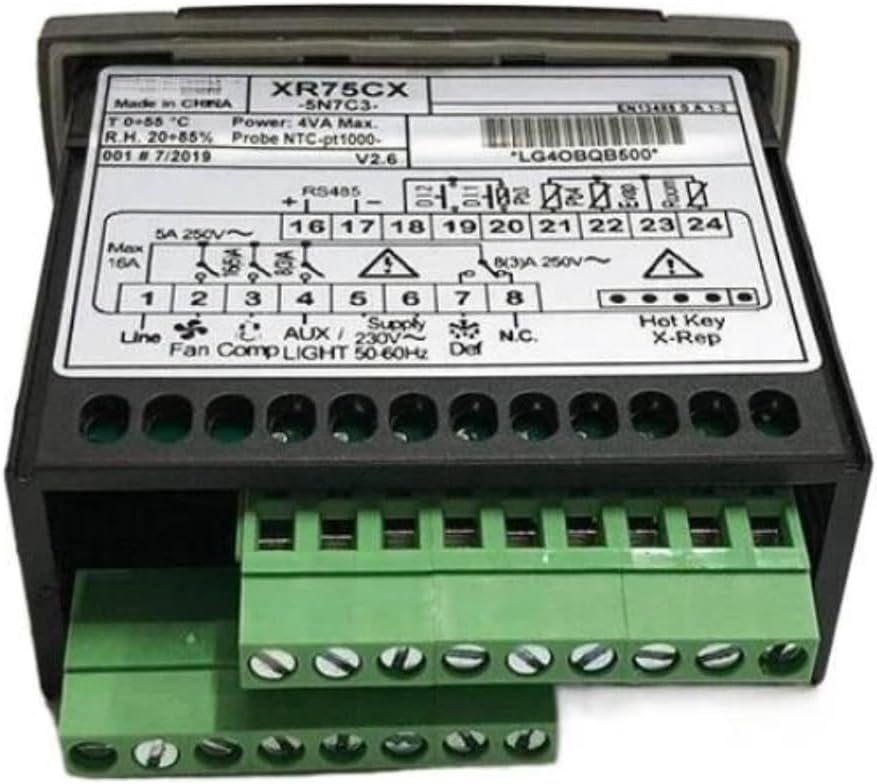

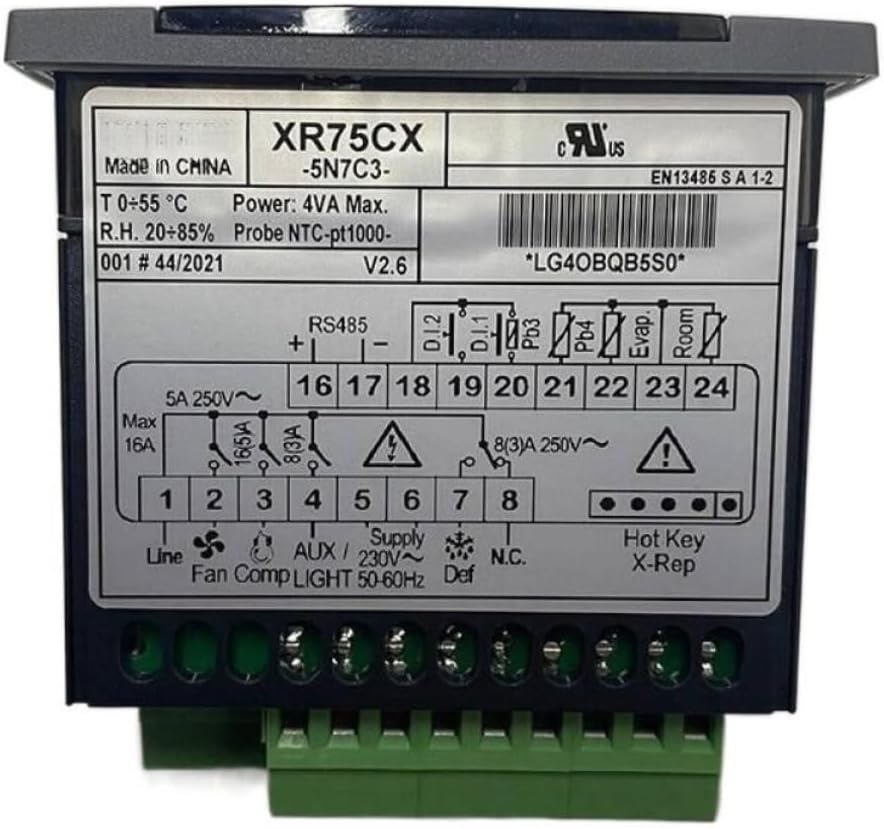

Wiring and Output Definitions
RS485 Communication:
Terminal 16: RS485 +
Terminal 17: RS485 -
Inputs / Sensors (Probes/Inputs):
Terminal 19-20: D.I.2 / D.I.1 (Digital Inputs)
Terminal 21: Pb3 (Probe 3)
Terminal 22: Pb4 (Probe 4)
Terminal 23: Evap.(Evaporator Probe)
Terminal 24: Room (Room Temperature Probe)
Main Control Outputs (Outputs):
Terminal 1: Line (Power Supply Live)
Terminal 2: Fan (Fan) - 16(5)A Rating
Terminal 3: Comp (Compressor)
Terminal 4: AUX / LIGHT (Auxiliary/Light) - 8(3)A Rating
Terminal 5 & 6: Supply 230V~ (Power Input)
Terminal 7: Def (Defrost Relay Output) - 8(3)A 250V~ Rating
Terminal 8: N.C. (No Connection)
Relay Output (Total Load): 16A Max.
Relay Output (Compressor/Fan/Light - Specific depends on wiring): 8(3)A 250V~
Other Characteristics
Operating Temperature: 0 ÷ 55°C
Operating Humidity: R.H. 20 ÷ 85%

مرحبًا،

بحث

جهاز التحكم الرقمي في درجة الحرارة XR75CX-5N7C3، 230 فولت/50-60 هرتز مع مجسات NTC/pt1000، مخرج مرحل للضاغط والمروحة والتحكم في إزالة الجليد في مبردات التجميد التجارية، اتصال RS485
