4-20mA Output Two-Wire Thread G1/4 0-16Bar air Compressor Pressure Sensor M12 3 Meters Cable 9-36V Power Supply 0.5% Accuracy in Saudi Arabia 4-20mA Output Two-Wire Thread G1/4 0-16Bar air Compressor Pressure Sensor M12 3 Meters Cable 9-36V Power Supply 0.5% Accuracy in Saudi Arabia 4-20mA Output Two-Wire Thread G1/4 0-16Bar air Compressor Pressure Sensor M12 3 Meters Cable 9-36V Power Supply 0.5% Accuracy in Saudi Arabia 4-20mA Output Two-Wire Thread G1/4 0-16Bar air Compressor Pressure Sensor M12 3 Meters Cable 9-36V Power Supply 0.5% Accuracy in Saudi Arabia 4-20mA Output Two-Wire Thread G1/4 0-16Bar air Compressor Pressure Sensor M12 3 Meters Cable 9-36V Power Supply 0.5% Accuracy in Saudi Arabia 4-20mA Output Two-Wire Thread G1/4 0-16Bar air Compressor Pressure Sensor M12 3 Meters Cable 9-36V Power Supply 0.5% Accuracy in Saudi Arabia

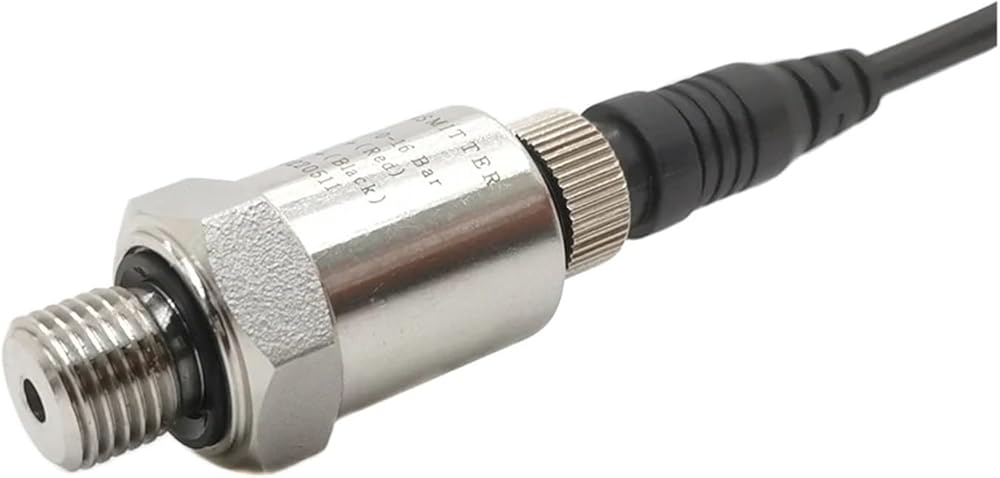

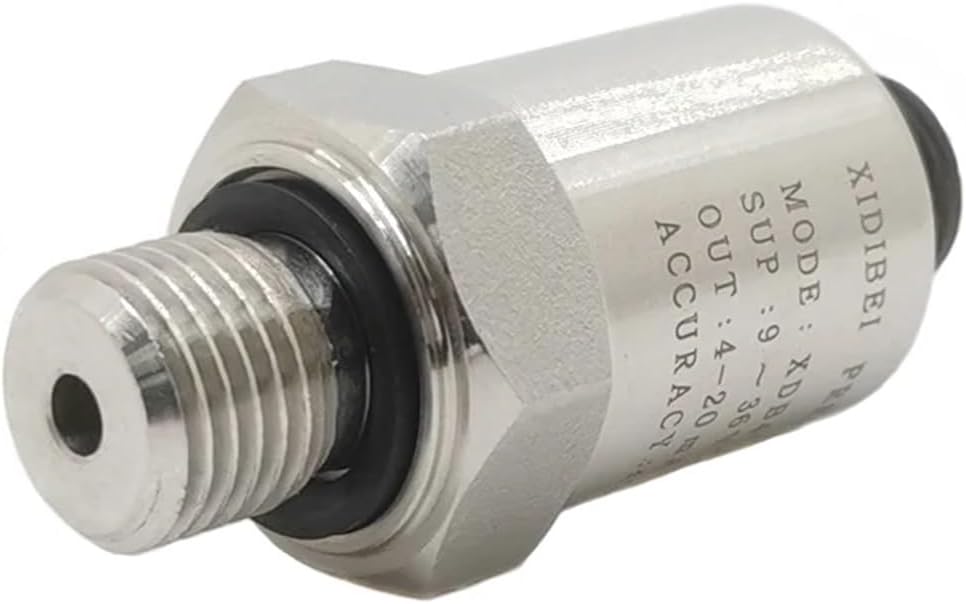

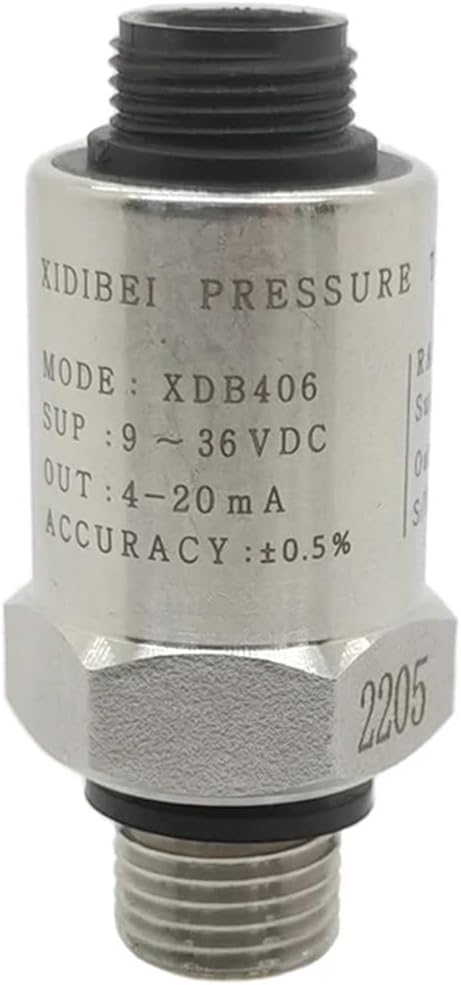

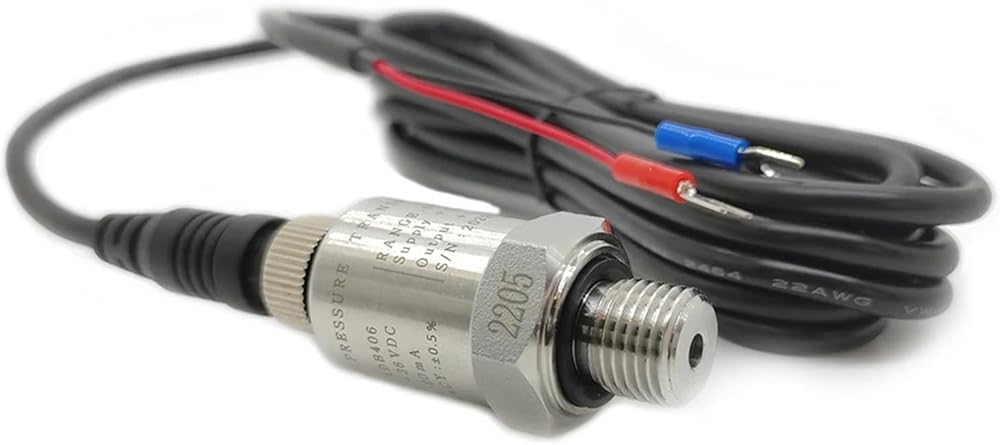

4-20mA Output Two-Wire Thread G1/4 0-16Bar air Compressor Pressure Sensor M12 3 Meters Cable 9-36V Power Supply 0.5% Accuracy

SAR 387
Brand
ADPVRLUQ
Category
Sensors
Weight
50 g
Size0-16bar
– 1 +

Special Features

  • Liquid Level Sensors

Description

Liquid Level Sensors
Measuring range: 0-16Bar
Accuracy: ±0.5%FS
Output signal: 4-20mA (2 lines)
Supply voltage: 9-36(24)VDC
Working temperature: -40℃-85℃
Compensation temperature: -20℃-80℃
Working current: 5mA
Temperature drift (zero position & sensitivity ±0.03%FS/
Long-term stability: ±0.2%FS/year
Response time: 3ms
Overload pressure: 200%FS
Burst pressure: 300%FS
Pressure medium: gas
Pressure connection: G1/4

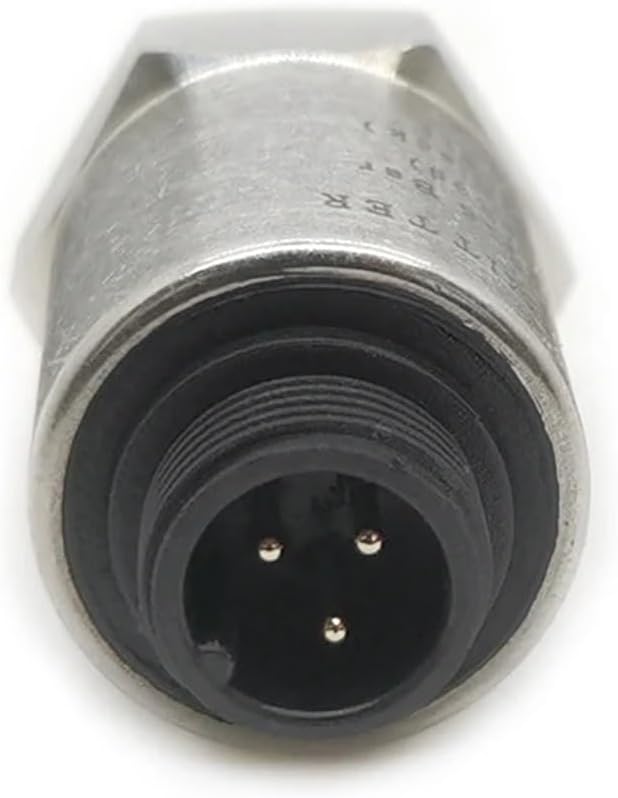

connection: M12 (PIN 3)
Cable length: 3 meters
Shell material: 304 stainless steel
Protection level: IP65
Explosion-proof level: ExiaCT6
Weight: 0.200kg
Warranty period: 1.5 years
Dimensions (unit: mm)

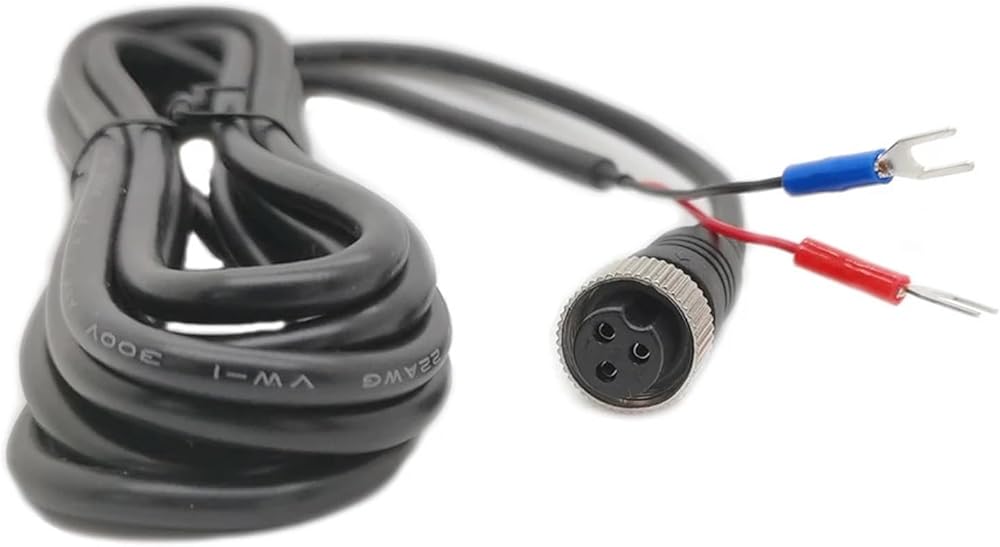

connections
Pin1: Power + (red)
Pin2: Output + (black)
