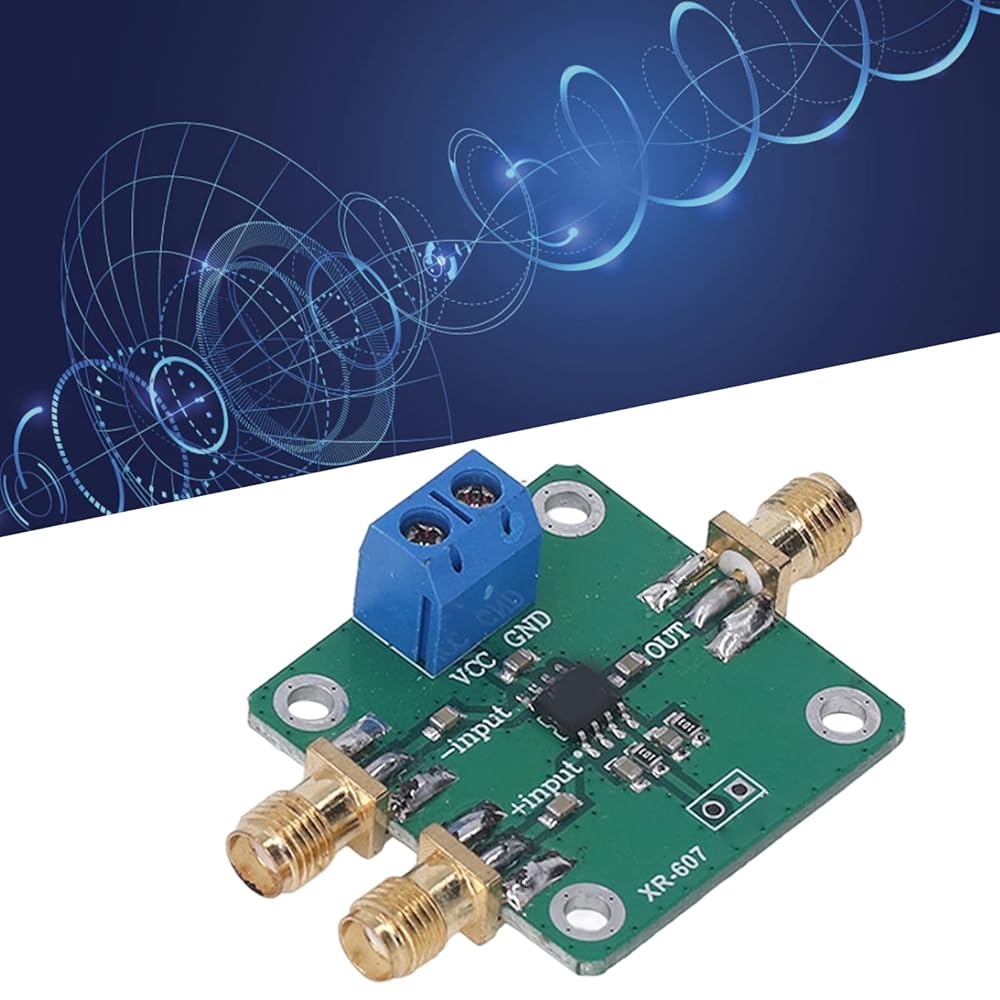

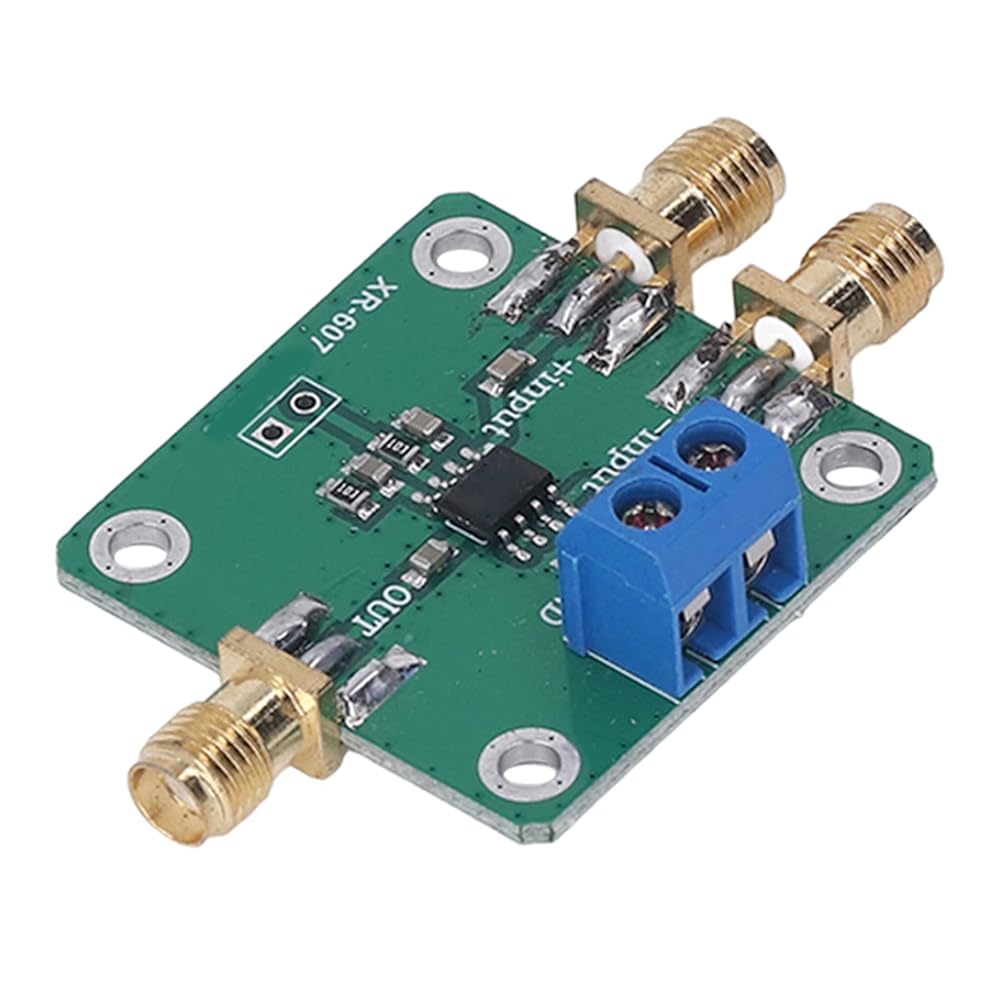

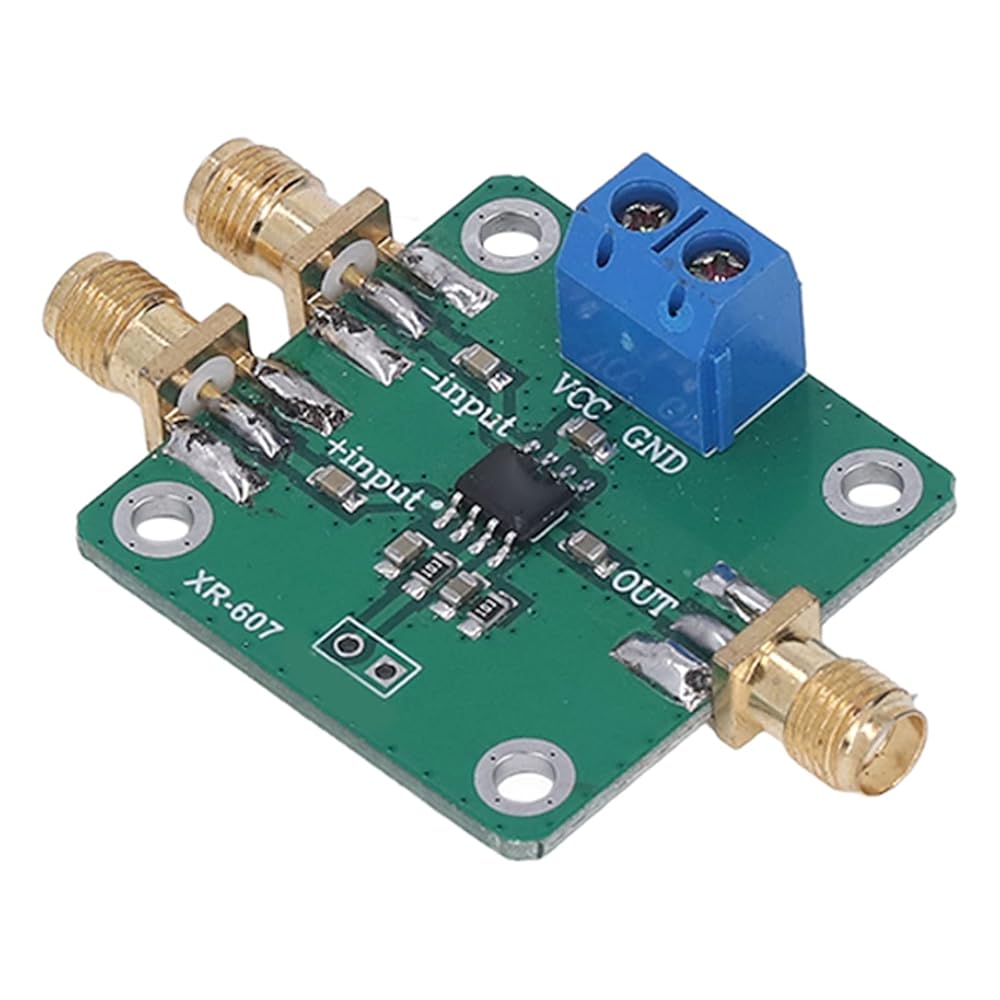

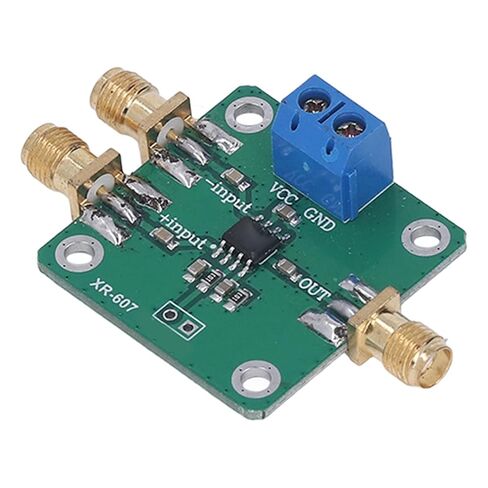

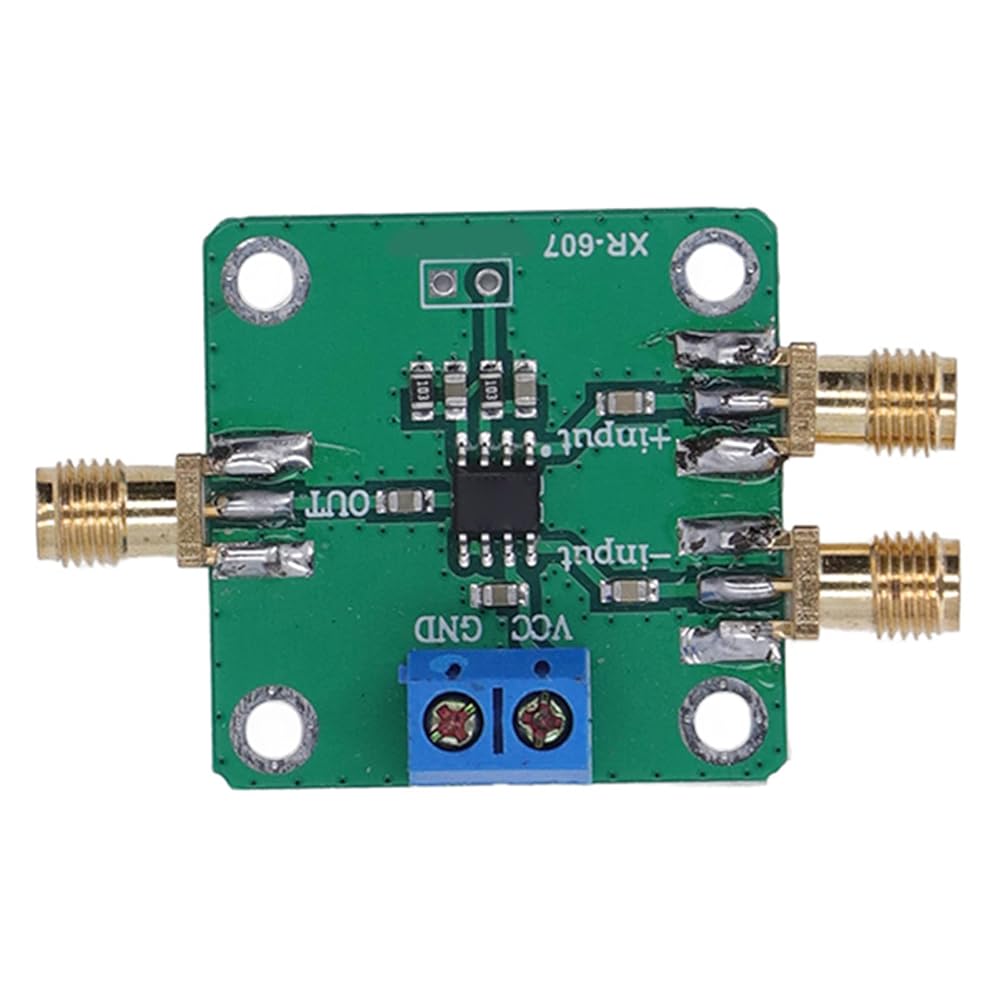

RF Differential Amplifier to Single Ended Electrical Component Parts AD8130 Low Noise Low Distortion

SAR 73
– 1 +

Special Features

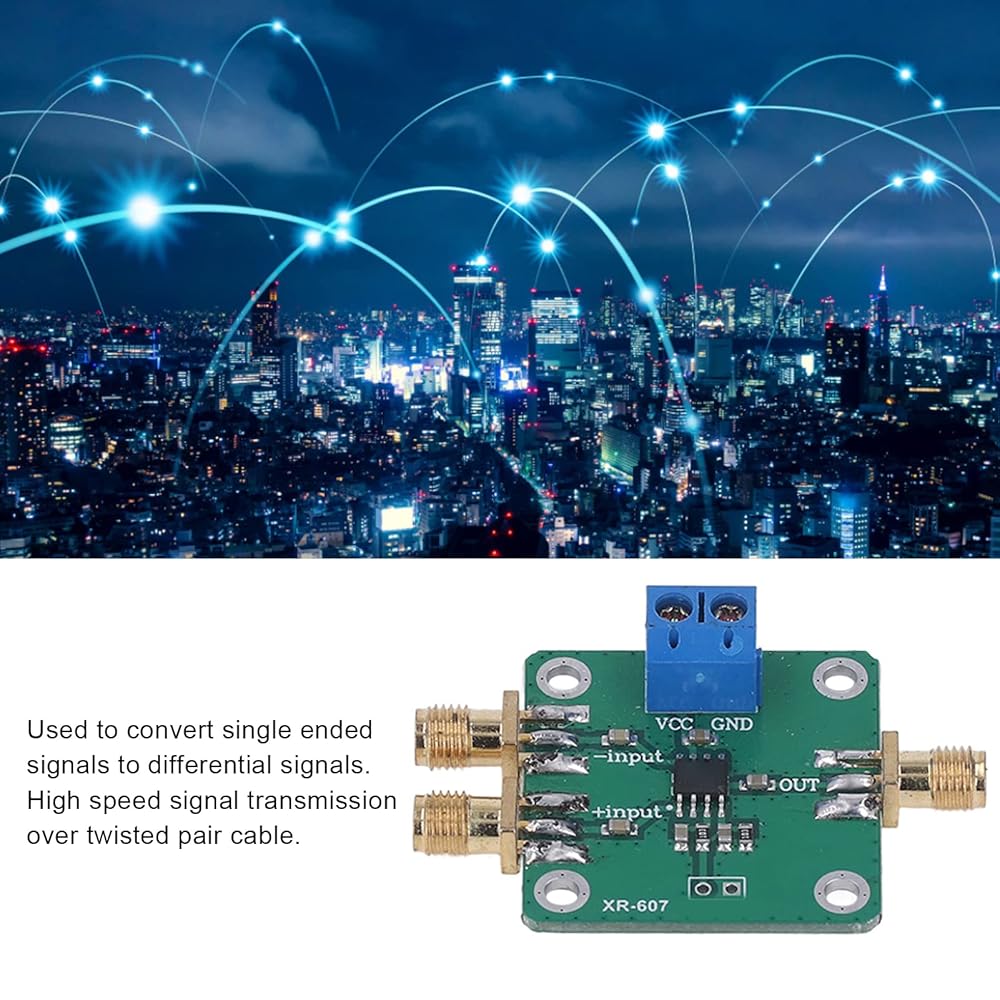

  • RF Amplifier: The RF amplifier serves as a crucial linchpin in modern communication systems, especially for receivers operating in high-speed data transfer scenarios. It is meticulously engineered to address the specific requirements of converting single-ended signals into differential signals, a process that unlocks the potential for seamless high-speed signal transmission over twisted pair cables.
  • Use: One of the standout features of this component is its exceptionally high common mode rejection ratio (CMRR) at high frequencies. This metric is the cornerstone of its . It can effectively distinguish between the desired signal and the common-mode noise, filtering out the latter with remarkable precision.

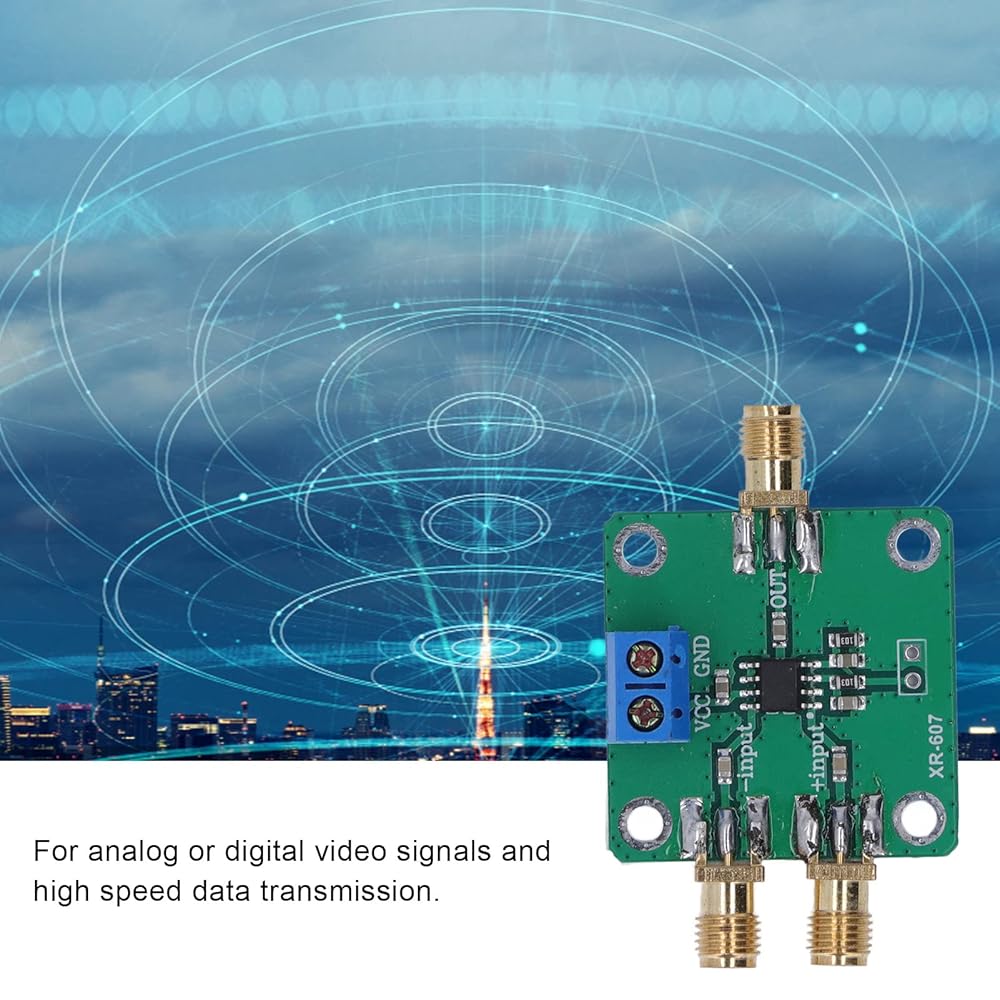

  • Wide Utility: The versatility of this RF amplifier is truly remarkable, making it a go-to choice across a broad spectrum of applications. It can handle both analogue and digital video signals with equal aplomb, adapting its internal circuitry to meet the unique demands of each format.

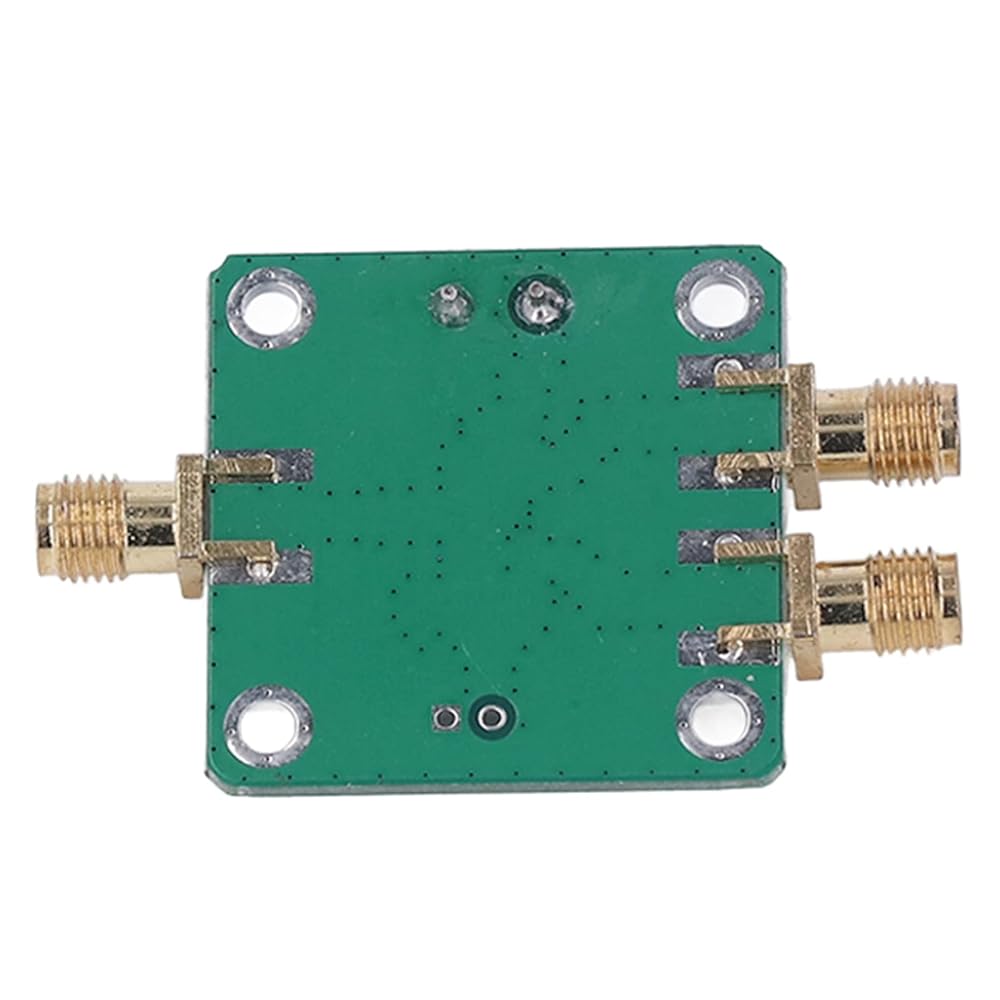

  • Use Good PCB: The choice of premium PCB material is a testament to the manufacturer's commitment to quality and durability. This high-grade substrate is carefully selected for its outstanding electrical properties, which are essential for the optimal performance of the RF amplifier.

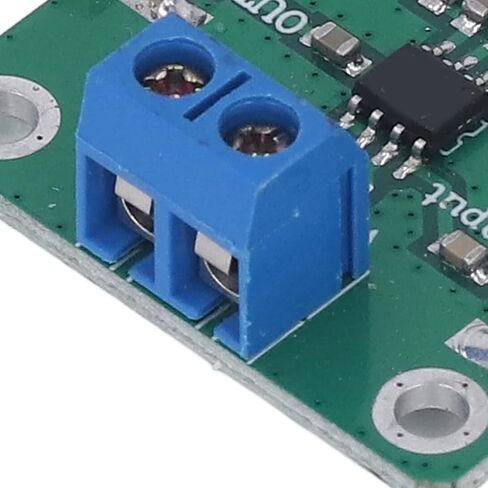

  • Easy to Install: The combination of a lightweight and compact design makes the installation process of this RF amplifier a breeze. Its ergonomic form factor has been carefully considered to simplify the setup for technicians and DIY enthusiasts alike.

Description

Item Type: RF Differential Amplifier
Material: PCB
High Speed AD8130: 270 MHz, 1090 V/µs, G = +1.
AD8129: 200MHz, 1060V/µs, G = + 10.
High Common Mode Rejection Ratio, CMRR: 94 dB minimum, DC to 100 kHz; 80 dB minimum, 2 MHz; 70 dB 10 MHz.
High Input Impedance: 1 MQ Differential
Low Noise AD8130: 12.5 nV/ Hz AD8129: 4.5 nV/ Hz, input common mode range: ±10.5 V
Low Distortion, 1 V pp 5 MHz: AD8130, -79 dBc at the worst harmonic, 5 MHz; AD8129, -74 dBc at the worst harmonic, 5 MHz.
Gain: G = +1, no external components required.
Supply Voltage Range: 4.5 V to ± 12.6 V

Package List：
1 x

RF Differential Amplifier
Note:
Pay attention to the correct .
