Product Description:

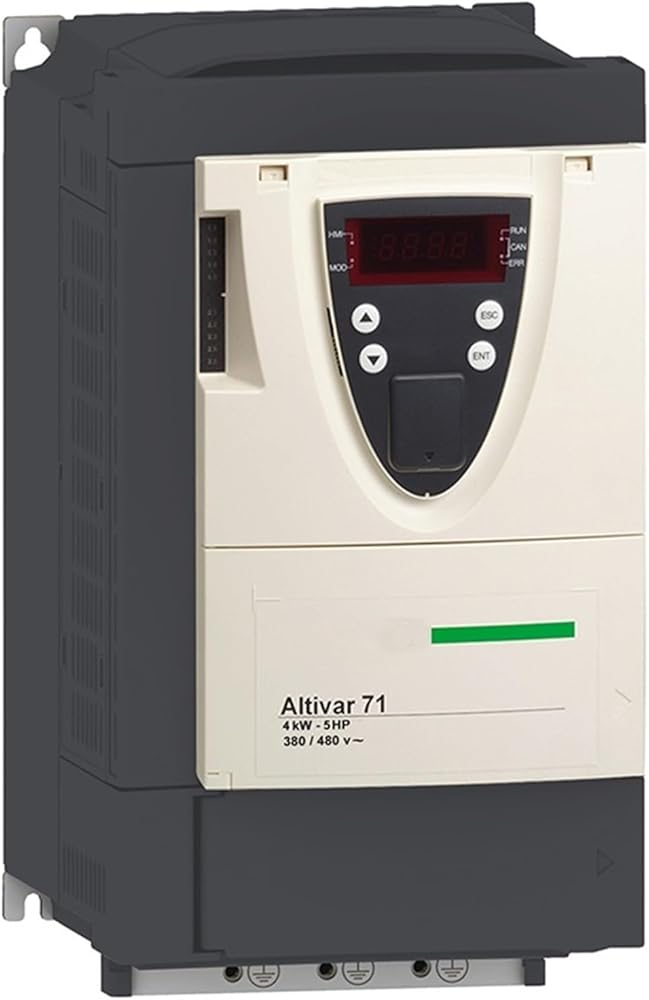

Product series: Altivar 71
Product type: frequency converter
Application field: complex high-power machinery
Component name: ATV71
Motor power (kW): 3 kW 3 phases on... 380... 480 V
Motor power: 3 hp 3 phases on... 380... 480 V
Maximum motor cable length: 50 m shielded cable 100 m unshielded cable
Power supply voltage: 380... 480 V -15... 10%
Number of phases in the power grid: 3 phases
Line current: 9 A suitable for 480 V 3-phase 3 kW/3 hp 10.7 A suitable for 380 V 3-phase 3 kW/3 hp
EMC filter: integrated
Assembly method: with heat dissipation fins
Variable: no pull out panel
Apparent power: 7 kVA on... 380 V 3-phase 3 kW
Expected line Isc: 5 kA suitable for 3 phases
Rated output current: 6.2 A on... 4 kHz 460 V 3-phase 3 kW 7.8 A on... 4 kHz 380 V 3-phase 3 kW
Maximum transient current: 11.7 A for 60 s 3-phase 3 kW 12.9 A for 2 s 3-phase 3 kW
Output frequency: 0.1... 599 Hz
Rated switching frequency: 4 kHz
Switching frequency: 1... 16 kHz adjustable 4... 16 kHz available
