مميزات خاصة

Multi power and high light efficiency, precisely matching production needs: The product provides various specifications such as 100W/1000W light efficiency to 720W/7200W light efficiency, and can perfectly adapt to conveyor belts with different widths from 200mm to 600mm, meeting the needs of various curing scenarios from laboratories to large-scale industrial production
Triple mainstream wavelengths, covering all industry applications: equipped with three core wavelengths of 365nm/395nm/405nm, it can comprehensively cope with various application scenarios such as glue sur-face curing, ink deep curing, 3D printing, PCB green oil, inspection, beauty nail art, etc., achieving 1 machine for multiple uses
Excellent heat dissipation and long-term service life: Adopting a "fan+aluminum alloy" composite heat dissipation to ensure that the equipment can maintain stability under long-term high load operat. The service life of key components can reach up to 10000 hours, greatly reducing maintenance costs and downtime

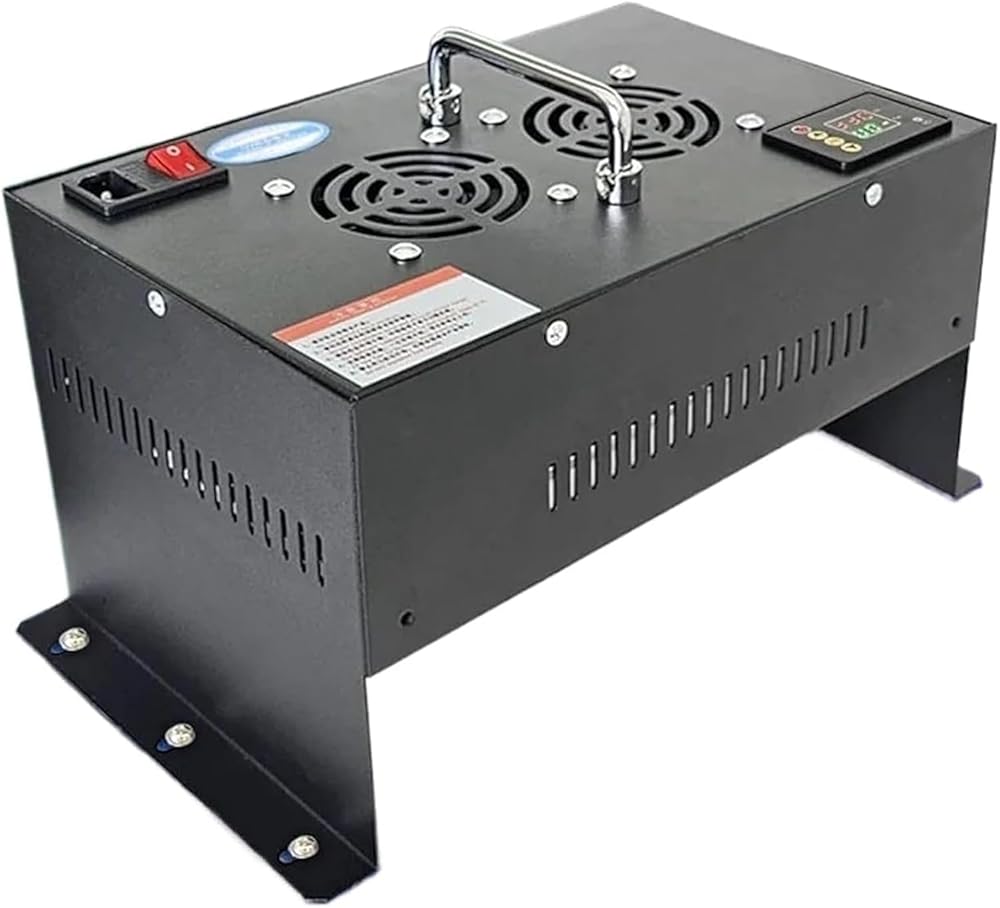

Humanized design, safe, convenient and easy to integrate: The shell design integrates a stainless steel handle, which facilitates the movement and installation of the equipment. At the same time, the clear installation hole spacing (245mm to 645mm) and bracket delivery service enable it to be quickly and stably integrated into existing production lines or workstations.
Service: We are very sorry for the shopping experience you have experienced. If you have any problems with the goods you received, please contact us and we will serve you 24 hours a day.

وصف

1. 100W/1000W luminous efficiency model (suitable for 200mm conveyor belt)
Product power: 100W
Product luminous efficiency: 1000W
Installation hole spacing: 245mm
Shell size: 215 * 150 * 180mm
Luminous size: 165103mm
Net weight of product: 2KG
Cooling method: fan+aluminum alloy
Service life: 10000H
Net weight of product: 1.8KG

2. 360W/3600W luminous efficiency model (suitable for 300mm conveyor belt)
Product power: 360W
Product luminous efficiency: 3600W
Installation hole spacing: 345mm
Shell size: 315 * 205 * 180mm
Luminous size: 273150mm
Net weight of product: 4.3KG
Cooling method: fan+aluminum alloy
Service life: 10000H
Sensor installation hole spacing: 245mm
Net weight of product: 3.9KG

450W/4500W luminous efficiency model (suitable for 400mm conveyor belt)
Product power: 450W
Product luminous efficiency: 4500W
Installation hole spacing: 445mm
Shell size: 415 * 205 * 180mm
Luminous size: 350150mm
Net weight of product: 5.3KG
Cooling method: fan+aluminum alloy
Service life: 10000H
Conveyor belt installation hole: 445mm
Net weight of product: 5.3KG

540W light efficiency (suitable for 500mm conveyor belt)
Wavelength and optical power:
395nm: 1100mW/cm2
365nm: 676mW/cm2
405nm: 1210mW/cm2
Product power: 540W
Heat dissipation material: fan+aluminum alloy
Installation hole spacing: 545mm
Net weight of product: 6.5KG

720W light efficiency (suitable for 600mm conveyor belt)
Wavelength and optical power:
395nm: 1100mW/cm2
365nm: 676mW/cm2
405nm: 1210mW/cm2
Product power: 720W
Heat dissipation material: fan+aluminum alloy
Installation hole spacing: 645mm
Net weight of product: 7.2KG
