1. [SMARTER MODEL] This compressed air condensate auto drain is very different from traditional mechanical auto drains, providing continuous drip drain.
2. [NON-CLOGGING DESIGN] The drain port is to blockage, ensuring optimal performance for new generation compressed air equipment.
3. [NOISELESS OPERATION] Enjoy a reliable automatic drain that operates silently with no electricity requirement or loss of compressed air.
4. [EFFICIENT WORKING] The stainless steel floating ball drainage system automatically opens or closes based on drainage buoyancy and compressed air pressure.
5. [EASY INSTALLATION] Prior to installation, clear the pipeline of impurities with compressed air to ensure optimal functionality.

Specification:

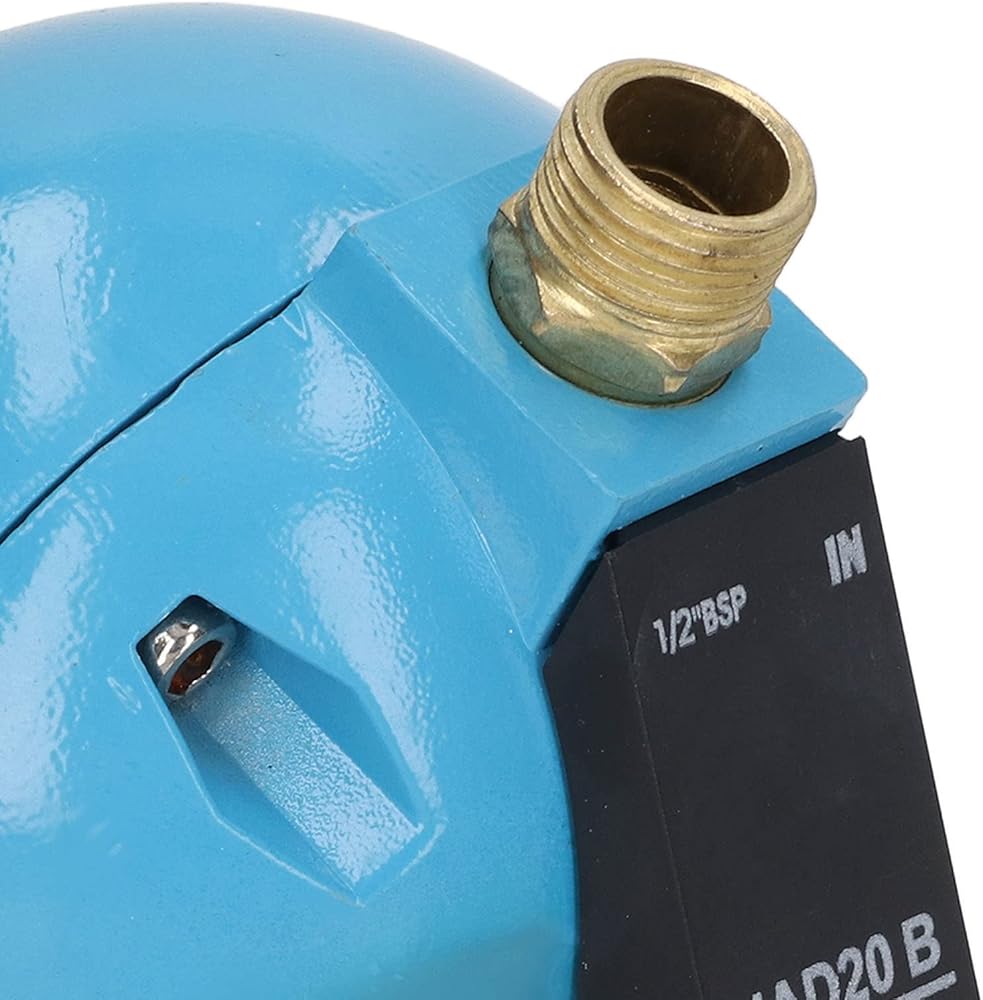

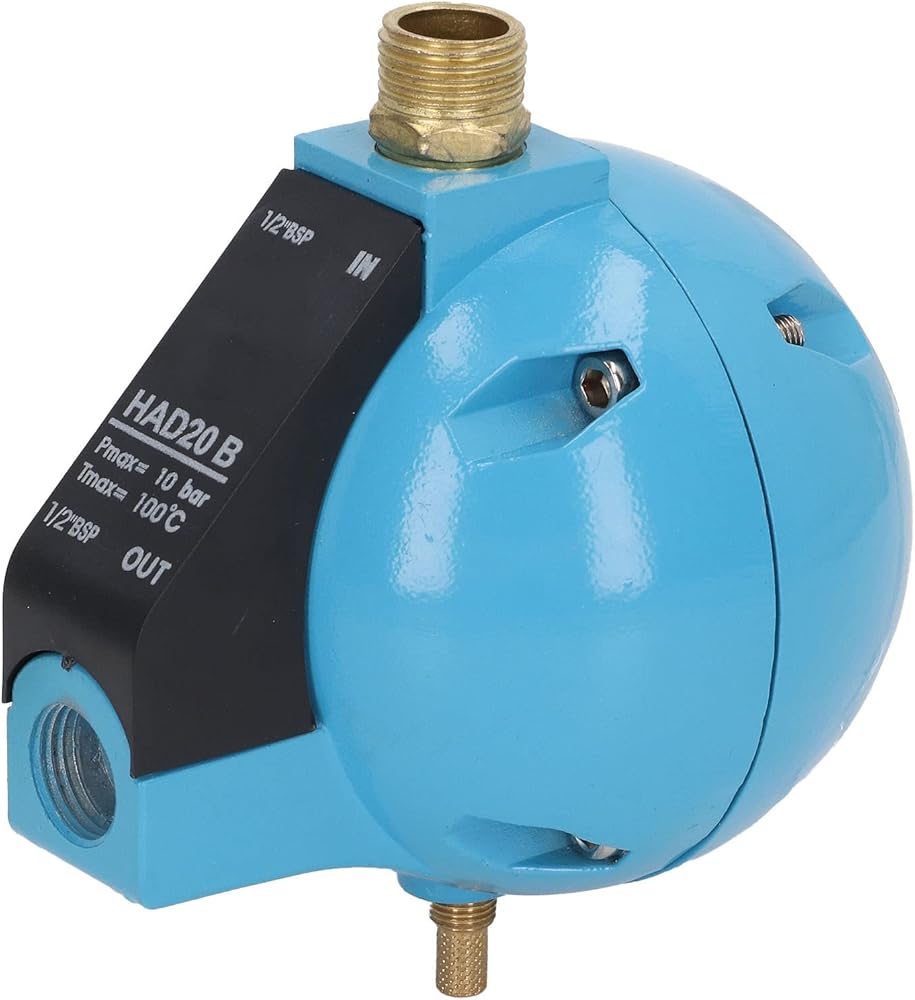

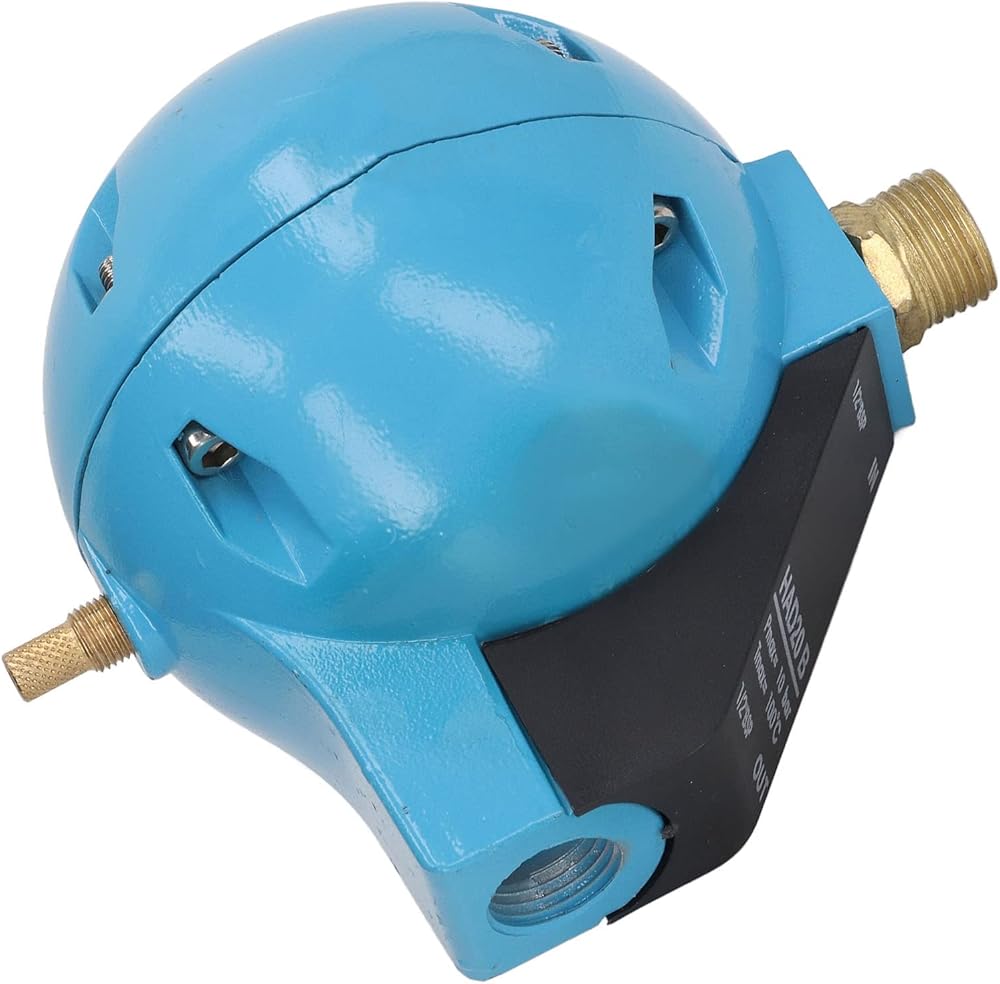

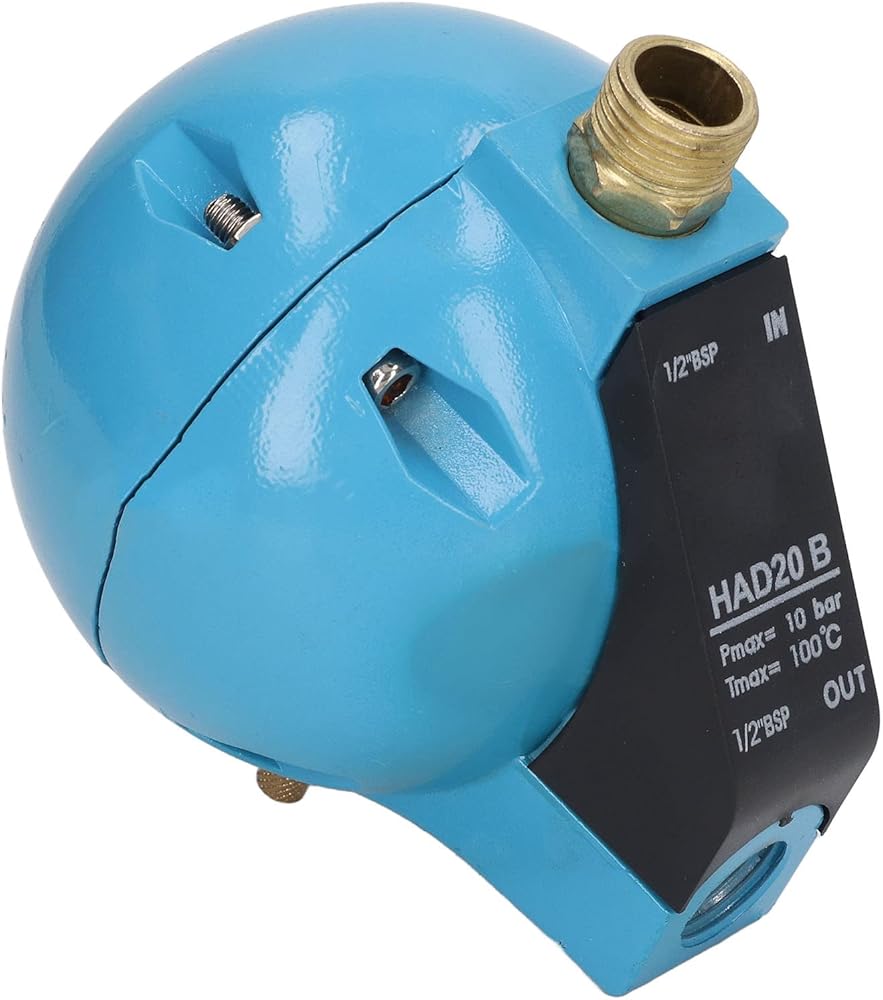

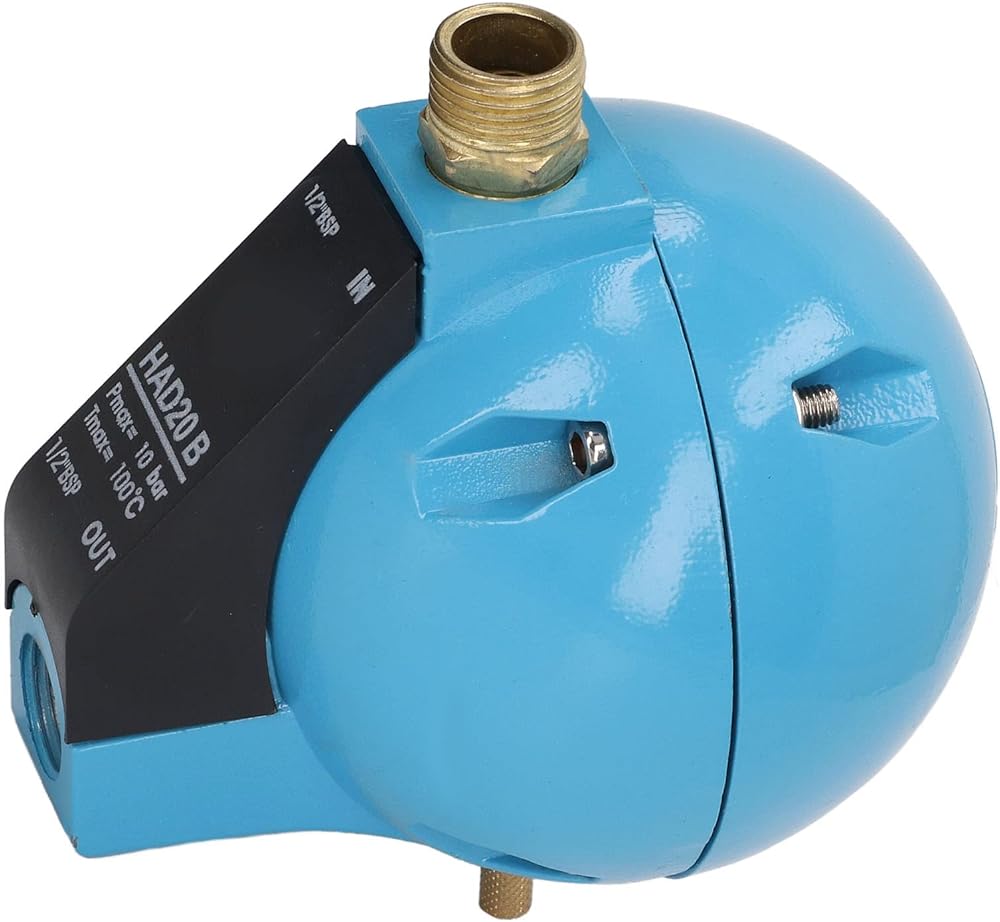

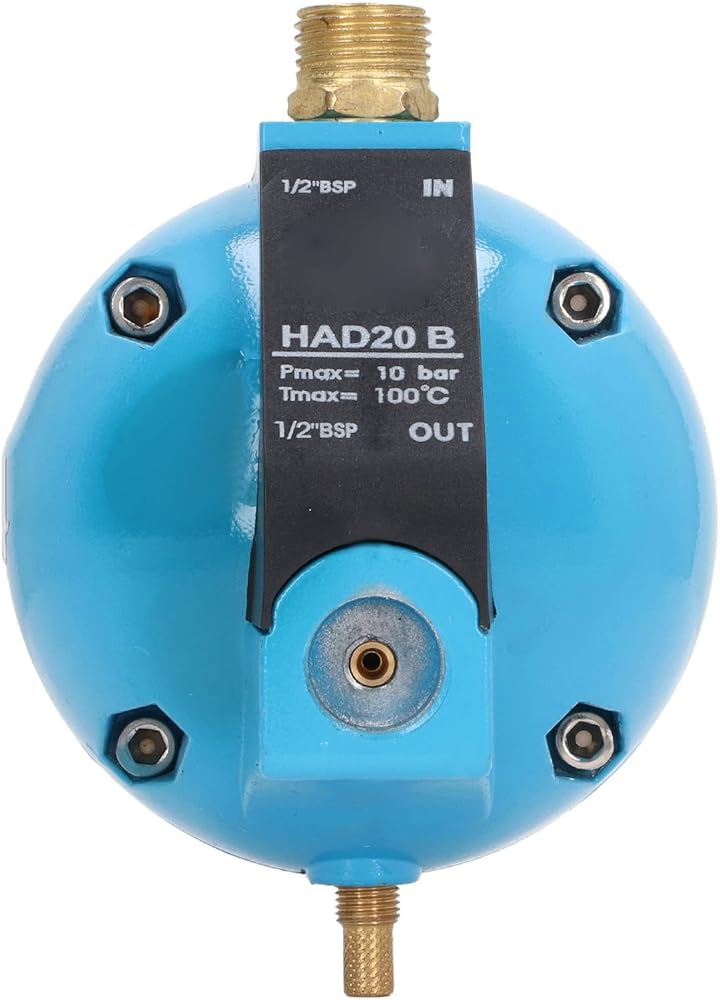

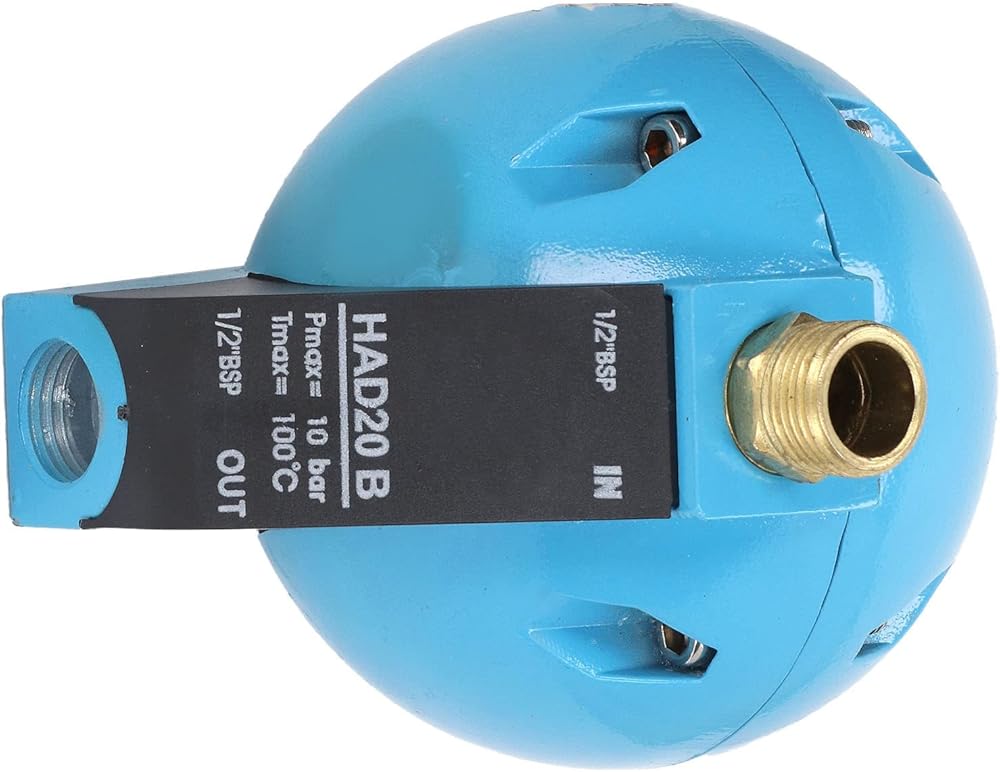

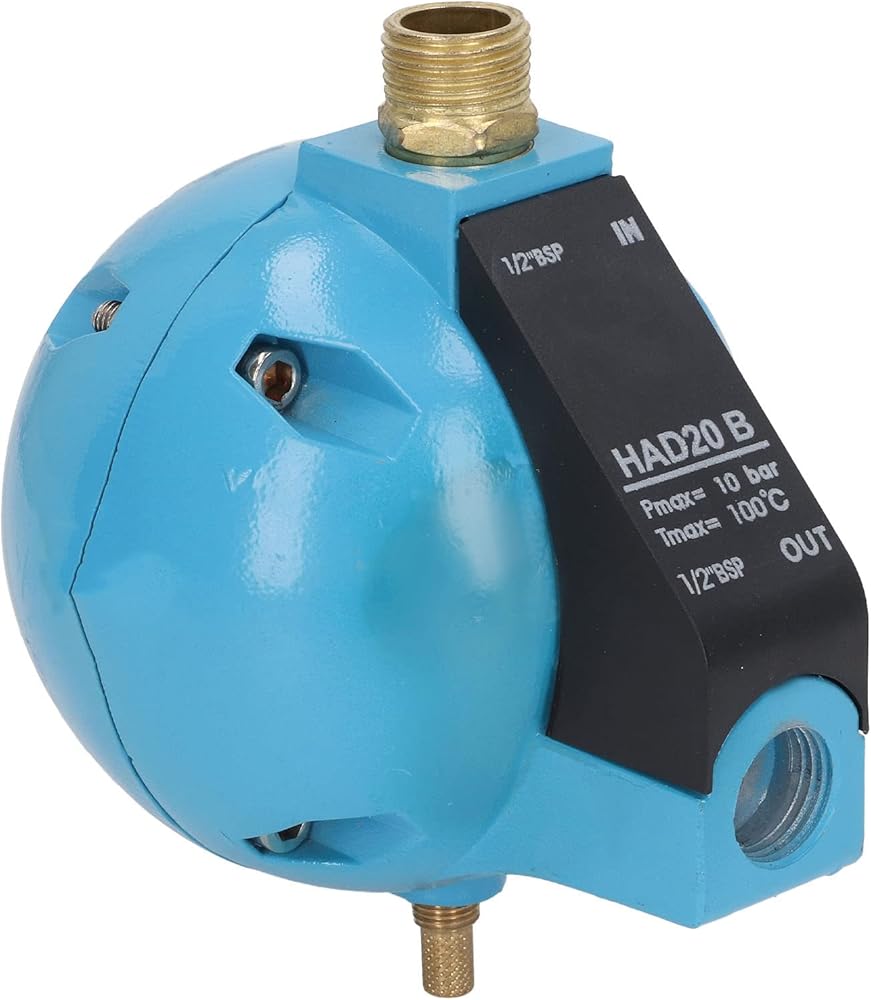

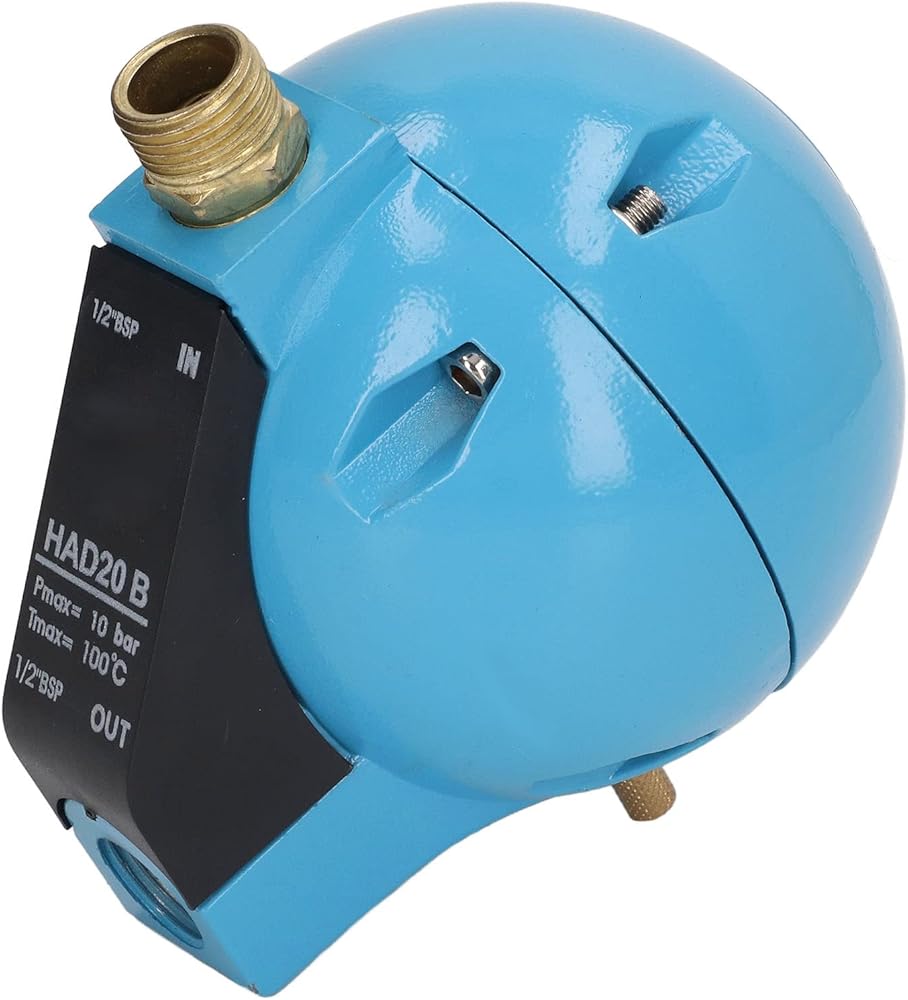

Item Type: Spherical Drain Valve
Model: HAD20B
Material: Aluminum alloy and stainless steel
Maximum Working Pressure: 10bar
Maximum Working Temperature: 100℃
Maximum Discharge Capacity: 400L/h
Liquid Inlet: 1/2in
Liquid Outlet: 1/2in

How to Use:
Before installation, please use compressed air to completely remove the impurities in the pipeline. During installation, the automatic drain should be installed under the drainage device, otherwise the condensed water will fill up and affect the drainage effect. The drain outlet of the drain can also be used as a free hole, or a pipe can be used to into the channel.

packing list:
1 x Spherical Drain Valve
