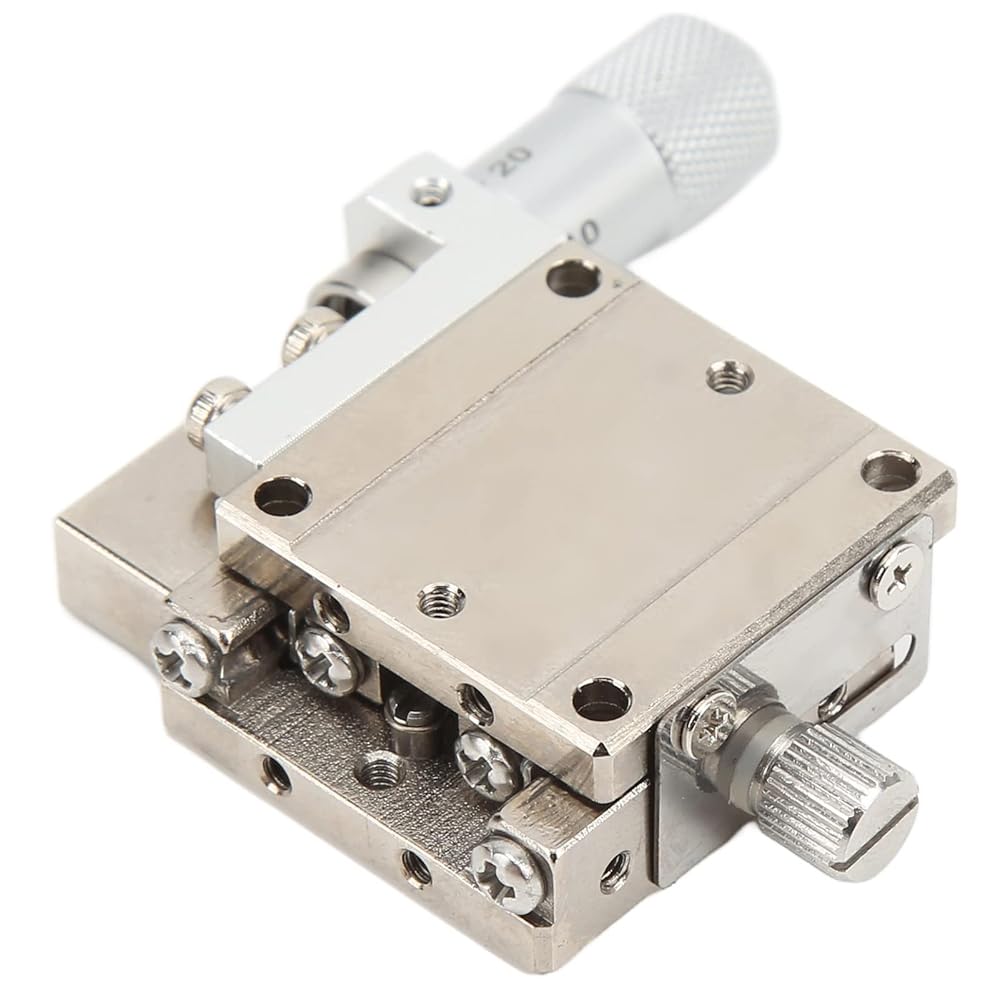

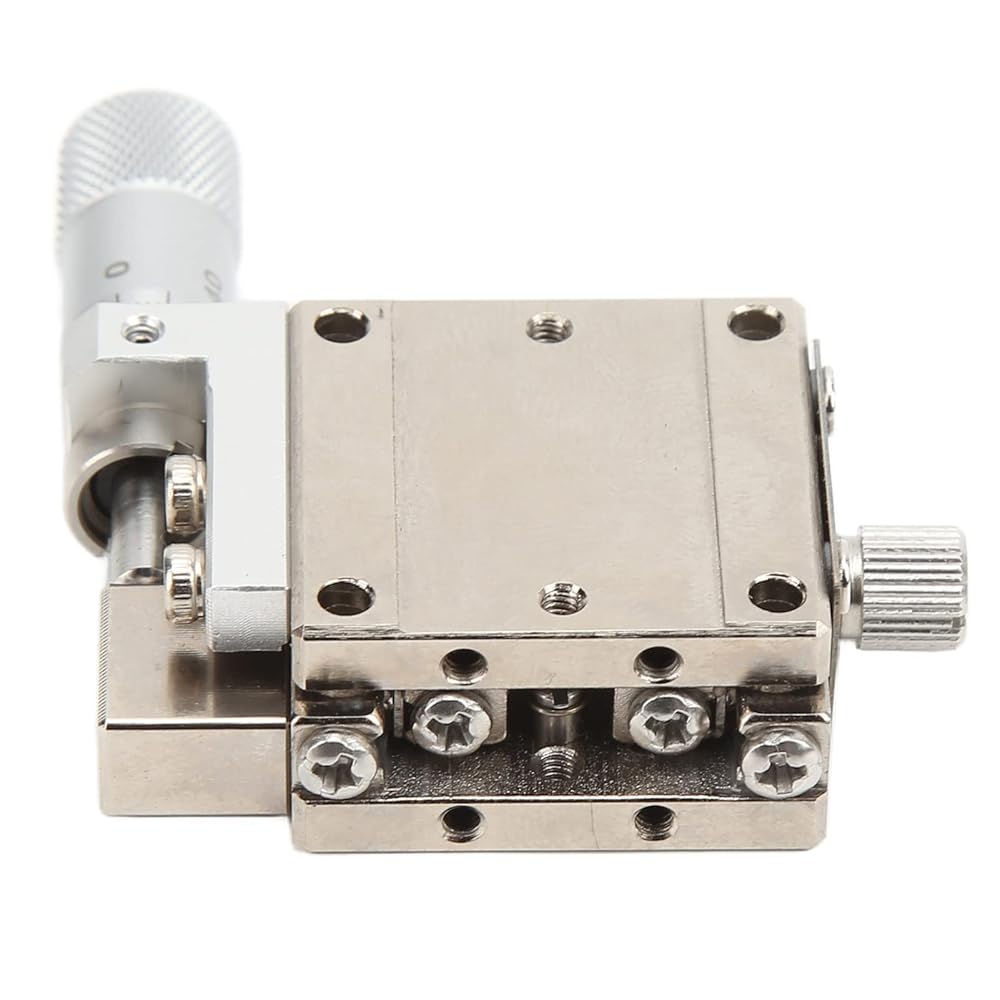

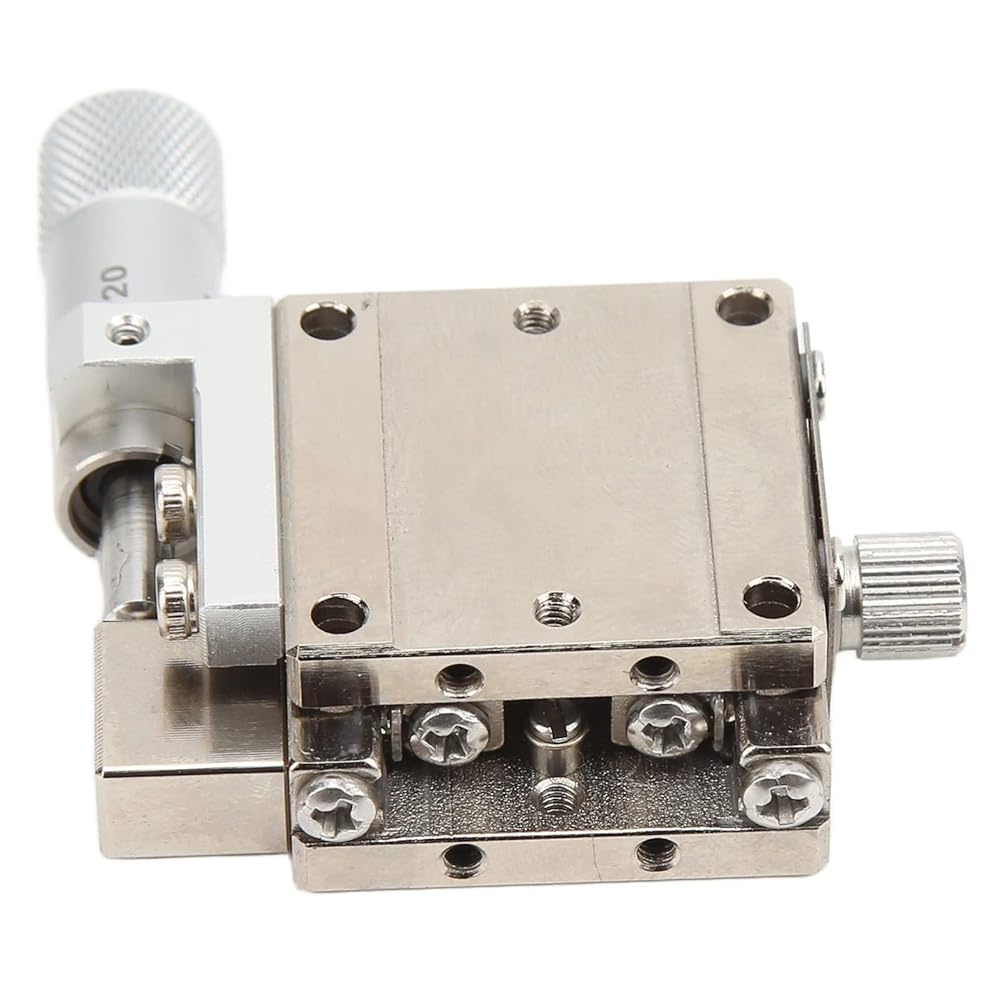

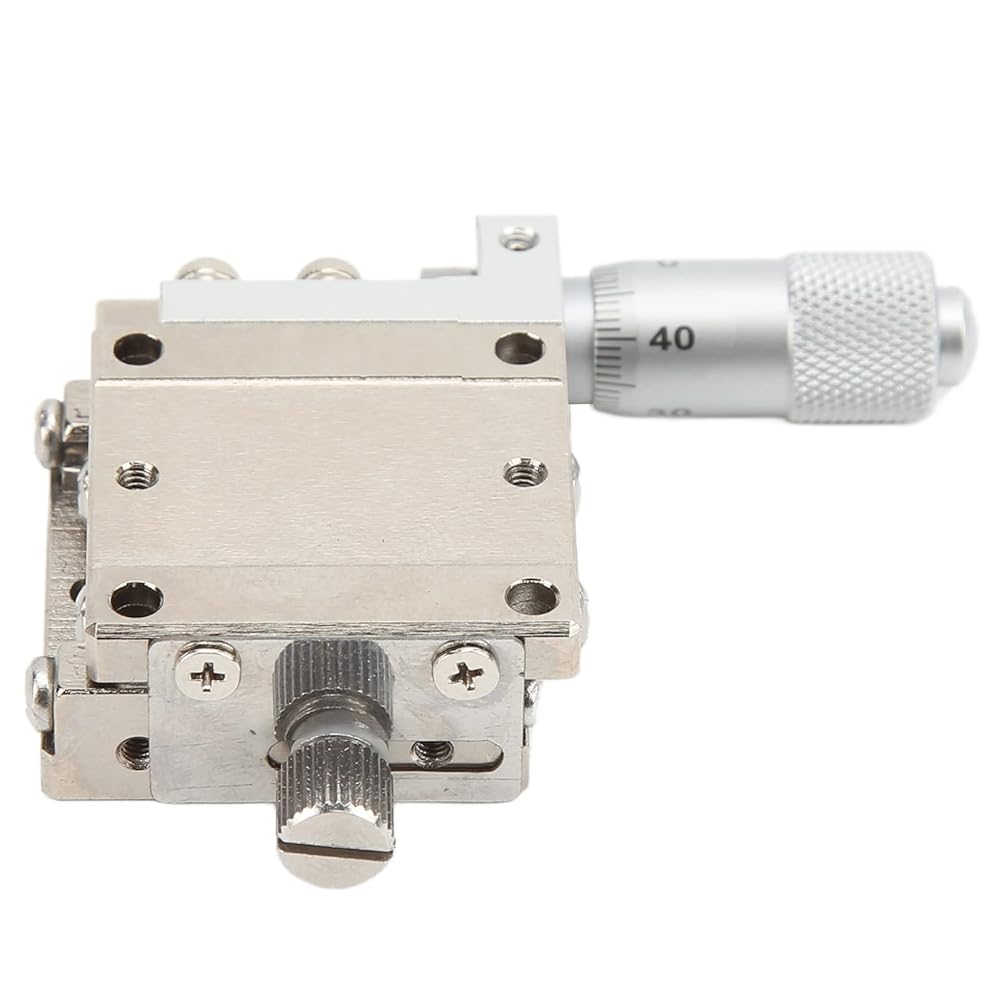

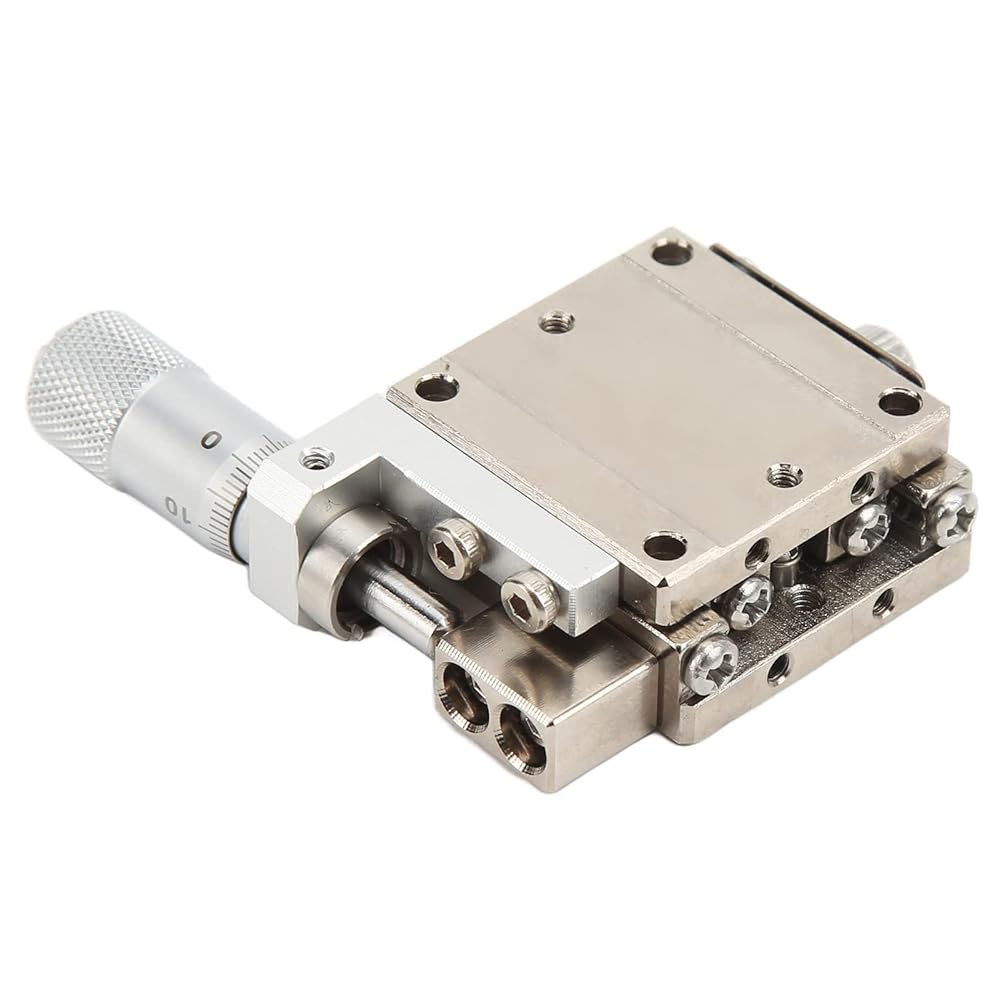

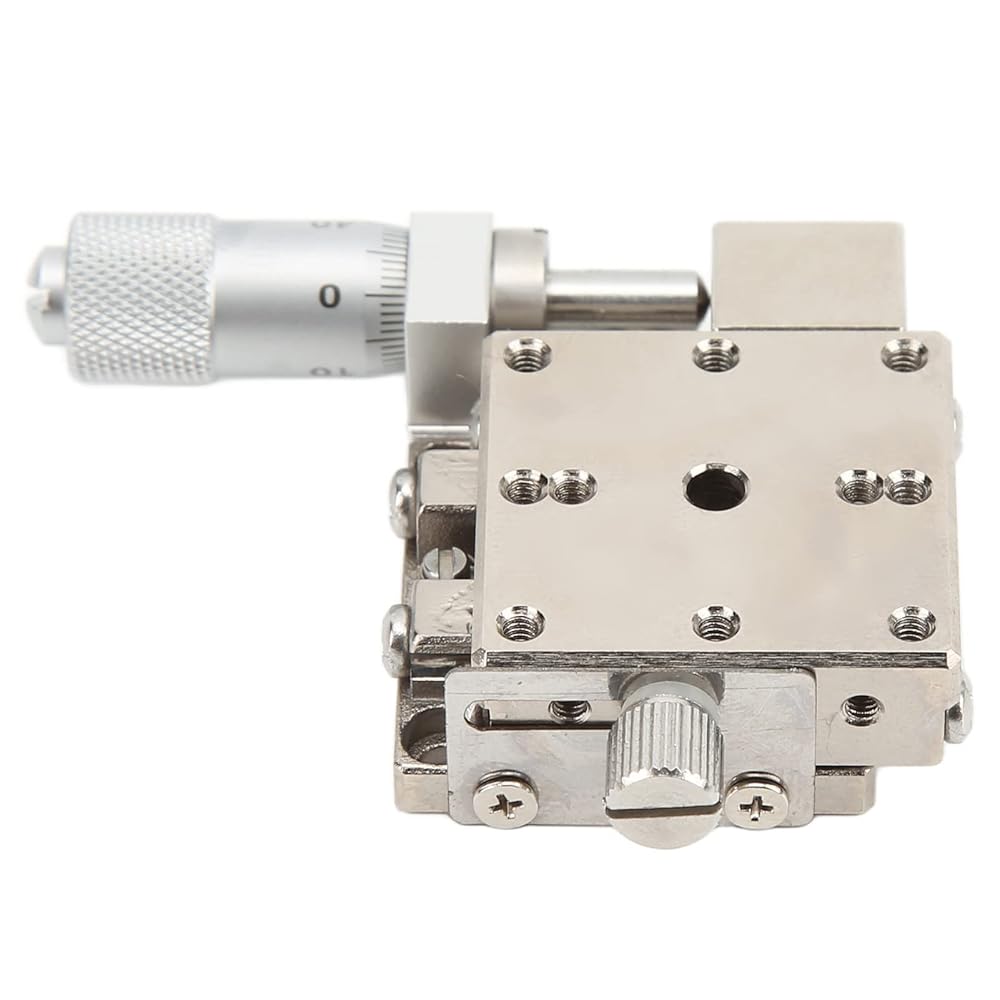

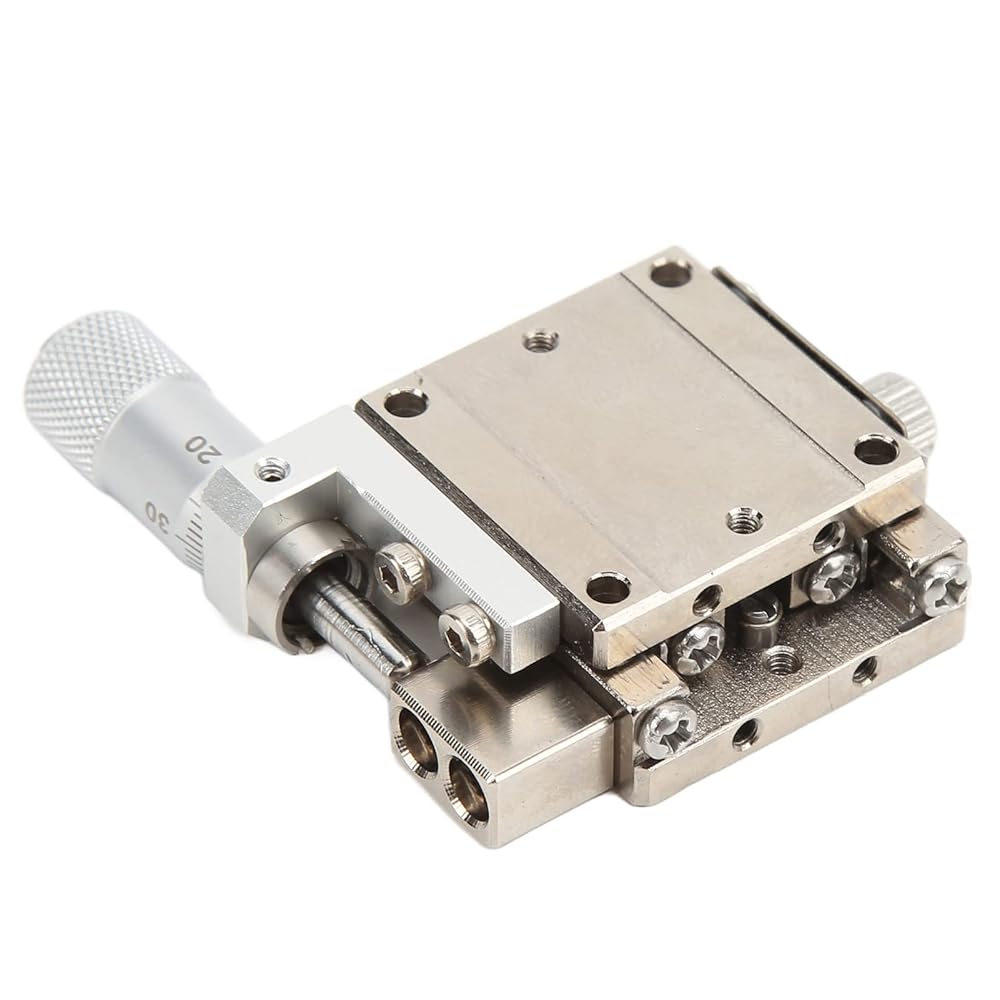

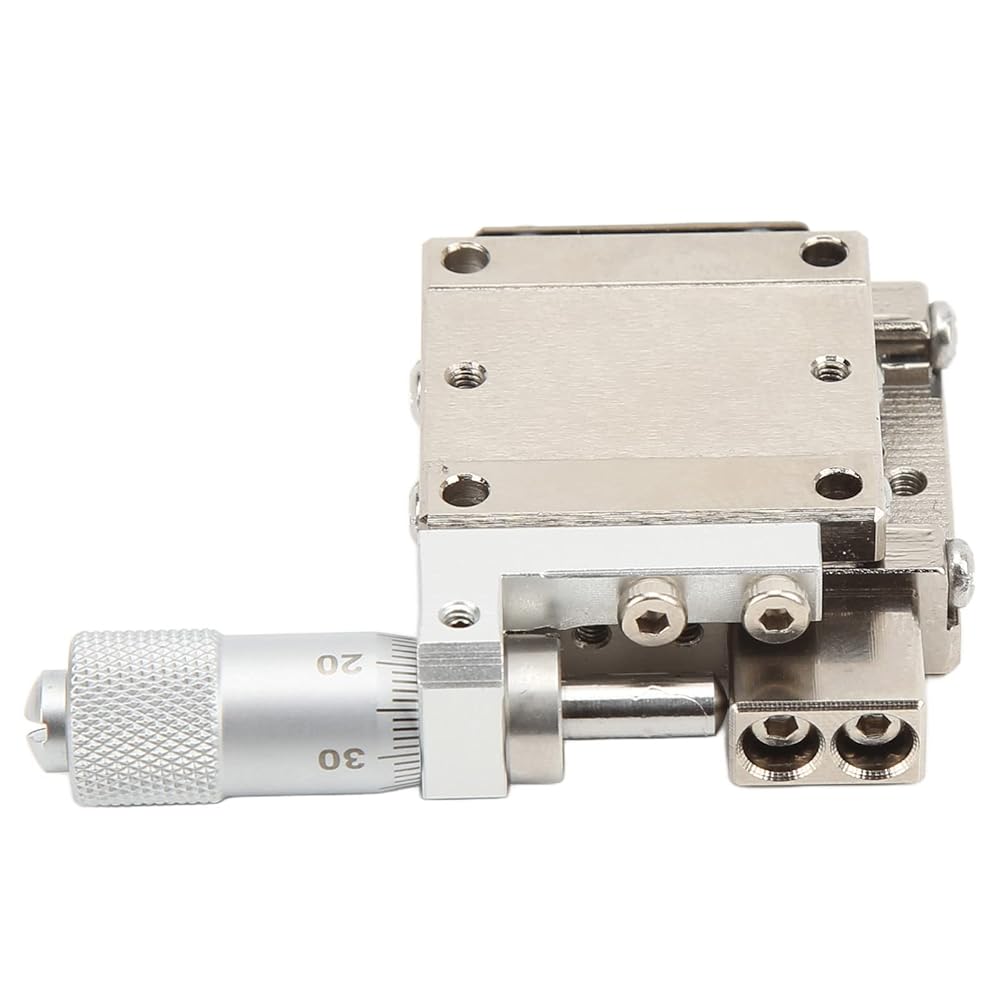

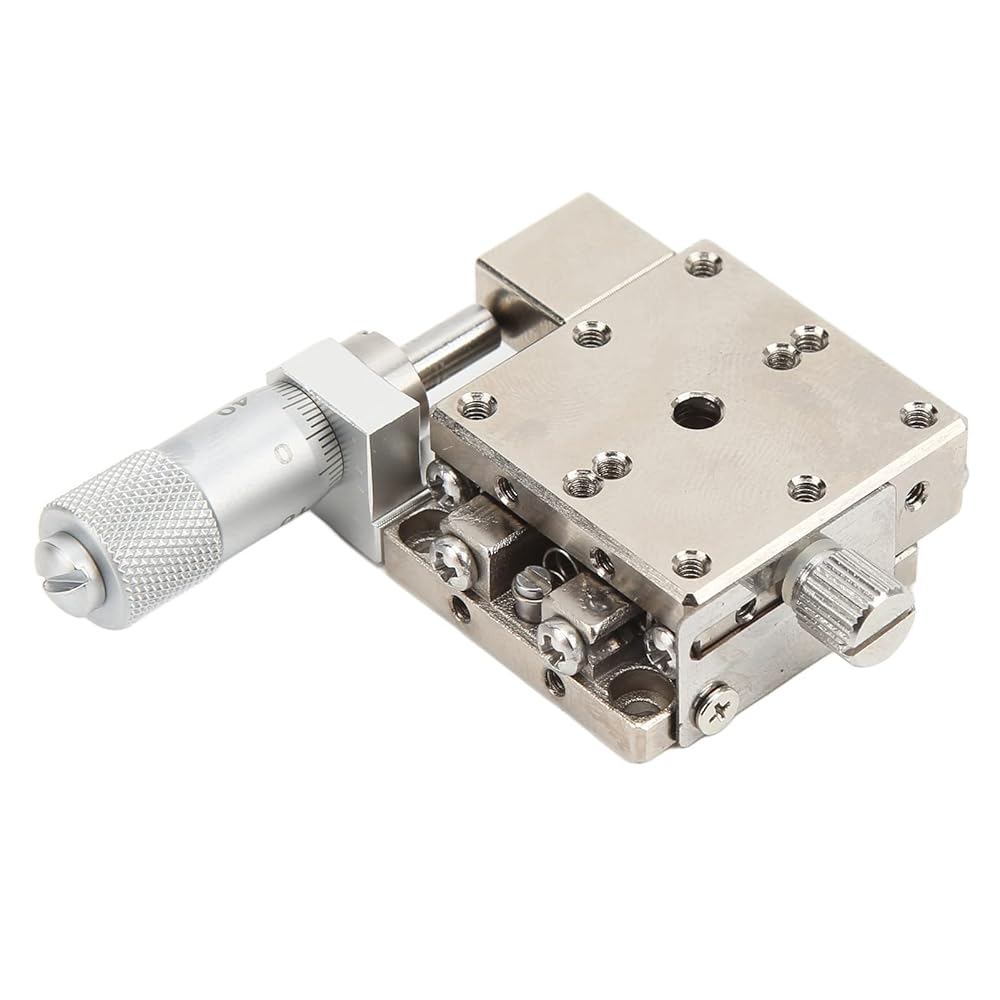

Linear Stage Translation Platform Sliding Table Manual Displacement Stage with 25x25mm Micrometer Knob High Precision SUS440C Material for Optical Instruments Mechanical Eq

SAR 651
– 1 +

Special Features

  • [PRECISION MICROMETER CONTROL] Engineered with a high-sensitivity micrometer knob offering 10μm minimum scale readings, this linear stage delivers exceptional positioning accuracy. The ball-type guide rail ensures smooth, vibration-free movement with ±3.2mm travel range, for delicate optical alignment and precision measurement applications.
  • [STURDY 25X25MM WORK SURFACE] Featuring an ample 25x25mm (0.98×0.98in) sliding platform with 30μm straightness and 10μm parallelism, providing stable support for various components. The generous workspace accommodates multiple fixtures while maintaining excellent load capacity (39.2N horizontal, 9.8N vertical) for demanding laboratory tasks.
  • [INDUSTRIAL-GRADE CONSTRUCTION] Built with premium SUS440C stainless steel body offering wear resistance and long-term durability. The hardened material withstands moment loads up to 3.5N·m while maintaining precise movement characteristics even after extensive use in harsh workshop environments.
  • [VERSATILE APPLICATION RANGE] Specifically designed for precision positioning in optical instruments, measuring devices, and mechanical equipment testing. The stage's excellent swing control (30 sec up/down, 25 sec side/side) makes it ideal for alignment, microscopy, and semiconductor inspection applications.
  • [QUICK INSTALLATION DESIGN] The compact, lightweight package arrives ready for immediate use with all necessary components. Simple mounting options and tool-free adjustments allow for rapid setup within minutes, minimizing downtime in research labs or production facilities.

Description

Item Type: Linear Stage
Main Body Material: SUS440C
Sliding Table: Approx. 25 x 25mm / 0.98 x 0.98in
Movement Amount: ±3.2
Load Resistance Level: 39.2N
Load Resistance Vertical: 9.8N
Movement Accuracy:
Straightness: 30μm
Parallelism: 10μm
Swing Up and Down: 30 sec
Swing Side to Side: 25 sec
Allowable Moment Load:
Swing Up and Down: 2.0 N·m
Swing Left and Right: 2.0 N·m
Side Scrolling: 3.5N m
Force Moment Rigidity:
Swing Up and Down: 1.9N·cm
Swing Left and Right: 1.1N·cm
Side Scrolling: 2.2N cm
Parallelism: 30μm

Package List：
1 x Linear Stage
Note:
Micrometer knob minimum reading 10μm scale.
