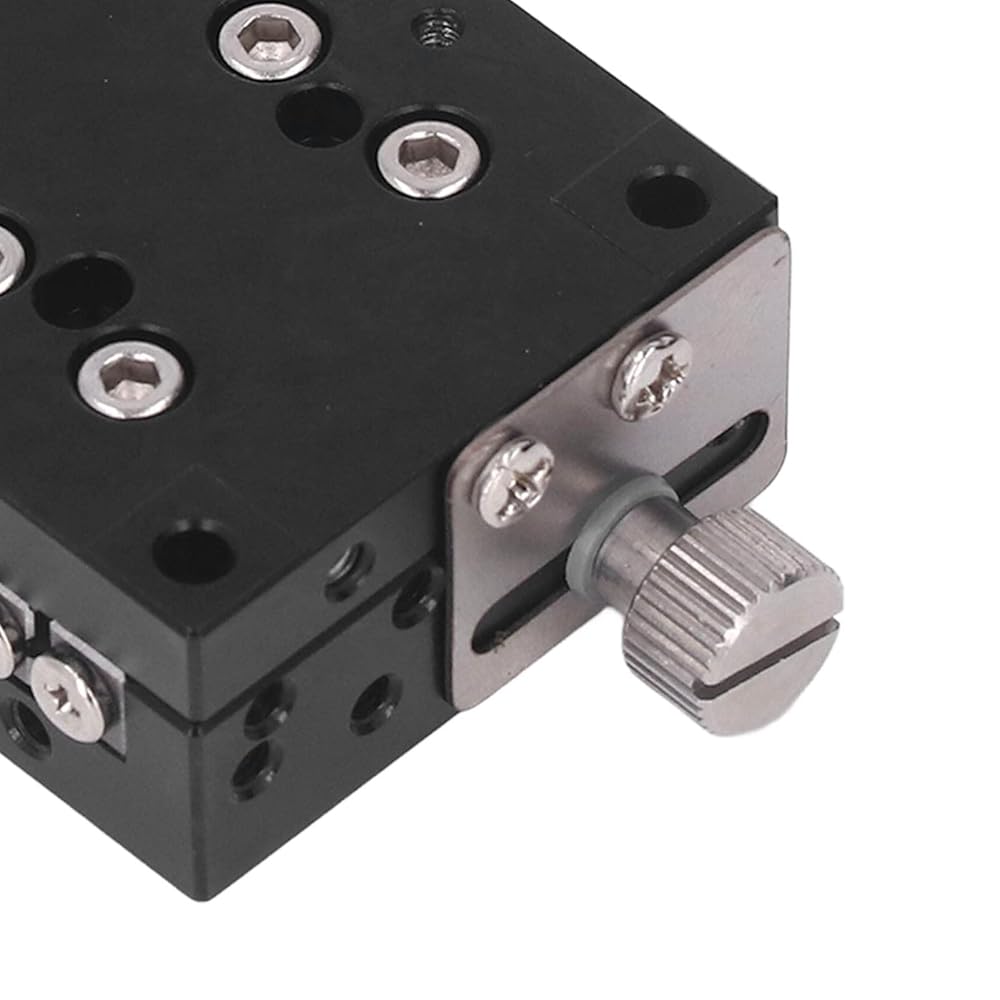

Precision Linear Stage Manual Translation Platform 40x40mm Sliding Table X Axis Displacement for Optical Instruments Laboratory Equipment Aluminum Alloy Black Anodized

SAR 396
– 1 +

Special Features

  • [PRECISION MANUAL CONTROL] Experience smooth and accurate positioning with our X-axis manual linear stage featuring micrometer-level displacement control. The precisely machined guideway ensures stable movement for optical alignment, laboratory measurements, and precision engineering applications requiring micron-level accuracy.
  • [OPTIMIZED 40X40MM WORK SURFACE] The generous 40x40mm aluminum alloy platform provides a stable base for various components and fixtures. This spacious work area maintains excellent flatness (3μm straightness) while supporting loads up to 19.6N horizontally, making it ideal for delicate optical experiments and precise mechanical adjustments.
  • [INDUSTRY-GRADE DURABILITY] Constructed from high-strength aluminum alloy with black anodized finish, this stage offers exceptional resistance and long-term reliability. The structure maintains dimensional stability under moment loads (up to 2.7N·m) while resisting wear from frequent use in laboratory and industrial environments.
  • [VERSATILE APPLICATION RANGE] for optical bench setups, alignment systems, microscope stages, and test equipment positioning. The stage's precise movement (20μm parallelism) makes it valuable for quantitative displacement tasks in research, manufacturing quality control, and educational laboratory demonstrations.
  • [USER-FRIENDLY DESIGN] Featuring a compact, lightweight design (1.57×1.57 inches) for easy integration into existing setups. The simple mechanical operation requires no complex programming-just manual adjustment with smooth gliding action that maintains precision over thousands of cycles for consistent performance.

Description

Item Type: Linear Stage
Material: Aluminium Alloy
Finish: Black Anodized

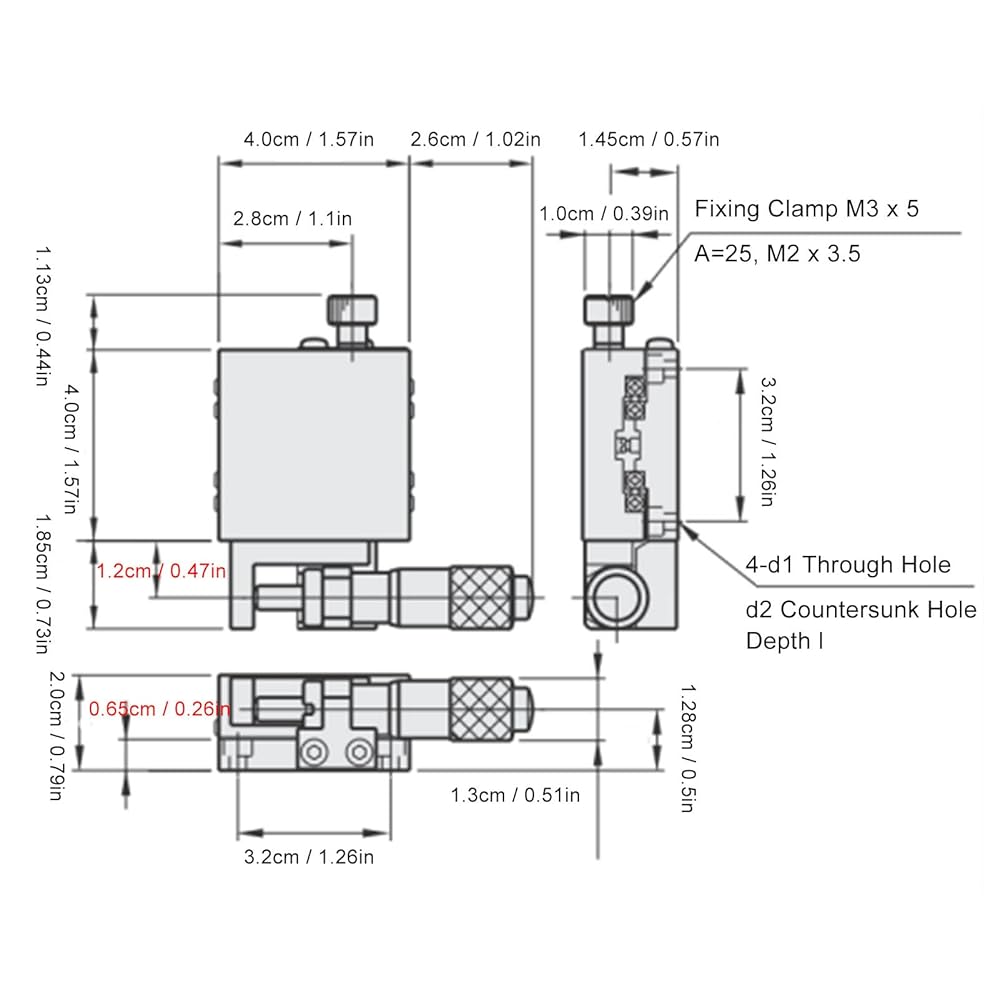

Sliding Table: Approx. 40 x 40mm / 1.57 x 1.57in
Load Resistance: Horizontal 19.6N, vertical 9.8N
Movement Accuracy:
Straightness: 3μm
Parallelism: 20μm
Vertical Swing: 25 sec
Left and Right Swing: 15 sec
Allowable Moment Load:
Swing Up and Down: 2.7N m
Swing Left and Right: 2.2N m
Side Scrolling: 2.0N m
Moment Stiffness:
Up and Down Swing: 0.38 sec/N cm
Swing Left and Right: 0.42 sec/N cm
Side Roll: 0.28 sec/N cm

Package List：
1 x Linear Stage
Note:
Pay attention to the correct operation and maintain the sliding table in time.
