1* Planetary reducer
1* Key
4* Install screw
PLG060 Series 3D CAD: Click hereto open

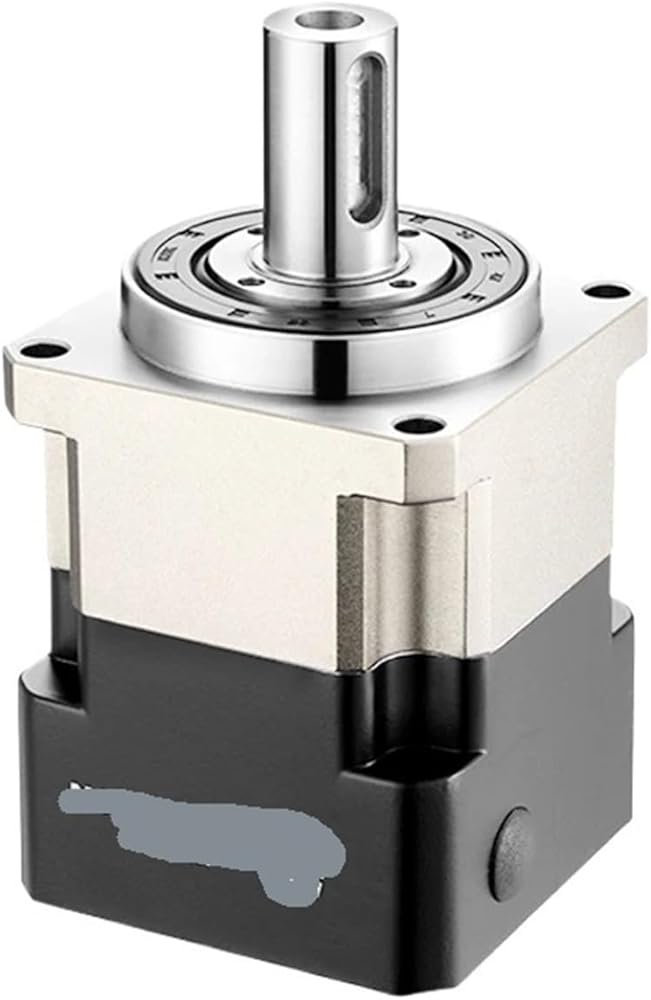

Model: PLG060Speed Ratio:Stage 1 (L1): 3:1/ 4:1/ 5:1/ 7:1/ 10:1
Stage 2 (L2): 15:1/ 20:1/ 25:1/ 30:1/ 35:1/ 40:1/ 50:1/ 70:1/ 100:1Product type: Helical Gear Planetary ReducerInput size: 6.35mm/8mm/11mm/14mmBody length: 70.5(L1) / 98mm (L2)Backlash Precision: Less than 3 Arcmin (L1) / Less than 5 Arcmin (L2)Gear type: Helical GearRated torque:45Nm(4:1/ 5:1/ 7:1/ 20:1/ 25:1/ 35:1/ 40:1/ 50:1/ 70:1) ;
40Nm (3:1/ 30:1);
30Nm (10:1 / 100:1)Maximum torque: 2* Rated torqueEmergency braking torque: 3* Rated torqueMax radial force: 1530NMax axial force : 630NMax input speed: 8000rpmRated input speed: 5000rpmTorsional Stiffness: 6Nm/arcminTransmission efficiency: More than 95% (L1) / More than 90% (L2)Noise: Less than 58dBProtection level: IP65
Efficiency : IE 1
Origin : CN (Origin)
Certification : CCC ce CE
Input size : 6.35mm/8mm/9.525mm/11mm/14mm
Product type 1 : Helical Gear Gearbox
Product type 2 : Helical Gear Planetary Gearbox
Product type 3 : High Precision reducer
Product type 4 : 9.525mm Input gearbox
Product type 5 : planetary reducer
Product type 6 : Nema23 gearbox
Product type 7 : 400W Servo motor reducer
Product type 9 : nema23 gear box
Product type 10 : gearbox nema 23
Product type 11 : planetary gearbox nema23
Product type 12 : nema 23 reduction gearbox
Product type 13 : 200W servo reducer
Product type 14 : Motor reducer
Product type 15 : gear reducer
Product type 16 : reduction gearbox
Product type 17 : motor speed reducer
Product type 18 : Reduction Gearbox
