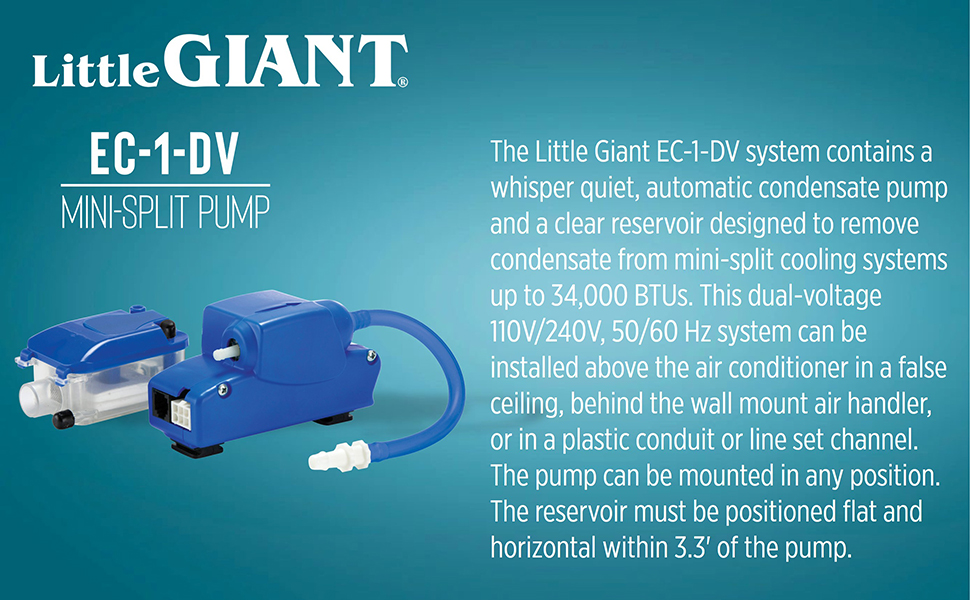

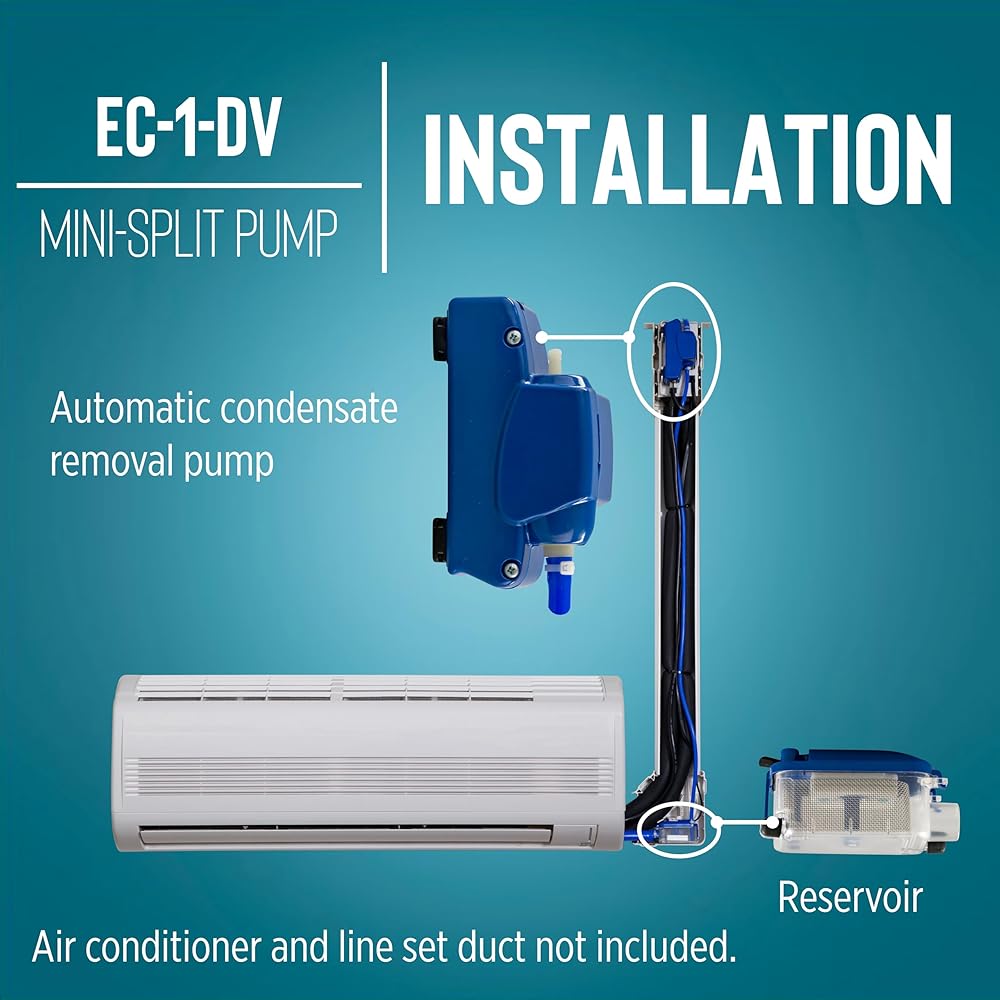

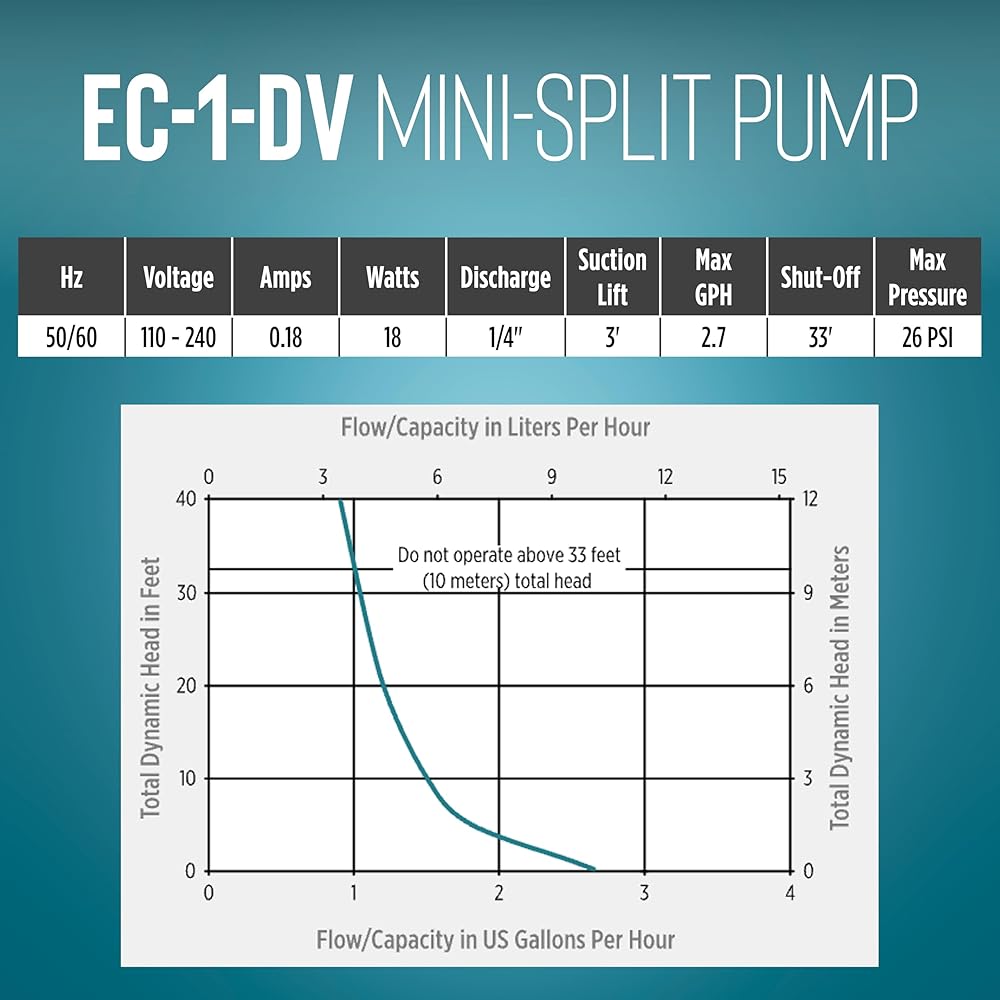

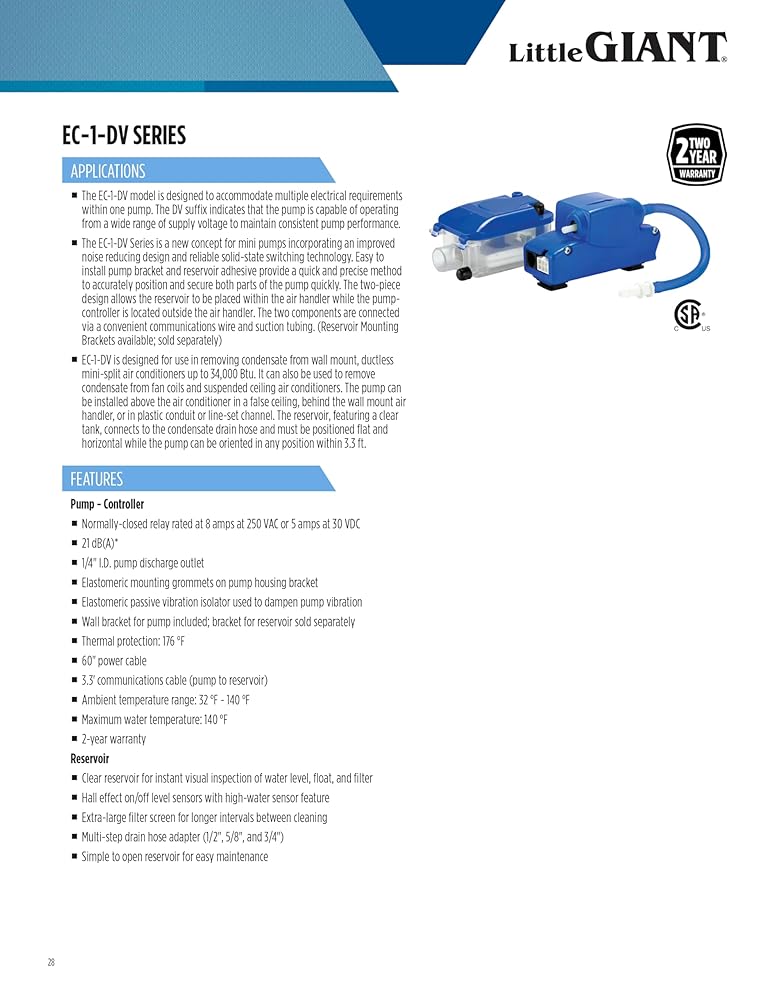

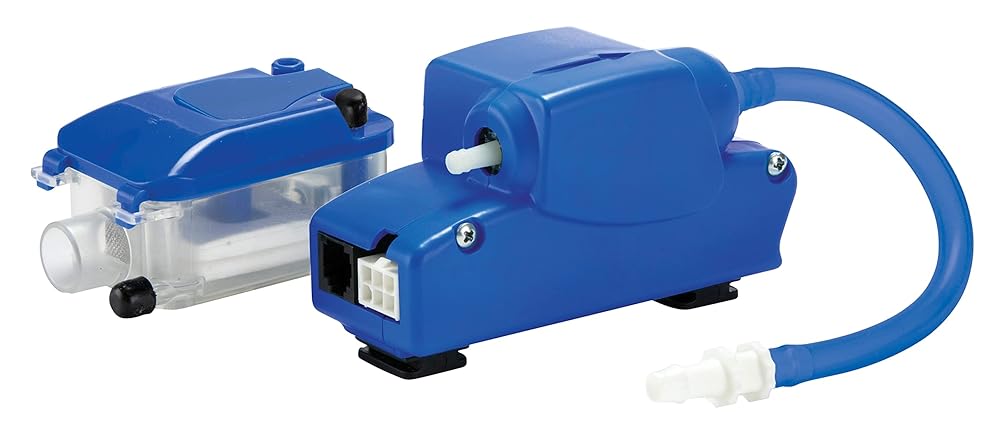

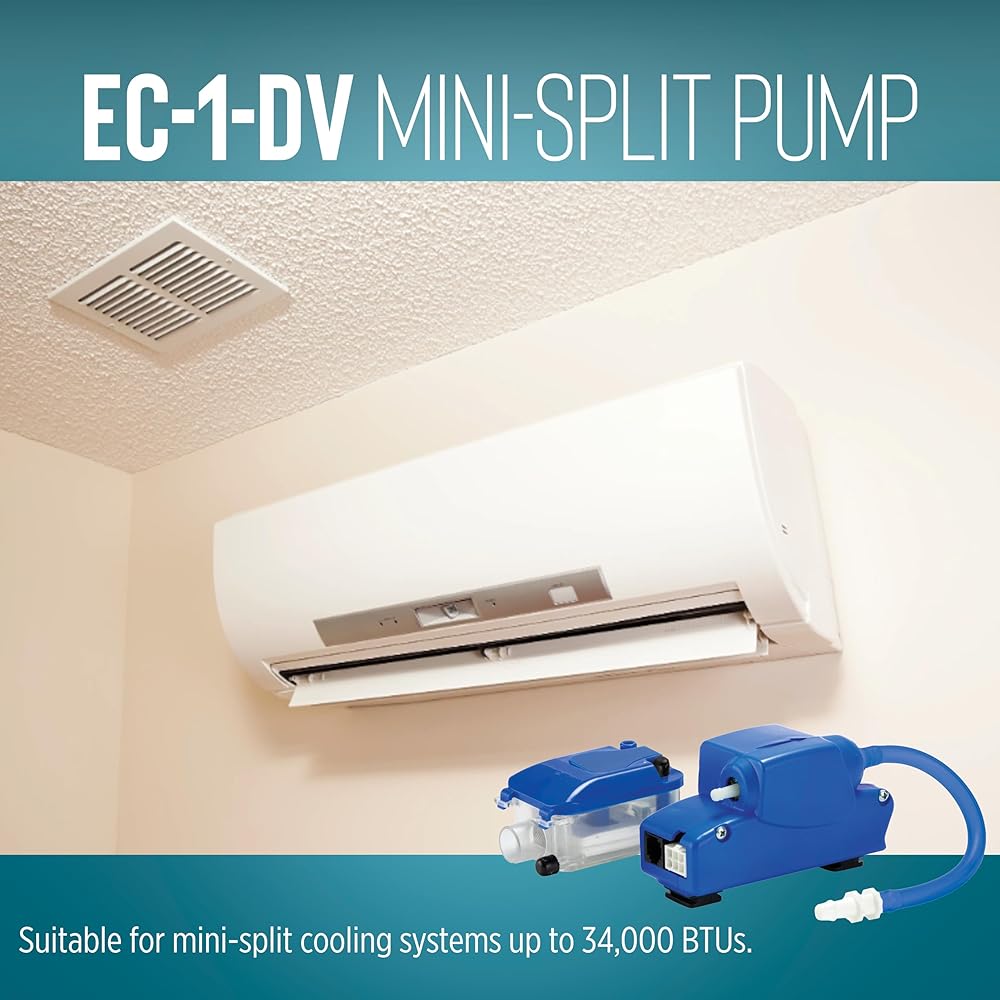

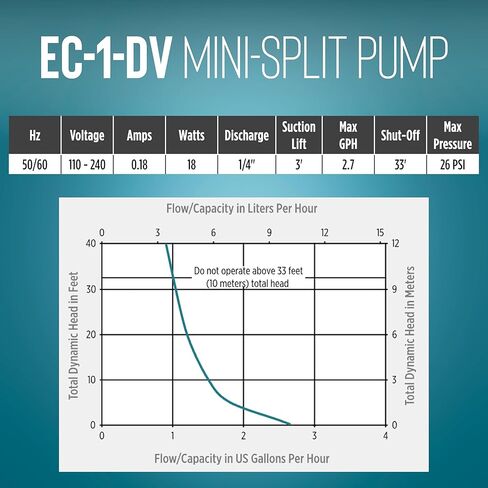

The Little Giant EC-1-DV dual voltage 110V - 240V, 50/60 Hz, 0.18 Amps, 18 Watt system is designed for use in removing condensate from wall mount, ductless mini-split air conditioners up to 34,000 BTU. It can also be used to remove condensate from fan coils and suspended ceiling air conditioners. The pump can be installed above the air conditioner in a false ceiling, behind the wall mount air handler, or in a plastic conduit or line-set channel (not included.) This system includes a pump, noise reducing reservoir, solid-state switching technology, and easy-to-install pump mounting bracket and reservoir adhesive for precise positioning. The two-piece design allows the reservoir to be placed within the air handler while the pump controller is located outside the air handler and are connected via a convenient communications wire and suction tubing.

The reservoir must be positioned flat and horizontal; the pump can be oriented in any position within 3.3 ft.

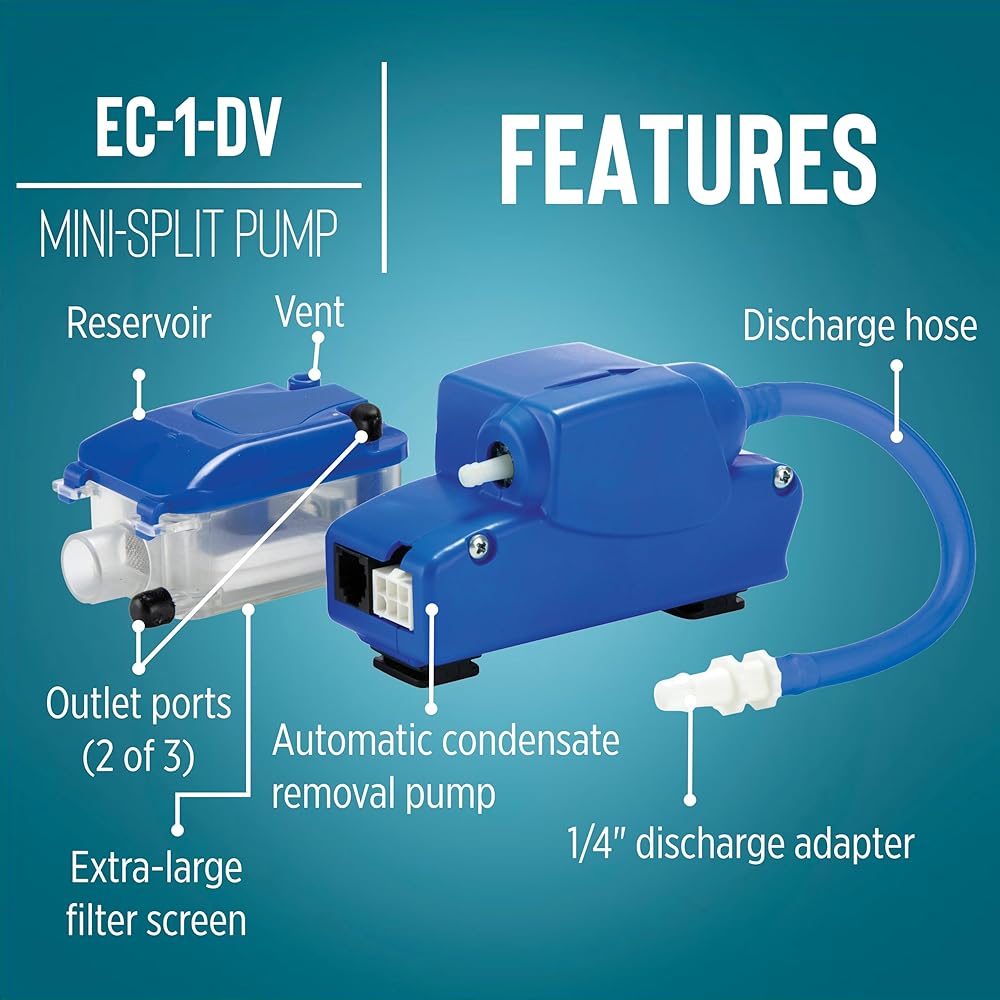

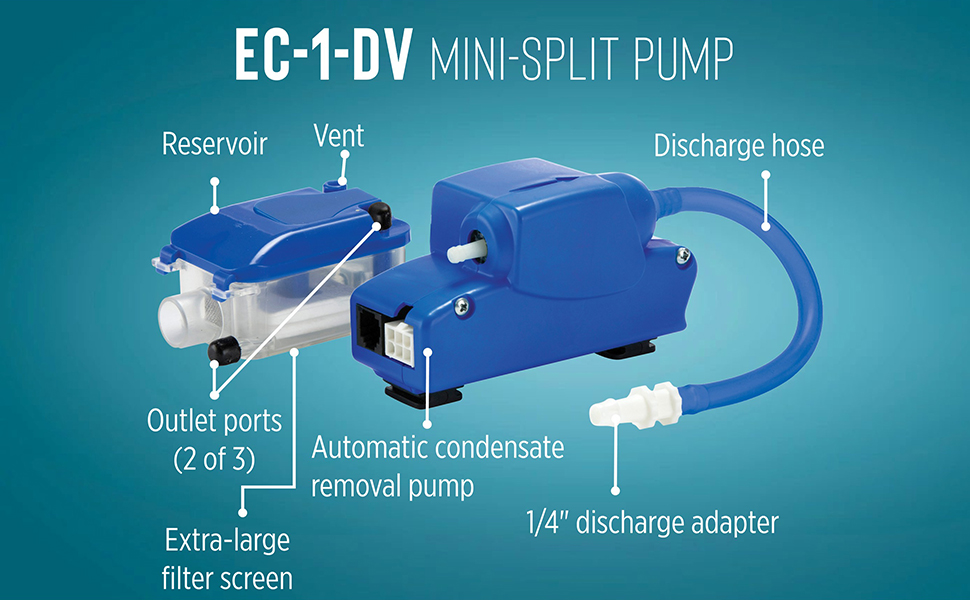

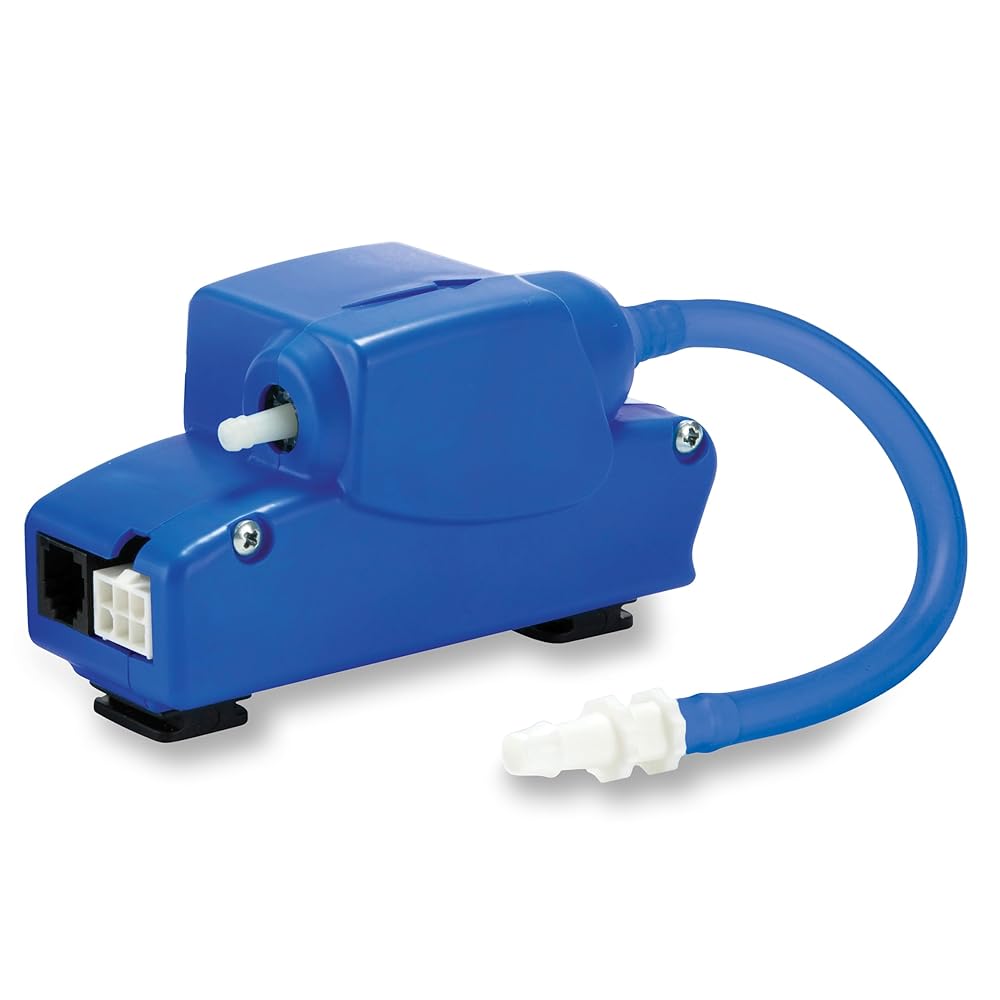

Pump/controller features:

- Normally closed relay rated at 8 amps at 250 VAC or 5 amps at 30 VDC

- Tested at 21 dB(A) under conditions assumed consistent with competitors' published sound ratings

- 1/4" I.D. pump discharge outlet

- Elastomeric mounting grommets on pump housing bracket

- Elastomeric passive vibration isolator used to dampen pump vibration

- Thermal protection up to 176 °F

- 60' power cable

- 3.3' communications cable (from pump to reservoir)

- Ambient temperature range: 32 °F - 140 °F; maximum water temperature 140 °F

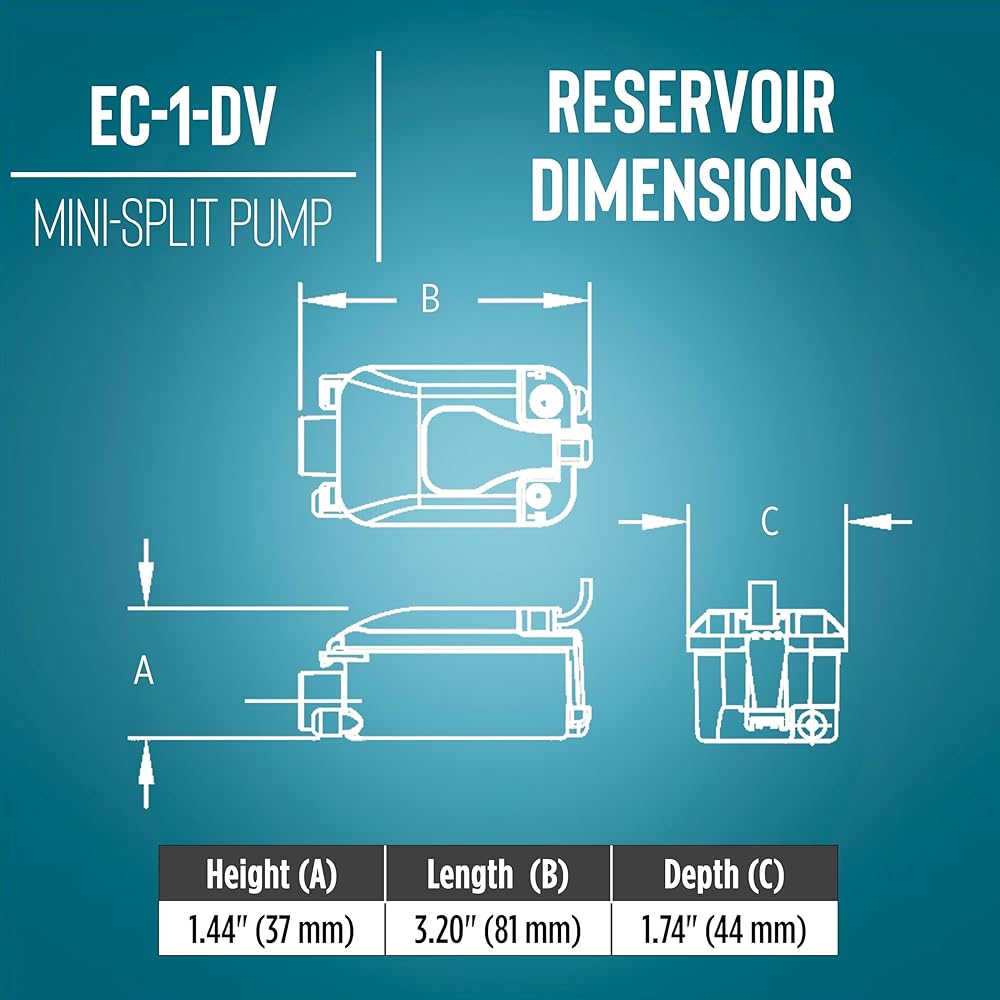

Reservoir features:

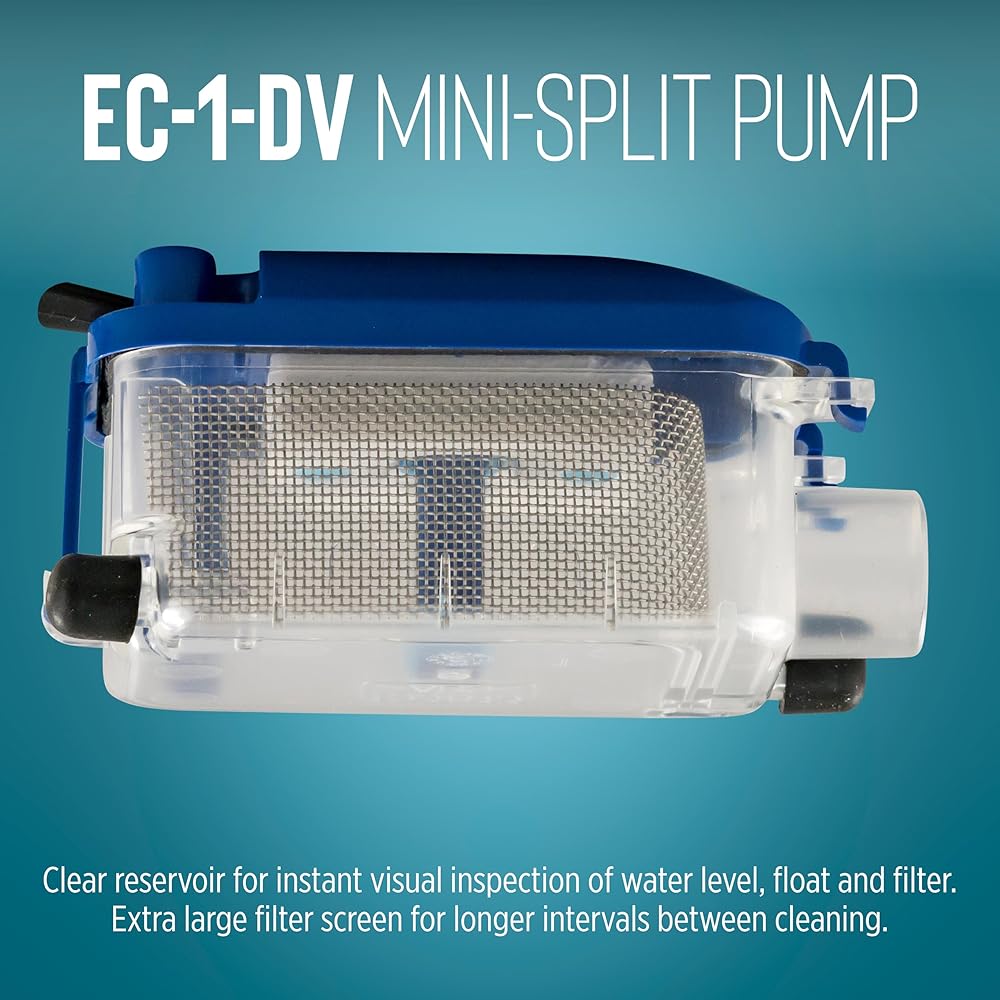

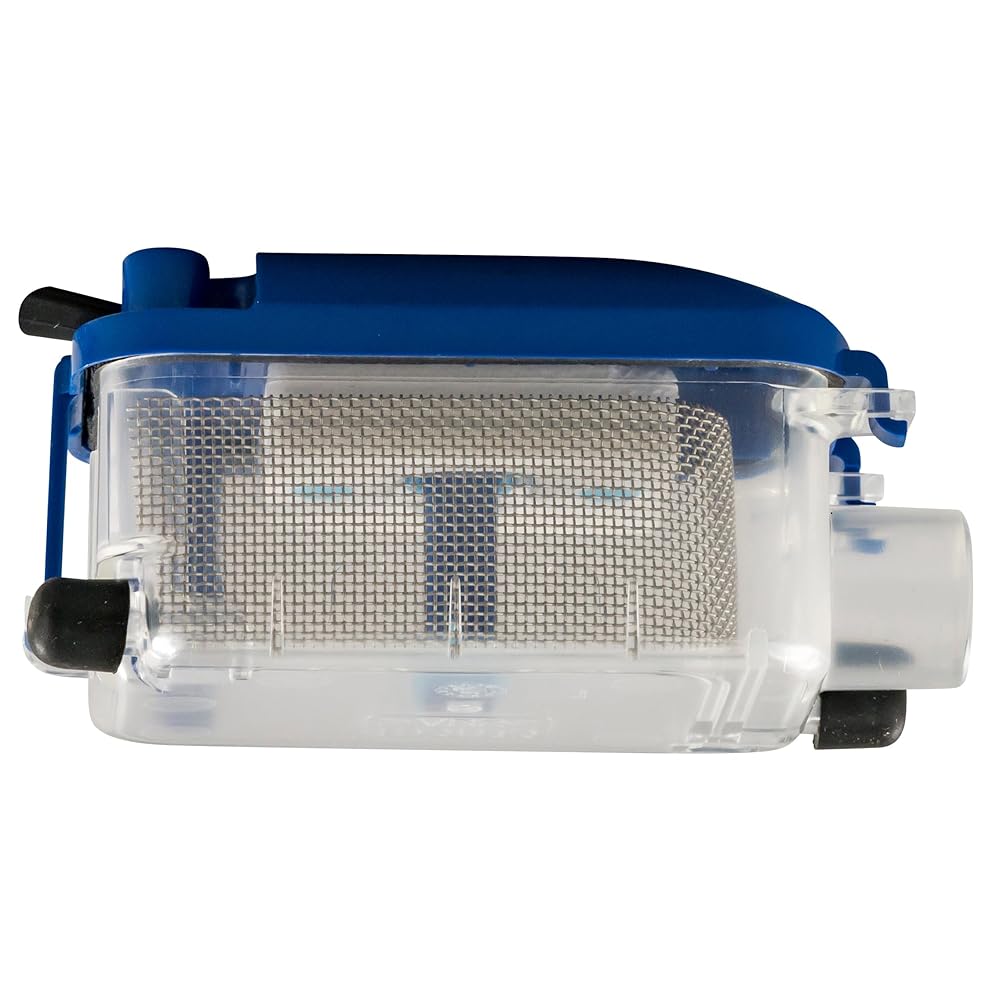

- Clear reservoir allows visual inspection of water level, float, and filter

- Hall effect on/off level sensors with high-water sensor feature

- Extra-large filter screen for longer intervals between cleaning

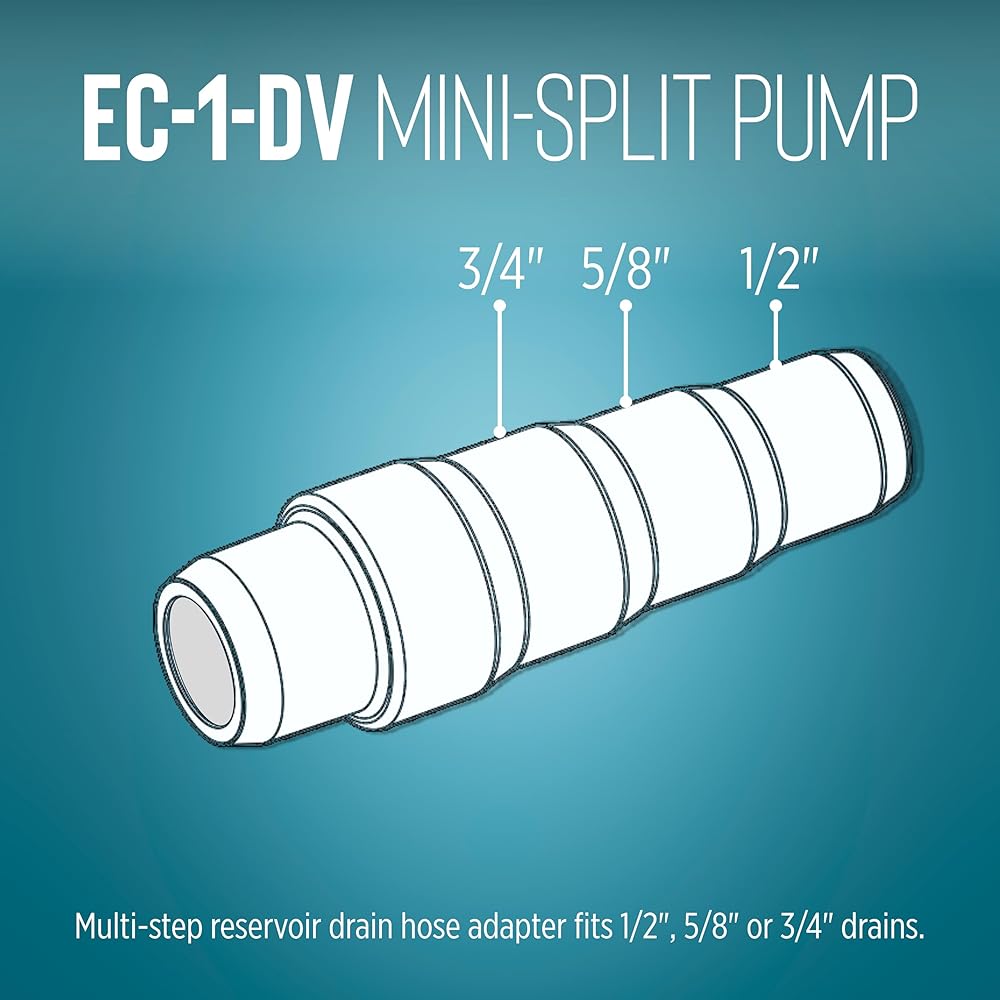

- Multi-step drain hose adapter (accommodates 1/2", 5/8" and 3/4" drains)

- Simple-to-open reservoir for easy maintenance
