Specification:

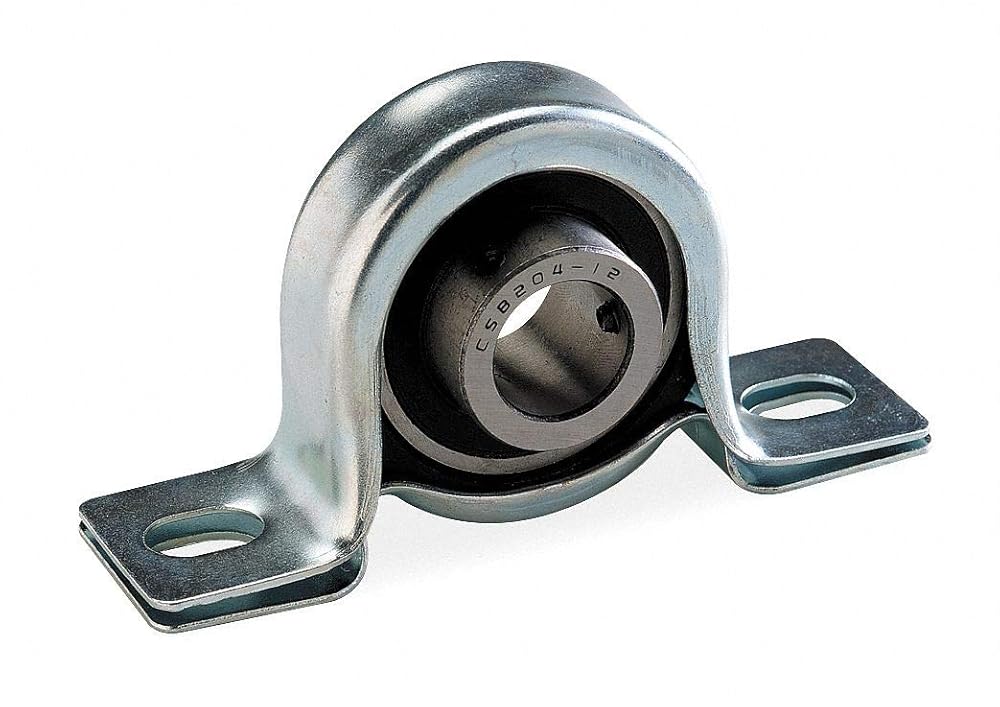

Item: Pillow Block Bearing
Mounted Bearing Item: Pillow Block Bearing
Bearing Insert Type: Ball
Bore Dia.: 3/4"
Bolt Hole Center-to-Center: 3-7/16"
Mounting Surface to Shaft Center: 1-3/16"
Bearing Housing Material Type: Pressed Steel
Shaft Locking Type: Set Screw
Bearing Insert Material: 52100 Chrome Steel
Series: PBPS-BL
Number of Bolts: 2
Bolt Size: 7/16"
Overall Height: 2-5/16"
Overall Width: 1-19/32"
Overall Length: 4-9/16
Dynamic Load Capacity: 2877 lb.
Static Load Capacity: 1479 lb.
Temp. Range: -30 Degrees to 200 Degrees F
Finish: Rustproof Plated
Includes: (2) set screws, Oil Resistant Rubber Liner
