Surge Protection Device (SPD) for Solar Power System / Photovoltaic or PV System
Surge protective devices(SPDs) provide protection against electrical surges and spikes, including those caused directly and indirectly by . They can be utilized as complete devices or as components within electrical equipment.
Photovoltaic (PV) system converts solar energy into direct current electricity. PV system ranges from small, rooftop-mounted or building-integrated systems with capacities from a few to several tens of kilowatts, to large utility-scale power stations of hundreds of megawatts. The potential impact of events increases with PV system size. At locations with frequent , unprotected PV systems will suffer repeated and significant damages. This results in substantial repair and replacement costs, system downtime and loss of revenue. Properly installed surge protective devices (SPDs) will minimize the potential impact of events.
Technical Date
TYPE: SY10-PV-C40
Protection Class: C
Max.Continuous Operating Voltage (Uc): 1000V/DC
Nominal Discharge Current (8/20s) (In): 20KA
Max. Discharge Current (8/20s) (Imax.): 40KA
Voltage protective level CM/DM at In: ~3.6KV
Response Time: 25ns
indicate deterioration: green(normal),red(malfunction)
Material of Outer Shell: Flame retardant material
----------------------------------------------------------------------------------------------
General
1:Safety super wide electrical spacing and creepage distance, high voltage withstand voltage, meet high altitude area use requirement
2:No load current is considered; and pull design, can be charged replacement, easy to maintain
3:Built-in temperature control circuit technology, high safety performance, no after flow.
4:Indicates that the green color of the window is normal and any red indicates failure. Clear and easy to distinguish.
5:Optional remote monitoring interface can be used for remote monitoring.
6:High working voltages, high pass flow, high safety performance and high stability.
--------------------------------------------------------------------------------------
Feature

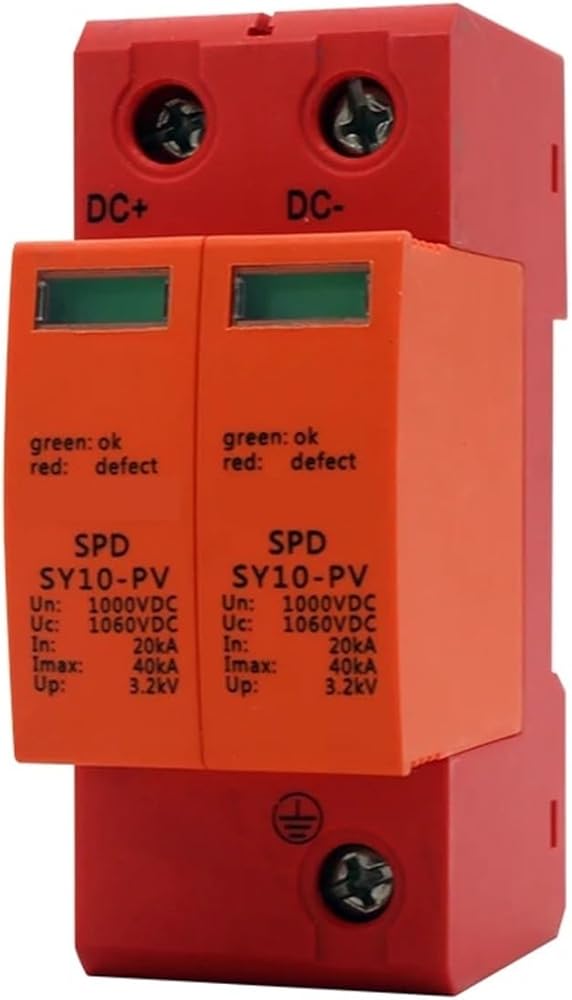

SY10-PV-C40 DC surge suppressor.
For surge protection of photovoltaic (PV) system
-The core parts are metal oxide vristor components with high discharge capacity.
-Low residual voltage and quick response
-Reliable control thanks to Thermo Dynamic Control disconnector.
-With remote signaling contact for control device.
-Fault indication via red mark in the inspection window.
-Protection mode: L+/L- PE.
----------------------------------------------------------------------------------------------
==========
High-concerned chemical : None
Type : SPD
Model Number : SY10-PV
Product name : Surge Protective Device
Model Number : SY10
Type : Eletronic Component
Rated Voltage : 1000V/1500V
Application : Power System
Imax : 40 KA
Uc : 1500VDC
Where Use : DC solar system
Function : Circuit protection
Keyword : Surge Voltage Protector
