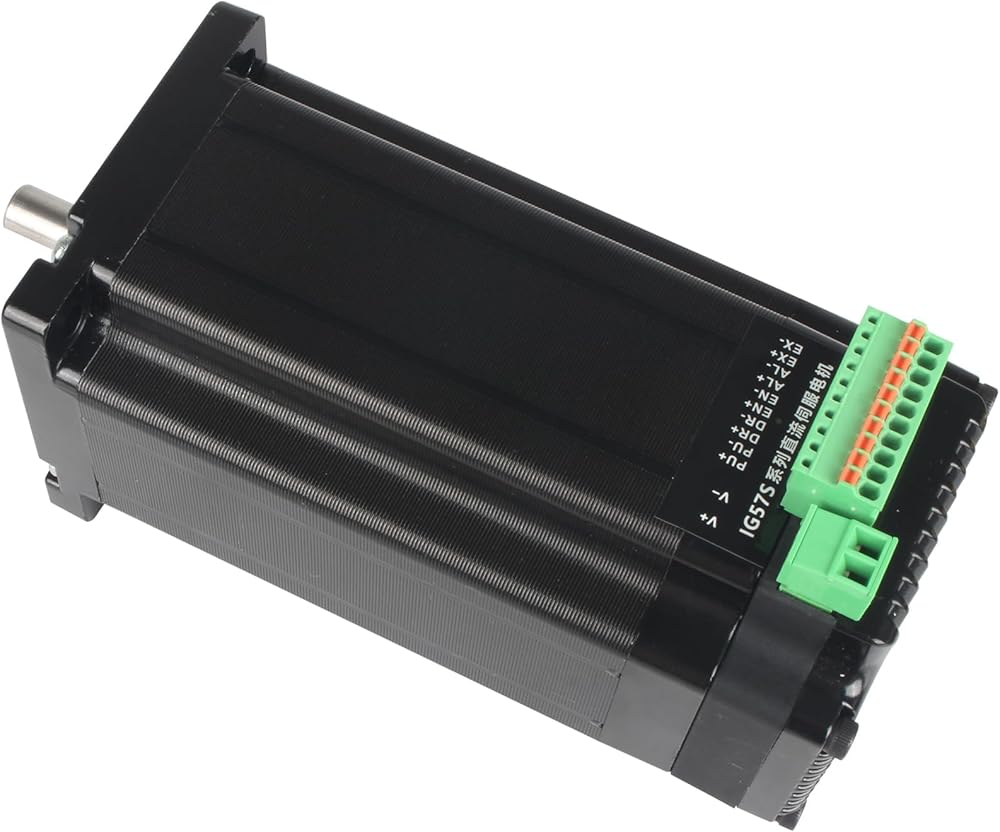

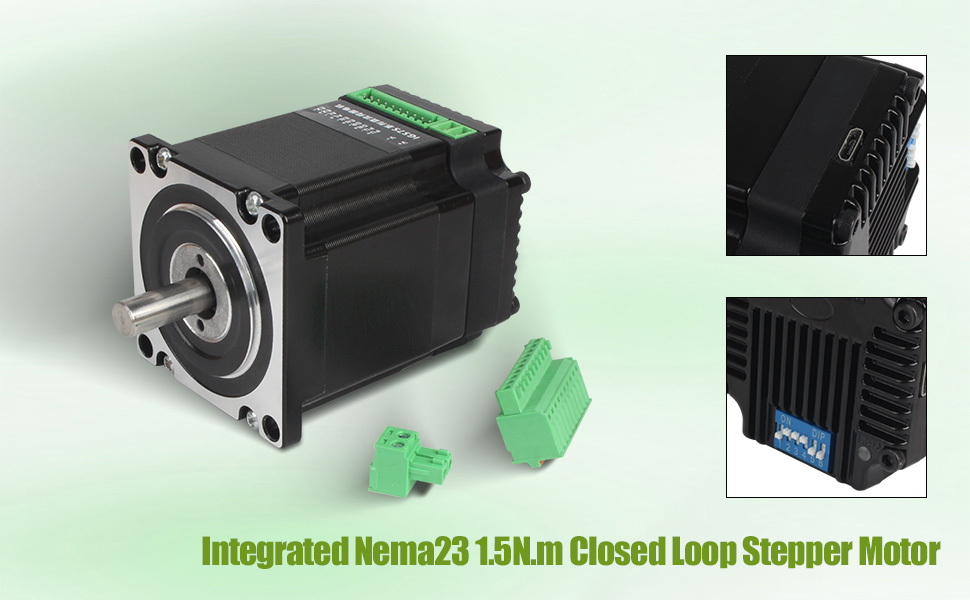

CNCTOPBAOS Integrated Nema23 1.5N.m Closed Loop Stepper Motor Driver, All-in-one 3000RPM 24-60V DC 5A 1000 Line Encoder TTL Multi-Microstep 8mm Shaft 57 Motor for CNC Machine, Industrial Automated in Saudi Arabia

3.5N

SAR 244
Brand
CNCTOPBAOS
Weight
210 g
Style3.5N
– 1 +

Special Features

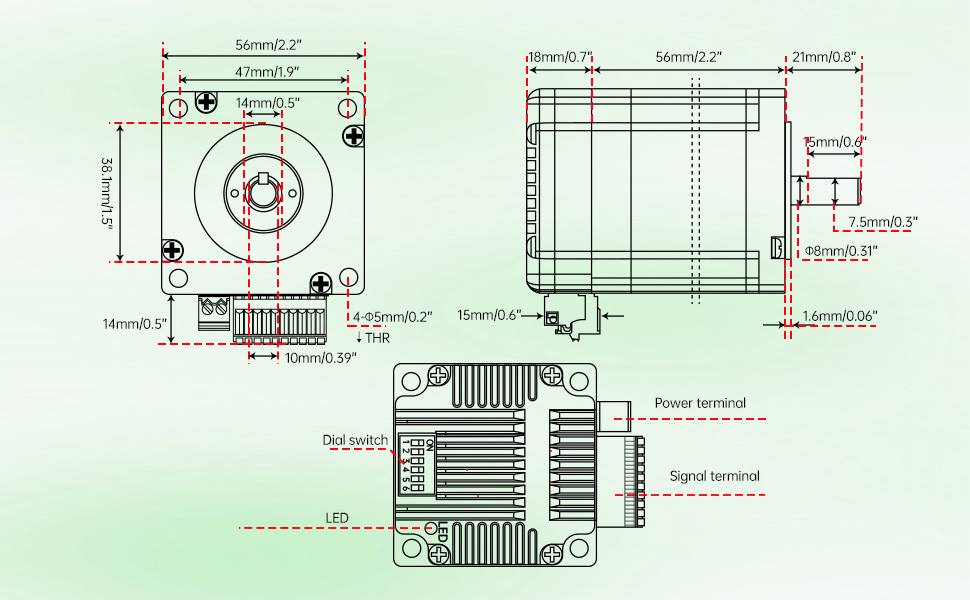

  • Specifications: Type: Nema23 Integrated Closed loop Stepper Motor; Rated Torque: 1.5N.m; Encoder line: 1000; Motor size: 57x57x74mm; Shaft Diameter: 8mm; Input: DC24-60V,recommended DC36V; Current: 5A; Max. frequency: 300KHZ; Weight: 1.63LB
  • Integrated design: The integrated closed-loop stepper motor integrates the driver and motor body together, simplifying the system structure and reducing the difficulty of installation and maintenance
  • Communication function: It is a new motor-driven integrated stepper motor drive system with communication function; Communication method: TTL; Communication interface: MicroUSB; Working mode: pulse and direction
  • High performance control: Adopting closed-loop control technology, precise control of the motor is achieved by feeding back the position and speed information of the motor, improving the stability and accuracy of the system. The closed-loop motor effectively reduces the out of step phenomenon of the stepper motor, improves the positioning accuracy of the system, and its torque is also larger than that of ordinary stepper motors
  • Widely used: including CNC machines, industrial automation, and robotics technology,t hey are applied in joint drives, end effectors and other parts to achieve high-precision and high-speed motion control; Automated production line: used for equipment such as conveyor belts; Medical device field and other precision manufacturing equipment, etc
