Current Sensors

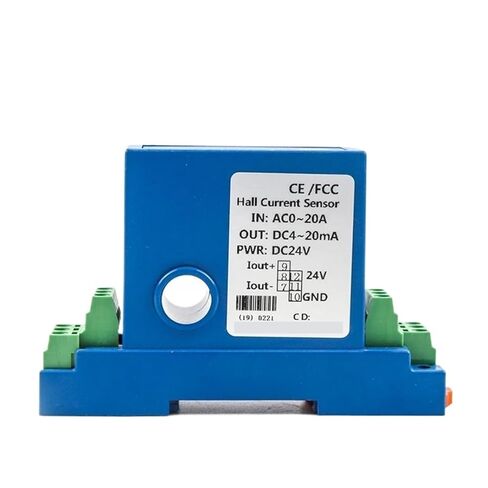

0-20mA Current Sensor 0-5V 0-10V Output Perforated AC Ampere Signal Transducer
Brief Description
This apparatus transmits the AC current signal (From motoror AC currenttransfor meretc.)to isolated current or voltage signal such as 4-20 mA DC,0-10 VDC,and the input,output,and power supply are galvanically isolated from each other.
It can be used together with modular instrumentation and DCS, and other systems,to offer signal isolation,signal conversion,signal processing and other functions to field instrument,thereby enhancing the immunity of automatic control systemin the industrial production process,and ensuring systems tability and
reliability.
Compared with other similar products,this apparatus has the advantages of small volume,fast response time,low power loss and quite well temperature characteristics.
==========
Battery Included : No
High-concerned chemical : None
Dimensions : 24*99*65
Operating Temperature : -20~+60
Supply Voltage : 24v
Accuracy Class : 0.1
Model Number : HD-4i
Display Type : Analog Only
DIY Supplies : Electrical
Certification : ,FCC,
Input signal : 0-1A,0-5A 0-10A 0-20A
Output signal : 4-20mA 20-4mA 0-10V Switch
Wiring : Direct wiring
Power supply : DC24V DC12V.AC220V
Installation method : 35mm rail
Accuracy level : 0.20%
Linearity : 0.10%
Insulation withstand voltage : 2KV/50HZ,1Min
Output temperature drift : 100ppm/
Full load power consumption : 1W
