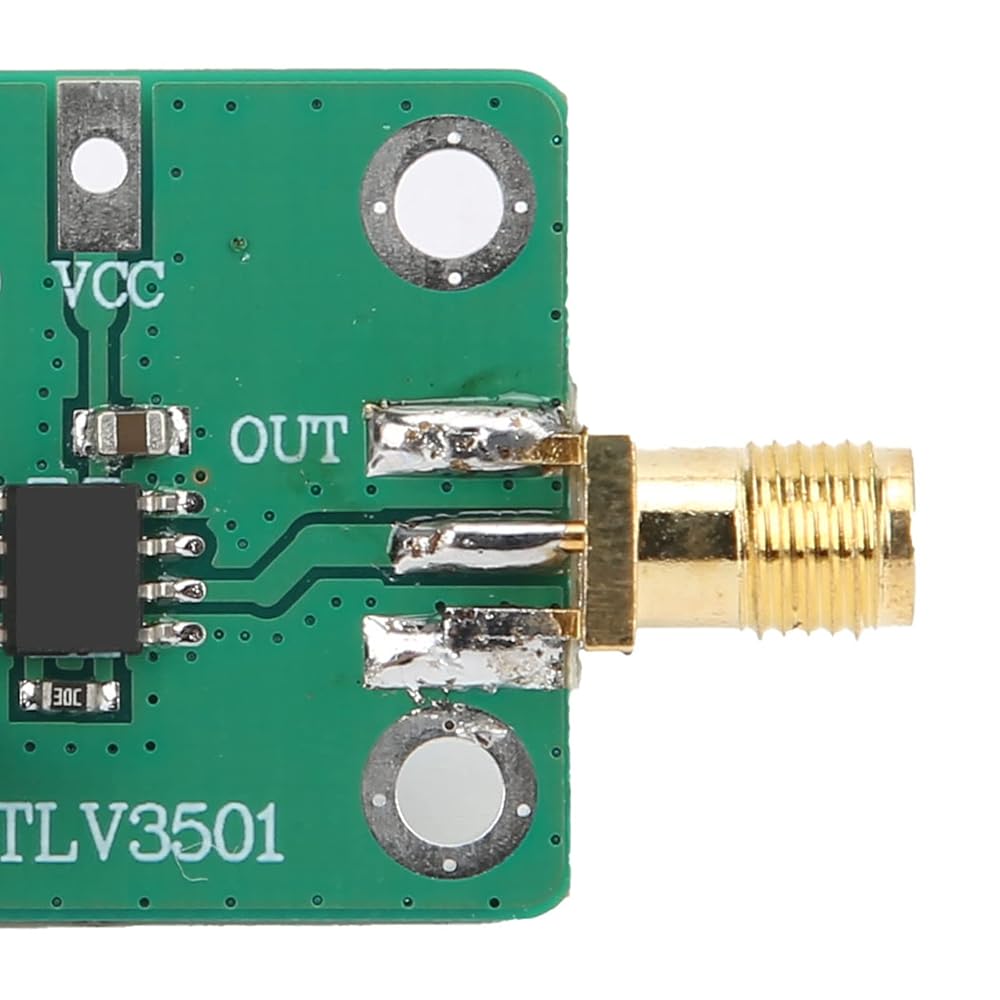

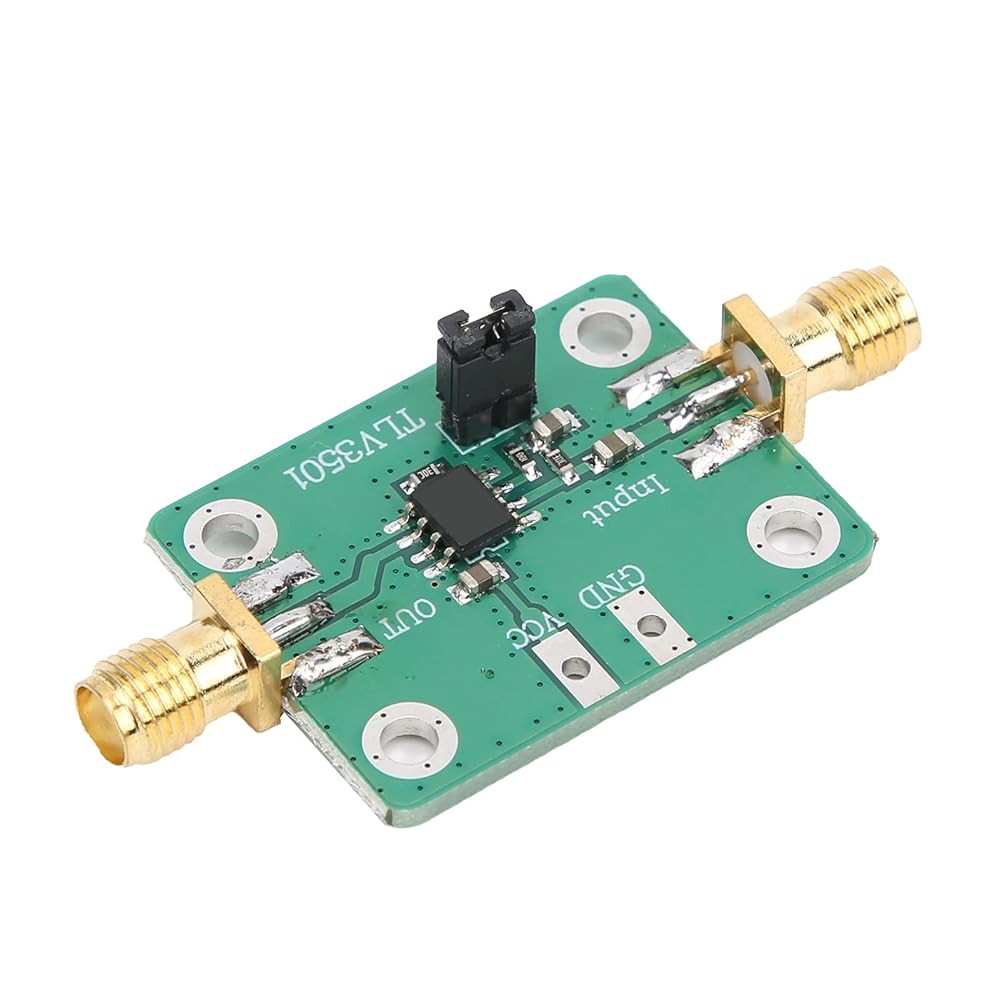

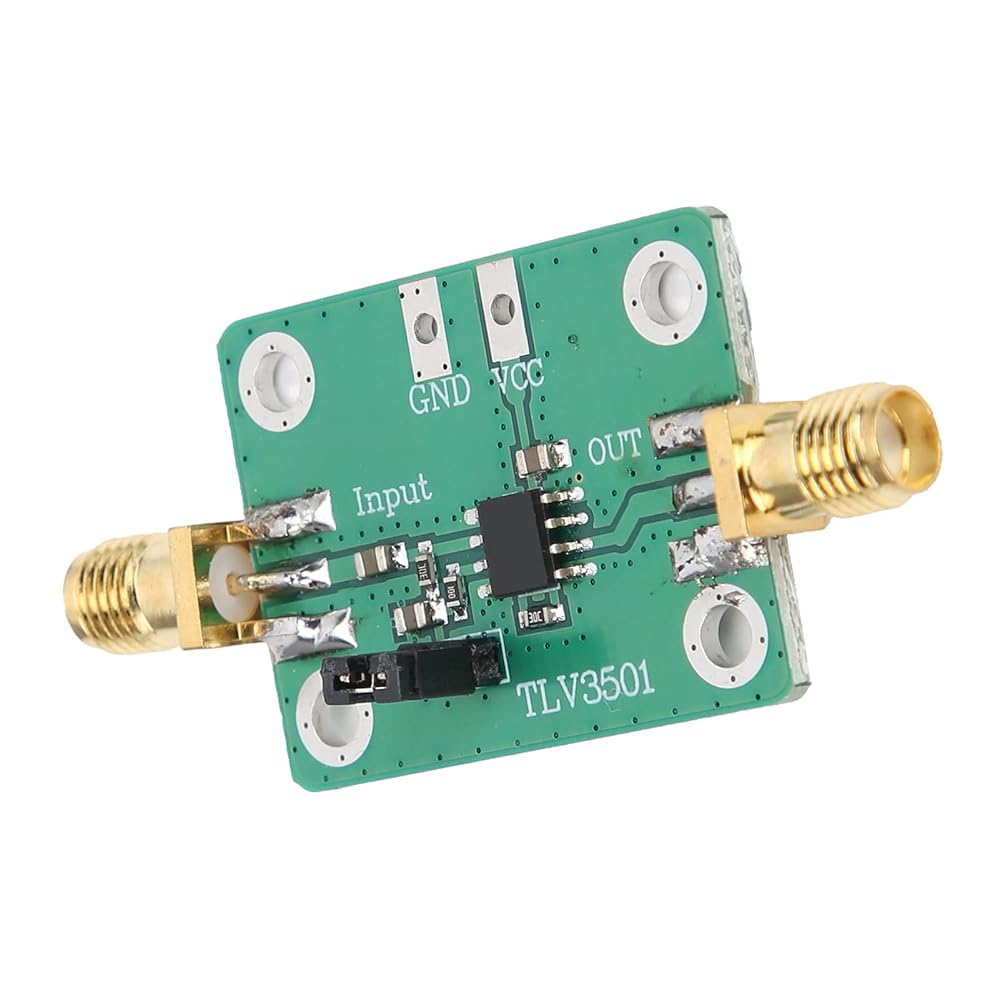

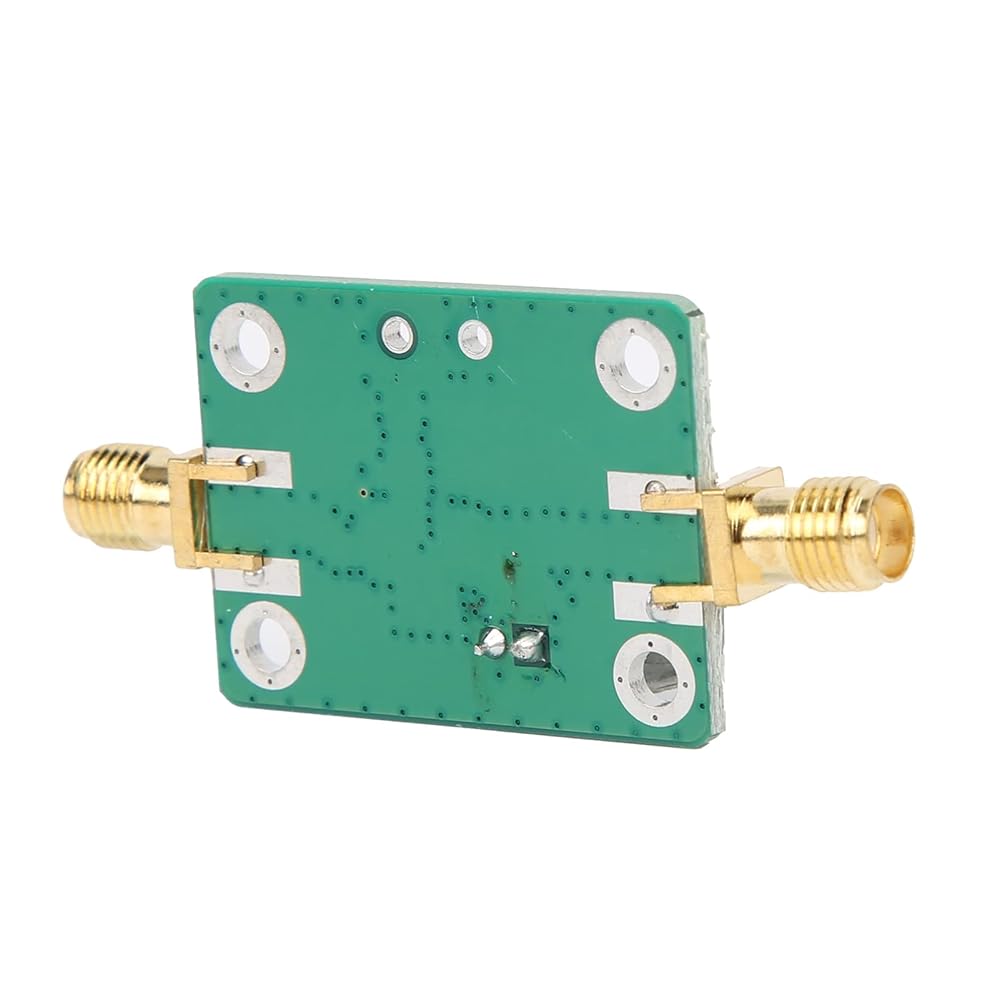

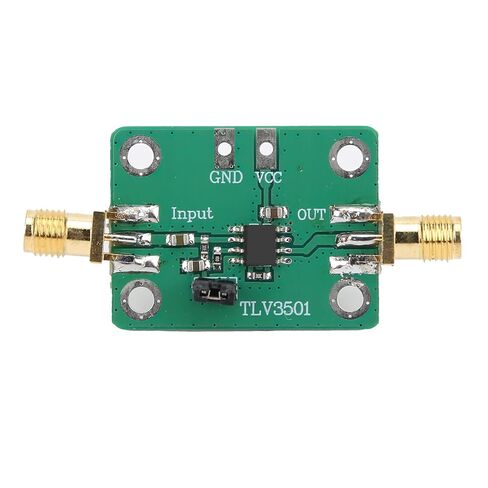

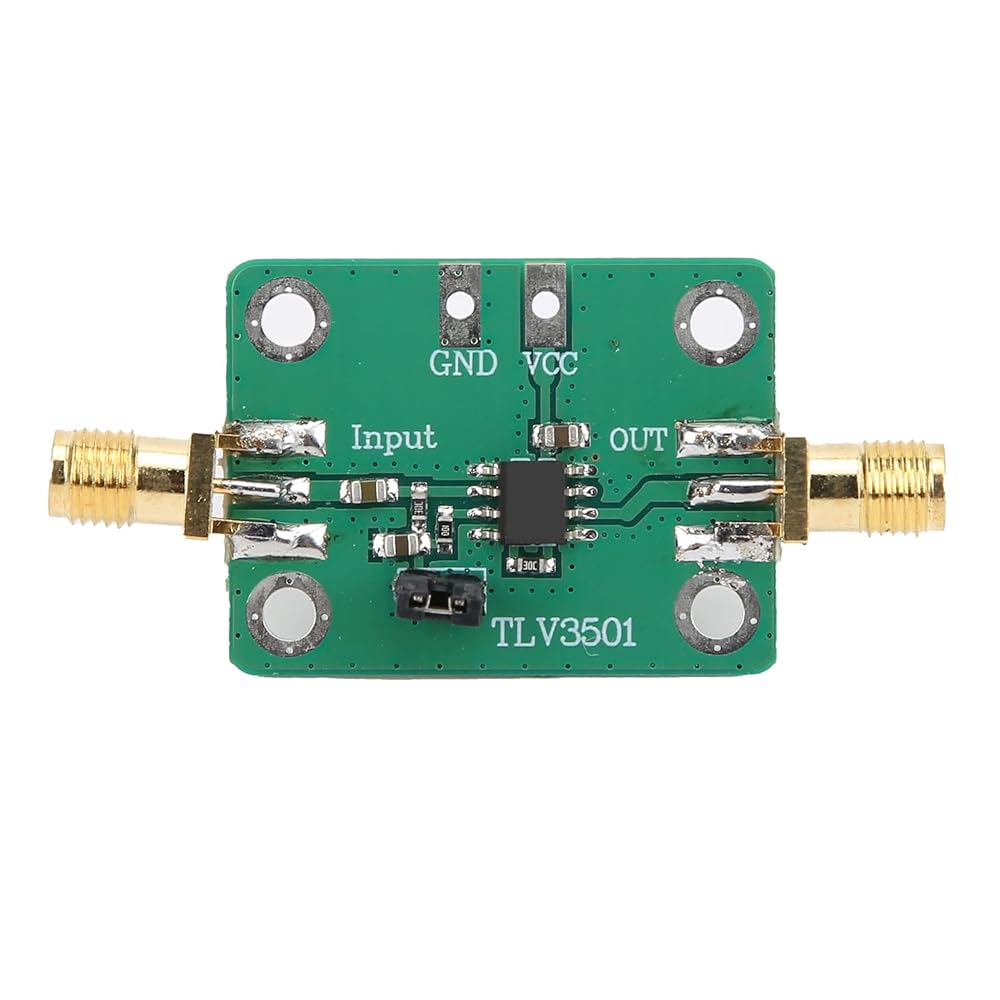

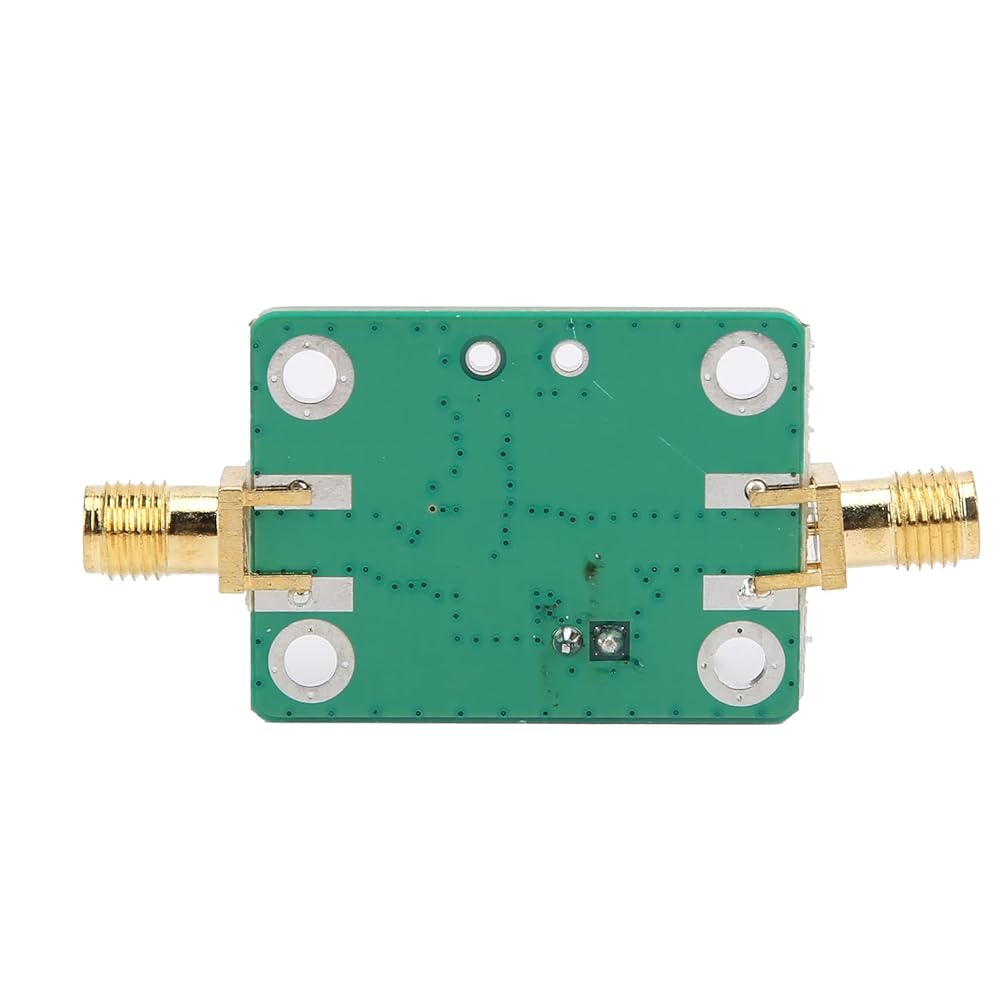

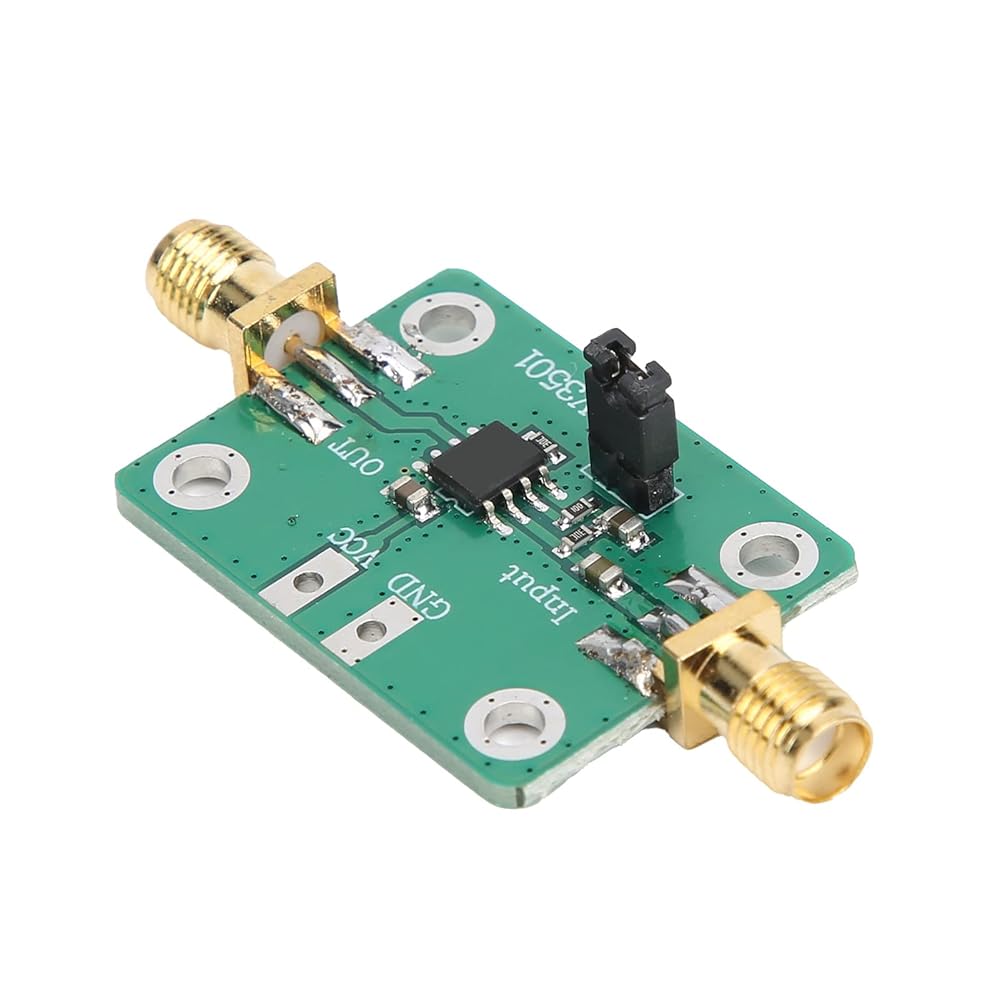

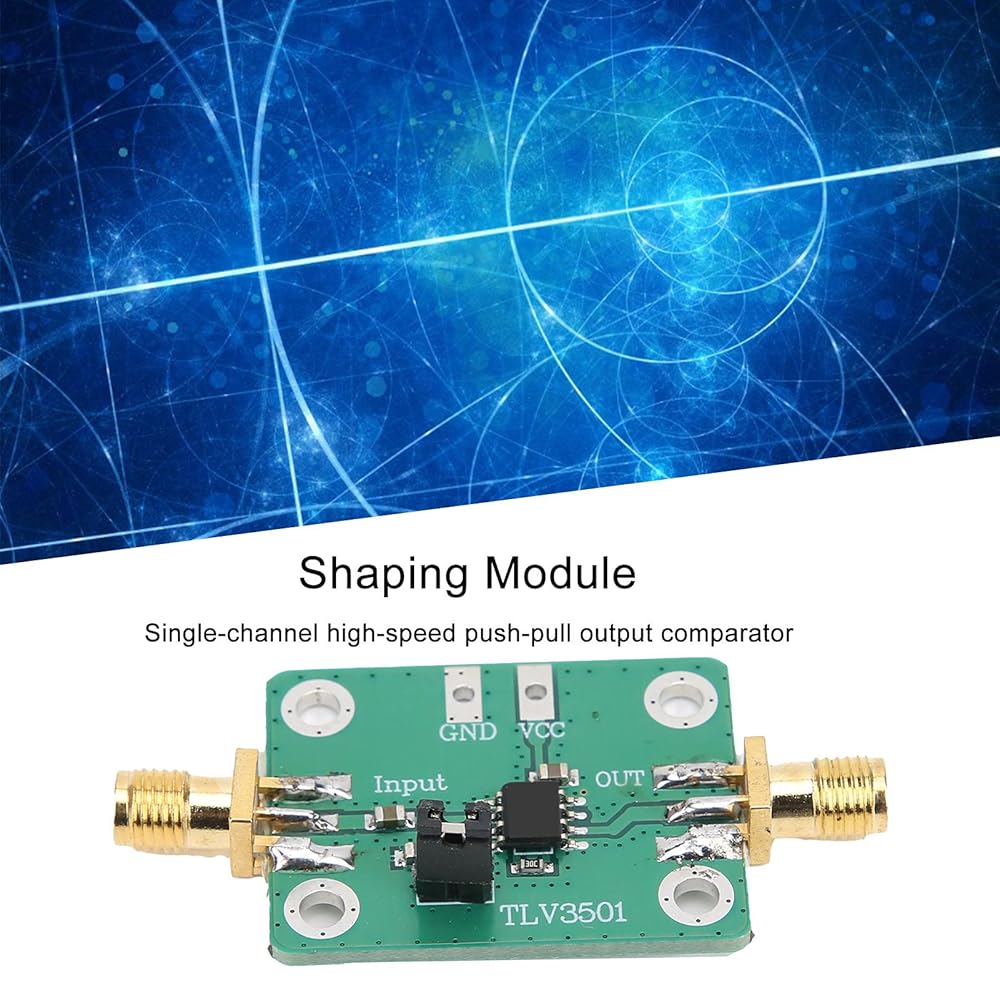

Frequency Meter Shaping Module High Speed TLV3501 Comparator Waveform Shaping Module with SMA Female Interface for Signal Conditioning and Measurement

SAR 76
– 1 +

Special Features

  • [HIGH SPEED COMPARATOR PERFORMANCE] The TLV3501 is a cutting single channel high speed push pull output comparator featuring an ultra low delay of just 4.5 nanoseconds. This exceptional speed makes it ideal for precision timing applications where every nanosecond counts ensuring accurate signal processing and reliable performance in demanding electronic environments.
  • [VERSATILE SIGNAL SHAPING APPLICATIONS] This advanced module is expertly designed for various voltage signal shaping cycles including frequency analysis phase difference measurements and time domain assessments. It serves as an indispensable front end adjustment tool for engineers and technicians working on signal conditioning and waveform optimization projects.
  • [POWERFUL RAIL TO RAIL OUTPUT] Enjoy seamless integration with your digital systems thanks to the module's robust rail to rail output capability. It can directly drive both CMOS and TTL logic levels without additional circuitry simplifying your design process while maintaining signal integrity across different voltage thresholds.
  • [RELIABLE SMA FEMALE CONNECTION] The module features a SMA female interface with precision external screw holes ensuring secure and stable connections. This professional grade connector maintains signal fidelity even at high frequencies up to 120MHz making it for RF and high speed digital applications.
  • [PROFESSIONAL DESIGN FOR EASY USE] Carefully engineered with user convenience in mind this shaping module boasts a logical layout and durable construction. The thoughtful design allows for quick replacement and straightforward installation saving valuable time during system integration and maintenance procedures.

Description

Item Type: Shaping Module
Power Supply Voltage: 2.7-5VDC
Input Voltage: 8-1000mV (effective value)
Output Level: Rail-to-rail output, can directly drive TTL / CMOS level
Input Frequency: 1Hz-120MHz, minimum 1Hz
Interface Form: SMA female(external screw hole)

Package List：
1 x Shaping Module
