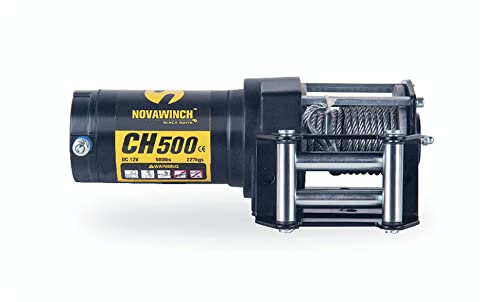

Built with a 4:1 safety rating for lifting, the CH500 is the right winch to safely lift and move materials up to 500lbs. This hoist features full power in and power out and a full-load mechanical brake to ensure secure and easy operation. Rated Line Pull 500lbs(226kgs) single line Motor(Series wound): DC 12V: 0.53hp/0.4kW Gear Box 1-Stage Planetary Gear Ratio 153:1 Braking Action Differential Self-Locking Fairlead 4-Way Roller Wire Rope 3/16″×15.7′ (4.8mm×4.8m) Performance Line Pull lbs (kgs) No Load 500 (226) Line Speed FPM(MPM) 11.2 (3.4) 8.2 (2.5) Motor Current Amp 18 32 Dimensions 11.81″×3.93″×2.25″(300mm×100mm×108mm) Mounting Bolt Pattern 2-hole 3.12" (79.5mm) Weight 18.7lbs (18.5kgs)
