مميزات خاصة

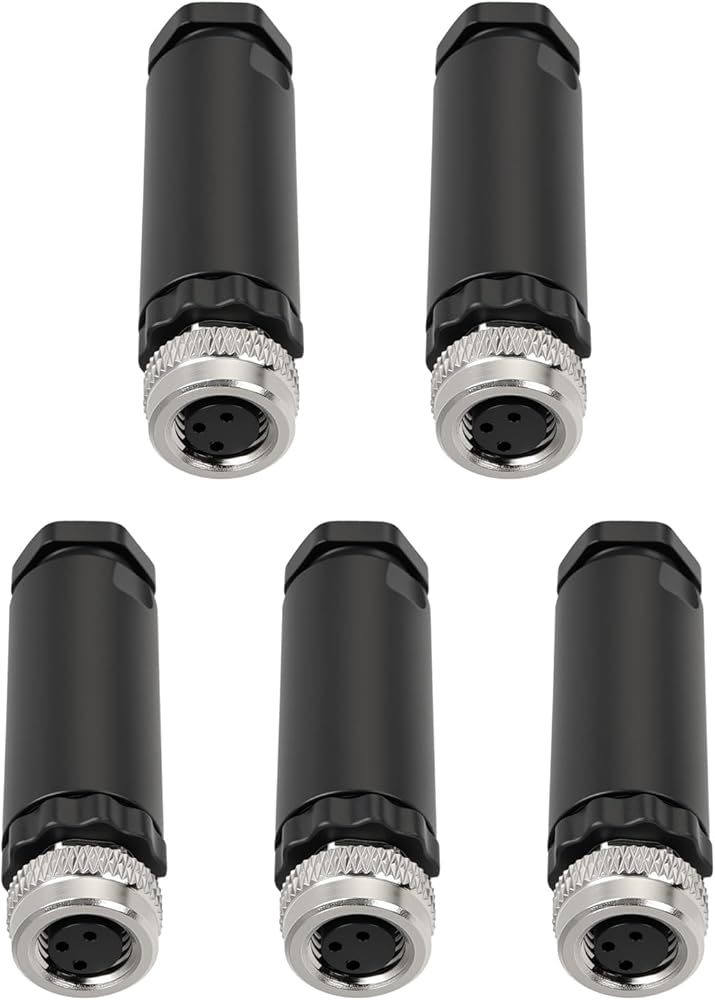

M8 Connector Waterproof 3-pole 4-pole 5-pole 6-pole 8-pole A, B, D coding available with M8*1.0 screw locking circular connector.
Rated Current：1.5A/2A/3A/4A.Rated Voltage：30V for 5/6/8 pin；60V for 3/4 pin.Protection level：IP67/IP68 waterproof.Contact Resistance：≤10mΩ.Mechanical Operation：>500 mating cycles.
Easy quick connect and disconnect coupling;Shield and un-shield Version Available with metal or plastic housing.
Screw/Nut Material：Brass with nickel plated.Contact Material：Phosphorus copper with gold plated.Temperature Range: -25°C ~ + 85°C.
The M8 series offers a wide range of male and female M8 connectors for small sensors and actuators. These connectors are ideal for industrial control networks that require small sensors. The connectors are available factory molded with TPU overmolding or as panel receptacles with solder cups for wire connections or PCB panel solder contacts.

وصف

Key Features:
Space-saving design:8mm diameter threaded coupling saves valuable panel space.
Industrial durability:Metal or plastic housing withstands vibration and mechanical stress.
Reliable sealing:IP67/IP68 rated versions available for harsh environments.
Wiring options:Choose from pre-wired cables or field-wireable versions.
Polarized versions:Available with keyed coding to prevent mismating.
Product Series Details:
The M8 series includes:
M8 male/female straight connectors
M8 male/female right-angle connectors
M8 panel mount receptacles
M8 cable-to-cable connectors
Available in 3-pin, 4-pin, 5-pin,6-pin and 8-pin configurations
Specifications:
Current rating: 2A/4A (depending on configuration)
Voltage rating: 30V/60V AC/DC
Contact resistance: ≤10mΩ
Insulation resistance: ≥100MΩ
Operating temperature: -25°C to +85°C
Mating cycles: ≥100 cycles
Housing material: plastic or metal
