1" Closed Style Linear Ball Bearing Unit SSWA16UU TWA16UU by SpinCo Bearing
Special Features
- 1" closed style linear ball bearing unit. Used for high accuracy systems and any application where smooth linear motion is needed.

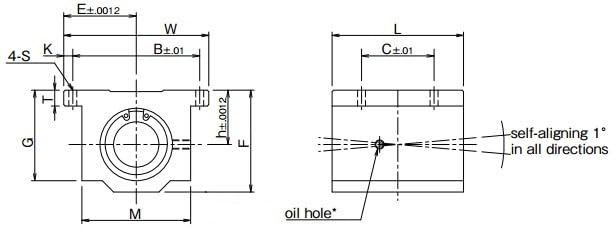

- To View the Dimension Chart/Layout, please see the additional images* - Dimensions (Inches): Shaft Size: 1; h: 1.19; E: 1.63; W: 3.25; L: 2.81; F: 2.19; T: 0.38; G: 1.94; M: 2.38; B: 2.88; C: 1.75; K: 0.19; S: 0.22
- Load Rating (Lbs.): Dynamic: 850; Static: 1060
- Part Number: SSWA16UU; Dimensions (Inches): Shaft Size: 1; h: 1.19; E: 1.63; W: 3.25; L: 2.81; F: 2.19; T: 0.38; G: 1.94; M: 2.38; B: 2.88; C: 1.75; K: 0.19; S: 0.22
- Load Rating (Lbs.): Dynamic: 850; Static: 1060
Description
1" Closed Style Linear Ball Bearing Unit SSWA16UU TWA16UU SpinCo Bearing
