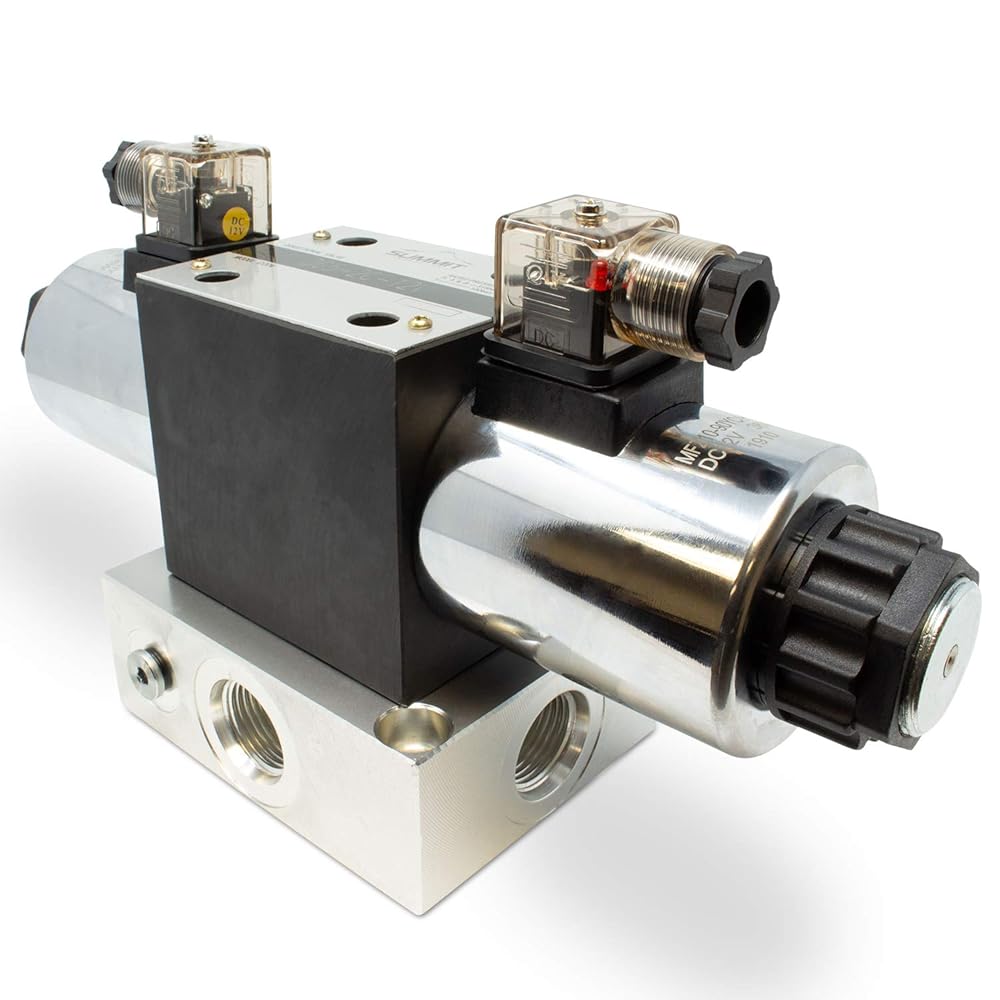

Electric Hydraulic Double Acting Directional Control Valve, 1 Spool, 25 GPM
This double acting hydraulic control valve is designed to control the flow of hydraulic fluid in/out of a hydraulic motor. These valves can be used to add additional auxiliary hydraulic functions or replace a current hydraulic control
D Spool (Motor Control)
All spools are double acting with spring return to neutral position, D spool is designed for non-load holding applications such as motors and horizontal cylinders
A and B ports are open to Tank in neutral position
Intended for Closed Center Systems
Valve Body Features:
Solid aluminum housing designed for rugged use
Max Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSI
Flow Rating: 25 GPM
Aluminum Body
3000 PSI Rated
#12 SAE (1 1⁄16 – 12 ORB) female thread Work Ports
#12 SAE (1 1⁄16 – 12 ORB) female thread Inlet (Pressure) Port
#16 SAE (1 5/16 -12 ORB) female thread Outlet (Tank) Port
Solenoid Specifications:
Nominal Voltage Tolerance +/- 10%
Power Rating: 37 Watts
Amps: 3.08
100% Duty Cycle
12 Volt
