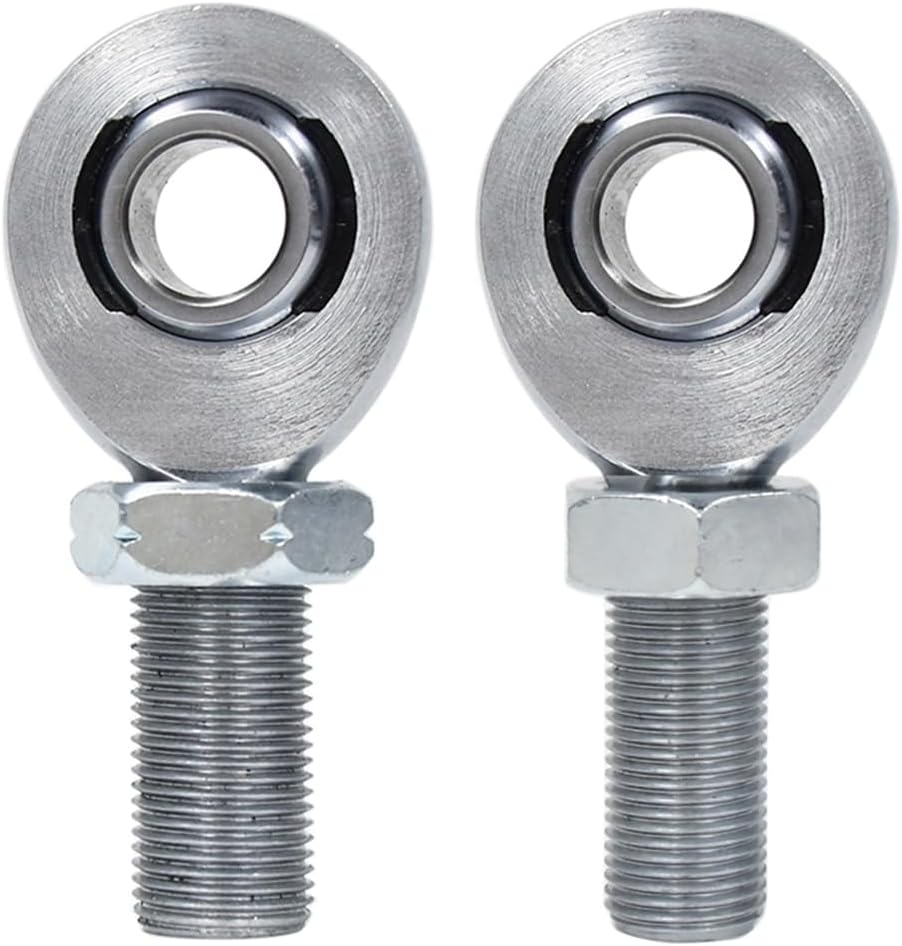

Package Includes: 1 x LH 3/4"-16 Thread x 5/8" Bore Rod End | 1 x RH 3/4"-16 Thread x 5/8" Bore Rod End | 1 x LH 3/4"-16 Thread Jam Nut | 1 x RH 3/4"-16 Thread Jam Nut
They are heat-treated and hard chrome plated to give you a better finish for consistent performance
The included jam nut is zinc coated for superior durability
Easier mounting and adjustment of position in installations
They can be used in a wide range of industries in many of different applications such as mechanisms, linkages and control rods
وصف
Specification:

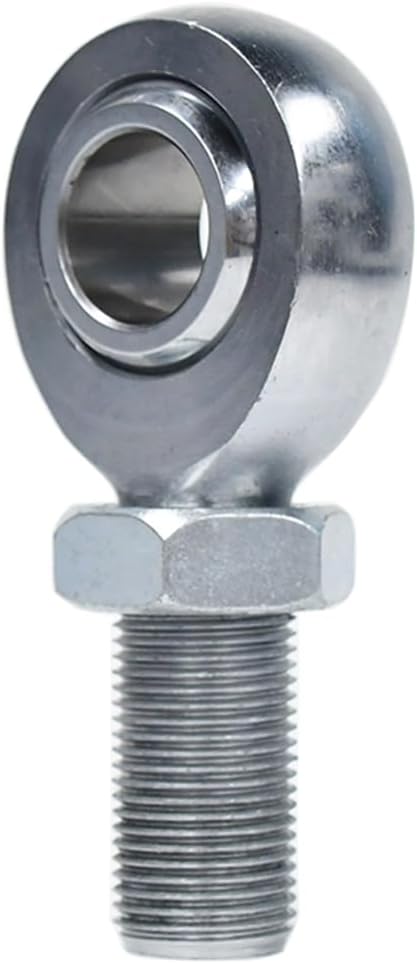

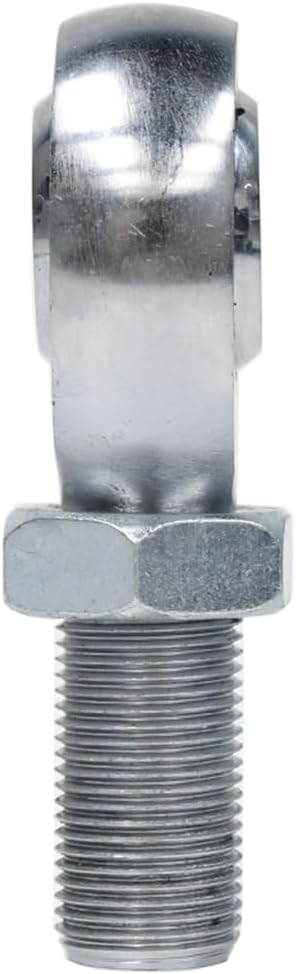

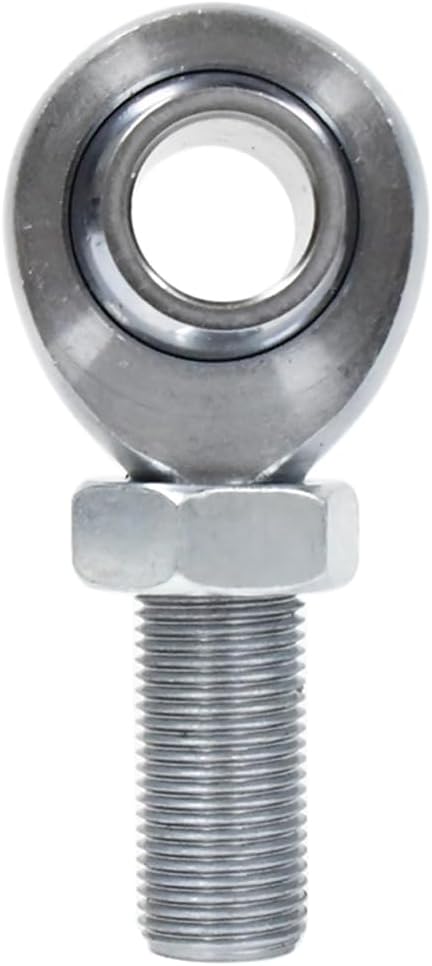

Rod End (XML10-12 & XMR10-12)
Right Hand, Male, Heat Treated Chromoly, Hard Chrome Plated, Loader Slot Rod End
Material: Heat Treated Chromoly, Hard Chrome Plated

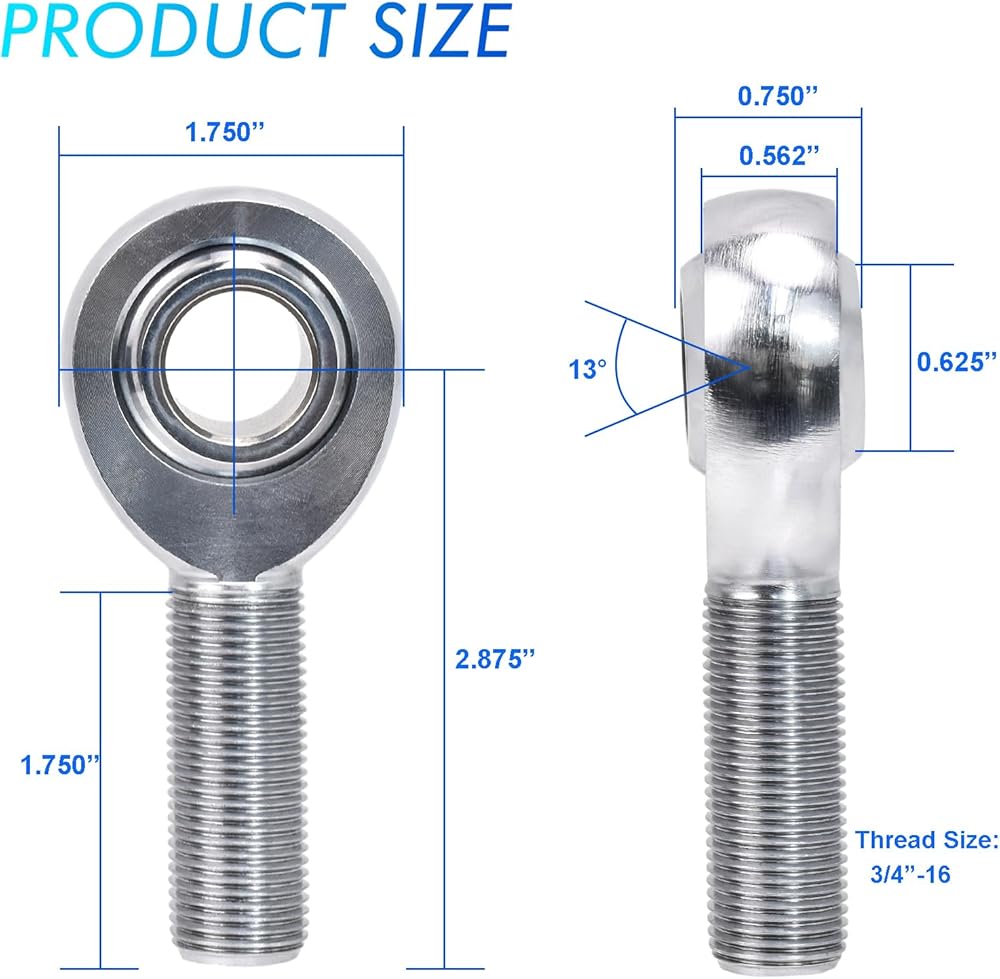

Bore: 5/8" (.625" )
Width: 1.75"
Ball Width: 3/4" (.750" )
Thread Size: 3/4"-16
Thread Length: 1.75"
Static Radial Load:40,572 lbs
Center Line Length:2.875"
Torque Specs: F2-Moderately tight. Users should be able to move the ball by hand, but noticable resistance will be felt.This does not fit for truck
Jam Nut (JNL12S & JNR12S)
Qty: One RH & One LH
Thread: 3/4"-16
Width: 1 1/8" (1.125")
Height: 27/64"
Carbon Steel, Silver Zinc Plated
