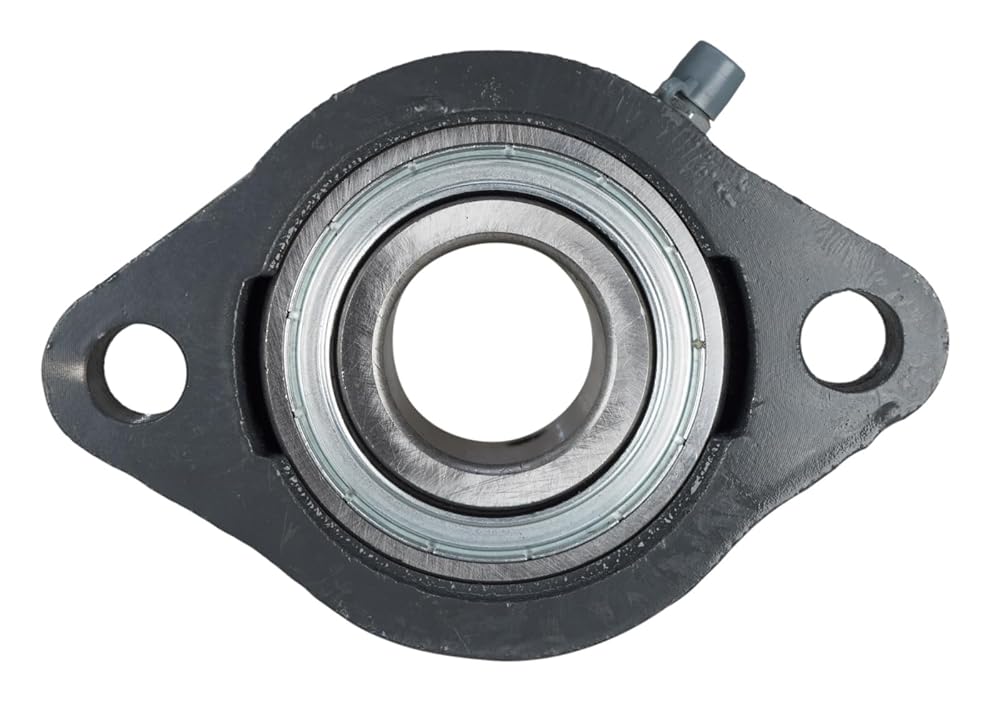

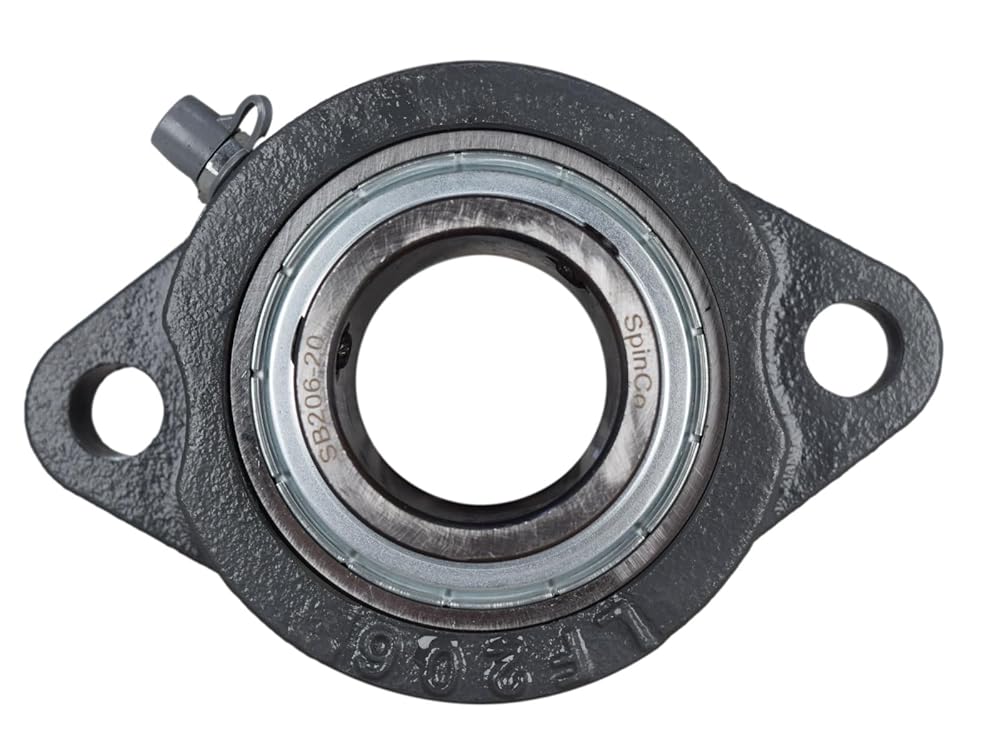

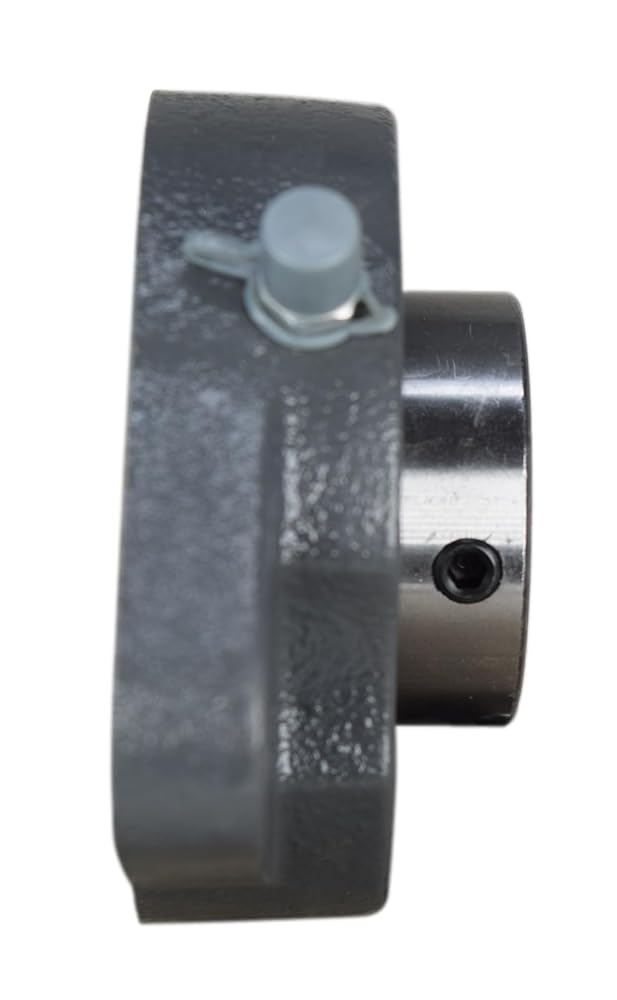

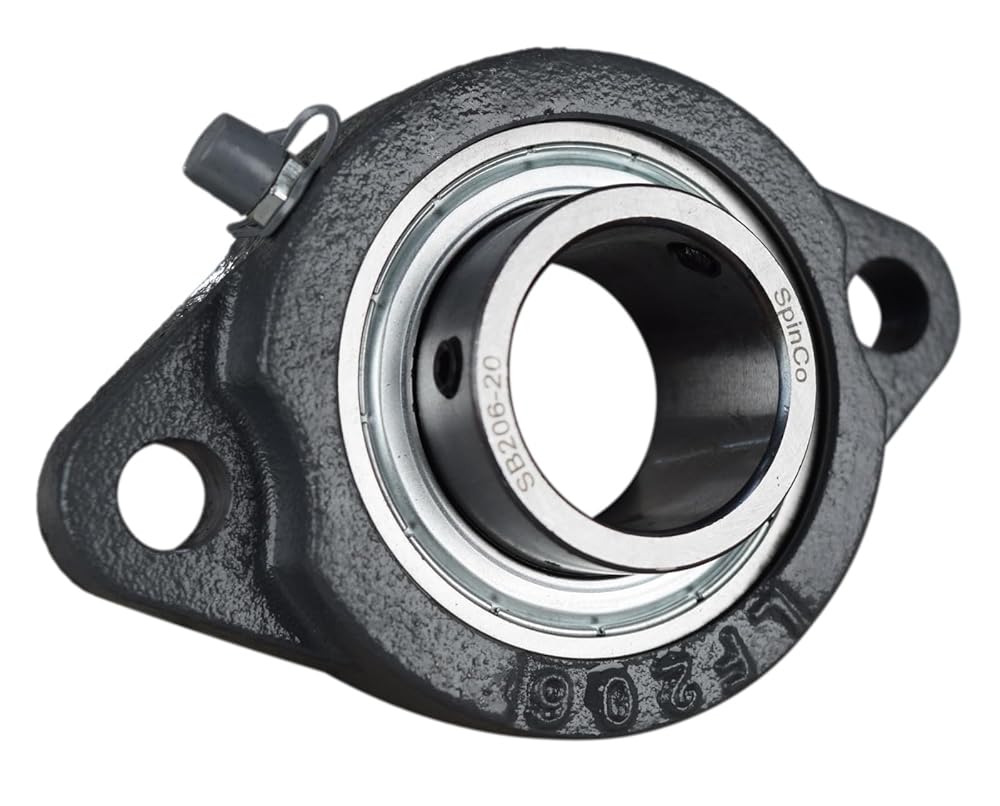

High quality light duty 1-1/4" two bolt flange bearing. The bearing has a narrow inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
Dimensions: Bore: 1-1/4"; Bolt hole to bolt hole: 3.56 in. (90.5mm); Overall length: 4.448 in. (113mm); Overall thickness: 1.49 in. (37.9mm); Bolt hole: .4724 in. (12mm)
Description
1-1/4" Light Duty Two Bolt Flange Bearing BLF206-20G, SBLF206-20G, FHSLF206-20G by SpinCo
