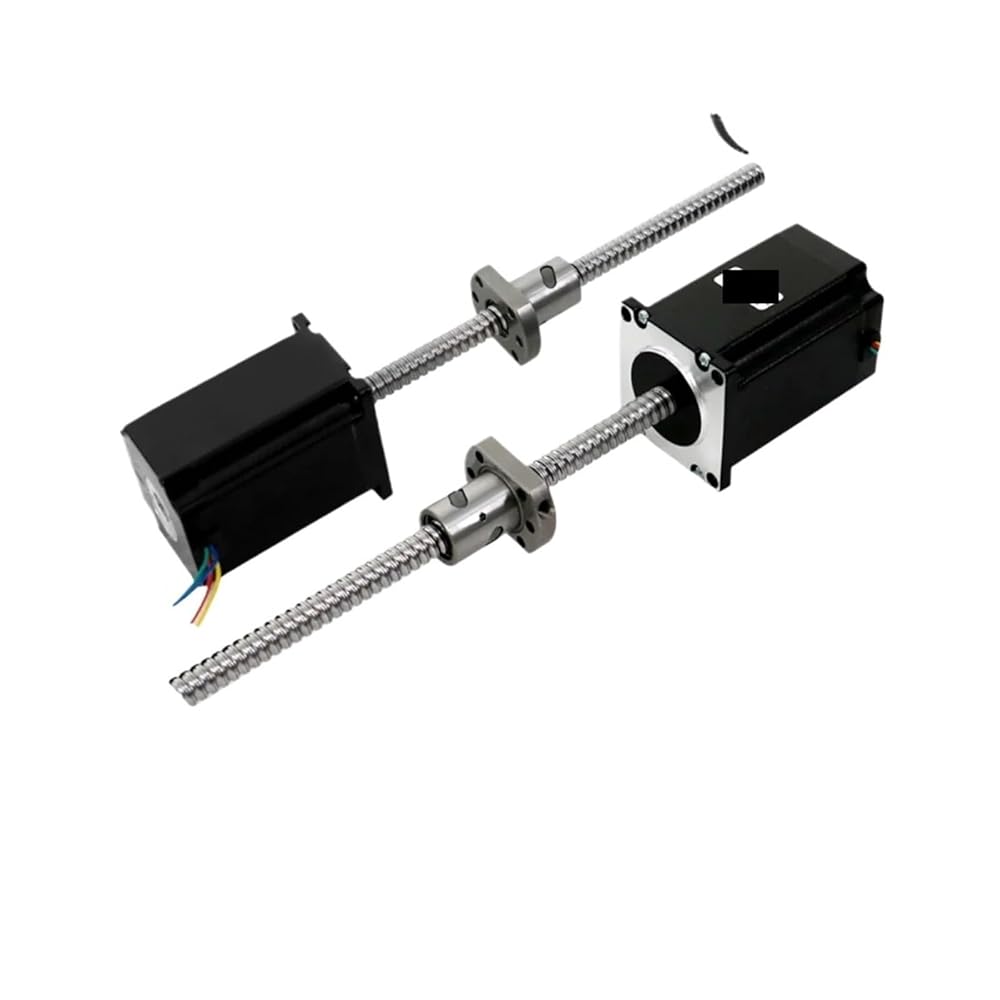

محرك متدرج NEMA23 محرك متدرج 1.2/2.2/3N مع محرك متكامل لولبي SFU1210 100-500 مم (فعال 100,57HS56 1.2N)
مقاس57HS56 1.2N
مميزات خاصة
- Pneumatic Motors
- Precise control: fixed step angle; no accumulation of angular error; high positioning accuracy
- Self-locking position: rotor automatically locks after power failure; no additional braking device is required
- Low-speed stability: stable torque in low-speed operation; no deceleration mechanism required
- Rapid response: fast start-stop reversal response; suitable for fast positioning scenarios
- Simple structure: open-loop control without sensors; simple structure
وصف
Pneumatic Motors
Continuous Current(A) : 3
Step angle : 1.8°± 5%
Current : 3.0A
Phase No. : 2
Resistance : 0.95+10%Q
Inductance : 2.8+20%mH
Holding torque : 12/22/30kg.cm
Screw thread : 12mm
