[Multifunctional Measurement] Suitable for AC and DC current detection, providing real-time analysis of electricity and power.

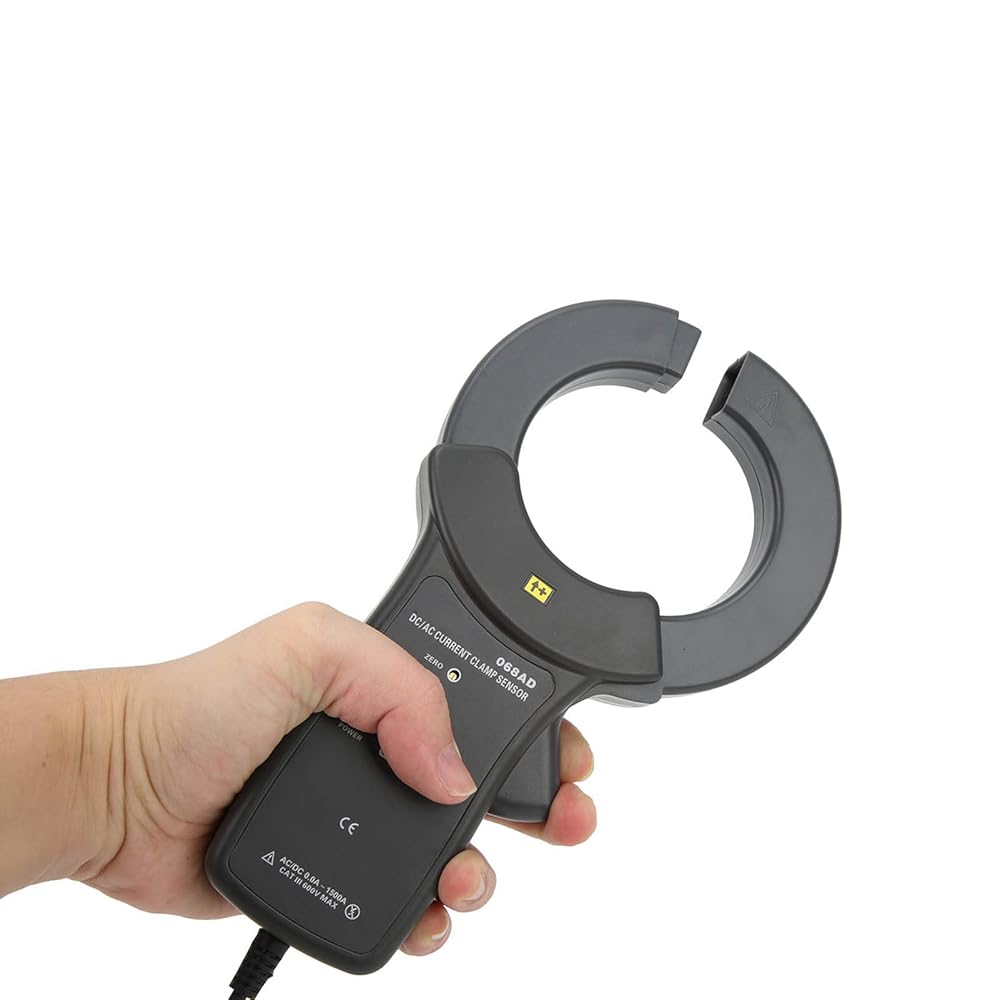

[User-Friendly Design] Clamp-shaped design allows for easy measurement without needing to disconnect live wires.
[Versatile Connections] Compatible with various devices like oscilloscopes and harmonic analyzers for enhanced data collection.
[Robust Materials] Built with ABS and permalloy, ideal for densely wired environments and high-speed rail applications.
[Wide Applications] Perfect for use in electricity, communications, railways, oil fields, and scientific research.

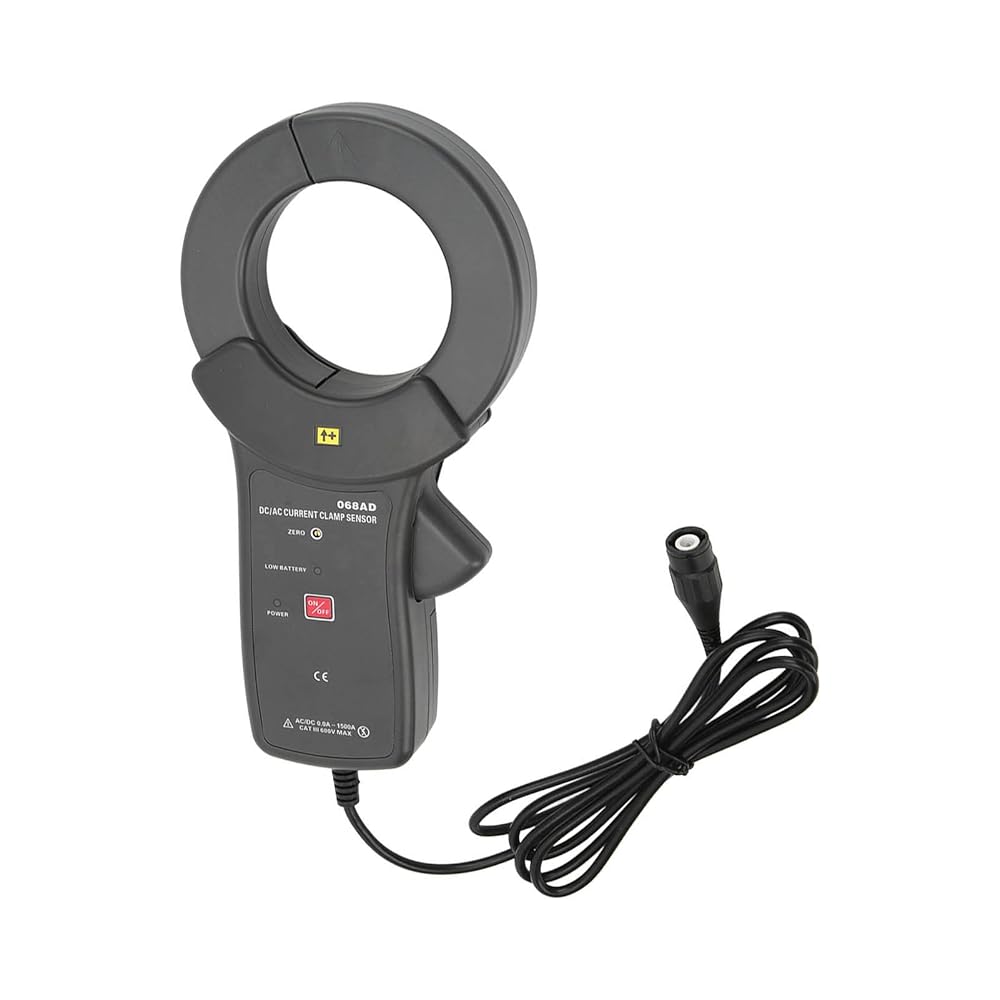

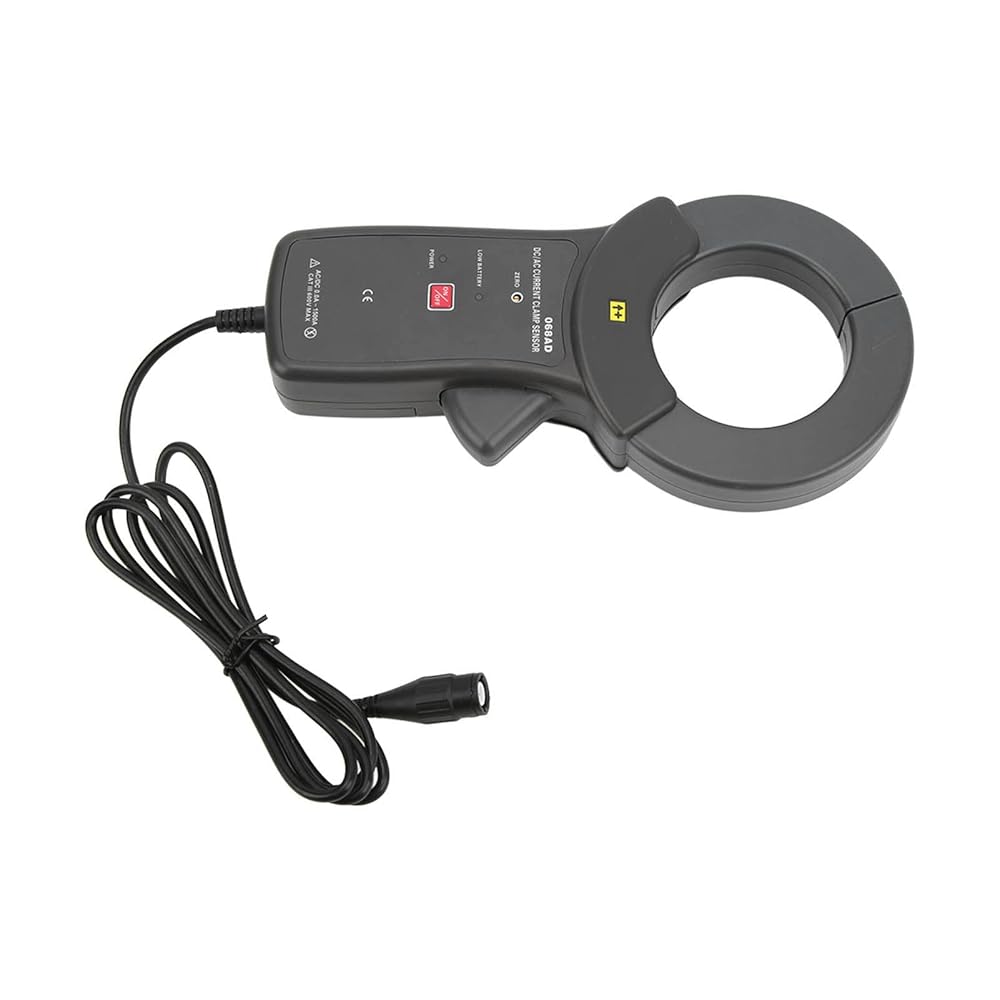

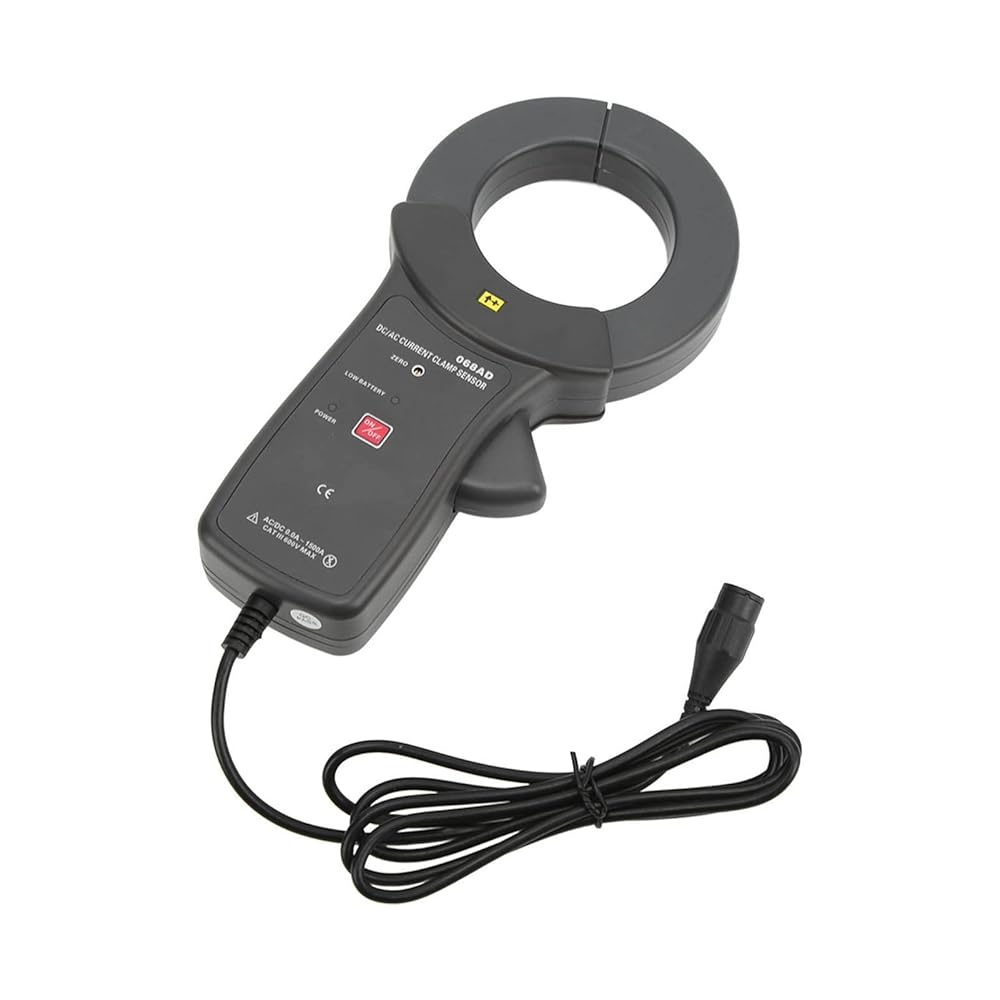

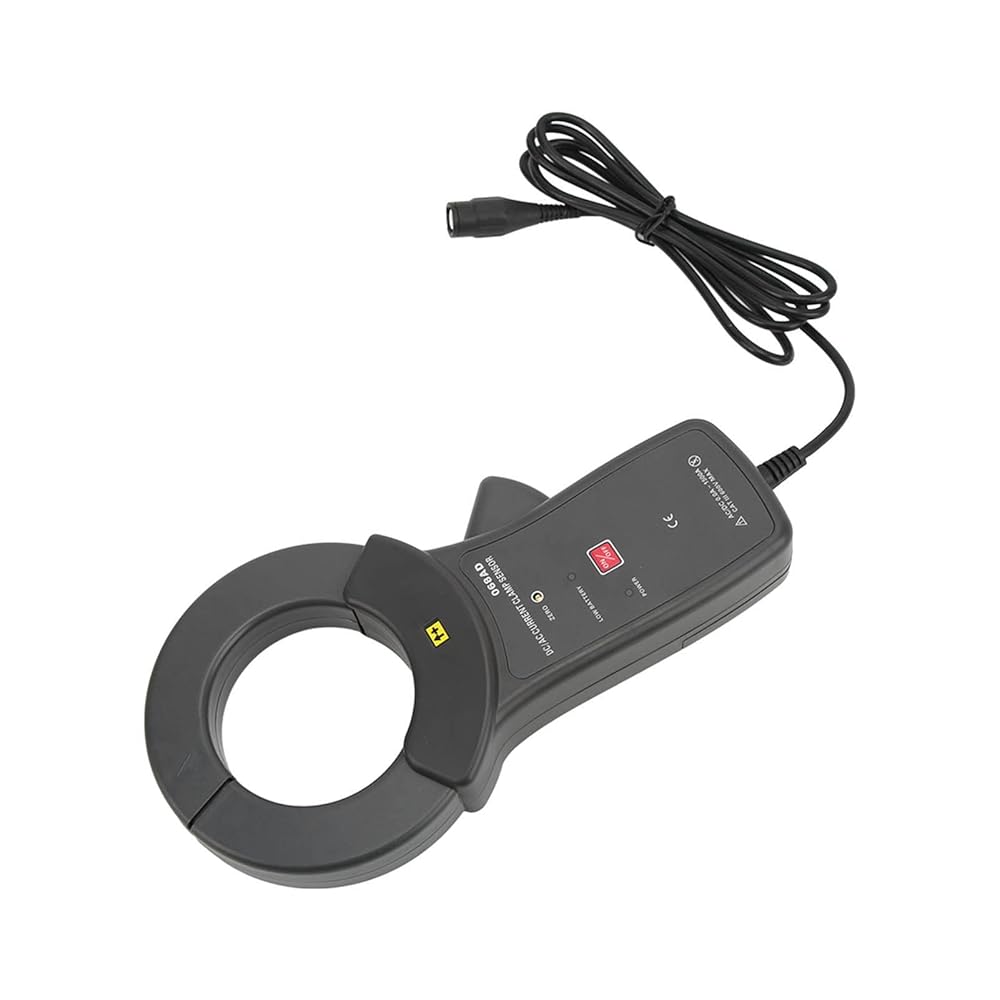

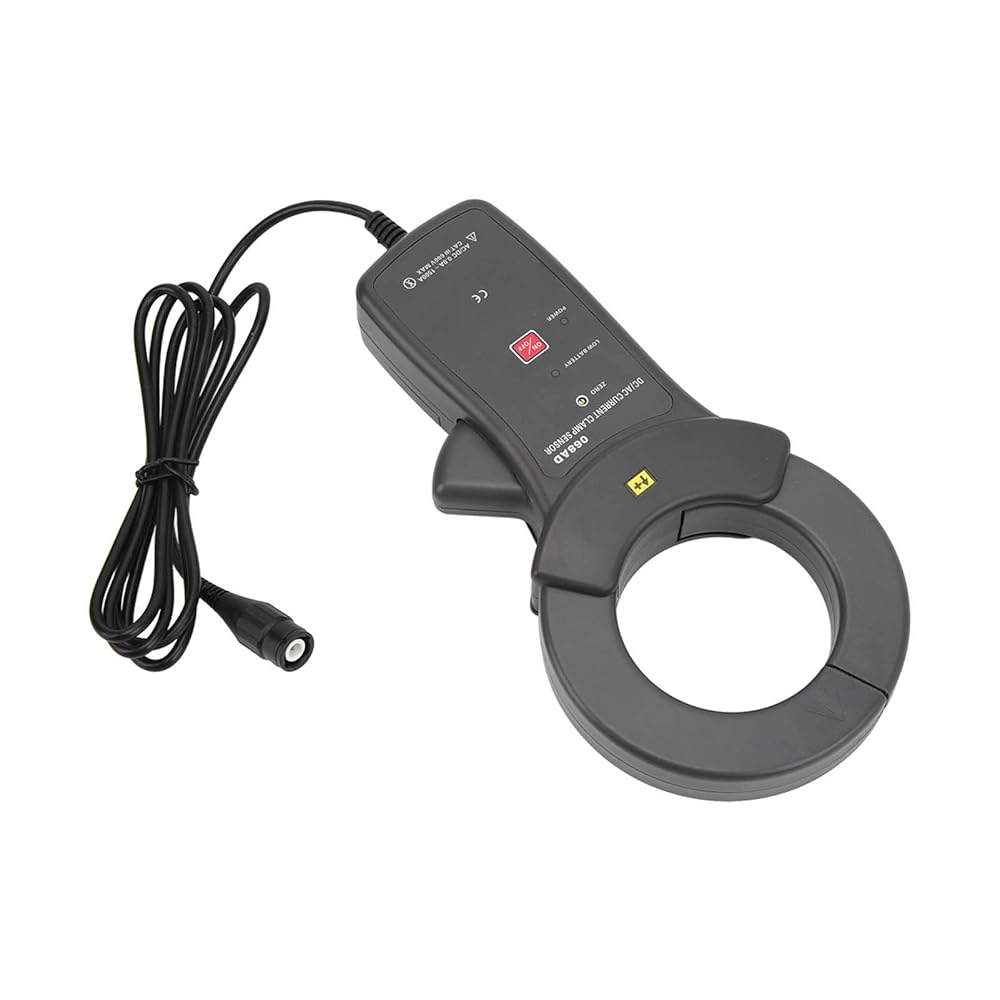

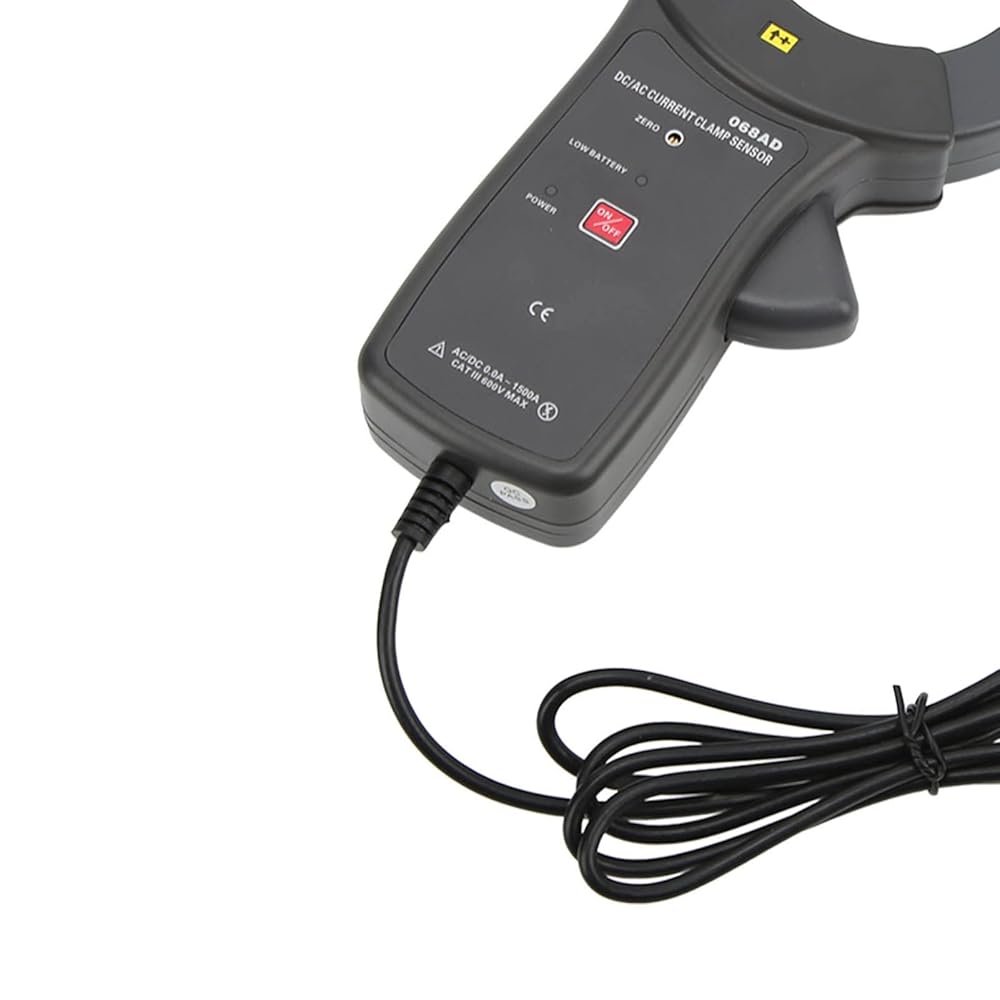

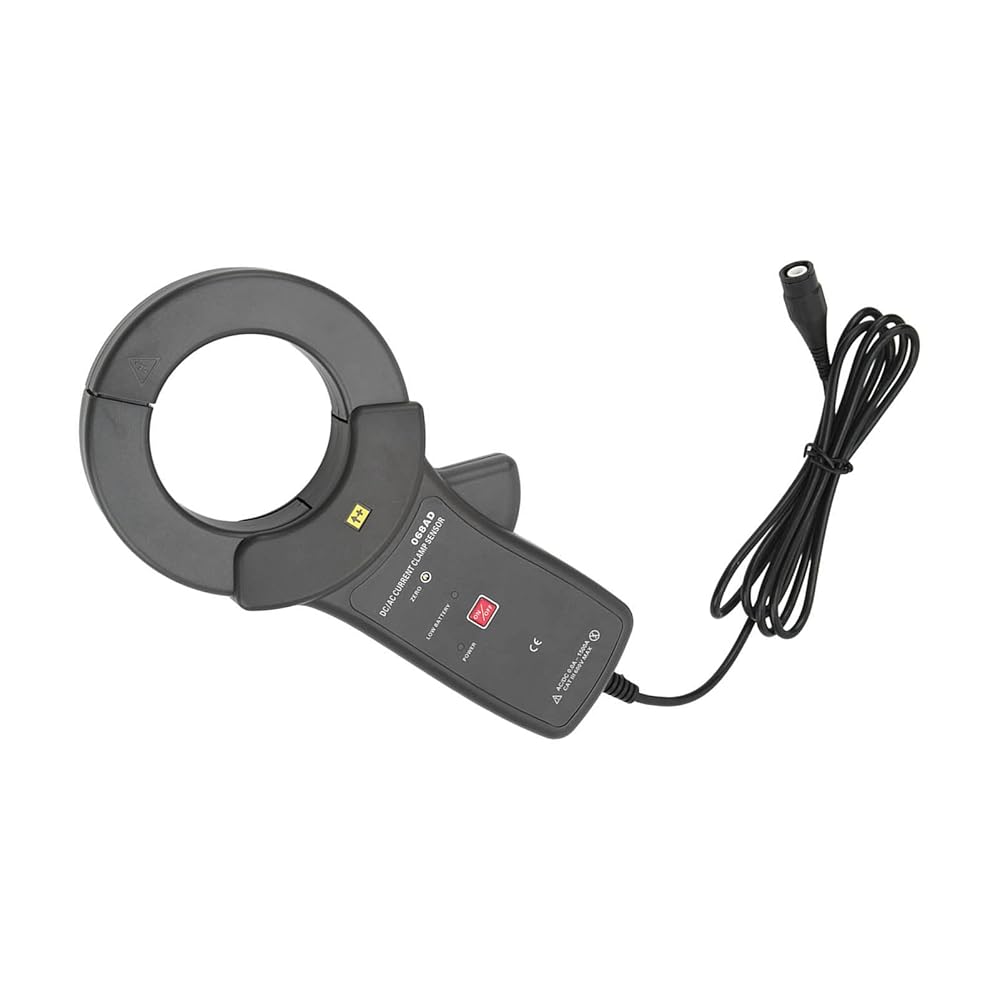

Item Type: Clamp AC DC Current Transformer
Model: ETCR068AD
Material: ABS+permalloy
Application: Widely used in electric power, communications, meteorology, railways, oil fields, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields
Range: 0.0A~1500A AC / DC
Accuracy Level: 3
Power Supply: 9VDC 6F22 (Battery Not Included)
CT Size: Approx. Φ 68mm / 2.7in
Output Signal: 1mV/1A
Resolution: AC / DC: 0.1A
Phase Error: ≤3°
Output Mode: Induction current output

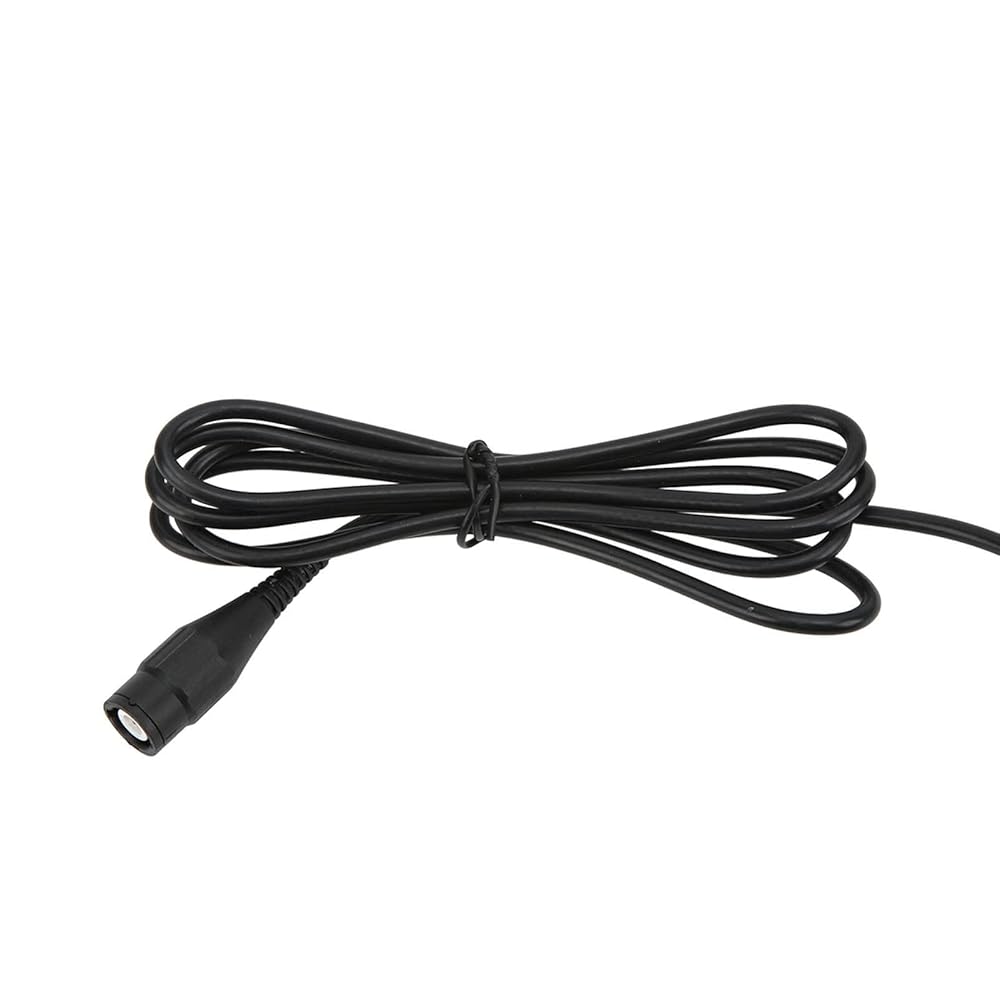

Output Interface: BNC plug/4.0mm double banana plug/3.5mm audio plug (optional)
Cable Length: Approx. 1.5m / 4.9ft
Zero Clearing Method: ZERO adjustment clearing
Working Frequency: DC~400Hz
Safety Level: CAT Ⅲ 600V Maximum
Working Temperature: -15°C~50°C
Insulation Strength: AC 3700V/rms (between iron core and Cover)
1 x Clamp AC DC Current Transformer (Battery Not Included)Please match or replace the corresponding connector according to the interface of the instrument used, otherwise it cannot be used.
