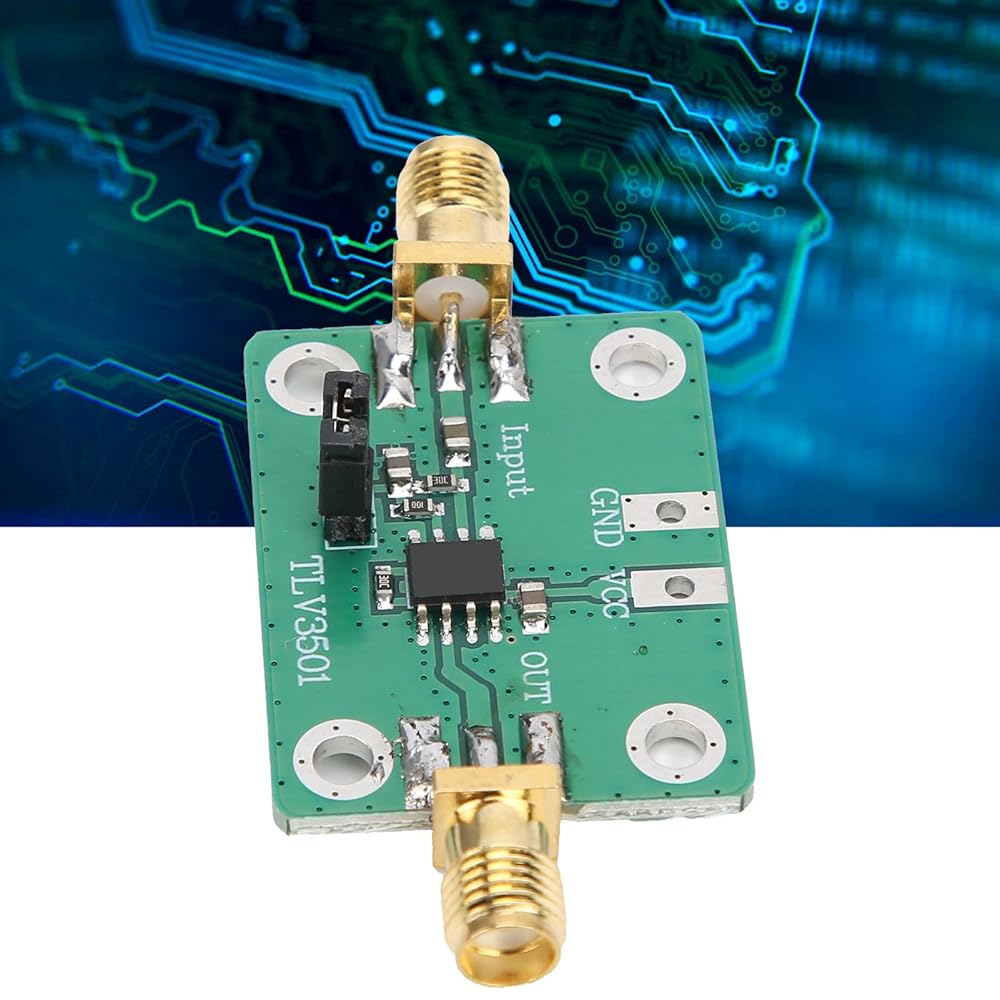

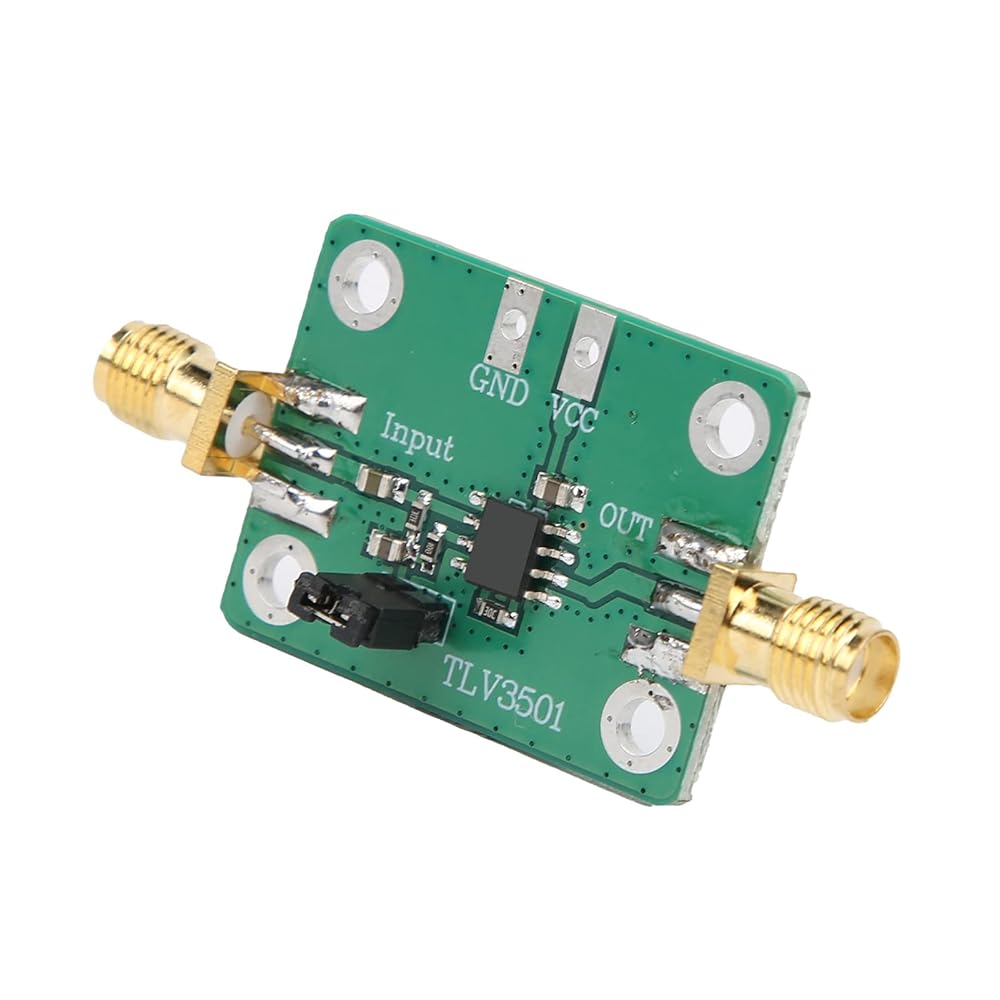

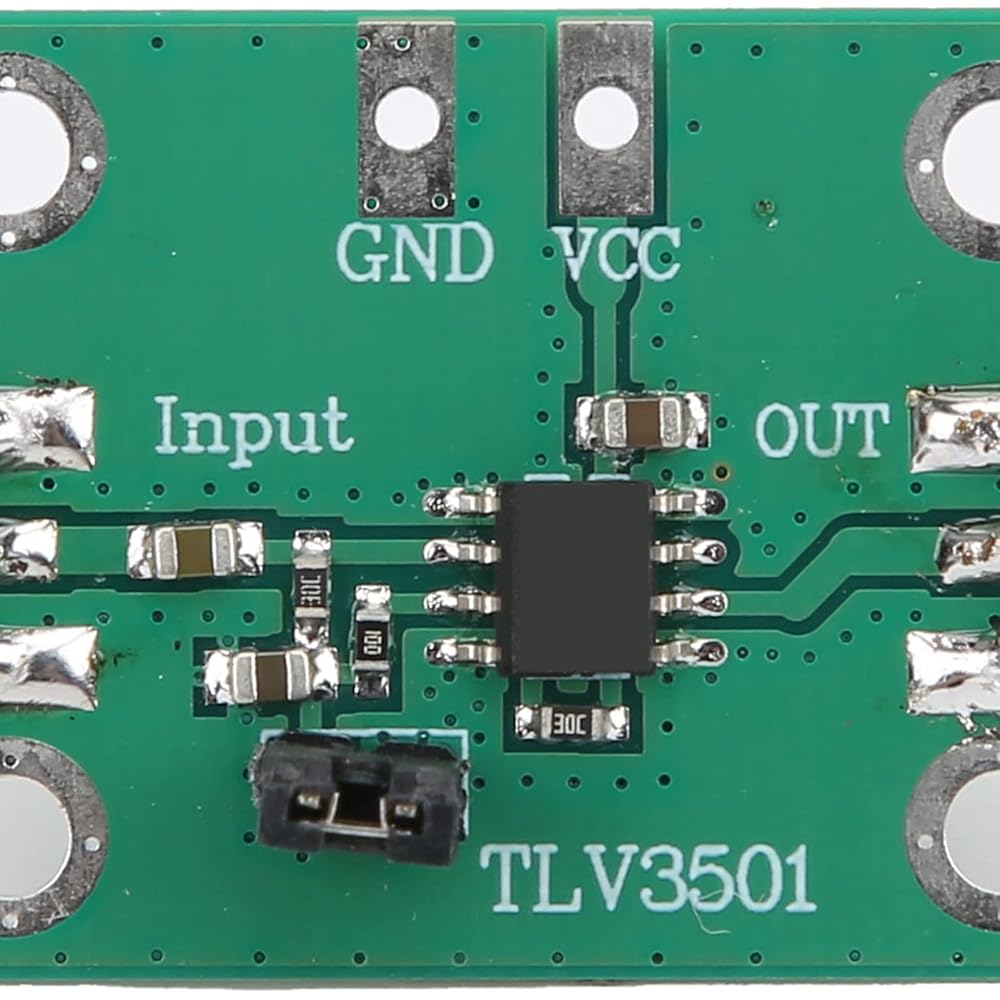

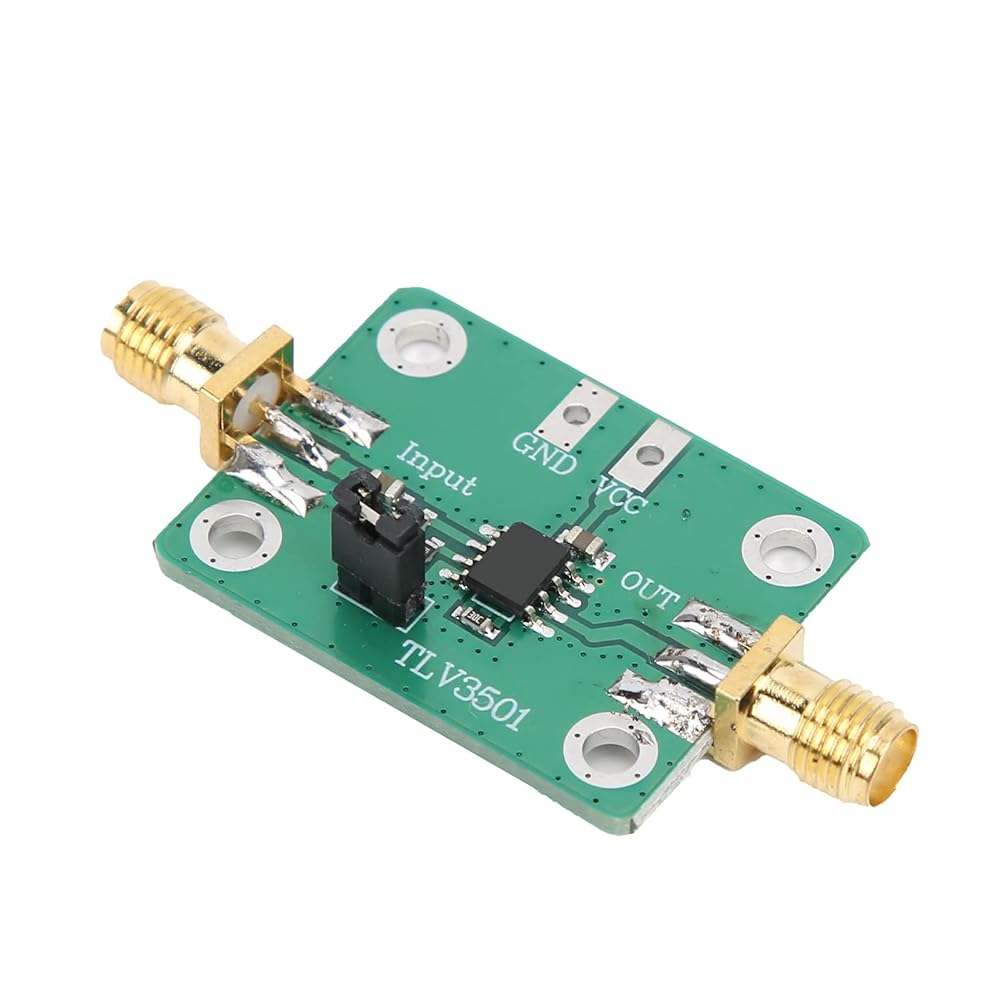

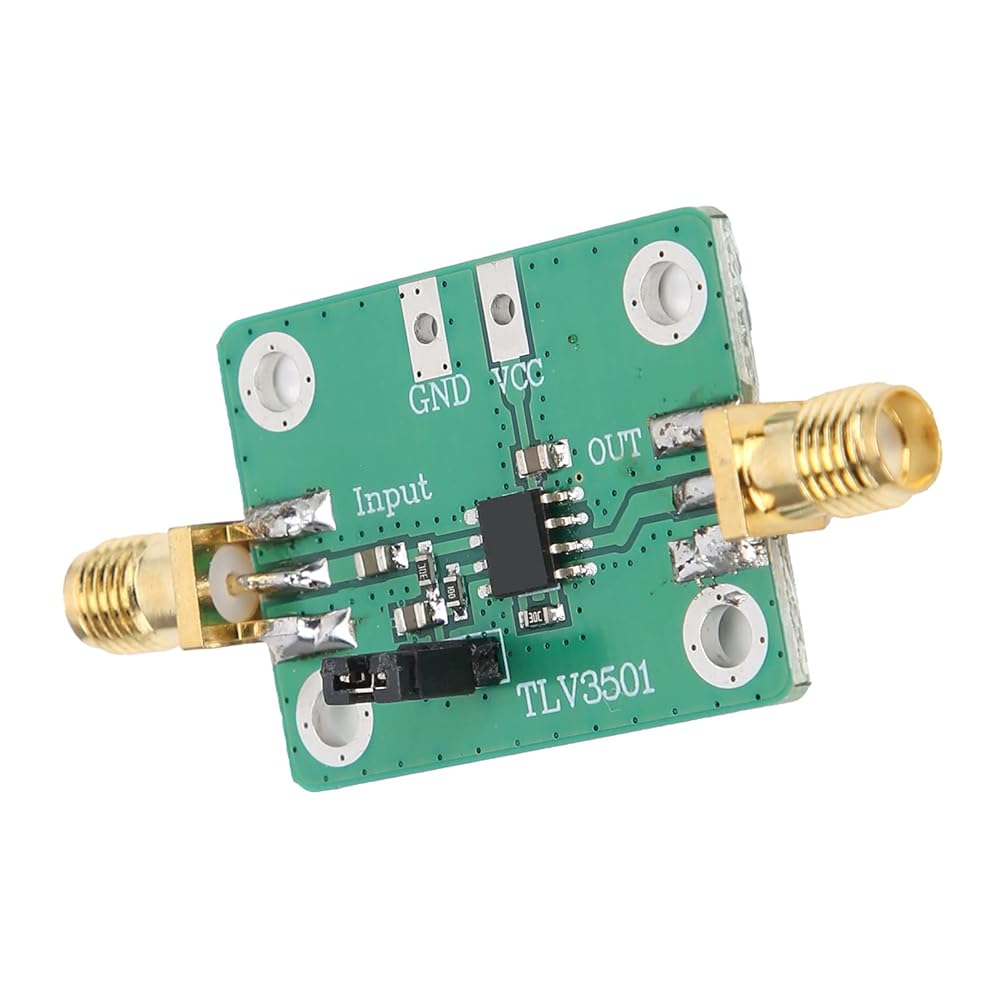

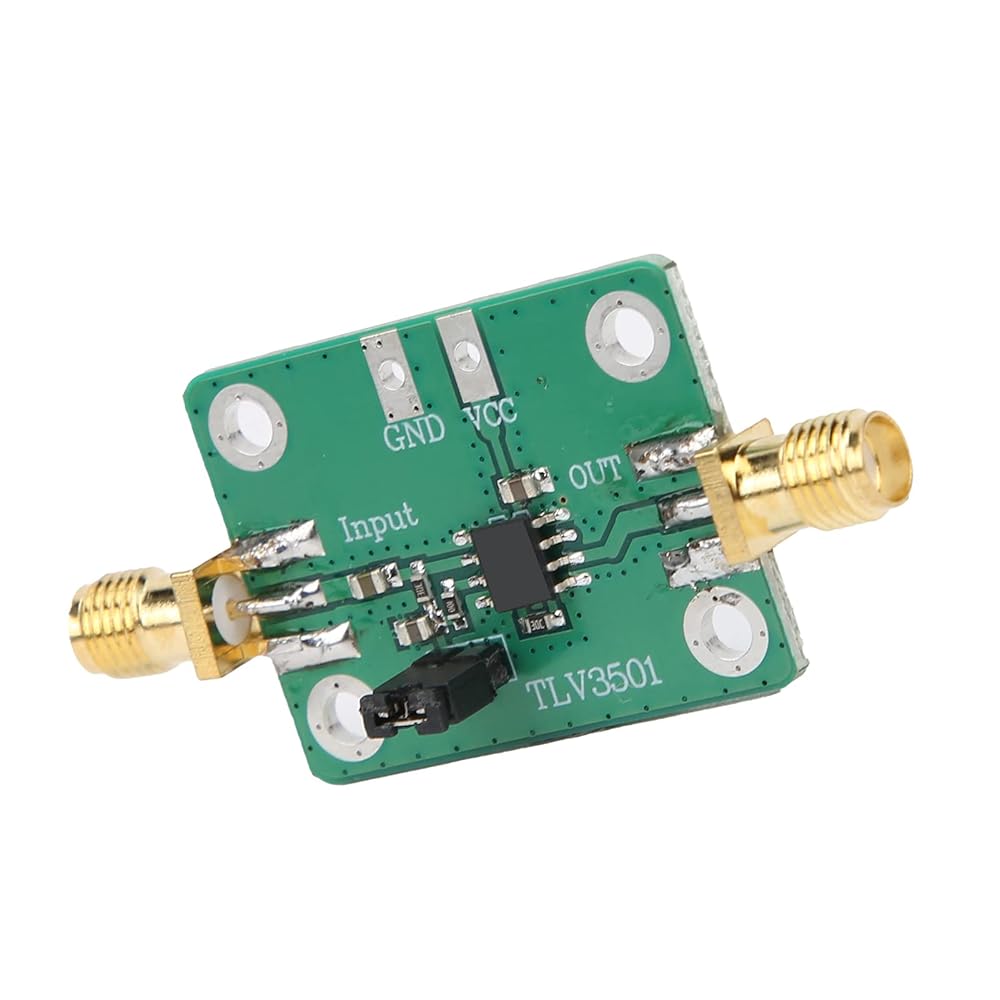

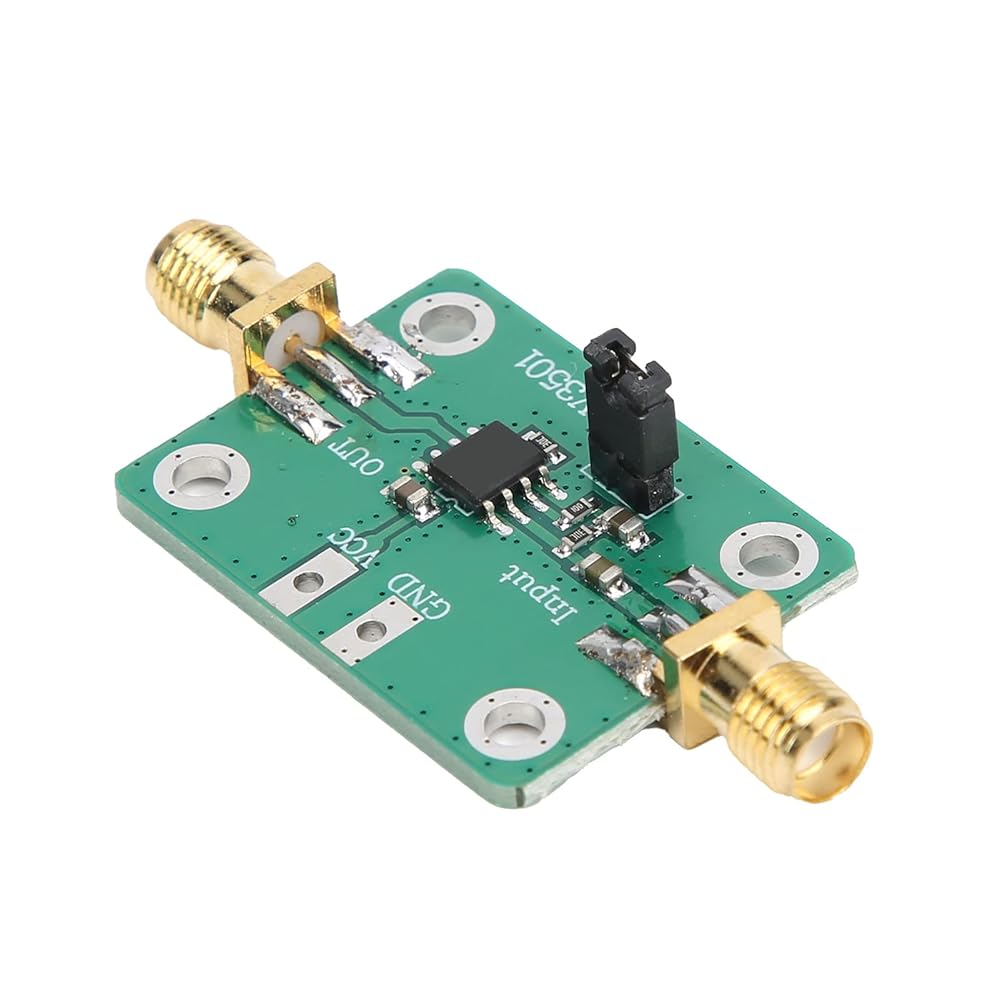

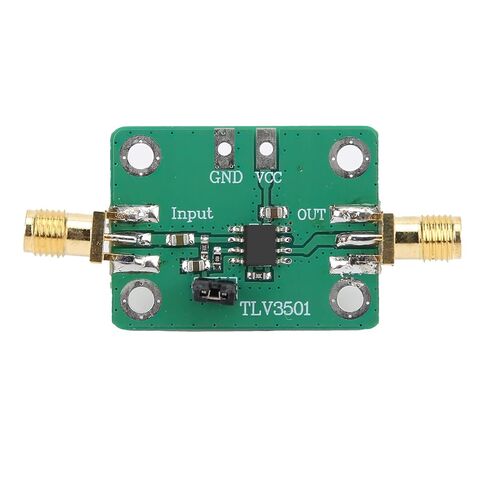

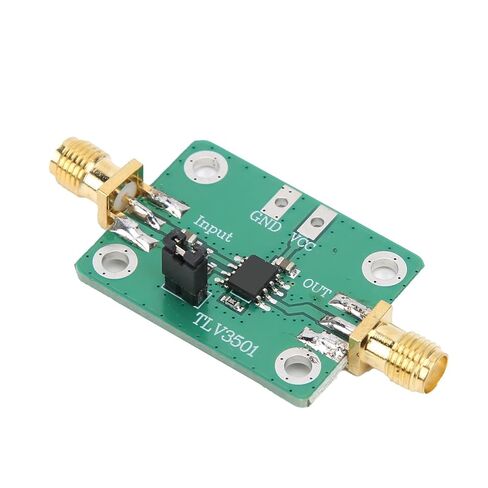

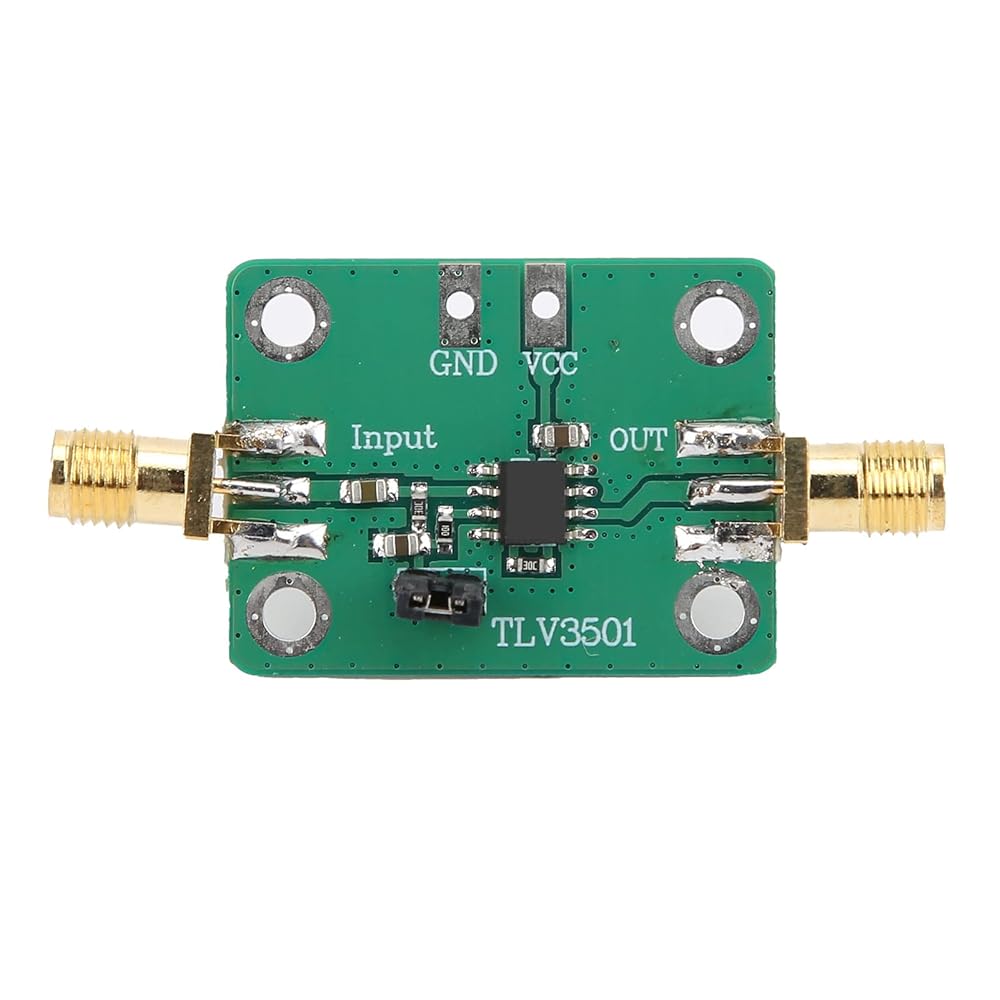

[HIGH SPEED COMPARATOR] The TLV3501 is a single channel high speed push pull output comparator with an ultra fast delay of just 4.5ns making it ideal for precision timing applications. Its exceptional speed ensures accurate waveform shaping for signals.
[VERSATILE SIGNAL SHAPING] This module excels at shaping various voltage signal cycles including frequency phase difference and time domain measurements. It serves as a crucial front end adjustment module for precise waveform modification in electronic testing setups.
[RAIL TO RAIL OUTPUT] Featuring rail to rail output capability this shaping module can directly drive both CMOS and TTL logic circuits without additional components. Its straightforward operation makes it user friendly for both beginners and professionals.
[STABLE SMA CONNECTION] Designed with a SMA female interface this module ensures secure and stable connections. The robust external screw hole design provides reliable signal transmission for long term use in demanding environments.
[PROFESSIONAL DESIGN] With its professional layout and optimized structure this shaping module offers easy installation and replacement. The compact design saves space while delivering superior performance for electronics projects and laboratory applications.

Spec:
Item Type: Shaping Module
Power Supply Voltage: 2.7-5VDC
Input Voltage: 8-1000mV (effective value)
Output Level: Rail-to-rail output, can directly drive TTL / CMOS level
Input Frequency: 1Hz-120MHz, minimum 1Hz
Interface Form: SMA female(external screw hole)

Package List：
1 x Shaping Module
