High- Audio: Features a 24-bit I2S interface for stable high-definition sound output with flat frequency response.
Dynamic Channel Output: Automatically switches between left and right channels based on input level for enhanced audio processing.
Integrated MEMS Technology: Combines sensor signal conditioning ADC and power management in a compact ultra-small design.
Versatile Applications: Ideal for voice recognition IoT devices and audio recording projects with 1.8V-3.3V operating range.
Ready-to-Use Module: Includes pre-soldered pins for easy installation in various electronic systems and prototypes.

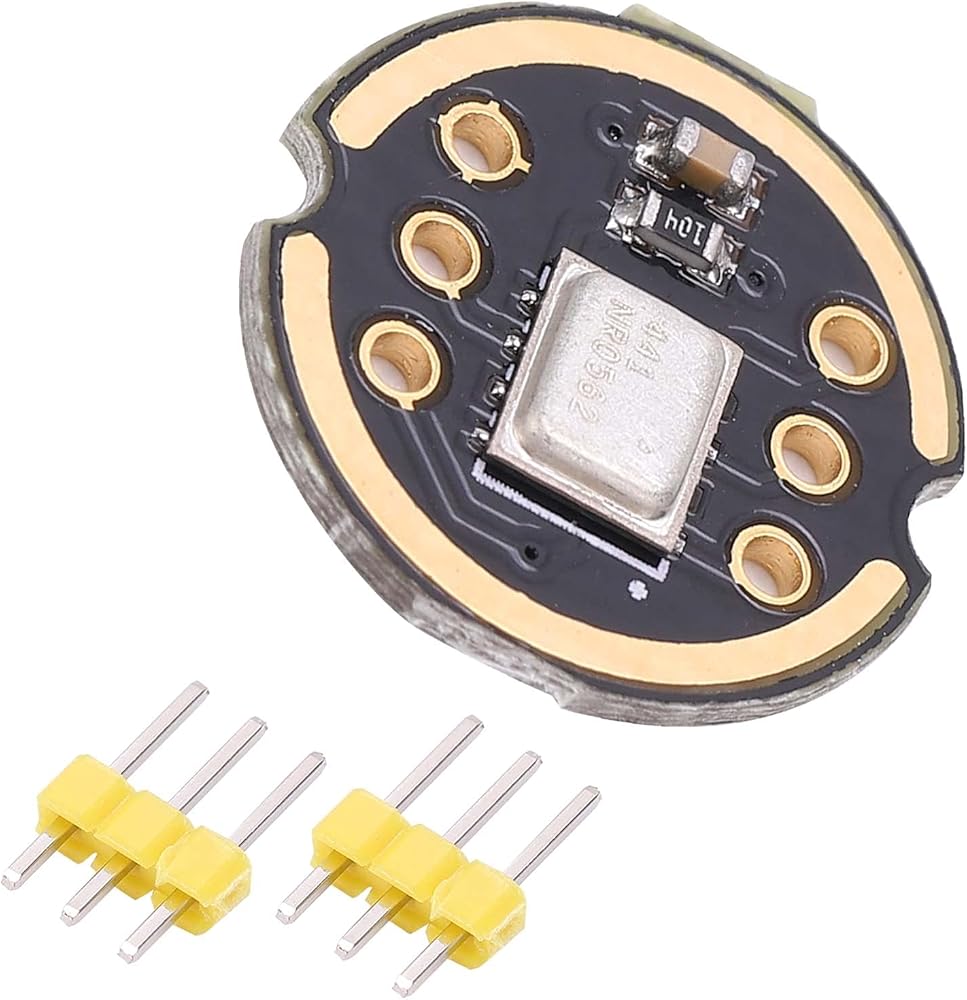

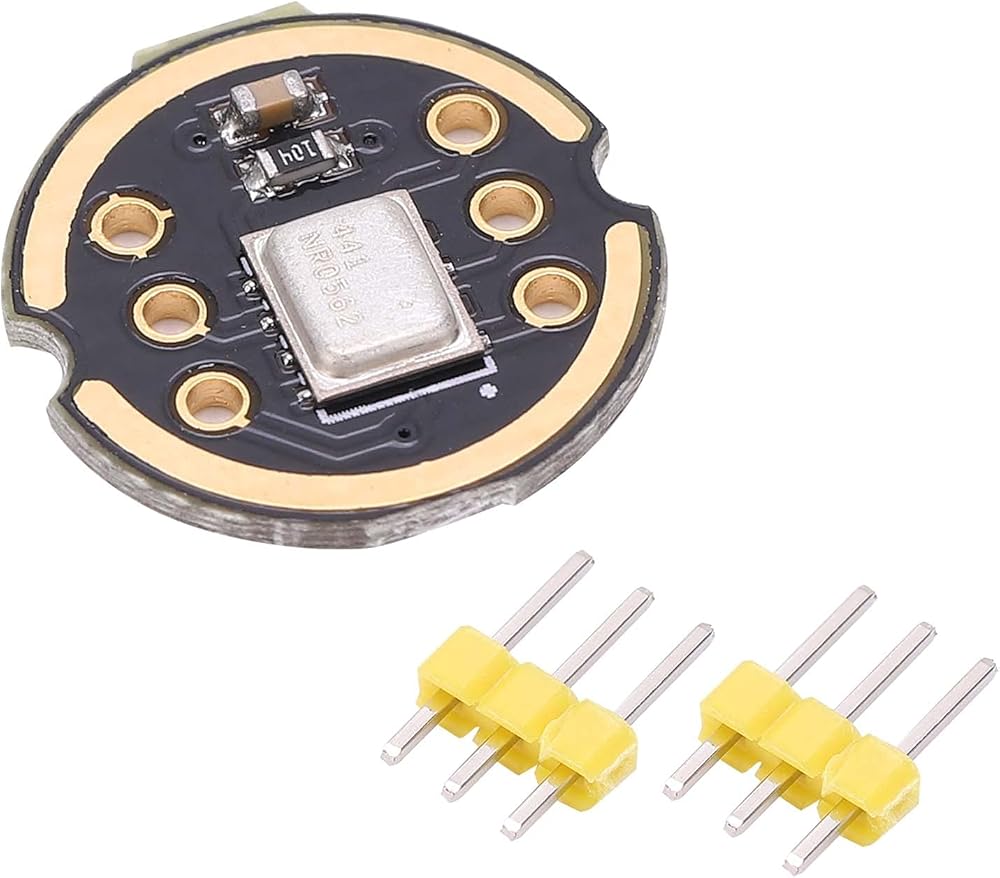

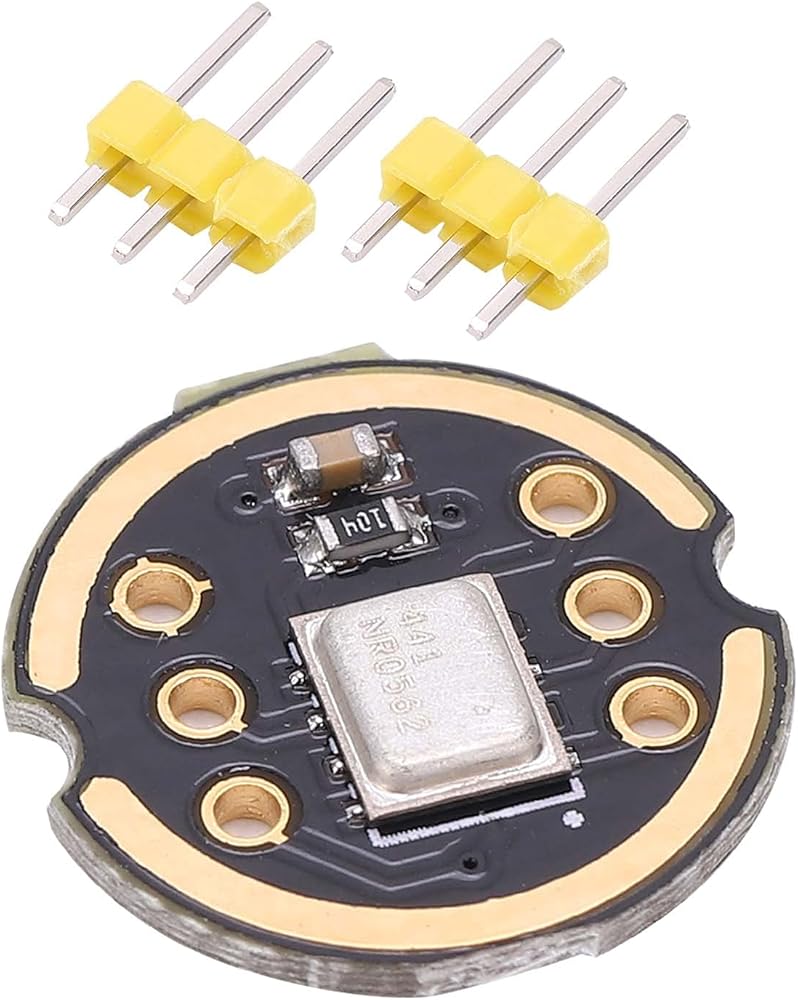

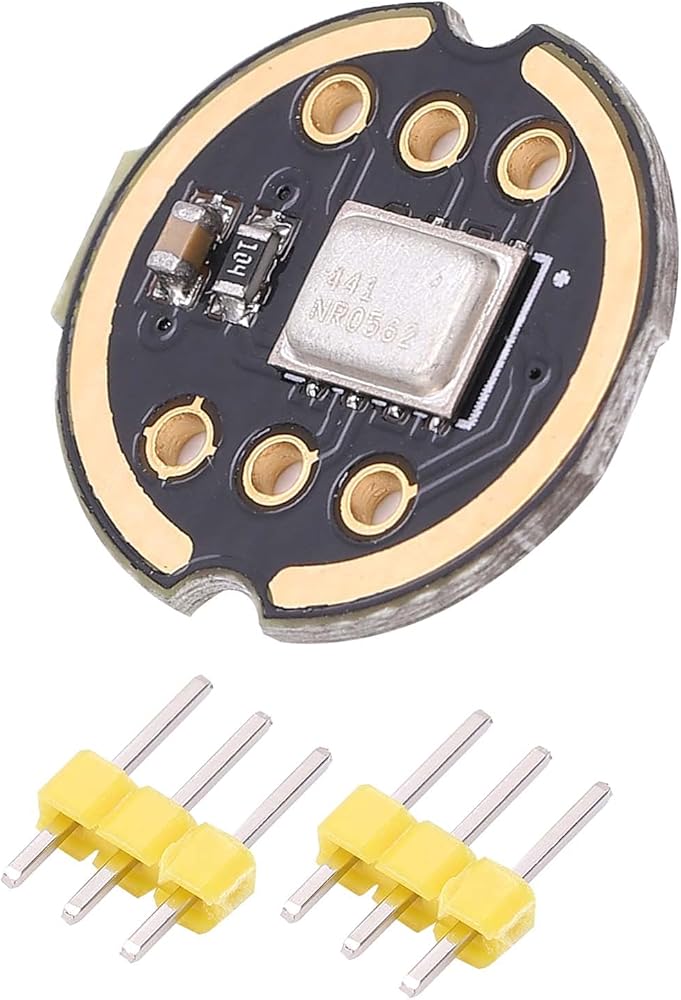

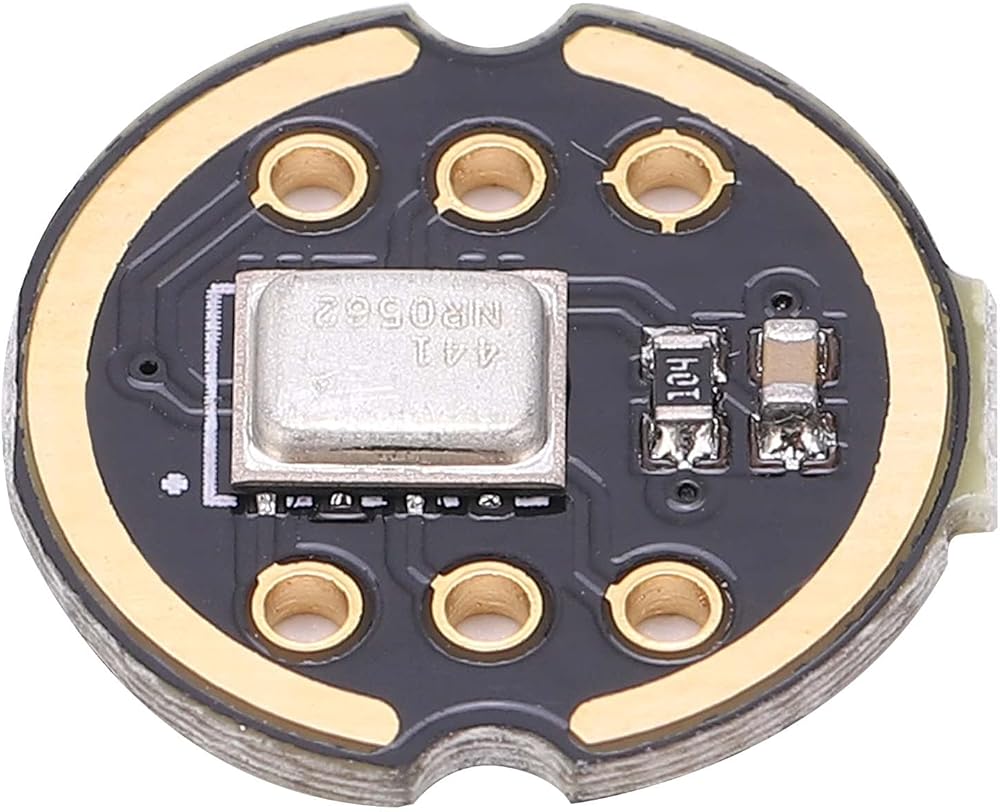

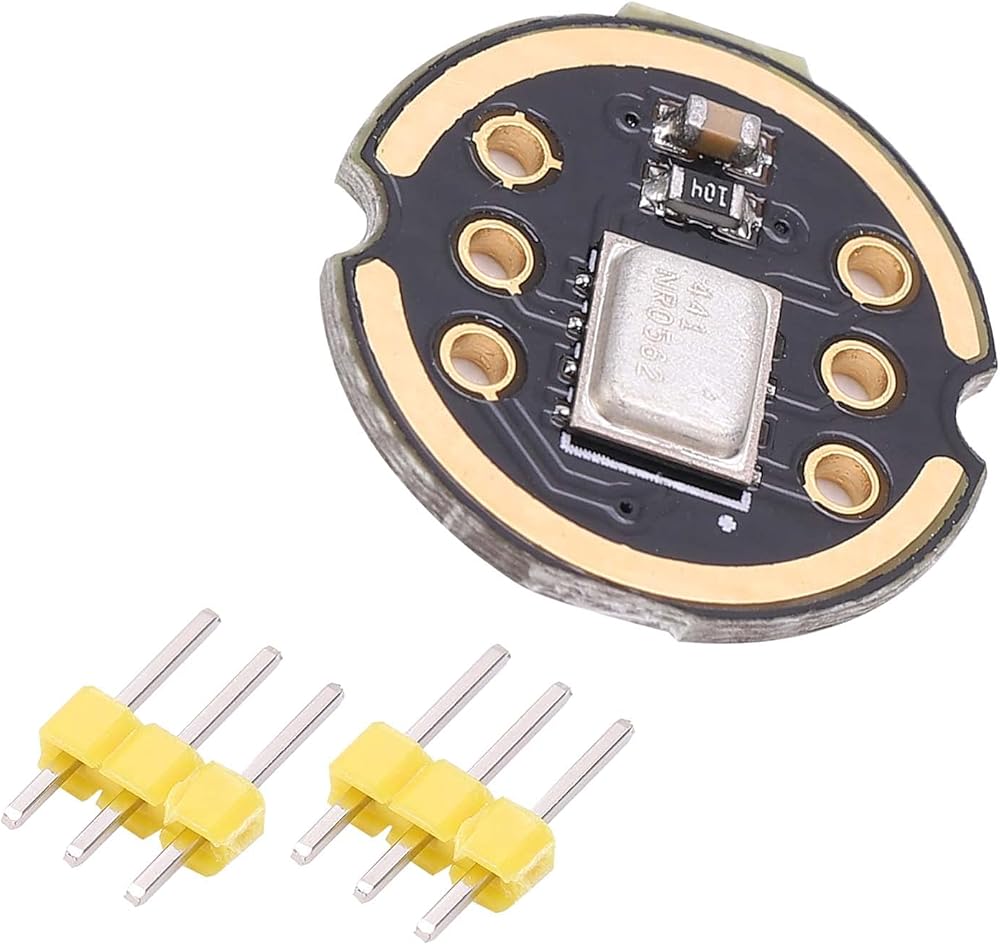

Item Type: Microphone Module

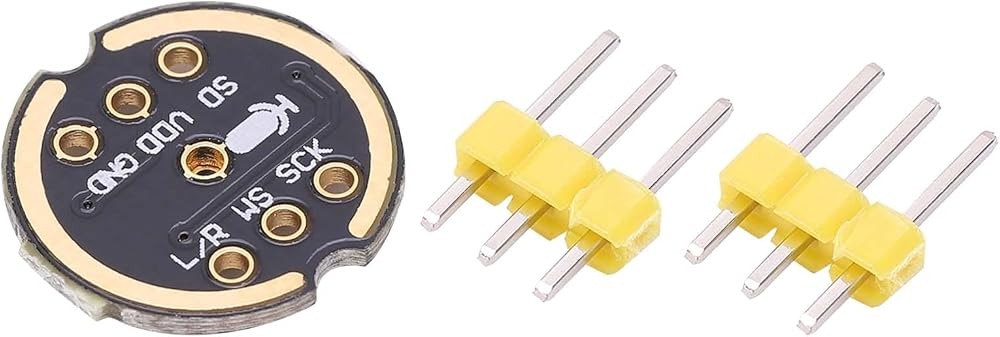

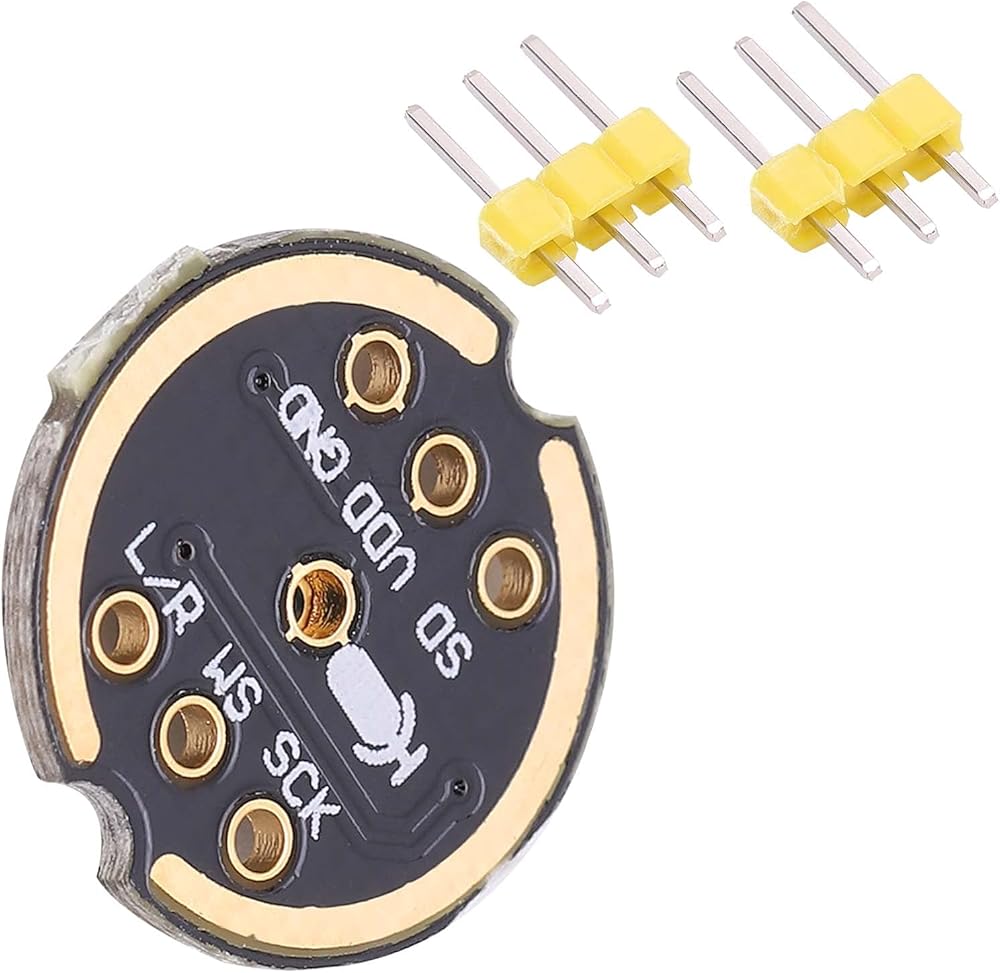

Interface Definition:
SCK: Serial data clock of I2S interface
WS: Select serial data for I2S interface
L/R: Left/right channel selection
When set to low level, the microphone outputs signals on the left channel
When set to high level, the microphone outputs the signal on the right channel
SD: Serial data output from I2S interface
VCC: Input power, 1.8V-3.3V
GND: Power supply
1 x Module2 x Pin
